SDCS-IOB-22 3BSE005177R1

/ 4.9
1001 reviews | Need a Specific Revision?

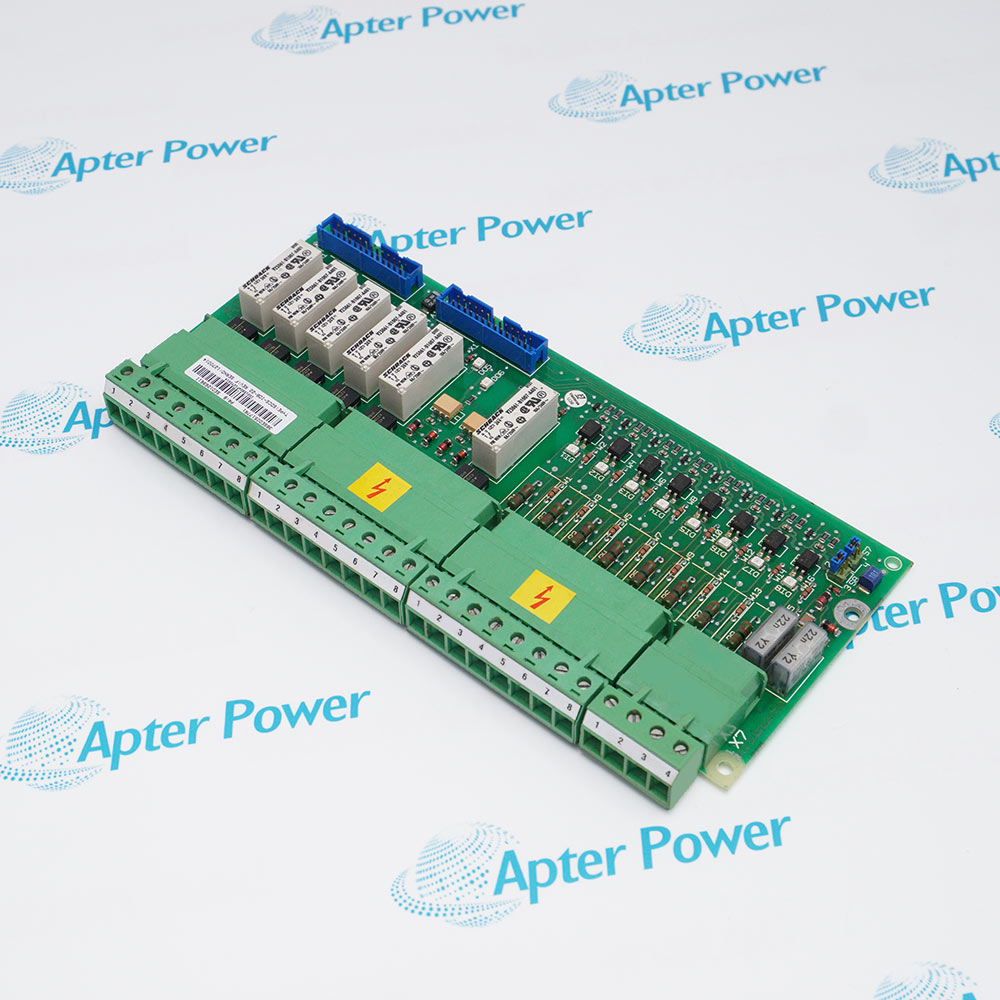

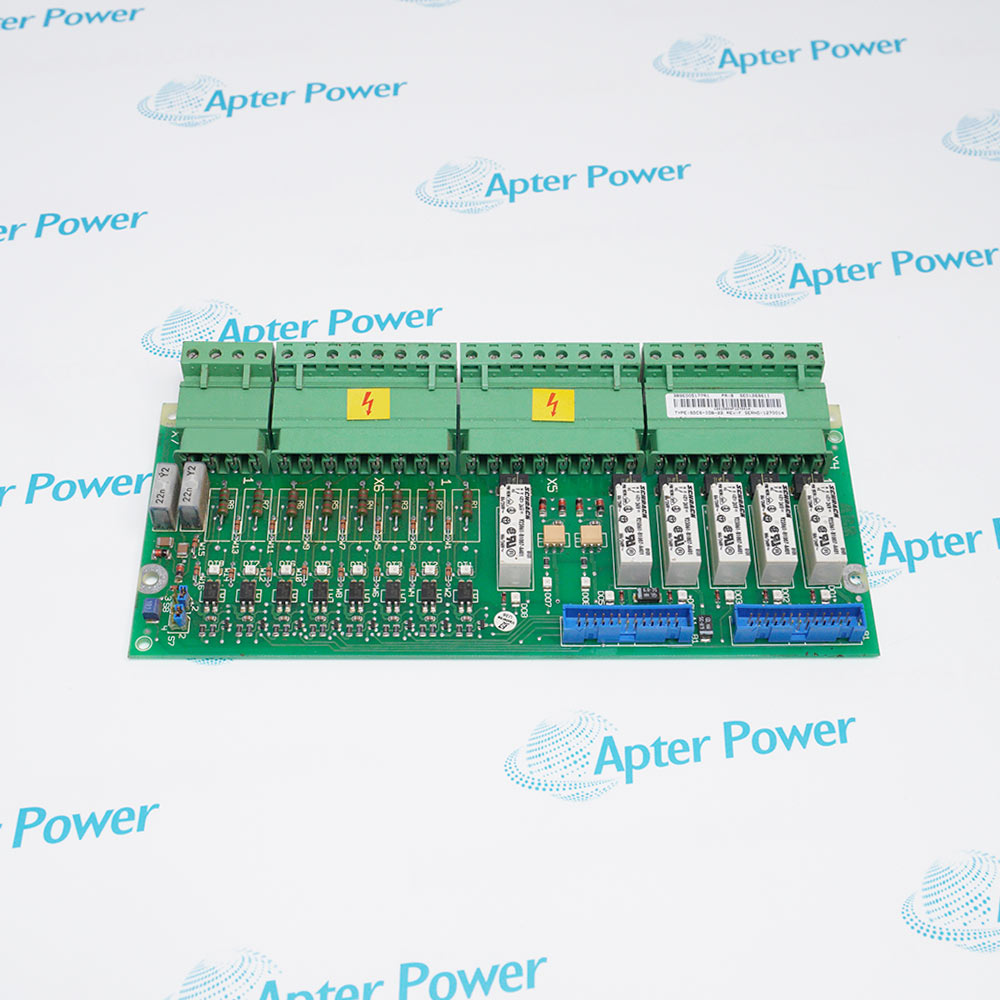

ABB SDCS-IOB-22 3BSE005177R1 is a 115 V AC digital I/O board providing eight digital inputs and eight digital outputs for DCS500 and DCS600 converter systems.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SDCS-IOB-22 3BSE005177R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SDCS-IOB-22 3BSE005177R1

  • Manufacturer:
    ABB
  • Part Number:
    SDCS-IOB-22 3BSE005177R1
  • Product Family:
    ABB Drives
  • Product Type:
    115 V AC Digital I/O Board
  • Stock:
    1
  • Type Designation:
    SDCS-IOB-22
  • Board Function:
    Digital input and output board
  • Digital Inputs:
    8
  • Digital Outputs:
    8
  • Input Version:
    115 V AC
  • Input Logic Zero:
    0 to 20 V
  • Input Logic One:
    60 to 130 V
  • Input Isolation:
    Optocouplers in two galvanic groups
  • Relay Outputs:
    K1 to K5 and K8
  • Optocoupler Outputs:
    K6 and K7
  • Maximum X1 to X2 Cable Length:
    1.7 m
  • Maximum X1 to X3 Cable Length:
    0.5 m
  • Board Outline:
    23.35 × 9.75 cm
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Digital Inputs Digital Outputs Installation Application
  • 115 V AC SDCS-IOB-2x digital I/O version
  • Eight filtered optocoupler inputs and eight outputs
  • Exact order-number mapping verified in the ABB service manual

SDCS-IOB-22 3BSE005177R1 is the 115 V AC version of ABB's external SDCS-IOB-2x digital I/O board.

The board provides eight filtered, optically isolated digital inputs and eight digital outputs arranged through external terminal connections.

ABB's service parts table maps order number 3BSE005177R1 directly to type SDCS-IOB-22, while the technical-data manual defines the electrical I/O behavior.

Availability, condition, price, and shipping time for SDCS-IOB-22 3BSE005177R1 are confirmed during quotation.

ABB SDCS-IOB-22 3BSE005177R1 115 V AC Digital I/O Board Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Eight digital inputs are provided
  • Inputs are filtered and optically isolated
  • The 115 V AC version uses 0 to 20 V for zero and 60 to 130 V for one
  • K1 through K5 and K8 are relay-isolated outputs
  • K6 and K7 are optocoupler outputs
  • ABB defines separate AC and DC switching limits for the relay contacts
  • The board is installed outside the DCS converter module
  • The X1-X2 cable may be up to 1.7 m
  • The X1-X3 cable may be up to 0.5 m
  • External digital I/O for ABB DCS500B converters
  • External digital I/O for ABB DCS600 converters
  • Digital I/O service in the common DCS500, DCS600, DCF500, and DCF600 spare-parts architecture
Description
ABB SDCS-IOB-22 3BSE005177R1 has eight filtered 115 V AC digital input channels with optocoupler isolation in two galvanically separated groups. ABB specifies a logic zero range of 0 to 20 V and a logic one range of 60 to 130 V.

The output configuration of SDCS-IOB-22 3BSE005177R1 comprises relay outputs K1 through K5 and K8, together with optocoupler outputs K6 and K7. Input signals and output loads are connected through the external terminal arrangement.

ABB SDCS-IOB-22 3BSE005177R1 supports a maximum cable length of 1.7 m between X1 and X2 and 0.5 m between X1 and X3. Its published circuit-board outline measures approximately 23.35 cm by 9.75 cm.
Alternative Names
SDCS-IOB-22 3BSE005177R1 SDCS IOB 22 3BSE005177R1 ABB SDCS-IOB-22 ABB 3BSE005177R1 3BSE005177R1 SDCS-IOB-22 ABB DCS500 SDCS-IOB-22
Technical notes
SDCS-IOB-22 3BSE005177R1 replacement requires matching the 115 V AC input version, terminal assignments, relay and optocoupler outputs, cable lengths, mounting supports, and documented converter configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can I confirm ABB SDCS-IOB-22 3BSE005177R1 is compatible with my converter?
Verify the order number, 115 V version, converter system, cables, terminals, and installed documentation.
Can ABB SDCS-IOB-22 3BSE005177R1 replace another SDCS-IOB-2x board by appearance alone?
No. Variants use different input-voltage versions, so the complete type and order number must match.
What should be documented before removing ABB SDCS-IOB-22 3BSE005177R1?
Record terminal wires, connectors, cable routes, supports, orientation, loads, system relationship, and revision markings.
Which items may need reuse when replacing ABB SDCS-IOB-22 3BSE005177R1?
Confirm whether cables, terminals, supports, shielding, and field wiring are included or retained from the installation.
What checks follow installation of ABB SDCS-IOB-22 3BSE005177R1?
Verify isolation, wiring, input recognition, output operation, relay loads, interlocks, and converter diagnostics.
What should be checked if ABB SDCS-IOB-22 3BSE005177R1 does not read inputs or switch outputs?
Check field signals, commons, protection, X1 cables, loads, converter configuration, and diagnostics before condemning the board.
What information is needed to quote ABB SDCS-IOB-22 3BSE005177R1?
Provide labels, converter model, board type, connector photos, condition, quantity, and destination.
