    Apter Power stocks fully tested, surplus ABB RMIO-01C drive units, offering heavy industries an essential, cost-effective replacement option to keep vintage heavy-duty industrial drives running smoothly.

RMIO-01C

/ 4.9
1001 reviews | Need a Specific Revision?

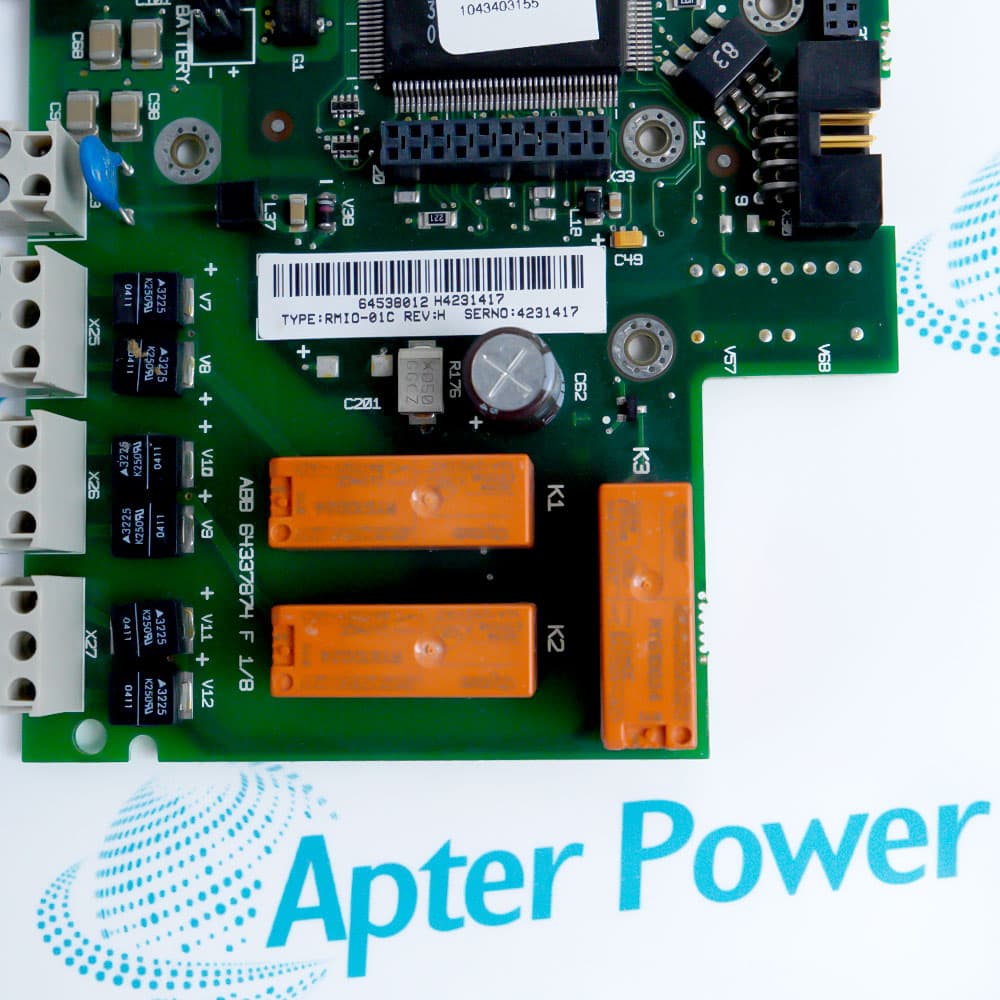

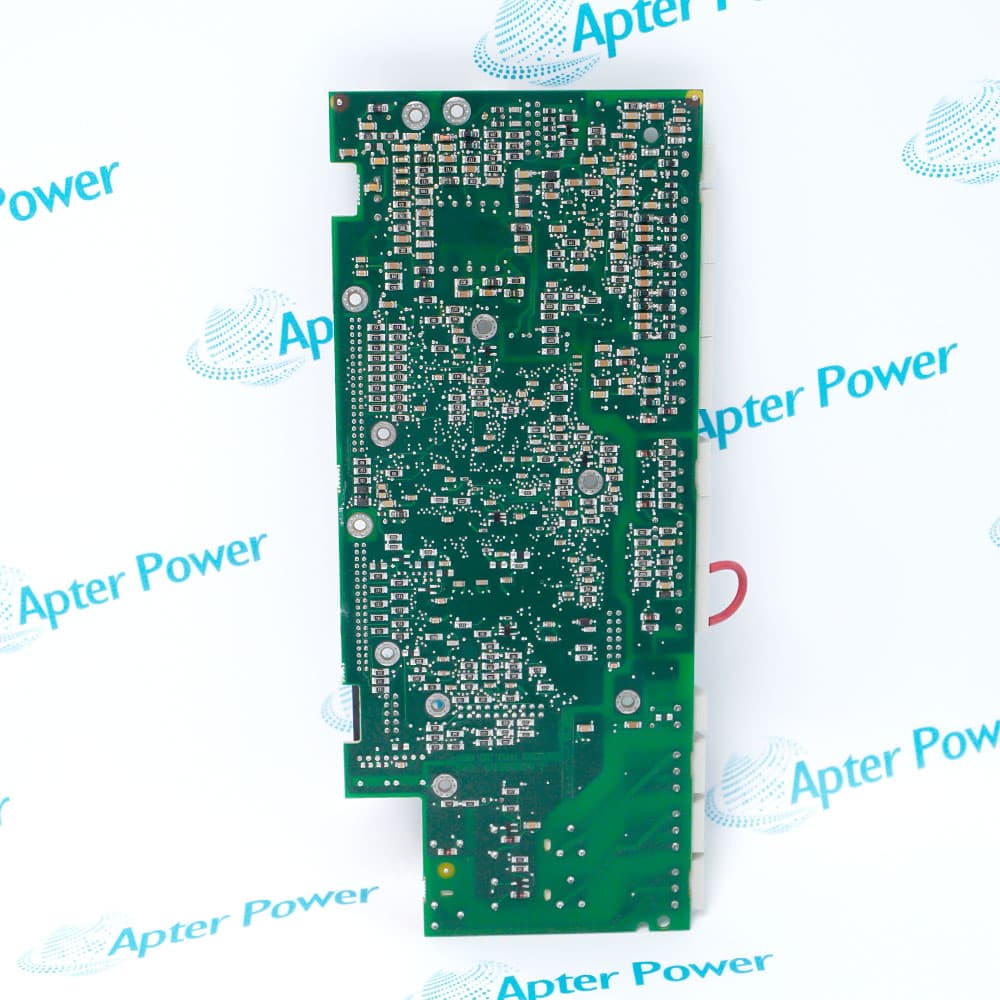

The ABB RMIO-01C PCB Kit is a reliable control interface circuit board for compatible ABB drives, featuring 24 V DC power supply, robust environmental adaptability, and long operational life.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for RMIO-01C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for RMIO-01C

  • Manufacturer:
    ABB
  • Part Number:
    RMIO-01C
  • Product Family:
    ABB Drives
  • Product Type:
    PCB Kit
  • Stock:
    1
  • Max. power consumption:
    100 mA (5 V) + 120 mA (24 V)
  • Estimated min. lifetime:
    100 000 h
  • Power Supply:
    24 V DC ± 10% (from drive’s internal power rail)
  • Isolation test voltage:
    500 V AC
  • Operating Temperature Range:
    -20°C to +60°C (-4°F to +140°F)
  • Humidity:
    Up to 95%, non-condensing
  • Weight:
    0.24 kg
  • Estimated shipping dimensions:
    24.1x10.4x1.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Firmware & Updates Operating Environment

Features:

  • High-Speed Direct Torque Control (DTC) Computation
  • Galvanically Isolated Integrated I/O Terminal System
  • Native Support for Specialized Fiber-Optic Communication
The ABB RMIO-01C utilizes a dedicated high-performance processing architecture that calculates the exact state of the motor core torque up to 40,000 times per second. This sub-millisecond dynamic response enables optimal mechanical performance, mitigates high-impact load shocks, and delivers full torque at zero speed for sophisticated industrial assets.

Designed with advanced internal noise-suppression networks, the ABB RMIO-01C serves as a complete control board and connection kit (CNTL BD+CONN KIT). Each input and output line is galvanically isolated to isolate the sensitive control logic from external ground loops and voltage spikes, ensuring maximum operational uptime.

The ABB RMIO-01C incorporates onboard DDCS (Distributed Drives Communication System) fiber-optic channels that allow high-speed, noise-immune parallel links. This specialized configuration allows real-time master-follower load sharing, connection to remote I/O blocks, and direct data exchange with overarching system controllers without electrical interference.

The RMIO-01C ABB Main Motor Control may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB RMIO-01C Main Motor Control Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB RMIO-01C Main Motor Control

General

  • Manufacturer ABB
  • Model RMIO-01C
  • Condition New Original ready stock
  • Product Family RMBA-01,FDPI-02,NKLS01-15
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Heavy-Duty Maritime Propulsion & Thrusters: The ABB RMIO-01C is featured in specialized ACS800-11 marine service kits, providing rapid dynamic responses to sudden load alterations for ship propulsion, winches, and bow thrusters.
  • Metals and Mining Conveyor Multi-Drive Systems: Implemented in heavy-industry material handling, the ABB RMIO-01C supports tight speed synchronization and master-follower load distribution across long overland conveyors to avoid mechanical belt strain.
  • Oil & Gas Centrifugal Compressor Controls: Operating in hazardous petrochemical environments, the board manages critical surge-protection control loops and high-inertia acceleration profiles required by large-horsepower gas compressors.
  • Water & Wastewater Pumping Stations: The board optimizes energy consumption profiles via advanced flux optimization firmware routines, reducing mechanical water hammer phenomena through programmable S-curve acceleration paths.
  • Firmware Configuration via DriveWindow: Software migration or initial loading on the ABB RMIO-01C is carried out via fiber-optic PC connections running DriveWindow software, enabling safe firmware flashing.
  • Custom Application Programming (Adaptive Programming): The ABB RMIO-01C supports built-in adaptive programming blocks, allowing field engineers to write custom logical structures and control loops directly within the board without adding an external micro-PLC.
  • Parameter Backup Retrievability: All parameters modified on the ABB RMIO-01C can be uploaded and permanently stored within the non-volatile memory of the CDP-312R keypad panel, facilitating instant recovery during board swaps.
  • Software Version Compatibility: The hardware layout of the ABB RMIO-01C is engineered to remain fully backward compatible with legacy ACS800 firmware revisions ranging from version 7.x up to the latest factory releases.
  • Thermal Management in Enclosures: The ABB RMIO-01C requires adequate forced-air cooling within the drive module cabinet to prevent localized heat pockets from exceeding its nominal rating.
  • Electromagnetic Compatibility (EMC) Shielding: Featuring an integrated grounded metal mounting bracket, the board relies on full surface contact with the drive frame to channel high-frequency switching noise safely away from logic circuits.
  • Vibration Dampening Standards: The structural traces and solder configurations of the ABB RMIO-01C comply with standard cabinet-mounted vibrational stresses, making it suitable for mounting adjacent to large vibrating machinery when properly housed.
  • Corrosive Protection via Optional Coating: For installations in paper mills, rubber facilities, or water treatment plants plagued by corrosive gases, the board is provided with a specialized conformal layer to avoid micro-corrosion on copper leads.
Description
The ABB RMIO-01C PCB Kit is a core control and interface component tailored for select ABB drive systems, serving as the backbone for signal processing, power management, and system connectivity.  It operates on a 24 V DC ±10% power supply sourced from the drive’s internal power rail, with precise power consumption characteristics: a maximum of 100 mA (5 V) + 120 mA (24 V), a typical 250 mA when no optional modules are installed, and up to 1200 mA when integrated with optional modules, ensuring flexibility for diverse industrial setups.

Engineered for durability, this PCB kit delivers an estimated minimum lifetime of 100,000 hours, guaranteeing consistent performance in long-term industrial operations.  The ABB RMIO-01C meets strict safety standards with an isolation test voltage of 500 V AC, minimizing electrical risks in demanding environments.  Its robust environmental tolerance—operating temperatures ranging from -20°C to +60°C (-4°F to +140°F) and resistance to up to 95% non-condensing humidity—makes it suitable for deployment in harsh settings such as manufacturing plants, automation facilities, and process control systems.
Alternative Names
RM1O-01C RMI0-0IC RM1O01C RMI00IC 68463815 RMBA-01 FDPI-02 NKLS01-15
Technical notes
The ABB RMIO-01C is distributed as a generic hardware PCB kit without pre-loaded application software. Upon installation, engineers must flash the appropriate firmware variant utilizing the Drives Configurator or code 3AXD50000155385, and ensure all fiber optic and ribbon cable connections are fully powered down before replacing the ABB RMIO-01C to prevent transient voltage damage.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the operating voltage of the RMIO-01C PCB Kit?
The RMIO-01C PCB Kit operates at 24 V DC ±10%, supplied from the drive’s internal power rail.
What isolation ratings does the RMIO-01C PCB Kit have?
The PCB Kit has an isolation test voltage of 500 V AC.
How does the ABB RMIO-01C communicate with the power unit, and what interfaces are supported for upstream PLC integration?
The ABB RMIO-01C interfaces with the main power circuit boards via a dedicated internal ribbon flat cable carrying the parallel link protocols. For upstream automation networks, it features onboard slots to support optional fieldbus adapters including RPBA-01 (Profibus-DP), RETA-01 (EtherNet/IP / Modbus/TCP), and RMBA-01 (Modbus RTU).
What onboard diagnostic metrics can engineers extract directly from the ABB RMIO-01C during a drive fault?
The ABB RMIO-01C executes continuous self-diagnostic sweeps. If a fault arises, it registers critical debugging telemetry including the exact fault code, timestamps, motor status parameters (current, torque, DC bus voltage), and I/O logic states, all of which are viewable via the CDP-312R control panel or external diagnostic software.
Can the ABB RMIO-01C support dual encoder feedback for high-precision closed-loop control applications?
While the ABB RMIO-01C natively processes sensorless DTC, it can interface with speed feedback sensors by accepting specialized extension modules. By inserting an RTAC-01 or RTAO-01 pulse tachometer interface module into the designated option slots, the ABB RMIO-01C can evaluate closed-loop encoder signals for precision positioning.
Under what environmental and atmosphere limitations can the ABB RMIO-01C safely operate without premature degradation?
The ABB RMIO-01C is rated for non-condensing relative humidity up to 95%. It must operate within an ambient temperature window of 0°C to +50°C; for environments characterized by chemical pollutants or high moisture, users should specify the conformally coated variant to protect against chemical degradation.
