SDCS-UCM-1C 3ADT220090R0008

/ 4.9
1001 reviews | Need a Specific Revision?

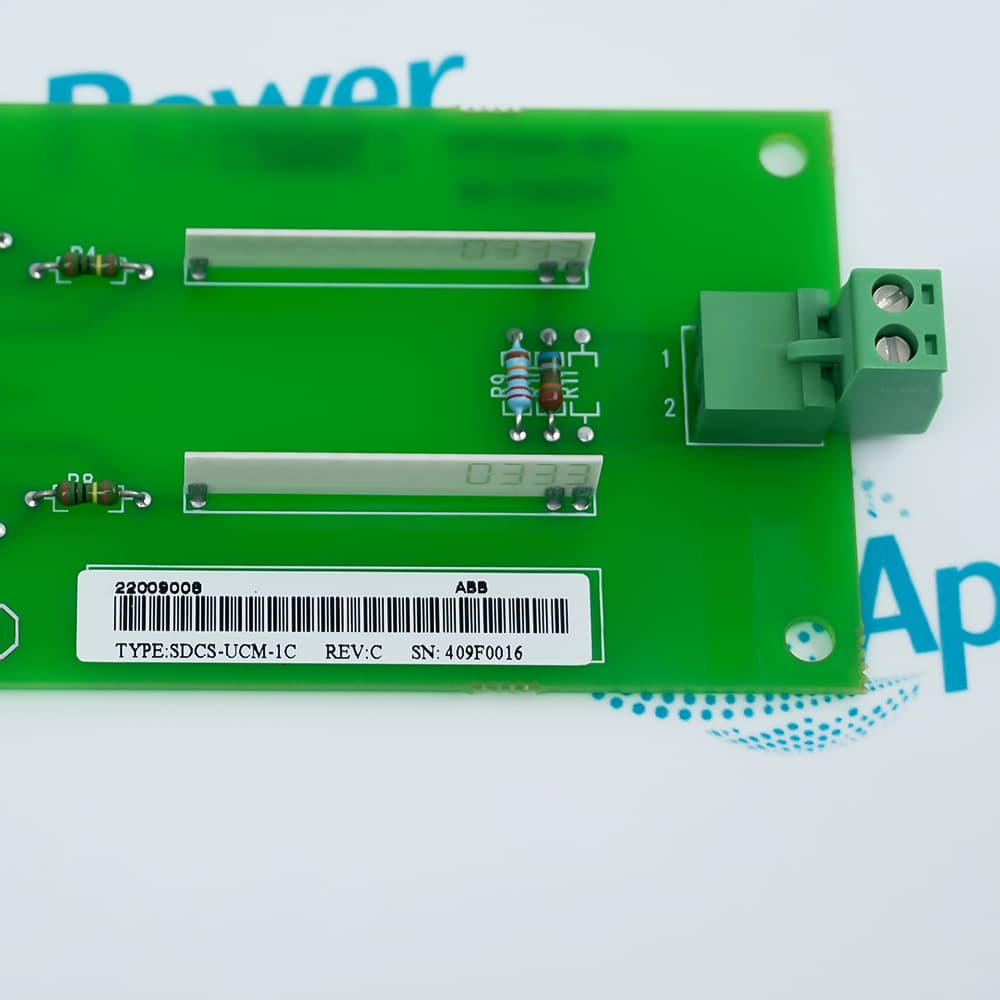

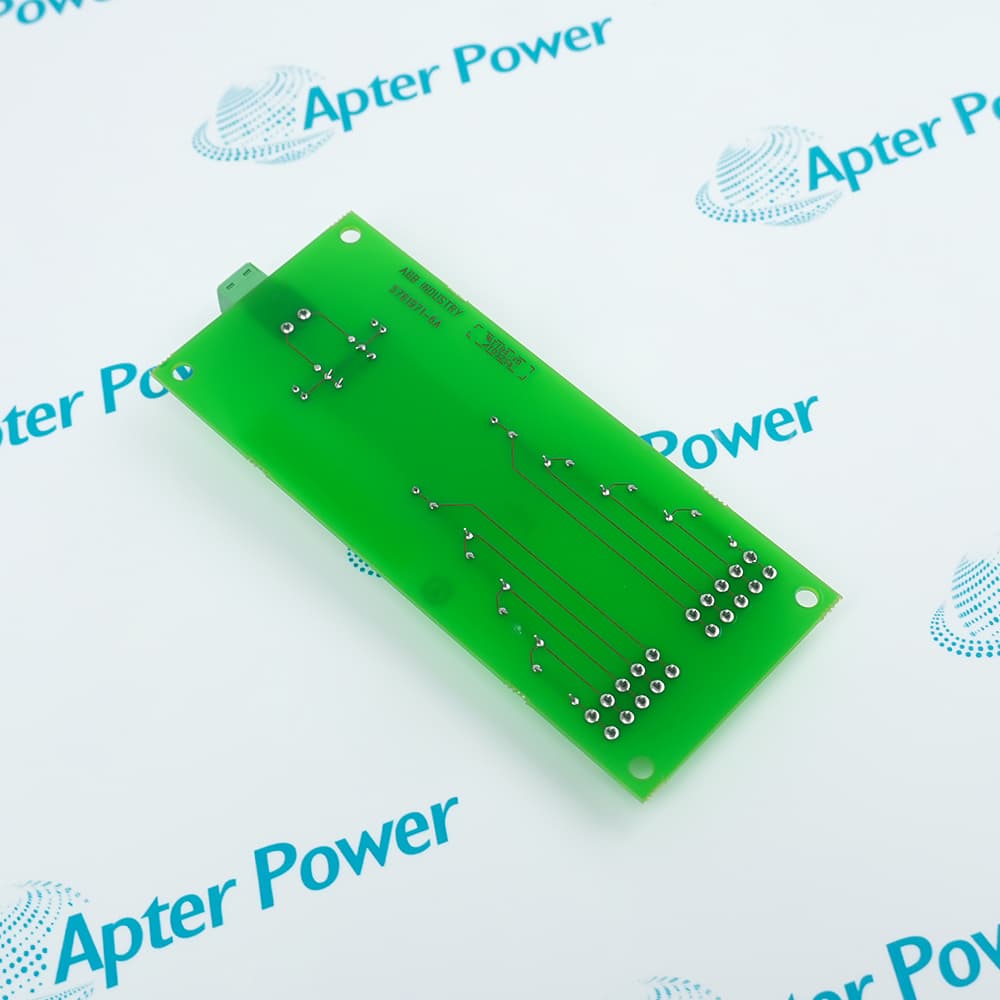

ABB SDCS-UCM-1C 3ADT220090R0008 is an external DC voltage measurement board identity for applicable DCS880 installations.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SDCS-UCM-1C 3ADT220090R0008
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SDCS-UCM-1C 3ADT220090R0008

  • Manufacturer:
    ABB
  • Part Number:
    SDCS-UCM-1C 3ADT220090R0008
  • Product Family:
    ABB Drives
  • Product Type:
    External DC Voltage Measurement Board
  • Stock:
    1
  • Official Base Designation:
    SDCS-UCM-1
  • Documented Drive Scope:
    DCS880 frame sizes H1…H5
  • Measurement Circuit:
    Two resistor chains across motor armature DC voltage
  • Reduced-Voltage Output:
    X3 to XAI:AI3
  • Positive / Negative Connection:
    X1 to C1; X2 to D1
  • Tariff Code:
    9030390000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Wiring Taps Safety Application
  • External DC voltage measurement-board identity for applicable DCS880 hardware
  • Official base-board function is documented for DCS880 frame sizes H1 through H5
  • Complete board designation and ABB article number must be matched together
ABB SDCS-UCM-1C 3ADT220090R0008 is used to identify an external voltage-measurement board configuration associated with the SDCS-UCM-1 function.

The documented arrangement reduces motor armature DC voltage through two resistor chains before the signal reaches the drive analog input.

Confirm the complete board identity, DCS880 frame, tap selection, polarity, wiring, insulation, and safety procedure before service.

Availability, condition, price, and shipping time for SDCS-UCM-1C 3ADT220090R0008 are confirmed during quotation.

ABB SDCS-UCM-1C 3ADT220090R0008 External DC Voltage Measurement Board Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • X1 connects to the positive motor armature terminal C1
  • X2 connects to the negative motor armature terminal D1
  • X3 carries the reduced-voltage signal to XAI:AI3
  • Select both resistor-chain tap positions from the ABB motor-voltage table
  • Use identical X1 and X2 positions for the documented voltage ranges
  • Verify the actual motor voltage before changing either tap position
  • X1 and X2 are at motor DC potential
  • Installation and measurement work is restricted to qualified personnel
  • Isolation and absence of dangerous voltage must be verified before service
  • External motor-armature DC voltage measurement for documented DCS880 H1...H5 installations
  • Drive configurations requiring a reduced signal at analog input XAI:AI3
  • Retrofit or service work performed with the applicable ABB external-measurement instructions
Description
ABB SDCS-UCM-1C 3ADT220090R0008 is an external DC voltage measurement-board identity associated with the documented SDCS-UCM-1 function for DCS880 drives.

ABB specifies the base board for DCS880 frame sizes H1 through H5, mounted outside the drive module, with two resistor chains connected across the motor armature DC voltage.

Before installation or replacement, verify both identifiers, frame size, X1/X2 tap selection, C1/D1 polarity, X3 connection to XAI:AI3, insulation, routing, and the ABB safety procedure.
Alternative Names
SDCS-UCM-1C 3ADT220090R0008 SDCS-UCM-1C-3ADT220090R0008 SDCSUCM1C3ADT220090R0008 ABB SDCS-UCM-1C 3ADT220090R0008 ABB 3ADT220090R0008 SDCS-UCM-1C 3ADT220090R0008 ABB SDCS-UCM-1C DCS880 SDCS-UCM-1C 3ADT220090R0008
Technical notes
SDCS-UCM-1C 3ADT220090R0008 requires verification of both identifiers. Select the X1/X2 taps from the ABB voltage table and treat these terminals as being at motor DC potential.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Where is ABB SDCS-UCM-1C 3ADT220090R0008 installed in a DCS880 system?
ABB documents the SDCS-UCM-1 base measurement board outside the DCS880 module for the applicable H1 through H5 installation.
How are the positive and negative DC connections made for ABB SDCS-UCM-1C 3ADT220090R0008?
The ABB instructions connect X1 to positive motor terminal C1 and X2 to negative motor terminal D1. Use the exact manual and observe all high-voltage safety procedures.
How is the reduced measurement signal connected from ABB SDCS-UCM-1C 3ADT220090R0008?
ABB routes the reduced-voltage signal through X3 to analog input AI3 at XAI:AI3 on the drive control hardware.
How should the X1 and X2 taps be selected for ABB SDCS-UCM-1C 3ADT220090R0008?
Select both tap positions from the ABB nominal motor-voltage table for the installed DCS880 system; do not choose positions by visual similarity.
Are the X1 and X2 terminals on ABB SDCS-UCM-1C 3ADT220090R0008 safe extra-low-voltage points?
No. ABB warns that X1 and X2 are at motor DC potential. Qualified personnel must isolate, verify de-energization, and follow the drive safety instructions.
Can the DCS880 internal voltage measurement remain in use with the external SDCS-UCM-1 board?
ABB states that the internal voltage measurement remains connected and usable when the documented external measurement arrangement is installed.
What should be provided when requesting ABB SDCS-UCM-1C 3ADT220090R0008?
Provide both identifiers, DCS880 type and frame size, board and connector photos, existing tap positions, required condition and quantity, and destination.
