SNAT 601 TAI

/ 4.9
1001 reviews | Need a Specific Revision?

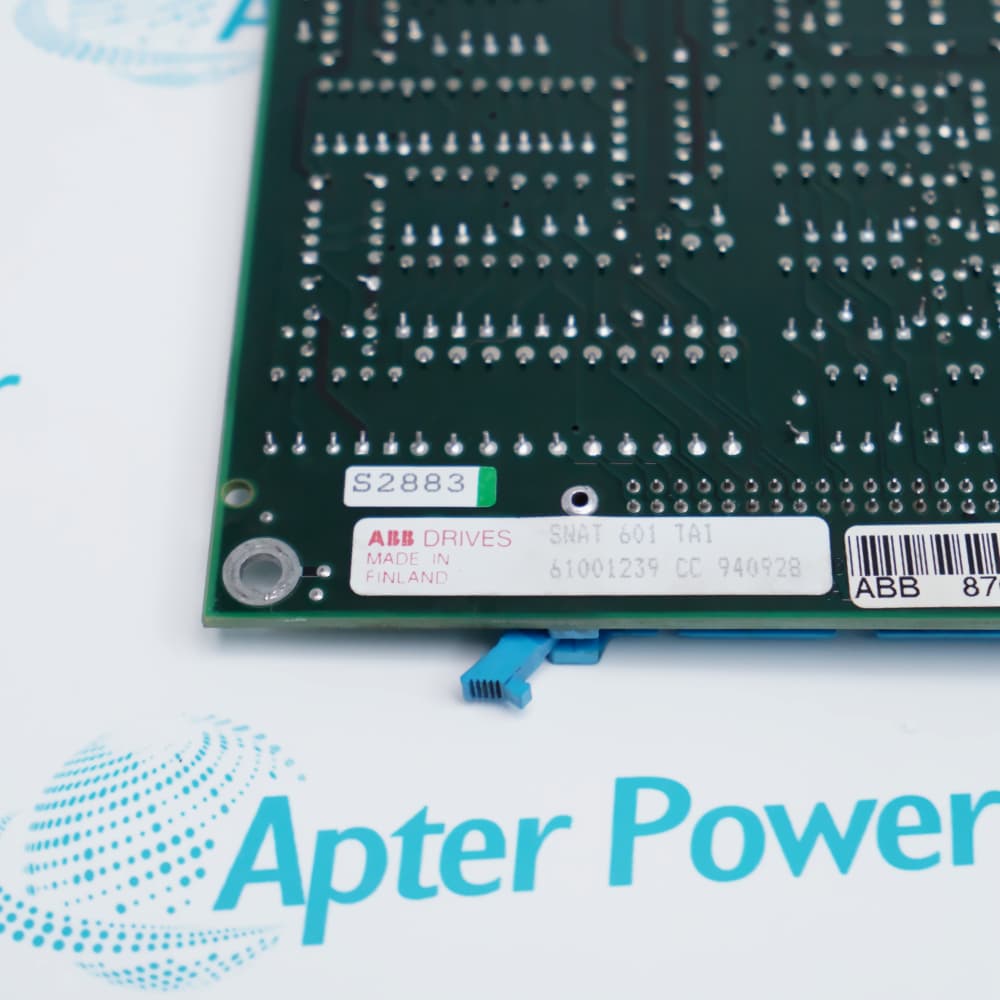

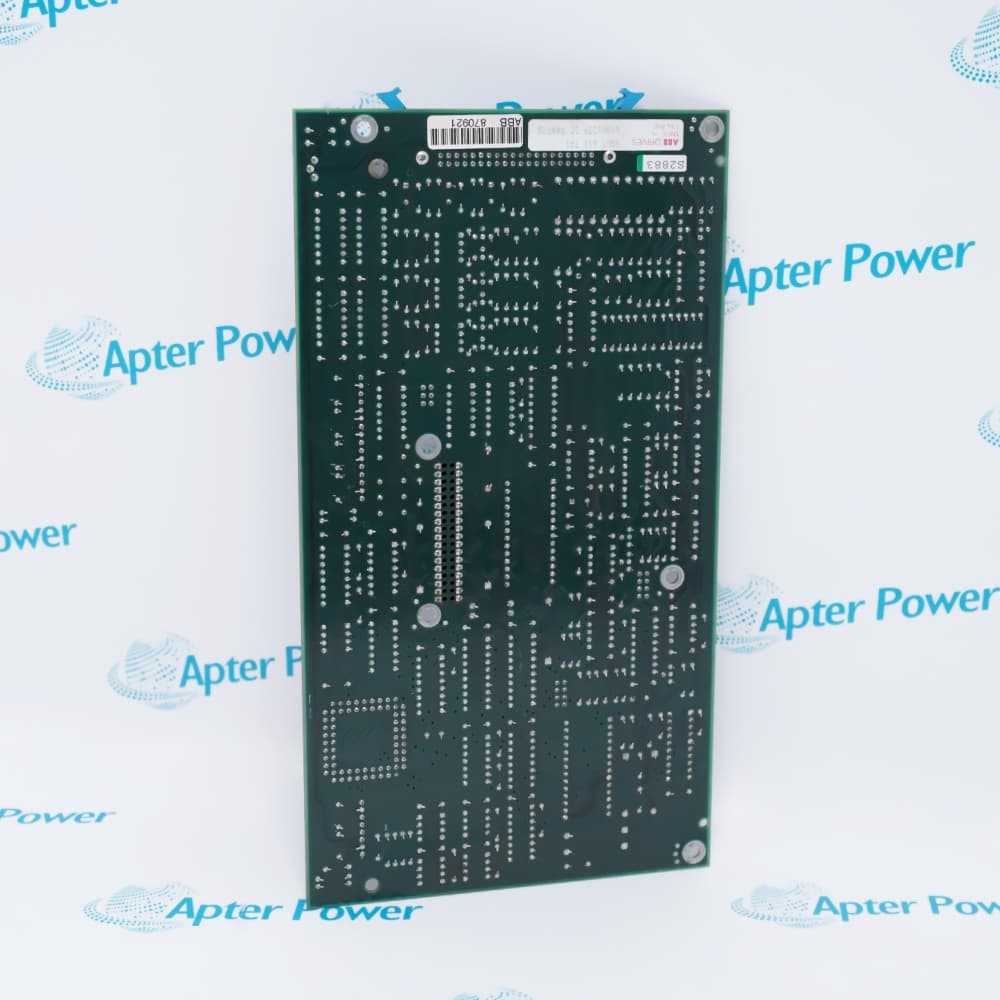

ABB SNAT 601 TAI is an ACV 700 TAI board used in the fibre-optic DDCTool and APC communication path, with V10 and V11 assigned to communication channel A.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SNAT 601 TAI
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SNAT 601 TAI

  • Manufacturer:
    ABB
  • Part Number:
    SNAT 601 TAI
  • Product Family:
    ABB Drives
  • Product Type:
    ACV 700 TAI Communication Interface Board
  • Stock:
    1
  • System Context:
    ACV 700
  • DDCTool Communication Channel:
    A
  • Channel A Input Connector:
    V10, IN1
  • Channel A Output Connector:
    V11, OUT1
  • Communication Medium:
    Plastic or glass fibre through the documented DDCTool arrangement
  • Direct DDCTool Connection:
    Supported for one DDC
  • Multiple DDC Connection:
    Supported through ABB optical distributors
  • Maximum Plastic-Fibre Segment with YPC111A:
    20 m
  • Maximum Glass-Fibre Segment with YPC115A:
    1000 m
  • Maximum DDC Nodes in Documented System:
    249
  • Dimensions:
    Leave blank
  • Tariff Code:
    8504909900
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Optical Interface Network Topology Diagnostics Application
  • ACV 700 target-system TAI board
  • DDCTool channel A uses V10 and V11
  • ABB troubleshooting includes communication, receiver, cable, and transmitter checks

SNAT 601 TAI is identified in ABB's DDCTool documentation as an ACV 700 target-system TAI board.

The DDCTool connection uses channel A through connectors V10 for IN1 and V11 for OUT1, with the optical transmitter and receiver connected in the correct direction.

ABB troubleshooting guidance treats the SNAT 601 TAI communication circuits, optical receiver, cable, and transmitter path as service checkpoints when drive communication fails.

Availability, condition, price, and shipping time for SNAT 601 TAI are confirmed during quotation.

ABB SNAT 601 TAI ACV 700 Target-System TAI Board Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • V10 is identified as the channel A input
  • V11 is identified as the channel A output
  • Transmitters must be connected to receivers rather than receiver-to-receiver
  • A direct fibre link is used for one DDC
  • YPC111A supports plastic-fibre distribution
  • YPC115A supports longer glass-fibre links
  • Confirm DDC auxiliary power before board replacement
  • Use APC control response to separate communication-path faults
  • Check receiver, cable, and transmitter circuits when DDCTool communication fails
  • DDCTool fibre-optic communication with an ACV 700 target system
  • APC-to-ACV 700 communication-path service through the TAI board
  • Multi-DDC diagnostic access through ABB optical distributors
Description
SNAT 601 TAI supports DDCTool commissioning and maintenance functions for ACV 700, including real-time value monitoring, parameter adjustment, data-logger control and local drive control through the optical link.

If the connected APC can control the drive, ABB treats the principal communication circuits on SNAT601TAI as operational and directs troubleshooting toward the optical receiver, fibre cable and transmitter path.

If APC control also fails, check ACV 700 auxiliary power and the PCMCIA-to-optical connections before investigating SNAT601TAI or SNAT603CNT as possible hardware fault locations.
Alternative Names
SNAT601TAI SNAT 601 TAI ABB SNAT601TAI ABB SNAT 601 TAI ACV 700 SNAT601TAI SNAT 601TAI SNAT-601-TAI
Technical notes
SNAT 601 TAI replacement requires verified ACV 700 context, V10 and V11 fibre direction, optical distributor topology, APC communication path, rack position, and fully documented drive settings.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can I confirm ABB SNAT 601 TAI is correct for my ACV 700?
Verify markings, rack location, V10 and V11 fibres, distributor, APC path, drive type, and documentation.
Can ABB SNAT 601 TAI be replaced by SNAT609TAI without further checks?
No. ABB does not state universal interchangeability; hardware, connectors, software, and configuration must be verified.
What should be recorded before removing ABB SNAT 601 TAI?
Photograph it, label fibres, record routing and nodes, note markings, and preserve drive and DDCTool settings.
What should be checked after installing ABB SNAT 601 TAI?
Confirm fibre direction, seating, power, DDCTool communication, node response, APC control, diagnostics, and stable operation.
What should be inspected when communication through ABB SNAT 601 TAI is lost?
Check power, fibre condition and polarity, transmitters, receivers, distributors, TAI circuits, APC path, and diagnostics.
Are optical fibres and distributors included with ABB SNAT 601 TAI?
Do not assume inclusion; confirm fibres, connectors, YPC distributors, mounting hardware, and documents in the quotation.
What information is needed to quote ABB SNAT 601 TAI?
Provide label and connector photos, drive model, rack position, related boards, fibre topology, condition, quantity, and destination.
