YPK113A

/ 4.9
1001 reviews | Need a Specific Revision?

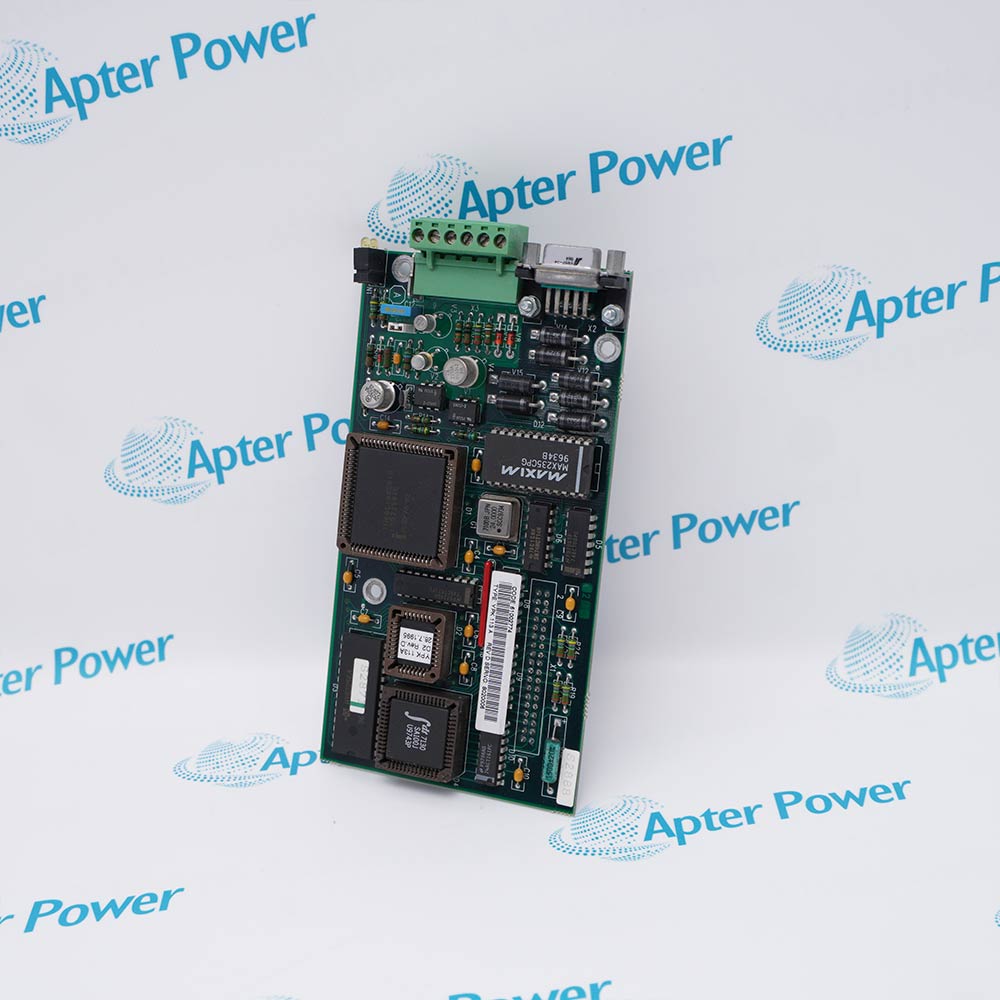

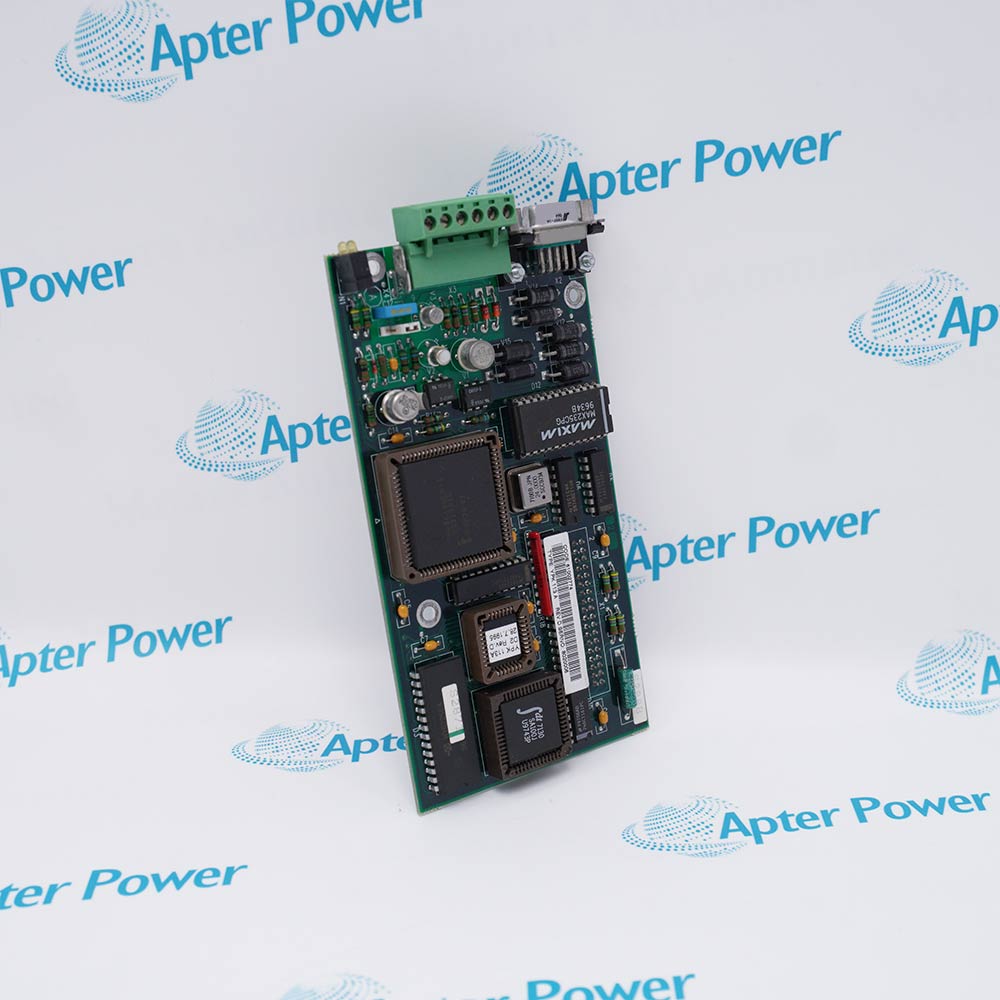

ABB YPK113A is a UART communication board for DCV 700/APC drive-control systems using Siemens Simatic S5, Allen-Bradley DH, or SAMI communication protocols.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for YPK113A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for YPK113A

  • Manufacturer:
    ABB
  • Part Number:
    YPK113A
  • Product Family:
    ABB Drives
  • Product Type:
    UART Communication Board
  • Stock:
    1
  • Documented Drive Protocol:
    SAMI
  • Functional Role:
    Serial communication interface between the Application Controller and an overriding control system
  • Controller Context:
    ABB Application Controller APC
  • Drive-System Context:
    ABB DCV 700 thyristor drive system
  • Supported Protocols:
    SAMI; Siemens SIMATIC S5; Allen-Bradley DH
  • Communication Role:
    Communication between the ABB Application Controller APC and an overriding control system
  • Board Function:
    Optional UART communication board
  • Controller Compatibility:
    ABB Application Controller APC used in AC and DC drive configurations
  • Selection Note:
    YPK113A is the UART protocol board; connection to Advant Fieldbus 100 uses YPK112A instead
  • Dimensions:
    1.6x16.2x8.4cm
  • Weight:
    0.14 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Protocol Selection Host Integration Return to Service Application
  • UART communication board for ABB DCV 700 and APC drive-control hardware
  • Supports documented Siemens Simatic S5, Allen-Bradley DH, and SAMI protocols
  • Protocol selection, host wiring, addressing, and drive configuration must be preserved

YPK113A provides the serial host-communication interface used by documented ABB DCV 700/APC configurations.

The same hardware family may be encountered with different protocol assignments, so the installed application and connected host must be identified before exchange.

Retain the original board label, cable pinout, addressing, protocol settings, and drive backup, then verify error-free data exchange after installation.

Availability, condition, price, and shipping time for YPK113A are confirmed during quotation.

ABB YPK113A UART Communication Board Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Confirm whether the installed host uses Siemens Simatic S5, Allen-Bradley DH, or SAMI communication.
  • Retain protocol-specific addressing, message mapping, and drive parameter records before removal.
  • Do not assume that another YPK113A installation uses the same programmed interface.
  • Record host-side port mode, cable pinout, shield connection, and terminal references.
  • Verify the board position and connector use against the installed DCV 700 or APC documentation.
  • Preserve the controller or drive application that defines the exchanged data.
  • Restore the saved communication and drive settings before enabling operation.
  • Check commands, feedback values, message timing, and alarm status with the connected host.
  • Confirm reliable communication after a controlled restart.
  • Host communication for ABB DCV 700 drive-control systems.
  • Serial protocol integration for documented APC configurations.
  • Replacement of an installed YPK113A after protocol and wiring verification.
Description
YPK113A is an ABB UART communication board used with documented DCV 700 and APC drive-control systems.

Its programmed interface variant provides host communication for Siemens Simatic S5, Allen-Bradley Data Highway, or SAMI installations through the applicable serial connection and drive configuration.

Before replacement, confirm the installed protocol variant, board position, connector wiring, host addressing, communication settings, and backed-up drive application.
Alternative Names
YPK113A YPK 113A YPK-113A ABB YPK113A ABB YPK 113A UART Board YPK113A ABB UART Board YPK113A
Technical notes
ABB YPK113A must match the active Simatic S5, Allen-Bradley DH, or SAMI protocol, host wiring, addressing, board position, and saved DCV 700/APC application.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which host protocol must be identified before buying ABB YPK113A?
Identify whether the installed application uses Siemens Simatic S5, Allen-Bradley DH, or SAMI communication and retain the related parameter set; the board name alone does not identify the active protocol.
Can ABB YPK113A be installed without restoring the original drive communication settings?
No. Restore the protocol, addressing, message mapping, baud-related settings, and host configuration before commissioning communication.
What wiring evidence should be retained before removing ABB YPK113A?
Record connector designations, conductor positions, shields, grounding, host-side terminal references, and any interposing interface equipment.
Why can ABB YPK113A power up but still fail to communicate?
A wrong protocol selection, address, host port mode, wiring polarity, shield reference, or drive application can prevent message exchange even when the card is powered.
Can ABB YPK113A be selected solely because another board is described as a UART card?
No. Match the exact YPK113A identity, host protocol, connector use, drive family, and application documentation before substitution.
What should be tested after installing ABB YPK113A?
Verify stable host connection, correct data mapping, valid commands and feedback, absence of communication alarms, and restart recovery.
What information should remain with the machine after ABB YPK113A replacement?
Retain the removed and installed labels, protocol record, host address, cable schedule, drive backup, commissioning results, and any changed parameters.
