YPQ202A YT204001-KB

/ 4.9
1001 reviews | Need a Specific Revision?

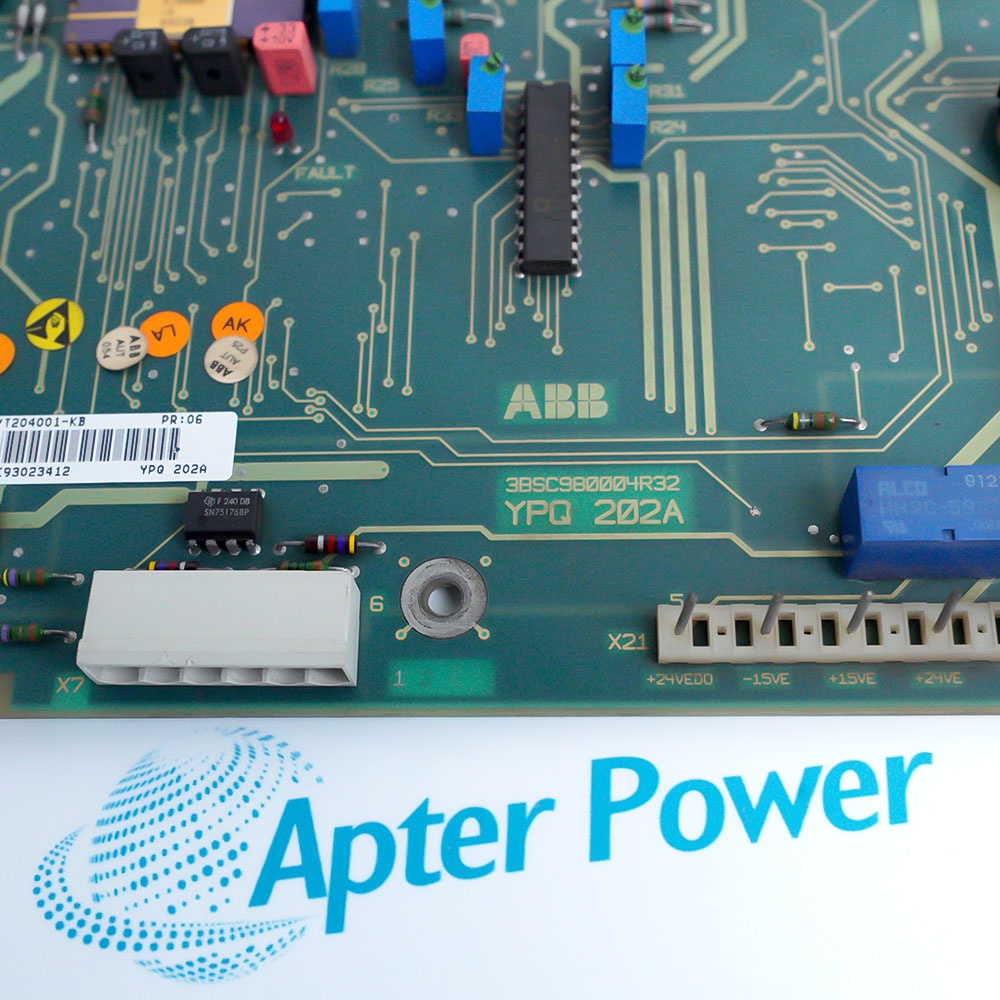

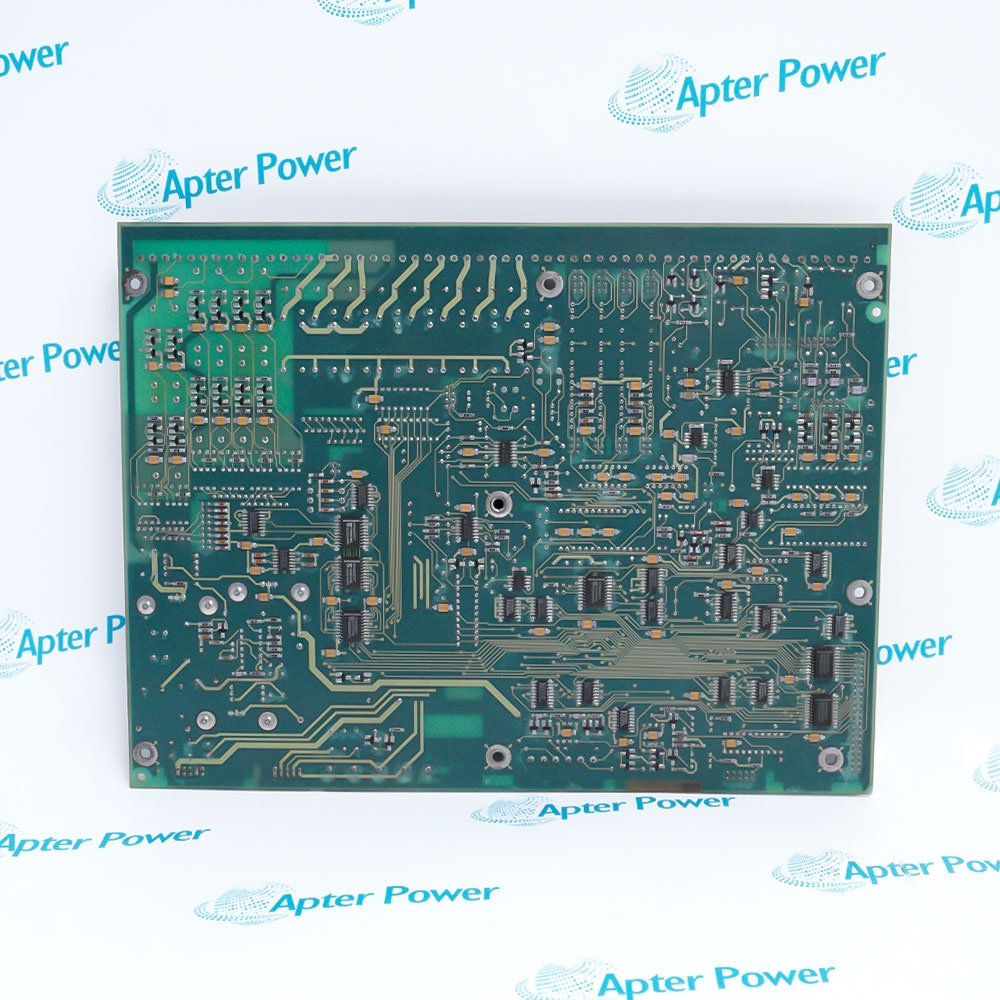

ABB YPQ202A YT204001-KB is the TYRAK basic I/O interface board linking external digital, analog and pulse-feedback signals to converter-control software. It supports sequence I/O, analog references and speed feedback.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for YPQ202A YT204001-KB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for YPQ202A YT204001-KB

  • Manufacturer:
    ABB
  • Part Number:
    YPQ202A YT204001-KB
  • Product Family:
    ABB Drives
  • Product Type:
    Basic I/O Interface Board
  • Stock:
    1
  • Digital inputs:
    8, optically isolated
  • Digital outputs:
    5, relay outputs
  • Analog inputs:
    4, differential-amplifier channels
  • Analog outputs:
    2, differential-amplifier channels
  • Pulse-transmitter inputs:
    3
  • Analog channel resolution:
    0.05%
  • Tachometer feedback path:
    Analog input channel 4
  • Sampling groups:
    T1 and T2, control-program dependent
  • External signal matching:
    Jumper selected
  • Fine adjustment:
    Control parameters
  • Weight:
    0.62 kg
  • Estimated shipping dimensions:
    30.3x23x3cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Monitoring & Control Configuration Installation & Integration

Features:

  • Provides optically isolated digital-input paths for TYRAK sequence signals.
  • Processes differential analog reference and feedback channels with 0.05% resolution.
  • Accepts three pulse-transmitter inputs for rotational-speed feedback.
This order configuration identifies the board as YPQ202A with the complete YT204001-KB assembly suffix; the suffix remains essential when matching a spare to an installed cabinet.

Within a TYRAK controller, the interface maps sequence contacts, analog values and rotational feedback into the active control program through its assigned sampling groups.

Record the slot, terminal schedule, jumper positions and parameter values before exchange, then validate every connected channel before enabling converter operation.

Availability for ABB YPQ202A YT204001-KB is confirmed against the requested configuration and order quantity.
Verified resources for ABB YPQ202A YT204001-KB:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Interfaces TYRAK converter sequence contacts with the active control program.
  • Handles analog reference and feedback signals used by drive-control functions.
  • Receives pulse-transmitter signals for rotational-speed measurement.
  • Analog input channel four can be assigned to tachometer feedback for speed-control functions.
  • Sequence I/O allocations are processed according to the active TYRAK control program.
  • External digital and analog states are presented to the controller software through the basic interface board.
  • Board jumpers adapt the external analog-signal interface to the required field signal.
  • Control parameters provide the fine adjustment that follows hardware signal matching.
  • T1 and T2 sampling assignments are defined by the installed TYRAK control program.
  • Install the board only in the position assigned by the applicable TYRAK cabinet documentation.
  • Match every terminal and channel to the system wiring diagram before reconnecting field circuits.
  • Confirm the complete YT204001-KB identifier before treating another YPQ202 board as an equivalent assembly.
Description
ABB YPQ202A YT204001-KB is a legacy industrial control board designed to interface system signals with ABB control electronics. It supports the transfer of operating information required for coordinated machine or process-control functions within an installed cabinet.

Onboard interface circuitry receives connected signals, conditions them for the host controller and routes the resulting information through the board connectors. This arrangement separates field-side connections from higher-level control processing and supports reliable sequence supervision.

YPQ202A YT204001-KB is intended for maintaining systems engineered around this exact hardware configuration. Replacement requires verification of the complete part number, board revision, connector layout, cabinet position and wiring assignment before installation.
Alternative Names
ABB YPQ202A ABB YPQ202A YT204001-KB YPQ202A YT204001-KB ABB YPQ 202A ABB YT204001-KB YT204001 KB ABB TYRAK YPQ202 Basic I/O Interface
Technical notes
Before installing ABB YPQ202A YT204001-KB, verify board position, terminal assignments and jumper-selected signal ranges; complete parameter fine-adjustment before enabling the drive.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What role does ABB YPQ202A YT204001-KB perform in a TYRAK converter-control cabinet?
It links external digital, analog and pulse-feedback signals to the installed TYRAK control program through the basic I/O interface.
How should the analog channels of ABB YPQ202A YT204001-KB be matched to field signals?
Set the documented board jumpers for the external signal range, then complete fine adjustment with the applicable control parameters.
Can ABB YPQ202A YT204001-KB be replaced by another YPQ202 board without checking the suffix?
No. Confirm the complete YT204001-KB identity, board position, terminal assignment and control-program channel mapping before substitution.
Which drive functions can use the pulse inputs on ABB YPQ202A YT204001-KB?
The three pulse-transmitter inputs provide speed-feedback signals for TYRAK converter-control functions defined by the active program.
What documentation is required before commissioning ABB YPQ202A YT204001-KB?
Use the applicable TYRAK control-program manual, cabinet wiring diagrams, jumper table and parameter record for the installed drive.
What details should accompany an inquiry for ABB YPQ202A YT204001-KB?
Provide a clear nameplate image, complete suffix, board position, installed control program, quantity, destination and requested delivery date.
