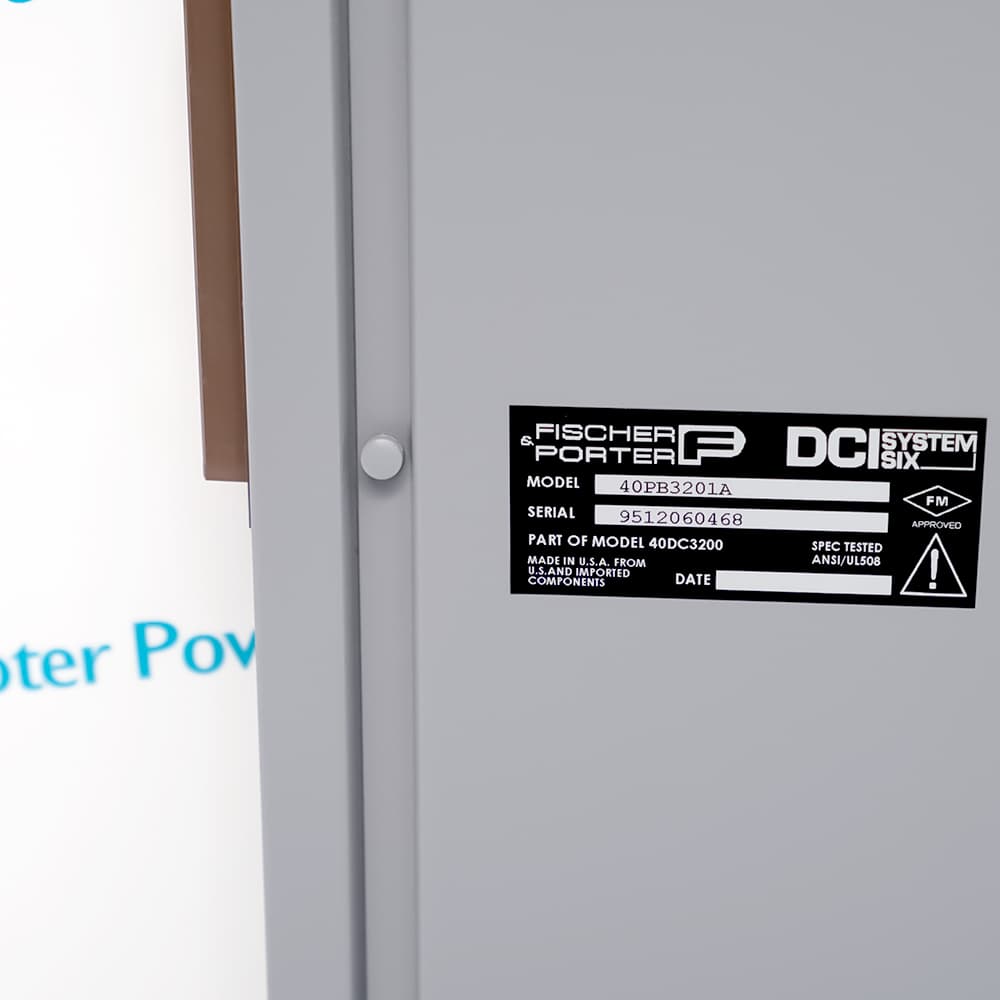

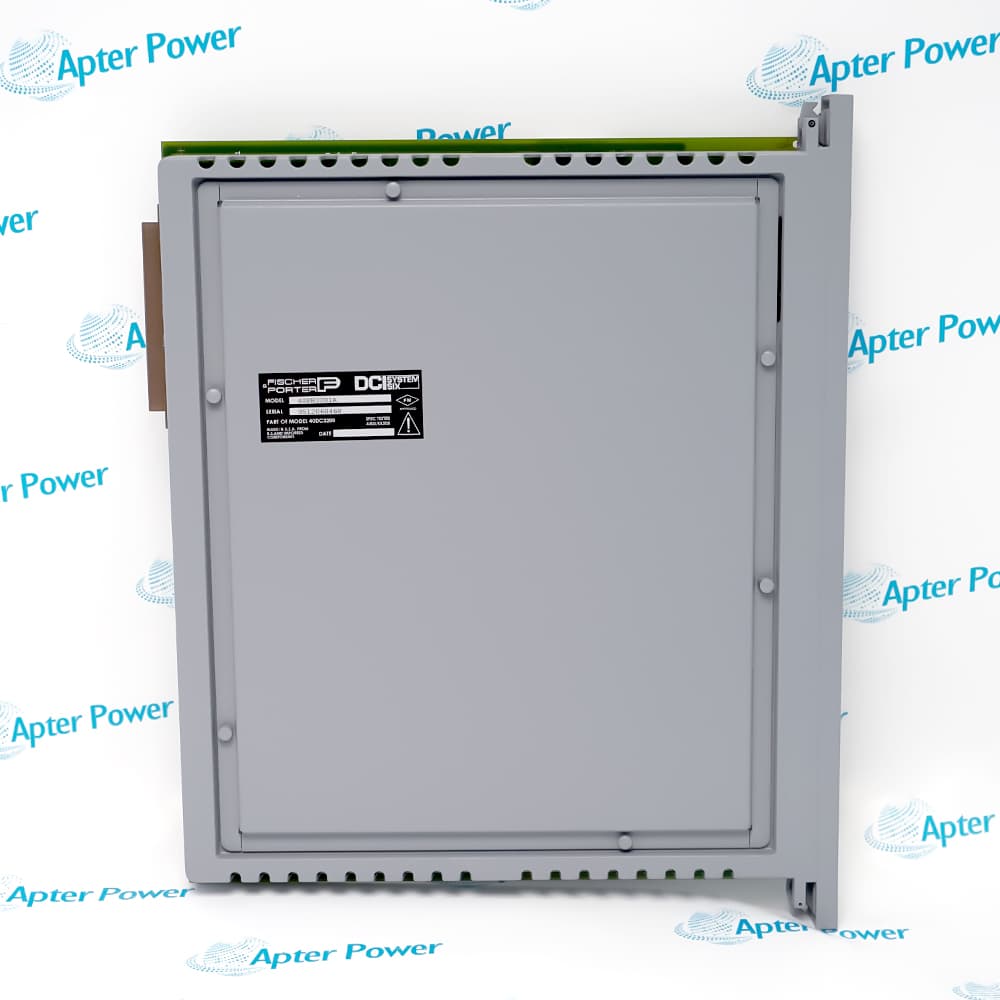

ABB 40PB3201A A-Loop I/O Board
40PB3201A
40PB3201A
ABB 40PB3201A A-Loop I/O Board
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    The available ABB documentation does not state a current OEM lifecycle classification. Apter Power provides quotation, technical documentation, procurement, and system-matching support; availability is confirmed at quotation.

40PB3201A

/ 4.9
1001 reviews | Need a Specific Revision?
ABB 40PB3201A is an A-Loop I/O board for Harmony DCU and DCI System Six process control.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 40PB3201A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 40PB3201A

  • Manufacturer:
    ABB
  • Part Number:
    40PB3201A
  • Product Family:
    ABB Fischer & Porter DCI
  • Product Type:
    A-Loop I/O Board
  • Stock:
    1
  • Analog outputs:
    4 channels, 4 to 20 mA
  • Analog inputs:
    8 channels, 0 to 5 V
  • Discrete inputs:
    16 channels
  • Discrete outputs:
    8 channels
  • Analog feedback:
    4 inputs monitoring 4 analog outputs
  • Discrete feedback:
    8 inputs monitoring 8 discrete outputs
  • Analog conversion:
    12-bit plus sign for inputs; 12-bit for outputs
  • Discrete output rating:
    200 mA rms at ±50 V DC or 35 V AC rms
  • Output protection:
    0.25 A fuse per discrete output line
  • Weight:
    1.35 kg
  • Estimated shipping dimensions:
    2.8 × 29.8 × 36.2 cm
  • Tariff Code:
    9032900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Signal Channels Feedback Integration

Features:

  • Mixed Process I/O: Four 4 to 20 mA analog outputs, eight 0 to 5 V analog inputs, 16 discrete inputs, and eight discrete outputs.
  • Integrated Feedback Monitoring: Four analog feedback inputs monitor the analog outputs, while eight feedback inputs monitor the discrete outputs.
  • Harmony DCU Integration: Designed as the 40PB3201 A-Loop intelligent I/O board within the DCI System Six compatible HDCU architecture.
The ABB 40PB3201A is an A-Loop I/O board for the Harmony Distributed Control Unit and DCI System Six compatible process-control platform. It plugs into the HDCU card frame and connects to remote interface terminal boards through the system cable arrangement.

Analog inputs are converted to 12-bit values plus sign, while the analog outputs use isolated 12-bit conversion with internal feedback monitoring. Replacement planning should include verification of the exact 40PB3201A marking, card-frame configuration, ITB connections, and existing Controlware II setup.

Apter Power provides quotation assistance, technical documentation, procurement support, and system-matching guidance for the ABB 40PB3201A. The available ABB documentation does not state a current OEM lifecycle classification.

ABB 40PB3201A Manuals and Support Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB 40PB3201A A-Loop I/O Board Specs

General

  • Manufacturer ABB
  • Model 40PB3201A
  • Condition New Original ready stock
  • Product Family 40PB3201, 40PB3201A, Harmony DCU, DCI System Six
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Four analog current outputs provide 4 to 20 mA process signals.
  • Eight analog inputs accept 0 to 5 V process signals.
  • Sixteen discrete inputs collect field-state information.
  • Eight discrete outputs provide controlled field switching channels.
  • Four analog feedback inputs monitor the four analog output channels.
  • Eight discrete feedback inputs monitor the eight discrete output channels.
  • Analog inputs are converted to 12-bit values plus sign.
  • Analog outputs use 12-bit conversion with isolation and internal monitoring.
  • Designed as the 40PB3201 A-Loop intelligent I/O board for the Harmony Distributed Control Unit.
  • Installed in the HDCU card frame as part of the resident I/O arrangement.
  • Connects to remote interface terminal boards through the system cable set.
  • Controlware II supports output adjustment and should be verified during replacement planning.
Description
ABB 40PB3201A is the A-Loop intelligent I/O board used in the Harmony Distributed Control Unit and DCI System Six compatible architecture. It connects process inputs and outputs to the HDCU resident I/O system through remote interface terminal boards and cable sets.

The ABB 40PB3201A provides four 4 to 20 mA analog current outputs, eight 0 to 5 V analog inputs, 16 discrete inputs, and eight discrete outputs. Four analog feedback inputs monitor the analog outputs, while eight feedback inputs monitor the discrete outputs.

For the ABB 40PB3201A, analog inputs are converted to 12-bit values plus sign, while analog outputs use isolated 12-bit conversion and can be adjusted by Controlware II for an extended 0 to 20 mA range. Before replacement, verify the model marking, HDCU or DCU3200 card-frame configuration, compatible ITB connections, and existing Controlware II setup.
Alternative Names
40PB3201A 40PB 3201A 40PB3201-A ABB 40PB3201A ABB 40PB 3201A Fischer & Porter 40PB3201A Fischer Porter 40PB3201A 40PB3201A A-Loop I/O Board DCI System Six 40PB3201A
Technical notes
ABB 40PB3201A is the A-Loop intelligent I/O board for Harmony DCU and DCI System Six, combining analog, discrete, and feedback channels. Verify the 40PB3201A marking, HDCU card frame, ITB connections, and Controlware II setup before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is ABB 40PB3201A used for?
ABB 40PB3201A is the A-Loop intelligent I/O board used in Harmony DCU and DCI System Six compatible process-control architectures.
What I/O channels does ABB 40PB3201A provide?
It provides four 4 to 20 mA analog outputs, eight 0 to 5 V analog inputs, 16 discrete inputs, and eight discrete outputs.
What analog signal ranges does ABB 40PB3201A support?
The A-Loop board uses 0 to 5 V analog inputs and 4 to 20 mA analog outputs. Controlware II can adjust the outputs for an extended 0 to 20 mA range.
Does ABB 40PB3201A provide output feedback?
Yes. Four analog inputs monitor the four analog outputs, and eight feedback inputs monitor the eight discrete outputs.
Is ABB 40PB3201A compatible with Harmony DCU and DCI System Six?
ABB documentation identifies 40PB3201 as the A-Loop I/O board for the Harmony DCU and DCI System Six compatible architecture. Verify the 40PB3201A marking, card frame, ITB connections, and system configuration before replacement.
What should be checked before replacing ABB 40PB3201A?
Confirm the exact model marking, HDCU or DCU3200 card-frame configuration, ITB cabling, field signal types, and the existing Controlware II configuration.
Is the ABB 40PB3201A manual available with a quotation?
Apter Power can provide the available technical documentation with a quotation request. Please supply the complete 40PB3201A model marking so the document can be matched before supply.
How can I request price and availability for ABB 40PB3201A?
Send Apter Power the complete model, required quantity, delivery destination, and application details. Price and availability will be confirmed at the time of quotation.
