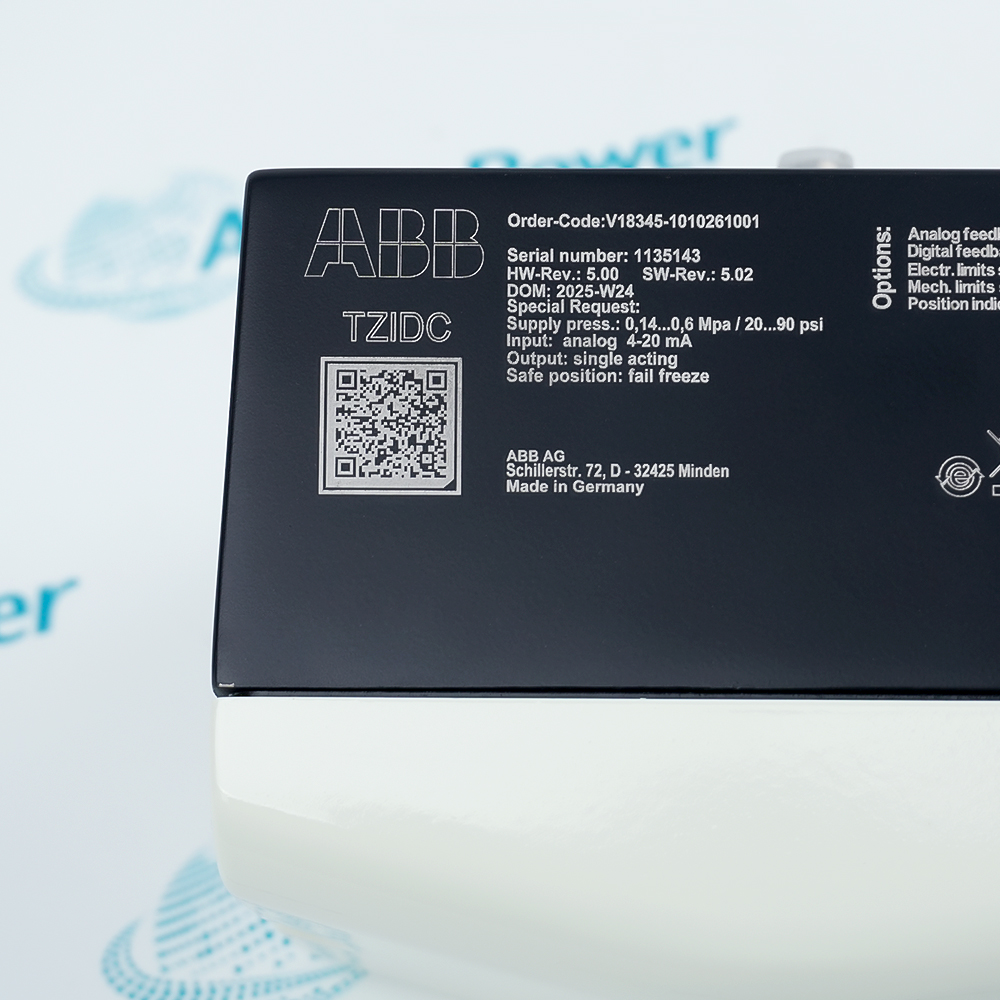

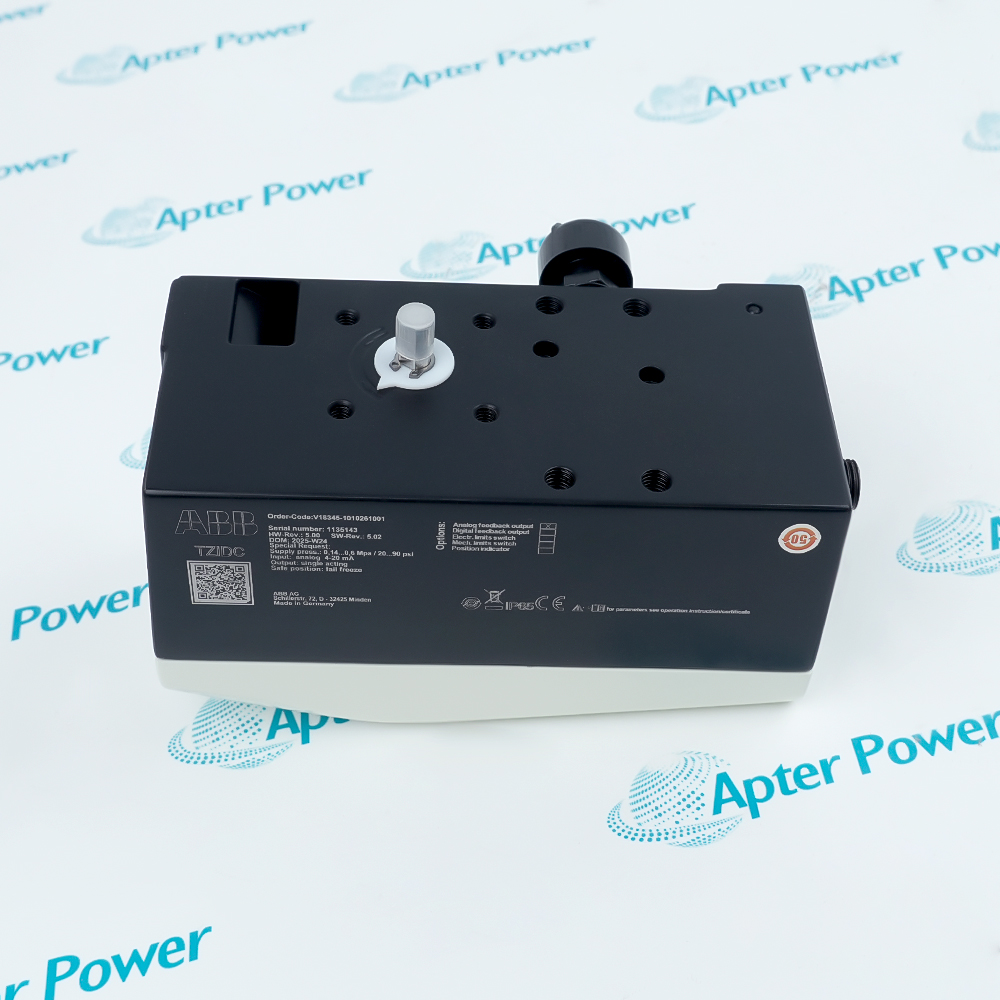

The ABB V18345-1010261001 is a TZIDC electro-pneumatic positioner for single-acting linear or rotary actuators, using a two-wire 4–20 mA command signal and analog position feedback.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for V18345-1010261001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for V18345-1010261001

  • Manufacturer:
    ABB
  • Part Number:
    V18345-1010261001
  • Product Family:
    ABB Fischer & Porter DCI
  • Product Type:
    Electro-Pneumatic Positioner
  • Stock:
    1
  • Input Signal:
    4–20 mA, two-wire
  • Maximum Input:
    25 mA at 30 V DC
  • Minimum Operating Current:
    3.4 mA; 3.5 mA with analog feedback
  • Load Voltage:
    8.7 V at 20 mA
  • Digital Input:
    24 V DC nominal; 12–30 V DC range
  • Pneumatic Output:
    0–6 bar
  • Supply Pressure:
    1.4–6 bar
  • Air Capacity:
    5 kg/h at 1.4 bar; 13 kg/h at 6 bar
  • Air Consumption:
    Less than 0.03 kg/h
  • Rotary Range:
    25–120°
  • Linear Range:
    25–60°
  • Operating Temperature:
    −40 to +85 °C
  • Protection:
    IP65 and NEMA 4X
  • Pneumatic Connections:
    G1/4
  • Cable Entry:
    M20 × 1.5
  • Analog Position Feedback:
    4–20 mA
  • Dimensions:
    16.85 × 11.08 × 8.95 cm
  • Weight:
    1.7 kg
  • Tariff Code:
    9032899099
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Control Loop Pneumatic Interface Commissioning Application
  • Two-wire 4–20 mA command input for closed-loop valve positioning
  • Single-acting pneumatic output with fail-freeze behavior
  • Separate 4–20 mA analog position-feedback function

V18345-1010261001 is an ABB TZIDC electro-pneumatic positioner designed for single-acting linear or rotary actuators.

Its microprocessor control converts the electrical command signal into pneumatic actuator control while monitoring travel and returning the configured analog position signal.

Before installation, verify the decoded order-code options, actuator action and travel, mounting geometry, pneumatic connections, supply pressure, loop wiring and required fail behavior.

Availability, condition, price, and shipping time for V18345-1010261001 are confirmed during quotation.

ABB V18345-1010261001 Electro-Pneumatic Positioner Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Uses a two-wire 4–20 mA command from the process controller
  • Provides closed-loop positioning through internal travel sensing
  • Returns a separate 4–20 mA analog position signal
  • Operates with instrument-air supply from 1.4 to 6 bar
  • Uses G1/4 pneumatic connections for the configured version
  • Supports single-acting actuator service with fail-freeze behavior
  • Confirm actuator direction and mechanical travel before auto-adjustment
  • Verify current-loop polarity and analog-feedback scaling
  • Check sealed entries and stable air pressure before operation
  • Position control of pneumatic linear control-valve actuators
  • Position control of pneumatic rotary actuators
  • Process loops requiring remote 4–20 mA position feedback
Description
V18345-1010261001 is an ABB TZIDC electro-pneumatic positioner configured for a single-acting actuator with fail-freeze behavior.

The unit converts a two-wire 4–20 mA command into a pneumatic output, accepts up to 6 bar supply pressure, and provides 4–20 mA analog position feedback for the control system.

Before replacement, verify the actuator action, required fail behavior, G1/4 pneumatic connections, M20 × 1.5 cable entry, available supply pressure, mounting geometry, and feedback-loop wiring.
Alternative Names
V18345-1010261001 ABB V18345-1010261001 TZIDC V18345-1010261001 ABB TZIDC V18345-1010261001 V18345 1010261001 ABB V18345 1010261001
Technical notes
V18345-1010261001 requires confirmation of actuator action, fail-freeze behavior, pneumatic fittings, clean air supply, current-loop polarity, mounting geometry, analog-feedback scaling and final loop-response testing before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is the required fail-safe position determined when ABB V18345-1010261001 loses supply air or its control signal?
The final fail-open or fail-closed action depends on the connected single-acting actuator, spring direction, pneumatic piping and configured control action. Verify these items against the process safety requirement and test the actual safe position before returning the valve to service.
What should be checked before replacing ABB V18345-1010261001?
Confirm single-acting actuator action, fail-freeze behavior, mounting geometry, air connections, cable entry and 4–20 mA feedback requirements.
What control-system wiring must be available for ABB V18345-1010261001?
The installation needs a two-wire 4–20 mA command loop and a separately verified 4–20 mA analog position-feedback circuit, with polarity and loop loading checked before connection.
What must be confirmed when ABB V18345-1010261001 is paired with an existing actuator?
Confirm that the actuator is single acting, its travel or rotary angle is within the supported range, and the mounting geometry and fail-freeze requirement match this configuration.
Can ABB V18345-1010261001 be used outdoors?
Its IP65 and NEMA 4X enclosure ratings support protected outdoor service when cable and pneumatic entries are correctly sealed.
Can ABB V18345-1010261001 replace another TZIDC configuration without rechecking the order code?
No. TZIDC order-code positions define actuator action, fail behavior, connections and options, so the complete configuration must be decoded and matched before substitution.
What commissioning checks matter most for ABB V18345-1010261001?
Verify actuator direction, travel limits, air pressure, current loop, feedback scaling and stable response before returning the loop to automatic control.
