    Active / Available from OEM
    Current supply should be confirmed against the complete DDO04 0369644M label, installed output assignments and field-load interface.

DDO04 0369644M

/ 4.9
1001 reviews | Need a Specific Revision?

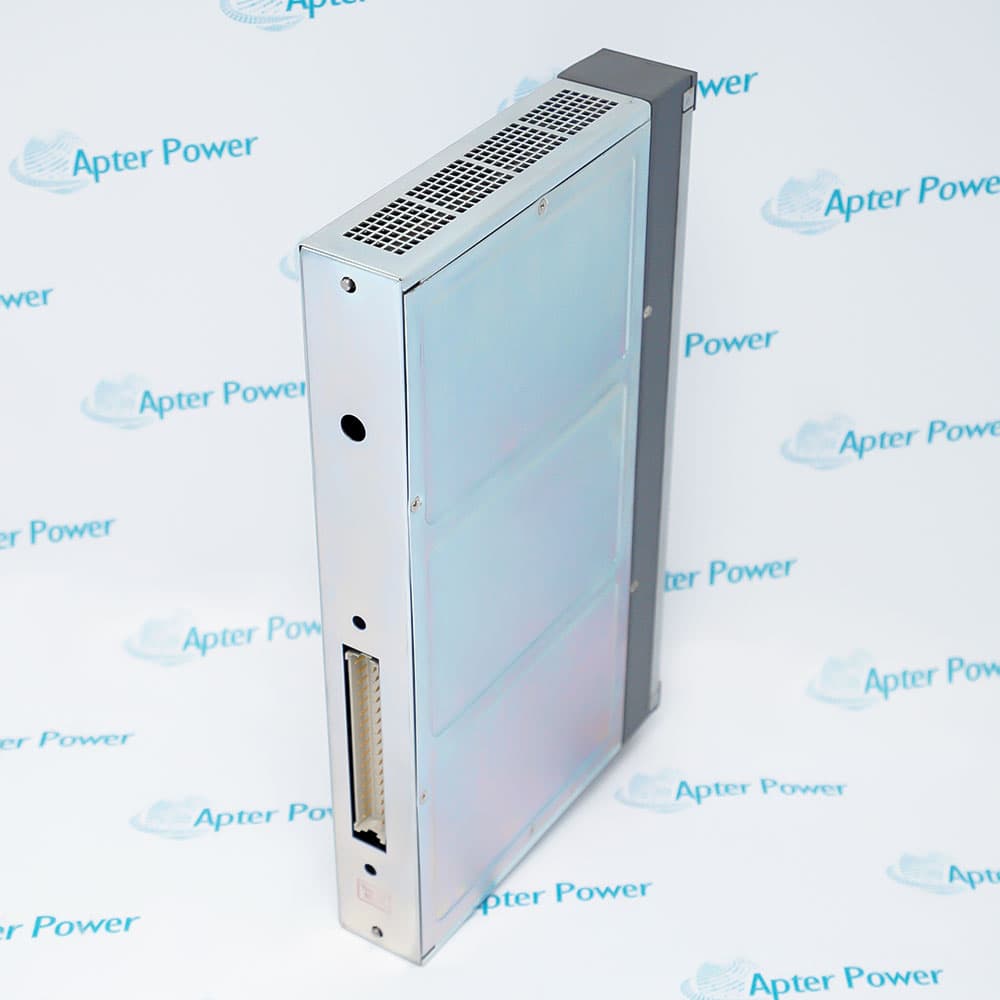

ABB DDO04 0369644M is a Freelance 2000 digital output module whose exact label, channel map and connected loads must be reviewed together.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for DDO04 0369644M
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DDO04 0369644M

  • Manufacturer:
    ABB
  • Part Number:
    DDO04 0369644M
  • Product Family:
    ABB H&B Freelance 2000
  • Product Type:
    Freelance 2000 Digital Output Module
  • Stock:
    1
  • Module type:
    DDO04 digital output module
  • System family:
    Freelance 2000
  • Order reference:
    0369644M
  • Verification boundary:
    Installed output and load interface
  • Field supply:
    Verify from controlled drawings
  • Safe state:
    Document before isolation
  • Protection:
    Retain approved protective-device record
  • Commissioning:
    Test one channel at a time
  • Weight:
    1.96 kg
  • Estimated shipping dimensions:
    4.2x18.7x31cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Output Identity Field Interface Service Checks Applications

Features:

  • Complete label control: retains DDO04 with reference 0369644M.
  • Output-state record: preserves channel assignments and safe states.
  • Field verification: tests each connected load before release.
The DDO04 and 0369644M identity is the procurement boundary for this existing Freelance 2000 page.

The output wiring, field supply and connected-device record remain part of approval because visual similarity does not establish electrical equivalence.

A controlled exchange begins with secured loads and ends only after each command, field response and feedback indication is verified.

Apter Power can help review the output map and complete ABB label for DDO04 0369644M enquiries.
ABB DDO04 0369644M Freelance 2000 Digital Output Module Manuals,Datasheets,LinkImportant Notice: No qualified exact-model English PDF is attached. Use the complete product model in every document request.
  • Module: retain DDO04 in every service record.
  • Reference: retain 0369644M exactly as labelled.
  • Assignments: map each output to its field device.
  • Safe state: document the required condition before isolation.
  • Supply: identify the field-voltage source and reference.
  • Protection: retain fusing or protective-device records.
  • Loads: document the connected actuator, relay or indication.
  • Terminals: label each conductor before disconnection.
  • Isolation: secure driven equipment before module removal.
  • Receiving: compare the complete label and connector condition.
  • Testing: energize one approved channel at a time.
  • Release: confirm correct load response and feedback.
  • Freelance 2000 control: switching of documented discrete loads.
  • Cabinet maintenance: exact-label replacement during a planned outage.
  • Fault isolation: separation of module, wiring and load causes.
  • Commissioning: channel-by-channel output and feedback proof.
Description

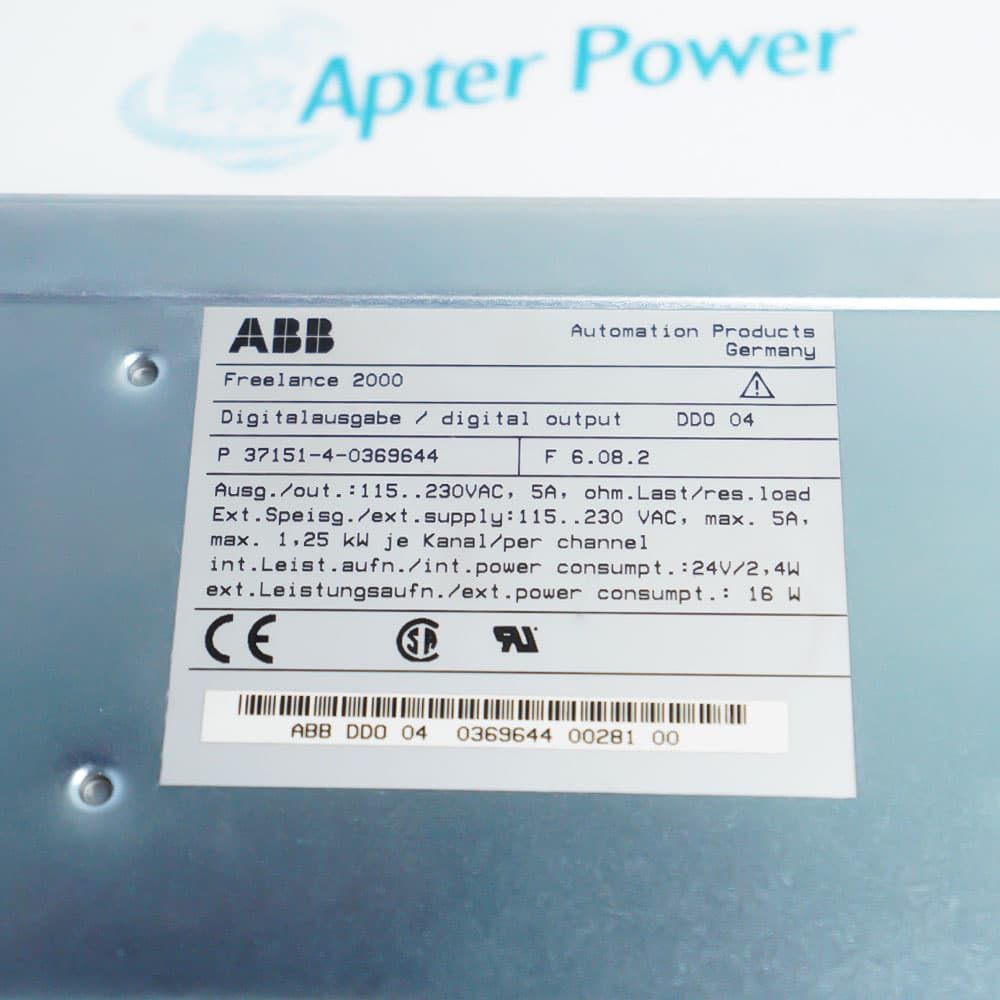

DDO04 0369644M is an ABB Freelance 2000 digital output module identified by the DDO04 designation and complete 0369644M reference. The exact label should be used for procurement and receiving.

The service boundary for DDO04 0369644M includes the installed channel assignments, field supply, output wiring, protective devices and connected loads. A similar board outline or another Freelance output-module number does not establish the same interface.

Before removing DDO04 0369644M, secure every driven device and retain the output-state baseline. After wiring restoration, test each channel under the site permit and confirm that only the intended load and feedback point respond.
Alternative Names
DDO04 0369644M DDO04 0369644M ABB DDO04 ABB 0369644M ABB DDO04 0369644M DDO 04 0369644 M DDO04/0369644M
Technical notes
DDO04 0369644M must be exchanged against its exact label and controlled output map. Record the safe state, field supply, protective device and load for every channel; stop work if the connector or order reference differs. Functional testing must prove the field response because a healthy module indication cannot reveal a shifted conductor.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must an RFQ include for DDO04 0369644M?
Include the complete ABB label, installed cabinet reference, connector photographs and the controlled output-to-load map.
How should maintenance isolate DDO04 0369644M?
Place every connected device in its documented safe state, inhibit automatic commands, isolate the field supply as required and verify zero-energy conditions.
When should receiving hold DDO04 0369644M?
Hold the unit if the DDO04 or 0369644M identity, connector arrangement, mounting or physical condition differs from the installed record.
Why must loads be tested individually after replacing DDO04 0369644M?
Individual testing exposes shifted conductors, wrong assignments and field-circuit faults that may not appear in module diagnostics.
Can another Freelance output module substitute for DDO04 0369644M?
No automatic equivalence is established; the exact identity, electrical interface, channel map and host application must all be reviewed.
What releases DDO04 0369644M after service?
Each output must drive only the documented load, produce the expected feedback and remain stable when the controller returns to the approved operating mode.
