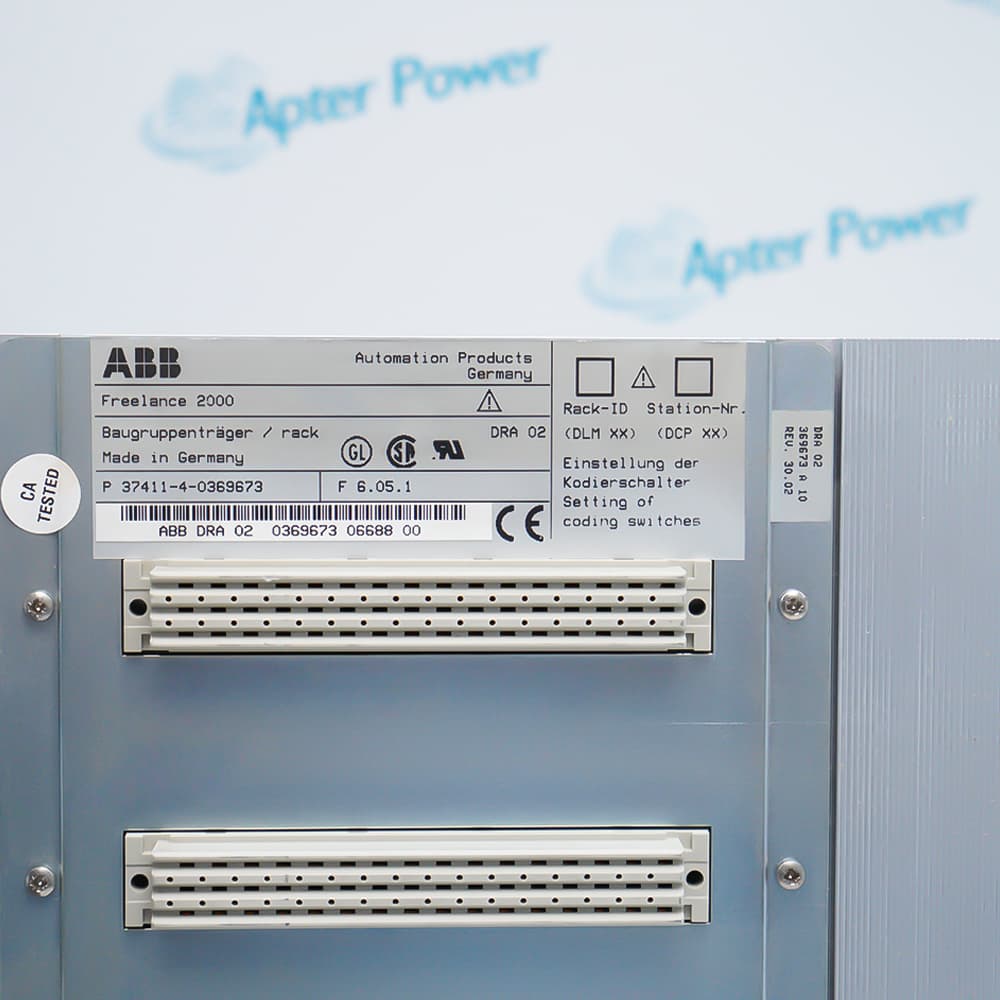

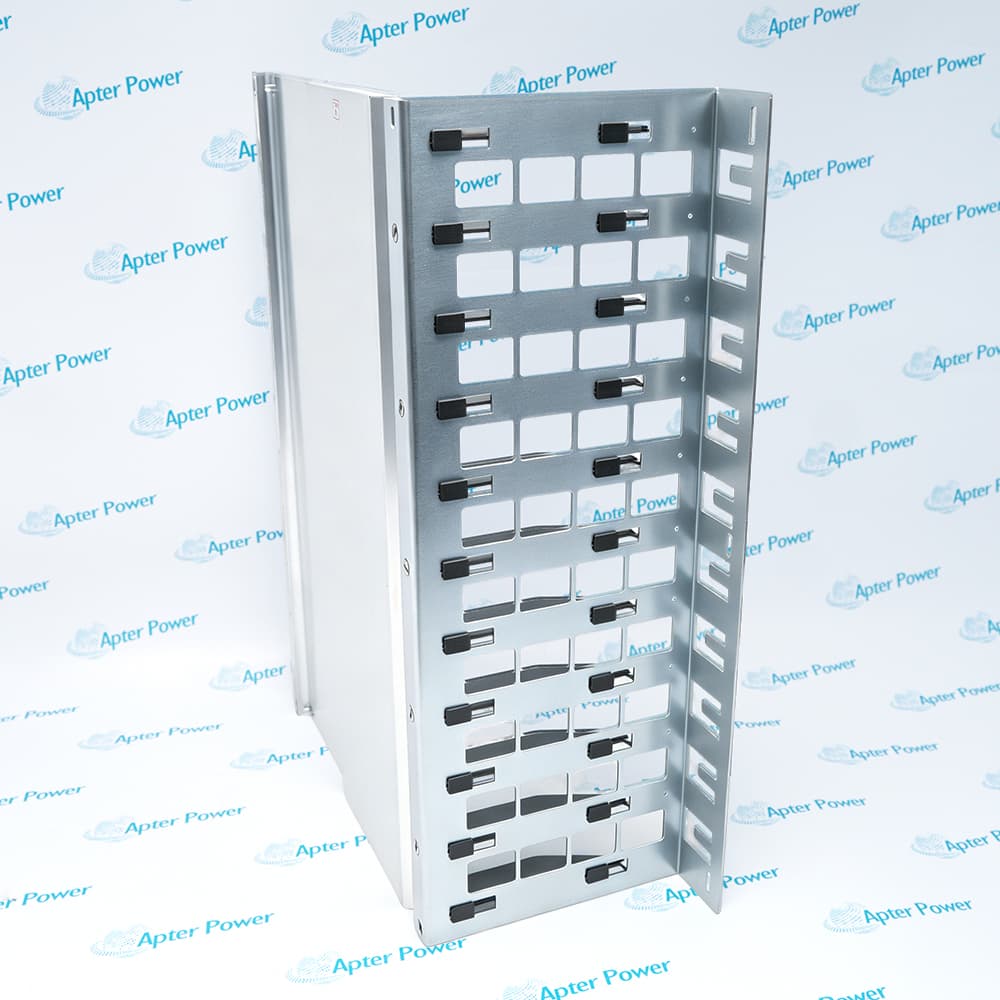

ABB DRA02 is a 19-inch, 10-slot mounting rack designed for redundant Freelance system configurations and rack-bus distribution.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for DRA02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DRA02

  • Manufacturer:
    ABB
  • Part Number:
    DRA02
  • Product Family:
    ABB H&B Freelance 2000
  • Product Type:
    10-slot redundant-system mounting rack
  • Stock:
    1
  • Order Reference:
    0369673M
  • Mechanical Format:
    19-inch mounting rack
  • Slot Capacity:
    10
  • Intended Architecture:
    Redundant system configurations
  • Predecessor:
    DRA01
  • Rack Communication:
    Three parallel DigiNet P CAN buses
  • DigiNet P Distance at 500 kbit/s:
    Up to 80 m
  • DigiNet P Distance at 100 kbit/s:
    Up to 400 m
  • Approximate Mounting Depth with AUI Cable:
    35 cm
  • Approximate Mounting Depth without AUI Cable:
    26 cm
  • Dimensions:
    48.26 × 34.1 × 17.6 cm
  • Weight:
    4.76 kg
  • Tariff Code:
    8538109000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Assembly CAN Mapping Bus Scaling Application
  • Ten-slot 19-inch mounting rack
  • Designed for redundant Freelance configurations
  • Distributes the rack bus and three DigiNet P CAN buses

DRA02 is the ABB ten-slot mounting rack documented for redundant system structures.

The rack succeeds DRA01 and provides the mechanical and bus framework for the installed modules.

Confirm order identity, slot population, controller redundancy, bus segmentation, cabinet clearance, and cable routing before replacement.

Availability, condition, price, and shipping time for DRA02 are confirmed during quotation.

ABB DRA02 Mounting Rack Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • ABB supplies the rack as an assembly kit
  • Module guides are inserted into the rack from above
  • Each backboard is pushed into position until its locking feature engages
  • CAN bus 1 serves DRA02 I/O slots 0, 3, and 6
  • CAN bus 2 serves DRA02 I/O slots 1, 4, and 7
  • CAN bus 3 serves DRA02 I/O slots 2, 5, and 8
  • The documented base distance is 80 m at 500 kbit per second
  • The documented base distance is 400 m at 100 kbit per second
  • Total length is reduced by 2 m per link module and, at 100 kbit per second, by 20 m per DSU07 cable
  • Housing redundant Freelance controller and I/O arrangements
  • Distributing rack bus connections among ten slots
  • Providing DigiNet P CAN-bus paths inside an ABB mounting-rack system
Description
DRA02 is an ABB 19-inch mounting rack with ten slots for redundant Freelance system arrangements.

ABB documentation states that DRA02 supersedes DRA01 and distributes the rack bus and three parallel DigiNet P CAN buses across the installed slots.

Confirm rack identity, module population, bus arrangement, cabinet depth, cooling space, and cable routing before replacement.
Alternative Names
DRA02 DRA 02 0369673M DRA02 0369673M ABB DRA02 ABB DRA 02 0369673M
Technical notes
ABB DRA02 is order reference 0369673M. Verify the ten-slot rack population, CAN-bus assignments, cabinet clearance, and cable routing before replacement.
