        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter Power provides fully tested, discontinued ABB distributed automation hardware to prevent factory downtime.

        ICSC08L1 FPR3319101R1082

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

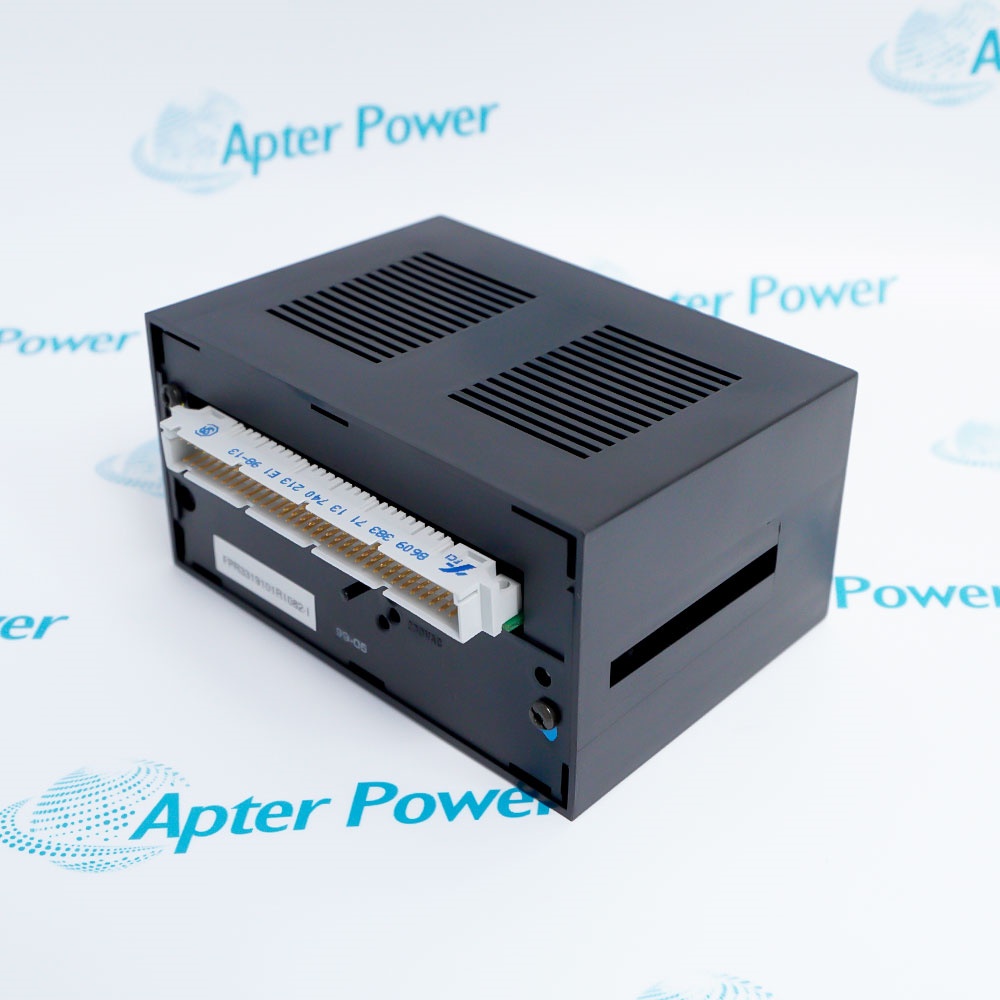

        The ABB ICSC08L1 FPR3319101R1082 is a decentralized binary input/output remote unit designed for the legendary ABB Procontic CS31 fieldbus system, engineering maximum flexibility into legacy industrial automation frameworks.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for ICSC08L1 FPR3319101R1082
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for ICSC08L1 FPR3319101R1082

        • Manufacturer:
          ABB
        • Part Number:
          ICSC08L1 FPR3319101R1082
        • Product Family:
          ABB Procontic
        • Product Type:
          I/O Remote Unit Module
        • Stock:
          1
        • Module Type:
          Binary Input/Output Remote Unit
        • Nominal Supply Voltage:
          24 VDC
        • Internal Power Consumption:
          Max. 5.0 W
        • Number of Configurable Channels:
          8 Channels
        • Input Signal Specifications:
          24 VDC / 6 mA per channel
        • Configurable Input Filter Delay:
          Hardware switch/software assignable: 2 ms, 4 ms, 8 ms, 16 ms, or 32 ms
        • Output Type & Rating:
          Transistor outputs, short-circuit proof, 24 VDC / 500 mA maximum per channel
        • Electrical Isolation:
          Non-isolated
        • CS31 Bus Communication Time:
          Fixed allocation: 387 μs per ICSC08L1 module on the network line
        • Operating Temperature:
          0°C to +55°C (Standard industrial grade)
        • Storage & Transport Temp.:
          -25°C to +75°C
        • Relative Humidity Limits:
          5% to 95% (Non-condensing, DIN EN 61131-2)
        • Weight:
          0.28 kg
        • Estimated shipping dimensions:
          12.2x9.5x6.3cm
        • Tariff Code:
          8538900000
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Environmental Ratings Monitoring & Control

        Features:

        • 8 Fully Configurable Dual-Purpose Channels
        • Deterministic 387μs CS31 Fieldbus Communication
        • Integrated Electronic Short-Circuit Protection
        The ABB ICSC08L1 FPR3319101R1082 eliminates the need for rigid, separate input and output module purchasing by offering a flexible, software/hardware-assignable matrix where each of the 8 terminals can transition between a 24VDC sensor input and a 24VDC actuator driver.

        Engineered to eliminate latency in critical control loops, the ABB ICSC08L1 FPR3319101R1082 guarantees a rock-solid communication profile of 387 microseconds, enabling synchronous processing across the decentralized system and optimizing total bus cycle times.

        To bulletproof your factory floor against catastrophic wiring mishaps, the ABB ICSC08L1 FPR3319101R1082 is equipped with rapid-acting electronic short-circuit and overload protection on all output transistors, immediately clamping fault currents to safeguard the internal CPU.

        The ICSC08L1 FPR3319101R1082 ABB Configurable Decentralized I/O Remote Unit Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ABB ICSC08L1 FPR3319101R1082 Configurable Decentralized I/O Remote Unit Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ABB ICSC08L1 FPR3319101R1082 Configurable Decentralized I/O Remote Unit Module

        General

        • Manufacturer ABB
        • Model ICSC08L1 FPR3319101R1082
        • Condition New Original ready stock
        • Product Family ICSM06A6 FPR3350601R1062,ICSI08E1 ICSI08E1-230 FPR3316101R001,ICFC16L1 FPR3319102R1162
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Legacy Metallurgy and Steel Rolling Mills: The module is widely embedded in automated hot/cold rolling mills, where it functions as a rugged interface for localized hydraulic valve controls and basic proximity switches under grueling physical conditions.
        • Marine Vessel Machinery Control Systems (MCS): Due to its compact architecture, the module serves in decentralized engine room monitoring, control surfaces, and ballast tank valve positioning architectures across older commercial shipping vessels.
        • Power Plant Auxiliary Process Automation: Frequently applied in water-steam loop monitoring, ash handling systems, and soot blower control systems where distributed signals must be aggregated over long bus distances back to a central master controller.
        • Municipal Water and Wastewater Infrastructure: Extensively utilized in remote lift stations, chemical dosing skids, and filtration basin networks to handle sparse digital I/O nodes without running expensive multi-core copper control lines.
        • Standard Industrial Thermal Range: Fully certified to sustain uninterrupted operations within a temperature spectrum of 0°C to +55°C, providing predictable, non-drifting input/output response times across standard factory floor climates.
        • Ruggedized Storage Resiliency: Capable of withstand long-term warehouse storage or deep-sea cargo transport in un-energized states across extreme temperatures from -25°C to +75°C without damage to its internal solid-state components.
        • High Humidity Tolerance Thresholds: Designed to comply with DIN EN 61131-2 moisture tolerances, maintaining structural and electrical integrity in environments with relative humidity climbing up to 95%, provided it is a non-condensing atmosphere.
        • Enclosure-Dependent Atmospheric Shielding: Requiring an external cabinet deployment (IP54 minimum recommended), its open-board carrier profile relies on the control enclosure to negate the risks of ambient conductive contamination and liquid splashing.
        • Dynamic Software/Hardware Address Allocation: The unit integrates seamless hardware address encoding, allowing engineers to uniquely register the remote node on the CS31 bus link, providing the host controller with instantaneous mapping of field signals.
        • High-Speed Transistor Current Monitoring: Features active electronic monitoring over its 24 VDC output lines, instantly detecting short circuits or over-current events above 500mA per channel, isolating faults locally before they migrate to the main bus line.
        • Configurable Noise De-bouncing Logic: Equipped with adjustable input signal integration times (2ms to 32ms), enabling precise configuration per application site to suppress harsh electromagnetic interference, arc flashes, or switch bounce.

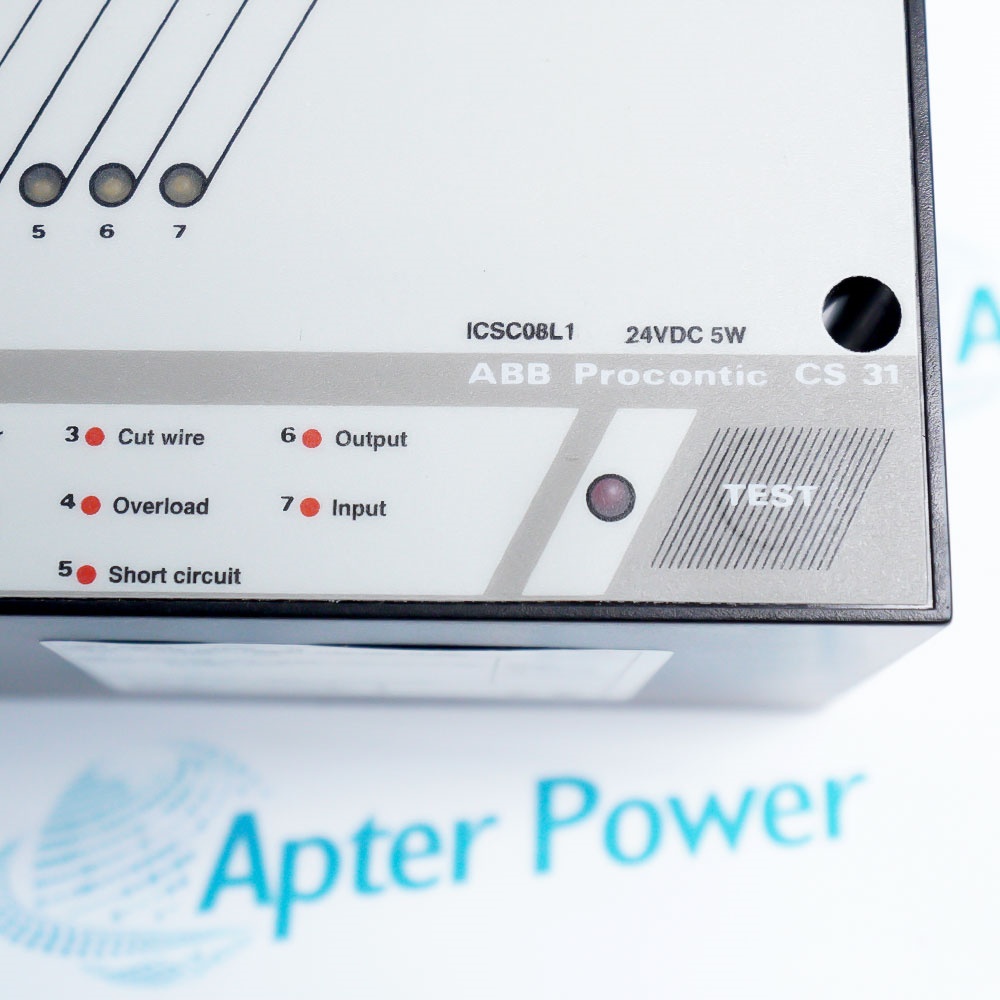

        • Onboard Visual Diagnostics Array: Features an integrated LED array on the front face of the module that provides immediate status visualization (Power, Bus Run, Unit Error, and Individual Channel State), accelerating field troubleshooting and minimizing plant mean-time-to-repair (MTTR).
        Description
        As a cornerstone of decentralized automation, the ABB ICSC08L1 FPR3319101R1082 features 8 fully user-configurable channels that can be independently assigned as either 24 VDC inputs or 24 VDC outputs. This dual-purpose channel morphology allows process control engineers to dynamically scale field infrastructure, optimizing cabinet space and dramatically reducing hardware overhead in complex retrofitting projects.

        Engineered explicitly for high-speed deterministic networking, the ABB ICSC08L1 FPR3319101R1082 communicates natively across the ABB Procontic CS31 system bus with an ultra-low single-unit cycle time of just 387 microseconds. By localizing I/O processing closer to field sensors and actuators, it minimizes long-distance multi-core cabling, eliminates electromagnetic signal degradation, and ensures real-time distributed data acquisition across vast industrial plants.

        The hardware architecture of the ABB ICSC08L1 FPR3319101R1082 prioritizes plant safety and uptime, featuring a non-isolated, short-circuit-proof transistor output matrix capable of handling up to 500 mA per channel with a combined module threshold of 2.0 A. With built-in configurable input delays ranging from 2ms to 32ms, this module effectively filters high-frequency contact bounce and transient noise, delivering clean, debounced data to the host processor under harsh electromagnetic conditions.
        Alternative Names
        ICSC08L1 FPR3319101R1082 ICSCO8L1 FPR33191O1R1082 1CSC08L1 FPR3319101R1082 ICSC08LI FPR33I9I0IRI082 ICSM06A6 FPR3350601R1062 ICSC08L1 FPR3319101R1082 ICFC16L1 FPR3319102R1162
        Technical notes
        The ABB ICSC08L1 FPR3319101R1082 operates on a nominal 24 VDC supply voltage and must be securely mounted on its dedicated unit carrier to maintain mechanical stability and proper grounding across the CS31 bus network. It is vital to note that the ABB ICSC08L1 FPR3319101R1082 features a non-isolated I/O architecture, meaning all 8 channels share a common internal reference potential, requiring careful loop design to prevent field-side ground loops.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How do I configure a specific channel on the ABB ICSC08L1 FPR3319101R1082 to act as an input versus an output?
        The channel configuration on the ABB ICSC08L1 FPR3319101R1082 is determined by how it is addressed in the master central processing unit's software configuration and its physical field wiring loop. When the master PLC scans the CS31 bus, it assigns memory registers based on the hardware address switches set on the base of the ABB ICSC08L1 FPR3319101R1082. If the application program writes a command to that channel's bit, the module drives the 24VDC transistor output; if the program reads from that bit, it scans the state of the 24VDC field input.
        Since the ABB ICSC08L1 FPR3319101R1082 is classified as a non-isolated unit, what grounding protocols must be followed to prevent diagnostic faults?
        Because the ABB ICSC08L1 FPR3319101R1082 features a non-isolated architecture, all 8 channels share a common internal ground with the module's 24VDC power supply. Engineers must ensure that the 24VDC reference potential of the module and the external field instruments (sensors/actuators) originate from the same stabilized power supply or are solidly bonded at a centralized grounding bar. Failure to maintain a common ground potential can lead to stray ground loops, corrupted CS31 bus data packets, or false short-circuit diagnostic triggers.
        What diagnostic depth does the ABB ICSC08L1 FPR3319101R1082 offer when a short-circuit occurs on a field output?
        When an external short-circuit or thermal overload condition occurs on any output channel, the ABB ICSC08L1 FPR3319101R1082 engages its localized hardware protection circuit to clamp the current. Simultaneously, the module sends an error flag back to the central processing unit via the 387μs CS31 bus protocol. The system master registers a specific "Unit Fault" diagnostic code, and the onboard LED indicators on the ABB ICSC08L1 FPR3319101R1082 will illuminate or flash to alert maintenance personnel of a physical wiring failure on that remote node.
        Can the configurable input delay of the ABB ICSC08L1 FPR3319101R1082 be adjusted on an individual channel basis?
        No, the configurable input delay filter (ranging from 2ms to 32ms) on the ABB ICSC08L1 FPR3319101R1082 applies globally to all channels operating as inputs on that specific remote unit. This setting is typically parameterized during commissioning via the master configuration or internal DIP switches. For high-speed applications like rotary pulse reading, a short 2ms delay is selected, while a longer 32ms delay is utilized in heavy-vibration environments to filter mechanical limit switch contact bounce.
        In which specific heavy industries is the ABB ICSC08L1 FPR3319101R1082 most commonly deployed?
        The ABB ICSC08L1 FPR3319101R1082 is heavily integrated into legacy distributed control frameworks across primary metals processing, marine propulsion/vessel steering systems, power generation facilities, and water treatment plants. Its decentralized footprint made it an ideal choice for retrofitting large-scale conveyor networks and chemical pumping stations where centralized rack PLC wiring was economically unfeasible.
        Does the ABB ICSC08L1 FPR3319101R1082 comply with standard industrial safety and international design certificates?
        Yes, the ABB ICSC08L1 FPR3319101R1082 was manufactured in strict compliance with the international IEC 1131-2 (now IEC 61131-2) standard governing programmable controllers and their associated decentralized peripherals. It bears the CE Mark, confirming compliance with European low-voltage and electromagnetic compatibility (EMC) directives, ensuring it functions safely within standard control cabinets under standard industrial environmental constraints.
