ABB 07MK92 GJR5253300R3161
ABB 07MK92 GJR5253300R3161
ABB 07MK92 GJR5253300R3161
ABB 07MK92 GJR5253300R3161
ABB 07MK92 GJR5253300R3161
ABB 07MK92 GJR5253300R3161
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power restocks phased-out ABB AC31 modules to protect legacy machinery synchronization control loops.

07MK92 GJR5253300R3161

/ 4.9
1001 reviews | Need a Specific Revision?

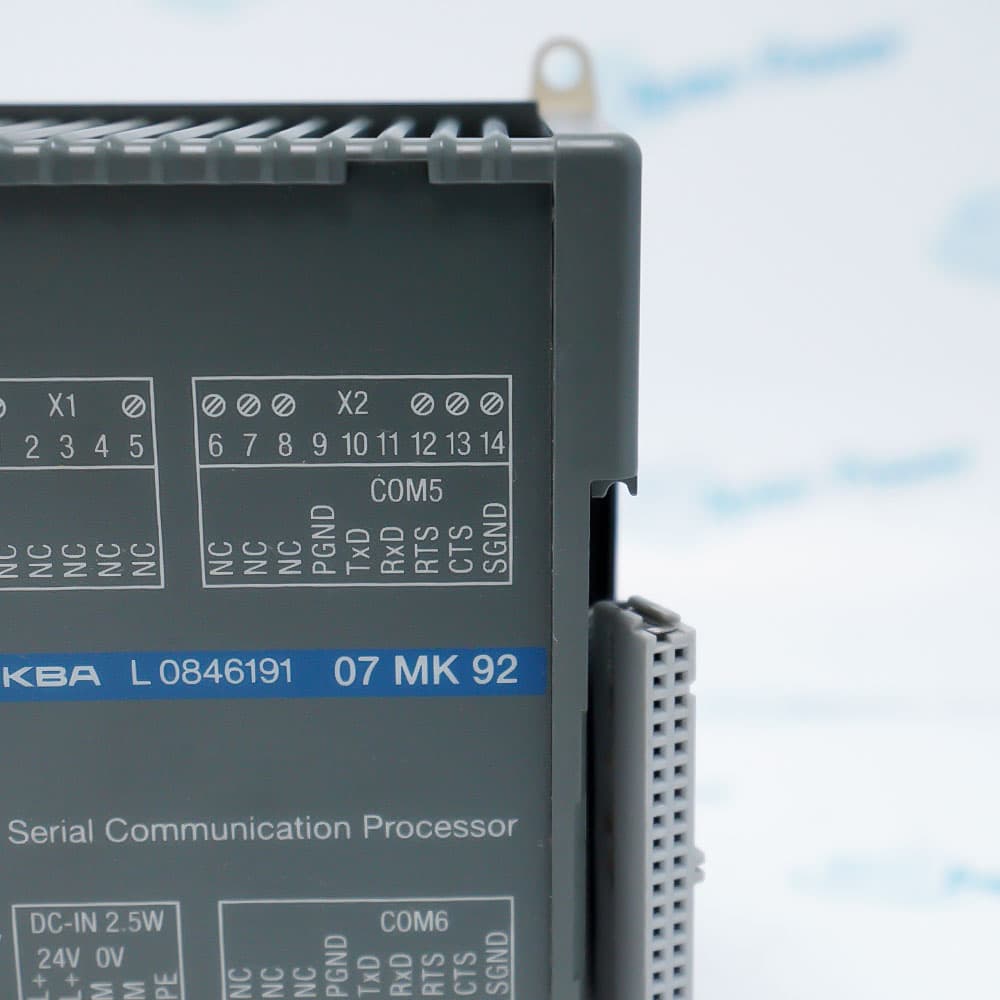

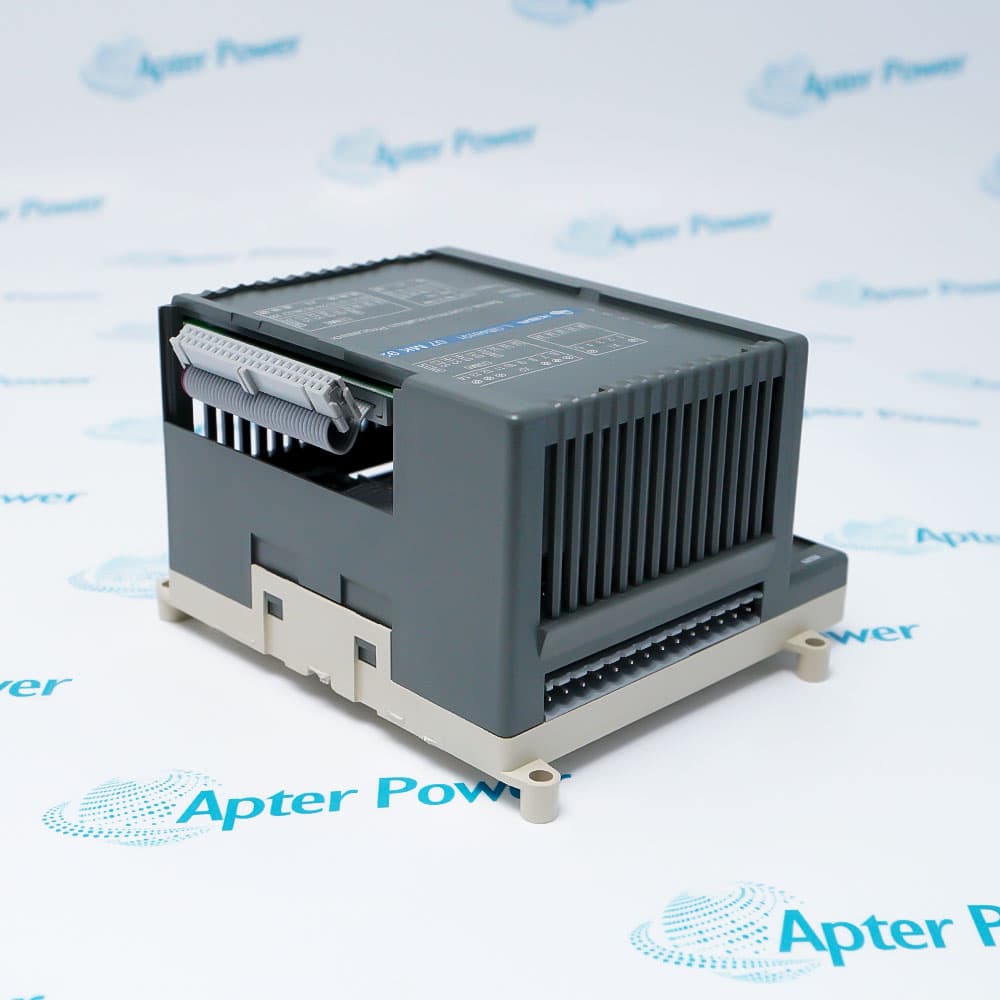

The ABB 07MK92 GJR5253300R3161 communication module is a high-performance, freely programmable interface module equipped with four serial interfaces.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 07MK92 GJR5253300R3161
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 07MK92 GJR5253300R3161

  • Manufacturer:
    ABB
  • Part Number:
    07MK92 GJR5253300R3161
  • Product Family:
    ABB Procontrol
  • Product Type:
    Communication module
  • Stock:
    1
  • Rated supply voltage:
    24 V DC
  • Power dissipation:
    typ.6 W
  • Max. current consumption with rated voltage:
    250 mA
  • Max. current consumption with supply voltage 30 V:
    200 mA
  • Protection against reversed terminal connection:
    yes
  • Number of parallel interfaces:
    1 networking interface for connecting to the AC31 basic unit
  • Weight:
    0.36 kg
  • Estimated shipping dimensions:
    13x13.7x8.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Diagnostics & Protection Operating Environment

Features:

  • Interface Between the Universal AC Power Source and Advant Controller 31 System
  • Combines Capability of Serial Communication with Freely Programmable Protocol Support
  • Operates in Conjunction with AC31 Basic Units and External Serial Devices
The 07MK92 GJR5253300R3161 operates as the freely programmable communication module in the Advant Controller 31 system, providing reliable serial connectivity to external units via four configurable serial interfaces. It continuously processes data exchange between connected serial devices and the AC31 basic unit through library functions, supporting seamless communication transfer across COM3, COM4, COM5, and COM6 ports. Freely definable communications protocols and transmission types are standard with the 07MK92 GJR5253300R3161, however using the comprehensive function library will allow flexible protocol configuration tailored to specific application requirements.

The 07MK92 GJR5253300R3161 provides essential communication functions common to the entire AC31 rack, and is a critical component of the data exchange path, directly affecting the proper, normal operation of the overall controller system. One 07MK92 GJR5253300R3161 communication module is connected per rack depending on the required serial interface count.

For multi-device communication applications, the AC31 system requires the 07MK92 GJR5253300R3161 communication module installed in the appropriate slot. In addition to standard single module operation, the four serial interface configuration also performs flexible port allocation. The 07MK92 GJR5253300R3161 dual interface standard executes communication using the internal circuitry specified in the module options.

The 07MK92 GJR5253300R3161 ABB Communication module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 07MK92 GJR5253300R3161 Communication module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB 07MK92 GJR5253300R3161 Communication module Specs

General

  • Manufacturer ABB
  • Model 07MK92 GJR5253300R3161
  • Condition New Original ready stock
  • Product Family 07KP90 R0303,07KP93 R1161,07KP95 R0101
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Factory Automation: Integrates distributed sensors, actuators, and peripheral devices into central PLC networks.
  • Printing Machinery: Widely deployed in high-speed industrial printing presses (e.g., Koenig & Bauer / KBA systems).
  • Protocol Bridging: Links legacy serial devices to modern automation backbones via custom or standard protocols.
  • Process Manufacturing: Manages multi-channel data routing in heavy industries requiring reliable real-time telemetry.
  • LED Signaling: Onboard visual indicators provide immediate status updates and rapid fault isolation.
  • Software Logging: Compatible with 907 MK 92 test software to track frame errors and transmission timeouts.
  • Data Validation: Performs automated checksum and parity verification to block corrupted control strings.
  • Electrical Isolation: Integrated shielding prevents field-side voltage spikes from damaging the internal PLC bus.
  • Industrial Design: Built for reliable deployment inside standard, enclosed factory control cabinets.
  • Vibration Resistance: Hardened physical architecture protects internal processors against heavy machinery vibrations.
Description
The 07MK92 GJR5253300R3161 communication module is a freely programmable interface module equipped with 4 serial interfaces. The 07MK92 GJR5253300R3161 allows external units to be connected to the Advant Controller 31 system via a serial interface, with communications protocols and transmission types freely defined by the user. Programming of the 07MK92 GJR5253300R3161 is performed on a PC with the programming and test software 907 MK 92.

The 07MK92 GJR5253300R3161 is freely programmable with a comprehensive function library, supports communication with the AC31 basic unit via library functions, features configurable LEDs for diagnosis, and enables programming and testing on a PC via COM3.

The 07MK92 GJR5253300R3161 communication module is specifically designed to handle complex serial communication requirements in industrial automation environments, solving the challenge of integrating diverse external devices with proprietary or non-standard protocols into the ABB Advant Controller 31 ecosystem. By providing four independently configurable serial interfaces and user-definable communication protocols, the 07MK92 GJR5253300R3161 eliminates the need for multiple dedicated communication gateways, reducing system complexity and installation costs while ensuring reliable data exchange between field devices and the central control system.

The 07MK92 GJR5253300R3161 is widely applied across various industrial sectors including manufacturing automation, process control, material handling systems, building automation, and energy management applications. In manufacturing environments, the 07MK92 GJR5253300R3161 facilitates communication between the AC31 controller and barcode scanners, weigh scales, vision systems, and third-party PLCs. In process industries, the 07MK92 GJR5253300R3161 enables integration of analyzers, flow computers, and smart transmitters that utilize custom serial protocols. The 07MK92 GJR5253300R3161 also serves critical roles in water treatment facilities, packaging machinery, and conveyor systems where multi-protocol serial communication is essential.
Alternative Names
07MK92 GJR5253300R3161 07 MK 92 GJR5253300R3161 07MK92 R1161 07KP90 R0303 07KP93 R1161 07KP95 R0101
Technical notes
The ABB 07MK92 GJR5253300R3161 is designed to enable external devices to seamlessly connect to the Advant Controller 31 (AC31) system via serial communication. A key advantage of the ABB 07MK92 GJR5253300R3161 is its flexibility, allowing users to freely define the transmission type and communication protocol. Programming and testing of this device are performed on a PC using dedicated 907 MK 92 software.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which communication standards are supported by the ABB 07MK92 GJR5253300R3161?
COM3 and COM4 can be configured for EIA RS-232, EIA RS-422, or EIA RS-485 communication standards. COM5 and COM6 operate as dedicated EIA RS-232 interfaces, allowing compatibility with a broad range of serial devices.
Why is RS-485 support important in industrial applications?
RS-485 communication enables reliable long-distance data transmission and supports multiple devices on the same network. This makes it particularly suitable for industrial environments where equipment may be distributed across large facilities.
What types of devices can be connected to the ABB 07MK92 GJR5253300R3161?
The module can interface with barcode scanners, weighing systems, variable frequency drives (VFDs), printers, analyzers, specialized sensors, and other serial communication devices used in industrial automation.
In which industries is the ABB 07MK92 GJR5253300R3161 commonly used?
The module is widely deployed in manufacturing facilities, energy management systems, water treatment plants, process industries, logistics operations, and other industrial automation environments that require serial device integration.
