1791-16BC

/ 4.9
1001 reviews | Need a Specific Revision?

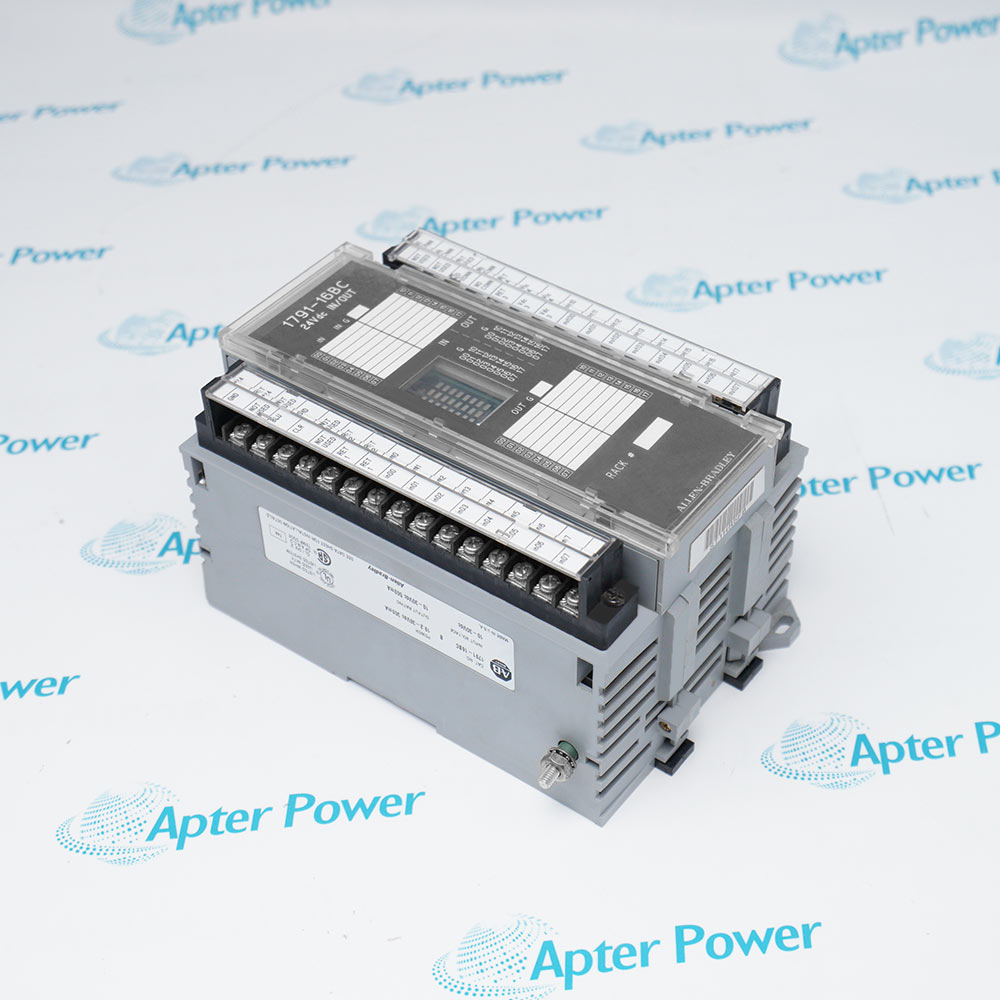

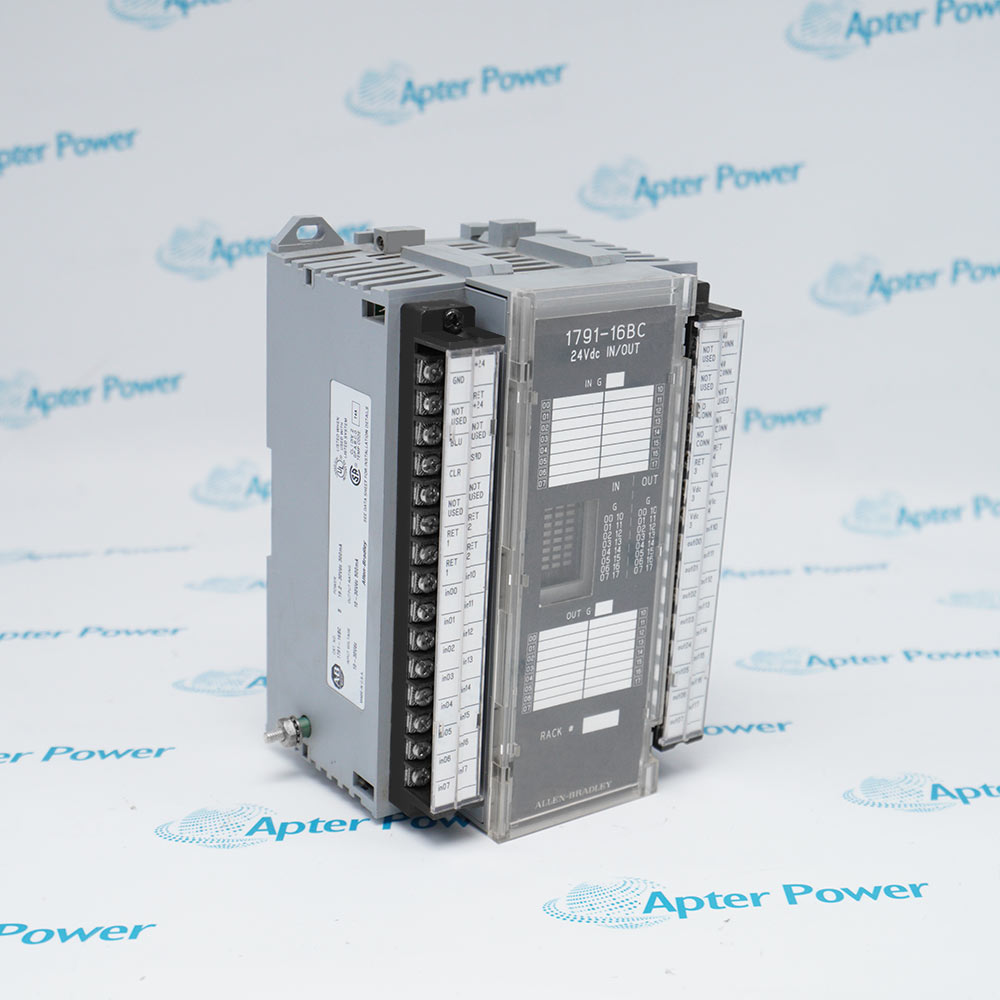

Allen-Bradley 1791-16BC is a 24 V DC Block I/O module with sixteen inputs, sixteen sourcing outputs, and Universal Remote I/O communication.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1791-16BC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1791-16BC

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1791-16BC
  • Product Family:
    1791 Block I/O
  • Product Type:
    16-Input 16-Output DC Block I/O Module
  • Stock:
    1
  • Inputs:
    16; two groups of 8
  • Input Voltage Range:
    10 to 30 V DC
  • Input Impedance:
    3.4 kΩ maximum
  • Input Delay Fast:
    1.0 ms on; 5.0 ms off maximum
  • Input Delay Slow:
    1.0 ms on; 18.0 ms off maximum
  • Outputs:
    16; two groups of 8
  • Output Voltage Range:
    10 to 30 V DC
  • Output Rating Vertical:
    1 A at 30°C; 0.5 A at 60°C
  • Output Rating Horizontal:
    0.5 A at 30°C; 0.25 A at 60°C
  • Output Surge Current:
    3 A for 50 ms, repeatable every 2 seconds
  • External Power:
    19.2 to 30 V DC; 300 mA
  • Isolation:
    500 V AC power-to-RIO, group-to-group, and group-to-logic
  • Power Dissipation:
    17.8 W maximum
  • Operating Temperature:
    0°C to 60°C
  • Storage Temperature:
    -40°C to 85°C
  • Relative Humidity:
    5% to 95%, non-condensing
  • Dimensions:
    11.05 × 17.65 × 9.8 cm
  • Weight:
    0.78 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals RIO Setup Load Planning Installation Application
  • Sixteen DC inputs and sixteen sourcing DC outputs
  • Communicates on the Universal Remote I/O link
  • Field-mounted block form factor with grouped isolation

1791-16BC concentrates a full set of discrete input and output points near the machine while returning their image through Remote I/O.

Two groups of eight provide structured power and return connections, and the output loading changes with mounting direction and temperature.

The block therefore has to be replaced as a wired and addressed network station, not merely as a point-count-equivalent I/O device.

Availability, condition, price, and shipping time for 1791-16BC are confirmed during quotation.

Allen-Bradley 1791-16BC Series B 16-Input/16-Output DC Block I/O Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Restore block address and baud rate
  • Preserve scanner rack and group mapping
  • Verify RIO conductor polarity and termination
  • Check sourcing-load polarity and voltage
  • Apply mounting-orientation current derating
  • Provide recommended external output fusing
  • Maintain clearance on all sides
  • Preserve field-wire identification
  • Verify grounding, shield, and external power before startup
  • Distributed 24 V DC machine I/O
  • Remote I/O stations near field devices
  • Combined sensor input and actuator output control
Description
Allen-Bradley 1791-16BC combines sixteen DC inputs and sixteen DC outputs in a distributed Block I/O station connected to an Allen-Bradley Remote I/O link.

Inputs and outputs are arranged as two groups of eight, with documented group isolation, configurable input response, and output-current derating based on mounting orientation and ambient temperature.

Replacement work should retain the block address, RIO baud rate, last-state or reset behavior, I/O image mapping, wiring labels, external output fusing, mounting orientation, and enclosure clearances.
Revisions

Revision Part #

Also known as

1791-16BC Ser B
1791-16BC/B, Series B, Rev B
Alternative Names
1791-16BC Allen-Bradley 1791-16BC Rockwell Automation 1791-16BC 1791-16BC/B Allen-Bradley 1791-16BC/B Allen-Bradley 1791 Block I/O 1791-16BC
Technical notes
1791-16BC replacement requires matching RIO address and baud rate, input delay, output state behavior, sourcing-load polarity, external fusing, mounting derating, wiring, and enclosure clearance; incorrect setup can mis-map field I/O.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must be retained before replacing Allen-Bradley 1791-16BC?
Record the RIO rack and group address, baud rate, input-delay selection, output reset or hold-last-state behavior, I/O mapping, field wiring, and mounting orientation.
Why does mounting orientation matter for Allen-Bradley 1791-16BC?
The official output-current ratings are lower for horizontal mounting, so load calculations must use the actual orientation and maximum ambient temperature.
Does Allen-Bradley 1791-16BC provide fused outputs?
No. The module is internally protected, but Rockwell recommends external output fusing using the documented fuse guidance for the connected circuits.
Why can Allen-Bradley 1791-16BC show communication loss after replacement?
Check the RIO cable, blue and clear conductor polarity, shield, terminator, block address, baud-rate switches, scanner configuration, and external power.
Why can Allen-Bradley 1791-16BC outputs energize incorrectly even when the block communicates?
Compare the scanner image, group supplies and returns, output-state selection, field wiring, and restored logic because communication alone does not prove the output map or power grouping.
Can Allen-Bradley 1791-16BC replace separate input and output blocks without redesigning the station?
Not as a simple substitution. The combined block changes Remote I/O mapping, address use, group power, returns, fusing, enclosure space, and field termination.
What should be checked when Allen-Bradley 1791-16BC has a healthy communication LED but one field point does not respond?
Use the point indicator to separate logic-side status from field-side faults, then check the supply, return, terminal, fuse, load polarity, wiring continuity, and controller image bit.
