1756-EN2T

/ 4.9
1001 reviews | Need a Specific Revision?

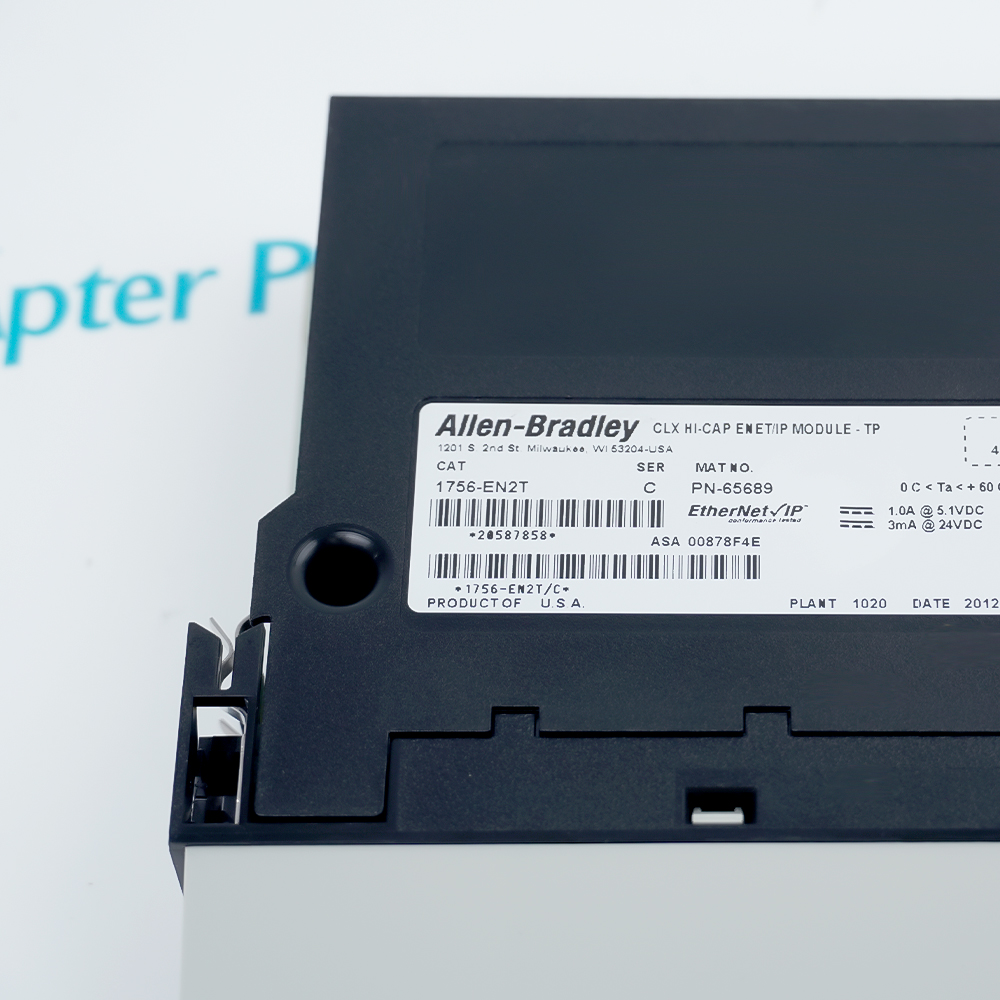

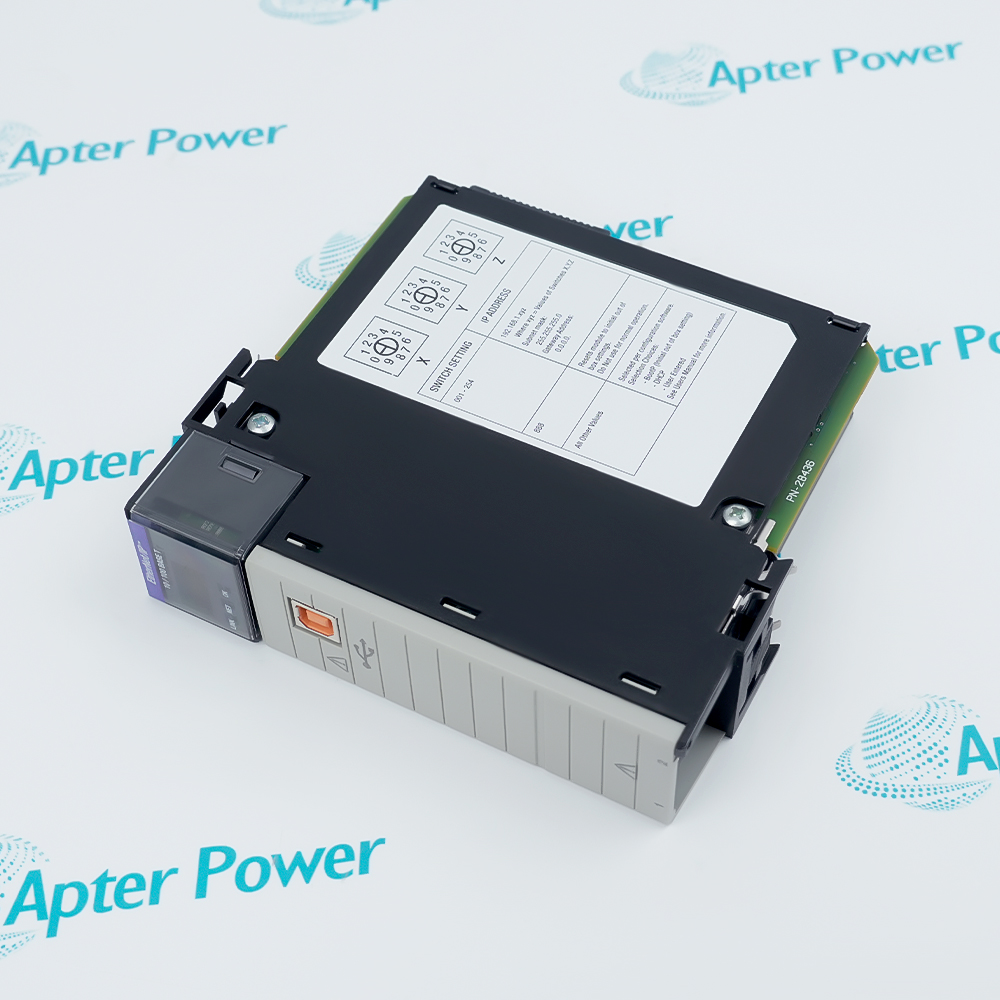

The Allen-Bradley 1756-EN2T is a ControlLogix EtherNet/IP communication module featuring one 10/100BASE-T port and supporting up to 128 TCP connections and 256 CIP connections.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1756-EN2T
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1756-EN2T

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1756-EN2T
  • Product Family:
    ControlLogix
  • Product Type:
    ControlLogix EtherNet/IP Communication Module
  • Stock:
    1
  • Ethernet ports:
    1 copper RJ45
  • Data rate:
    10/100 Mbit/s
  • Maximum TCP connections:
    128
  • Maximum CIP connections:
    256
  • Packet-rate capacity:
    10,000 packets/s with firmware 2.x or earlier; 25,000 packets/s with firmware 3.6 or later
  • Integrated motion capacity:
    Up to 8 axes with supported firmware and controller
  • USB service port:
    Full-speed 12 Mbit/s, temporary local programming only
  • Backplane current:
    1 A at 5.1 VDC; 3 mA at 24 VDC
  • Power dissipation:
    5.1 W
  • Thermal dissipation:
    17.4 BTU/h
  • Slot width:
    1
  • Chassis location:
    Any ControlLogix chassis slot
  • Operating temperature:
    0 to 60°C
  • Storage temperature:
    -40 to 85°C
  • Dimensions:
    14.52 × 3.46 × 13.96 cm
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Network Connection Commissioning Application
  • Use a managed industrial Ethernet design appropriate to the machine
  • Budget TCP and CIP connections for all configured consumers
  • Check duplicate-IP detection before connecting the production network

Allen-Bradley 1756-EN2T is an Allen-Bradley ControlLogix EtherNet/IP communication module with one 10/100BASE-T port and capacity for 128 TCP and 256 CIP connections.

It links a ControlLogix chassis to an EtherNet/IP network for controller messaging, distributed I/O, programming and supported integrated-motion applications.

Before installation or replacement, verify the IP address, subnet and gateway, duplicate-IP protection, chassis slot, controller path, requested packet intervals, connection loading, firmware, switch configuration and supported motion architecture.

Availability, condition, price, and shipping time for 1756-EN2T are confirmed during quotation.

Allen-Bradley 1756-EN2T Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use a managed industrial Ethernet design appropriate to the machine
  • Reserve and document the IP address, subnet and gateway
  • Check multicast, IGMP and switch settings when I/O traffic is unstable
  • Budget TCP and CIP connections for all configured consumers
  • Verify requested packet intervals against packet-rate capacity
  • Confirm every controller and I/O path after a slot or address change
  • Check duplicate-IP detection before connecting the production network
  • Update firmware only against a verified controller and project matrix
  • Test I/O recovery, messaging and diagnostics after a controlled power cycle
  • Connecting ControlLogix controllers and distributed EtherNet/IP I/O
  • Providing plant-network programming, diagnostics and controller messaging
  • Supporting a verified Integrated Motion on EtherNet/IP architecture
Description

1756-EN2T is an Allen-Bradley ControlLogix EtherNet/IP communication module with one 10/100BASE-T copper network port.

It supports up to 128 TCP connections and 256 CIP connections and can coordinate as many as eight integrated motion axes when used with compatible controllers and firmware.

Before installation or replacement, verify the hardware Series, firmware, IP address, subnet, gateway, chassis slot, controller path, electronic keying and managed-switch configuration.

Revisions

Revision Part #

Also known as

1756-EN2T Ser A
1756-EN2T/A, Series A, Rev A
1756-EN2T Ser B
1756-EN2T/B, Series B, Rev B
1756-EN2T Ser C
1756-EN2T/C, Series C, Rev C
1756-EN2T Ser D
1756-EN2T/D, Series D, Rev D
Alternative Names
1756-EN2T 1756EN2T 1756 EN2T Allen-Bradley 1756-EN2T AB 1756-EN2T Rockwell Automation 1756-EN2T
Technical notes
Allen-Bradley 1756-EN2T network reachability and EtherNet/IP I/O health are separate checks. Preserve module path, firmware, connection loading and managed-switch configuration before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1756-EN2T replace a 1756-ENBT without project changes?
Do not assume a drop-in swap. Confirm controller firmware, module series and firmware, slot path, connection count, multicast behavior, motion use and every configured I/O adapter before changing the project.
Why can Allen-Bradley 1756-EN2T be pinged while EtherNet/IP I/O remains faulted?
ICMP reachability does not prove CIP connections are valid. Check the controller I/O tree, module path, electronic keying, RPI, connection capacity, duplicate IP, switch multicast handling and downstream adapter faults.
Can Allen-Bradley 1756-EN2T be used in a Device Level Ring network?
No. Allen-Bradley 1756-EN2T has a single copper EtherNet/IP interface and does not provide the dual-port embedded switch required for a Device Level Ring. Use a supported ring-capable module such as 1756-EN2TR when DLR connectivity is required.
What network records should be saved before replacing Allen-Bradley 1756-EN2T?
Record the IP settings, chassis slot, series and firmware, controller project path, switch port and VLAN, connection loading, produced/consumed tags, messaging paths and any motion-axis assignments.
Why can Allen-Bradley 1756-EN2T connections drop only during machine startup?
Startup may create a burst of I/O and messaging traffic. Review packet rate, RPIs, multicast flooding, switch queues, connection limits, cable errors and whether several controllers reconnect simultaneously.
What must be confirmed before using Allen-Bradley 1756-EN2T for integrated motion?
Confirm the supported controller family, Logix software and RSLinx versions, module firmware, axis count, network topology, time synchronization and motion-capable drives; ordinary EtherNet/IP communication alone is not sufficient.
Can Allen-Bradley 1756-EN2T be installed in a redundant ControlLogix chassis?
Only when the module series, firmware revision, redundancy firmware bundle and electronic-keying setting are supported by the installed redundancy system. Verify the exact redundancy release documentation before replacing or upgrading the module; matching the catalog number alone is not sufficient.
