1757-FFLD2/A

/ 4.9
1001 reviews | Need a Specific Revision?

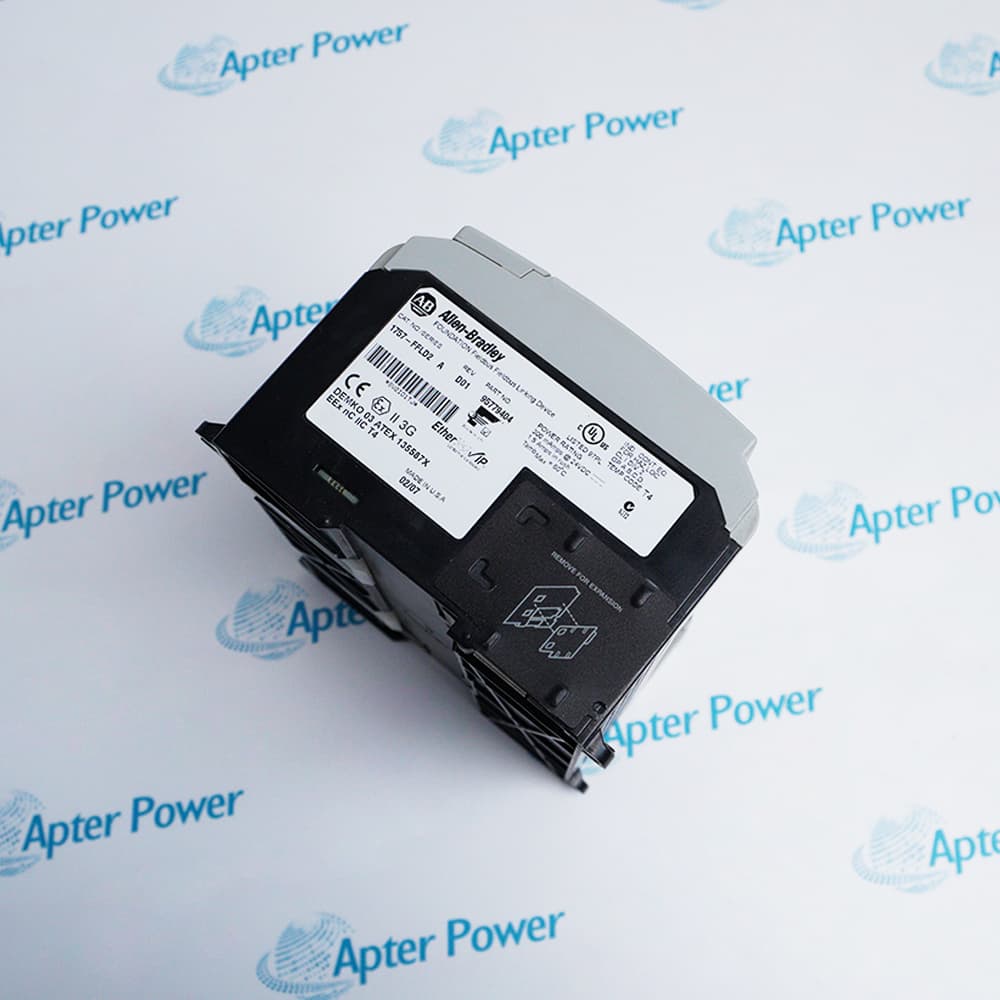

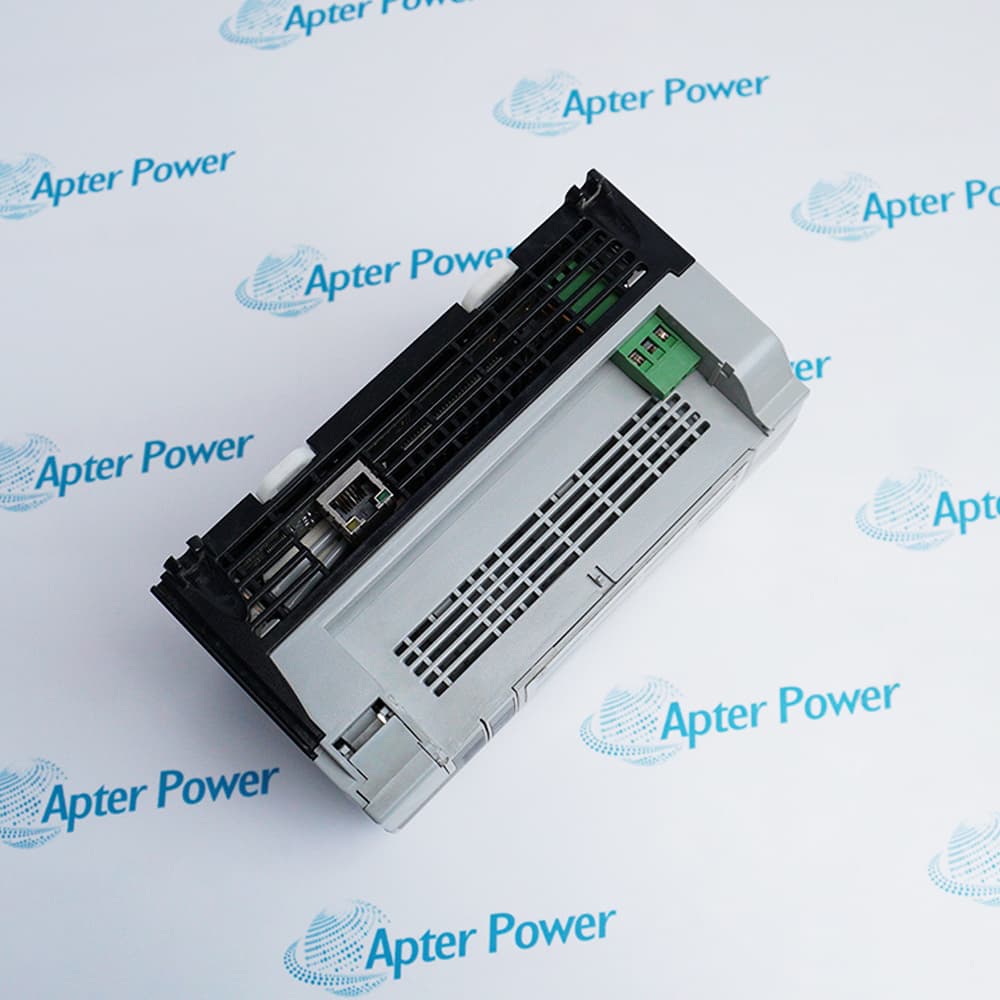

The Allen-Bradley 1757-FFLD2/A ControlLogix communication module is designed to connect FOUNDATION Fieldbus H1 networks to modern Ethernet/IP infrastructure.
Get a quick price for 1757-FFLD2/A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1757-FFLD2/A

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1757-FFLD2/A
  • Product Family:
    ControlLogix
  • Foundation Fieldbus communication rate:
    31.25 Kbps
  • EtherNet/IP communication rate:
    10/100 Mbps
  • Number of H1 networks per linking device, max:
    2
  • Number of Fieldbus devices per H1 network, max:
    16 (8…10 recommended)
  • Number of Fieldbus devices per linking device, max:
    32
  • Current draw @ 24V DC:
    300 mA
  • Inrush current:
    1.5 A
  • Module location:
    DIN rail or panel
  • Power supply User-supplied:
    24V DC
  • Weight:
    0.8 kg
  • Estimated shipping dimensions:
    19.1 cm x 12.7 cm x 8.9 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Diagnostics & Protection Operating Environment

Features:

  • Gateway Between Ethernet/IP Networks and FOUNDATION Fieldbus H1 Devices
  • Integrates High-Speed Ethernet Connectivity with Dual H1 Port Fieldbus Support
  • Functions Seamlessly Within Allen-Bradley ControlLogix System Architectures
The Allen-Bradley 1757-FFLD2/A serves as the FOUNDATION Fieldbus Linking Device in industrial control networks, establishing robust communication pathways between Ethernet/IP infrastructure and fieldbus instrumentation. It continuously bridges high-speed Ethernet protocols (10/100 Mbps EtherNet/IP and HSE) with H1 fieldbus segments (31.25 kbps), enabling centralized access to distributed process control devices across the manufacturing floor. Reliable data transfer is inherent to the 1757-FFLD2/A design, with each H1 port supporting up to 8 to 10 FOUNDATION Fieldbus devices and accommodating 16 publisher and 16 subscriber VCR connections per network. The 1757-FFLD2/A delivers significant advancements in industrial networking integration, incorporating dual Ethernet ports and comprehensive protocol support within the ControlLogix ecosystem.

The 1757-FFLD2/A provides essential communication functions bridging disparate network domains, serving as a critical component of the control path that directly influences the proper, coordinated operation of distributed process systems. One 1757-FFLD2/A module is required per ControlLogix chassis to establish FOUNDATION Fieldbus connectivity, with the device occupying a standard slot position within the rack. The 1757-FFLD2/A operates on 18 to 36 VDC input power (nominal 24 VDC) with maximum consumption of 36 watts and input current up to 1.5 amperes.

For comprehensive industrial networking applications, the 1757-FFLD2/A ensures continuous operation through robust electrical isolation and surge protection mechanisms. In addition to standard protocol translation functions, the module maintains 500 V RMS isolation voltage between Ethernet and H1 networks. The 1757-FFLD2/A withstands surges of ±2 kV across H1 ports and demonstrates immunity to electrostatic discharge rated at 8 kV air discharge and 6 kV contact discharge. Using these protective measures, the 1757-FFLD2/A continually safeguards communication integrity across both network domains. If the system detects electrical disturbances or transient events that could compromise data transmission, the isolation barriers and surge suppression circuitry maintain stable operation and preserve diagnostic event records within the ControlLogix controller.

The 1757-FFLD2/A Allen-Bradley ControlLogix Communication Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1757-FFLD2/A ControlLogix Communication Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1757-FFLD2/A ControlLogix Communication Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1757-FFLD2/A
  • Condition New Original ready stock
  • Product Family 1757-FFLD2,1757-FFLD4,1757-FFLD
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Network Bridging: Bridges high-speed Ethernet (10/100 Mbps) with FOUNDATION Fieldbus H1 (31.25 kbps) segments.
  • Device Integration: Supports up to 16 fieldbus devices per H1 port, with a maximum of 64 devices per linking device.
  • Asset Management: Enables software like FactoryTalk AssetCentre to communicate with field instruments through the Logix architecture.
  • Process Control: Ideal for industrial automation and motion control applications requiring distributed fieldbus networks.
  • Status Indicators: Features LED indicators for module health (e.g., solid green for normal operation, flashing red for minor faults) and H1 port status.
  • Electrical Isolation: Provides 500 V RMS isolation between Ethernet and H1 circuits. Surge Protection: Built-in surge withstand capability of ±2 kV across H1 ports.
  • ESD Immunity: Rated for 8 kV air discharge and 6 kV contact discharge to protect sensitive internal electronics.
  • Input Voltage:18–36 V DC (24 V DC nominal)
  • Enclosure Rating:IP20 (Requires IP54 for Zone 2 environments)
  • Pollution Degree:Degree 2
  • Maximum Altitude:2,000 m (6,561 ft) without derating
  • Mounting:DIN rail or panel mounting
Description
The Allen-Bradley 1757-FFLD2/A ControlLogix Communication Module is a specialized industrial networking solution designed to bridge FOUNDATION Fieldbus H1 networks with modern Ethernet/IP infrastructure. The 1757-FFLD2/A operates on an input voltage range of 18 to 36 VDC with a nominal input of 24 VDC, consuming a maximum of 36 watts of power while handling an input current of up to 1.5 amperes. This 1757-FFLD2/A module is equipped with dual Ethernet ports operating at 10/100 Mbps speeds and supporting crucial protocols including EtherNet/IP and High-Speed Ethernet (HSE), enabling seamless integration into existing ControlLogix architectures.

The 1757-FFLD2/A provides fieldbus connectivity through two H1 ports, each capable of supporting the recommended maximum of 8 to 10 FOUNDATION Fieldbus devices at a communication speed of 31.25 kbps. Each H1 network on the 1757-FFLD2/A can support a maximum of 16 publisher and 16 subscriber VCR connections, facilitating sophisticated, highly-distributed process control applications. The 1757-FFLD2/A ensures robust electrical isolation with an Ethernet to H1 isolation voltage rated at 500 V RMS and demonstrates surge tolerance of ±2 kV across the H1 ports, contributing to its reliability in demanding industrial environments. The module also exhibits solid immunity against electrostatic discharge, rated at 8 kV for air discharge and 6 kV for direct contact discharge, with an IP20 enclosure rating suitable for controlled industrial settings where dust exposure is minimal.

This 1757-FFLD2/A linking device is specifically engineered to solve the critical challenge of integrating legacy FOUNDATION Fieldbus process control networks into modern Ethernet-based control architectures. The 1757-FFLD2/A addresses the fundamental problem of protocol incompatibility that process industries face when upgrading their distributed control systems, eliminating the need for complete infrastructure replacement while enabling centralized monitoring and control of field devices. By bridging from an Ethernet/IP network to H1 ports, the 1757-FFLD2/A allows facilities to leverage existing FOUNDATION Fieldbus instrumentation investments while gaining the benefits of high-speed Ethernet connectivity, remote diagnostics capabilities, and simplified system architecture management in process control applications such as chemical processing, oil and gas production, and pharmaceutical manufacturing.
Revisions

Revision Part #

Also known as

1757-FFLD2 Ser A
1757-FFLD2/A, Series A, Rev A
Alternative Names
1757-FFLD2 1757-FFLD2-A 1757-FFLD4 1757-FFLD 1757-FFLDC2
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Allen-Bradley 1757-FFLD2/A module?
The Allen-Bradley 1757-FFLD2/A is a specialized ControlLogix communication module designed to bridge FOUNDATION Fieldbus H1 networks with modern EtherNet/IP infrastructure. It enables seamless integration between legacy field devices and contemporary industrial Ethernet systems.
What networking capabilities does the 1757-FFLD2/A provide?
The module features dual Ethernet ports supporting 10/100 Mbps communication and protocols such as EtherNet/IP and High-Speed Ethernet (HSE). This allows efficient integration into ControlLogix systems and broader industrial networks.
What protection and reliability features are included in the 1757-FFLD2/A?
The module offers strong electrical isolation with 500 V RMS between Ethernet and H1 ports. It also provides surge protection up to ±2 kV, electrostatic discharge immunity of 8 kV (air) and 6 kV (contact), and an IP20-rated enclosure for controlled industrial environments.
What problem does the 1757-FFLD2/A solve in industrial systems?
The module addresses the challenge of integrating legacy FOUNDATION Fieldbus systems with modern Ethernet-based architectures. It eliminates protocol incompatibility issues, allowing facilities to upgrade control systems without replacing existing field instrumentation.
