1757-FIM

/ 4.9
1001 reviews | Need a Specific Revision?

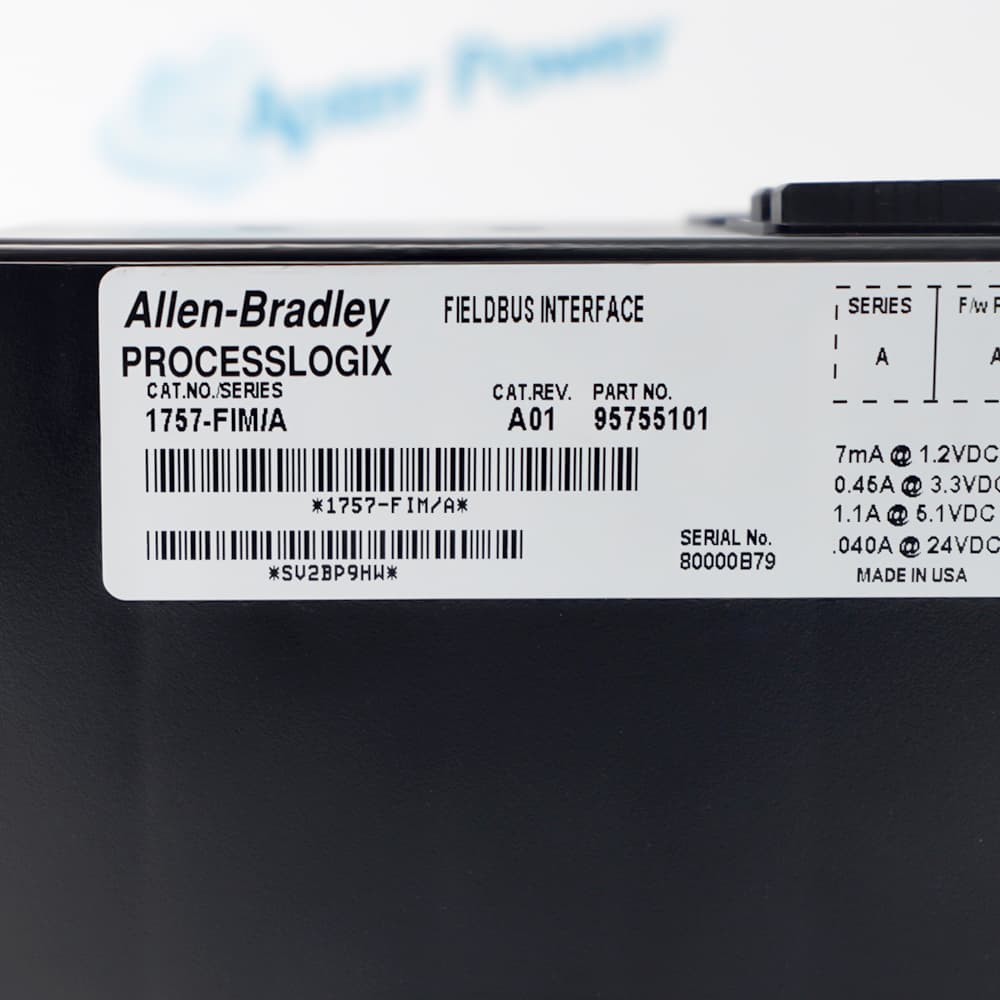

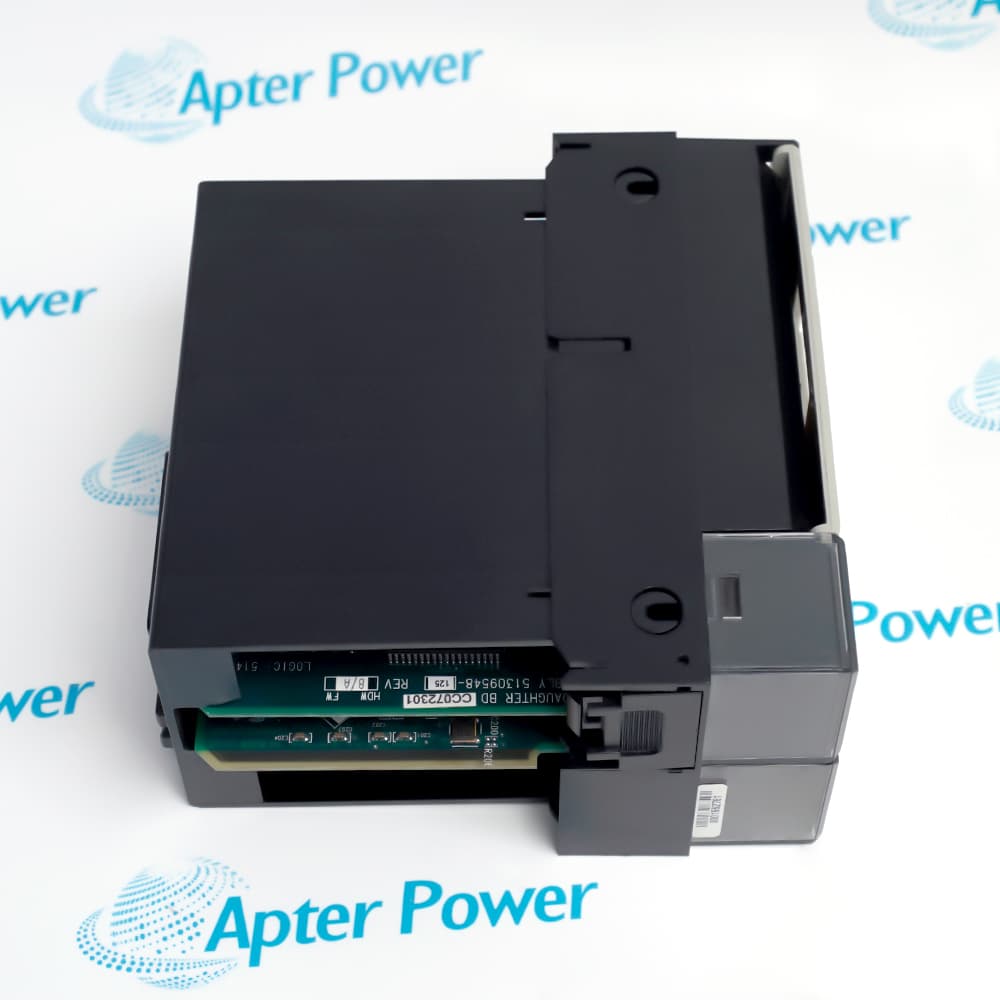

Allen-Bradley 1757-FIM is a ProcessLogix FOUNDATION Fieldbus Interface Module linking controller strategies to two H1 segments through its remote termination panel.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1757-FIM
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1757-FIM

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1757-FIM
  • Product Family:
    ControlLogix
  • Product Type:
    ProcessLogix FOUNDATION Fieldbus Interface Module
  • Stock:
    1
  • Chassis Installation:
    Non-redundant controller chassis or remote I/O chassis
  • Chassis Width:
    Double-wide module
  • H1 Links:
    2 through the companion remote termination panel
  • H1 Data Rate:
    31.25 kbps
  • Link Operation:
    Independent schedule, Link Master, and Time Master functions for each H1 link
  • Maximum Field Devices per H1 Link:
    16, subject to the engineered segment and system capacity
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Integration Configuration Diagnostics Application
  • Integrates ProcessLogix control strategies with two independently managed H1 links
  • Uses a companion remote termination panel for field-side H1 connections
  • Requires preserved schedules, device assignments, firmware, and controller project data

1757-FIM is an Allen-Bradley ProcessLogix FOUNDATION Fieldbus Interface Module for integrating controller strategies with H1 field-device networks.

The double-width module uses a companion remote termination panel and supports independent scheduling and link-management functions for two H1 links.

Before replacement, preserve the ProcessLogix project and verify chassis allocation, remote panel and cable, firmware, H1 segment power, terminators, devices, and schedules.

Availability, condition, price, and shipping time for 1757-FIM are confirmed during quotation.

Allen-Bradley 1757-FIM Fieldbus Interface Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Install the module only in the documented non-redundant chassis arrangement
  • Match the companion termination panel, interconnection cable, and both H1 link assignments
  • Confirm controller and server capacity before adding field devices or control strategies
  • Treat each 1757-FIM as the processing equivalent of three I/O modules when calculating ProcessLogix capacity.
  • For allocation, use the 1757-FIM count plus the total I/O-module count divided by three; do not exceed 21 per controller or 100 per server.
  • Each 1757-FIM supports two independent H1 links; the documented system limits are 42 H1 links per controller and 200 per server.
  • Review module indicators and Control Builder monitoring before replacing hardware
  • Check panel connection, segment power, terminators, wiring, and field-device communication
  • Confirm scheduled and unscheduled data exchange before returning control to the process
  • ProcessLogix control strategies communicating with FOUNDATION Fieldbus instruments
  • Two-link H1 networks serving distributed process measurement and control devices
  • Industrial process systems using fieldbus function blocks and scheduled communication
Description
1757-FIM is an Allen-Bradley ProcessLogix Fieldbus Interface Module for integrating FOUNDATION Fieldbus H1 devices with a ProcessLogix control system.

The double-width chassis module supports two independent H1 links through the companion remote termination panel and exchanges scheduled, published, subscribed, and client-server fieldbus data with the control system.

Before installation or replacement, confirm the ProcessLogix controller and server capacity, chassis allocation, compatible remote termination panel and cable, firmware personality, fieldbus configuration, segment power, and saved control strategy.
Alternative Names
1757-FIM 1757 FIM 1757FIM Allen-Bradley 1757-FIM Rockwell Automation 1757-FIM ProcessLogix 1757-FIM 1757-FIM Fieldbus Interface Module
Technical notes
1757-FIM installation or replacement requires confirming the ProcessLogix chassis location, companion termination panel and cable, H1 segment design, firmware, schedules, device assignments, and saved strategy; mismatches can disrupt fieldbus communication.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1757-FIM operate as a standalone ProcessLogix controller?
No. Allen-Bradley 1757-FIM is a fieldbus interface module and requires the supported controller, chassis, remote termination panel, host project, and engineered H1 networks.
Does Allen-Bradley 1757-FIM connect H1 field wiring directly at the module face?
No. Allen-Bradley 1757-FIM connects to the companion remote termination panel, which provides the field-side H1 connections. Confirm the correct panel and interconnection cable before installation.
Can Allen-Bradley 1757-FIM be added without reviewing ProcessLogix I/O allocation?
No. A 1757-FIM consumes documented controller processing and I/O allocation. Confirm controller, server, chassis, H1-link, and field-device capacity before adding the module.
What companion hardware is required before Allen-Bradley 1757-FIM fieldbus links can be placed in service?
The installation requires the compatible remote termination panel and interconnection cable together with correctly engineered H1 segment power, power conditioning, terminators, shielded fieldbus cable, and field devices.
What configuration should be preserved when replacing Allen-Bradley 1757-FIM?
Preserve the module firmware or personality requirements, link definitions, field-device assignments, schedules, function-block configuration, control strategy, and the approved ProcessLogix project backup.
Can Allen-Bradley 1757-FIM be placed in a redundant controller position?
The documented installation is a non-redundant controller or remote I/O chassis position. Confirm the complete ProcessLogix architecture before changing the chassis role or slot.
What should be checked when Allen-Bradley 1757-FIM reports a link or module-health fault?
Review the front-panel indicators, link status, remote termination panel connection, H1 segment power, field wiring, terminators, device communication, module firmware, and the loaded ProcessLogix configuration.
