1794-IA8

/ 4.9
1001 reviews | Need a Specific Revision?

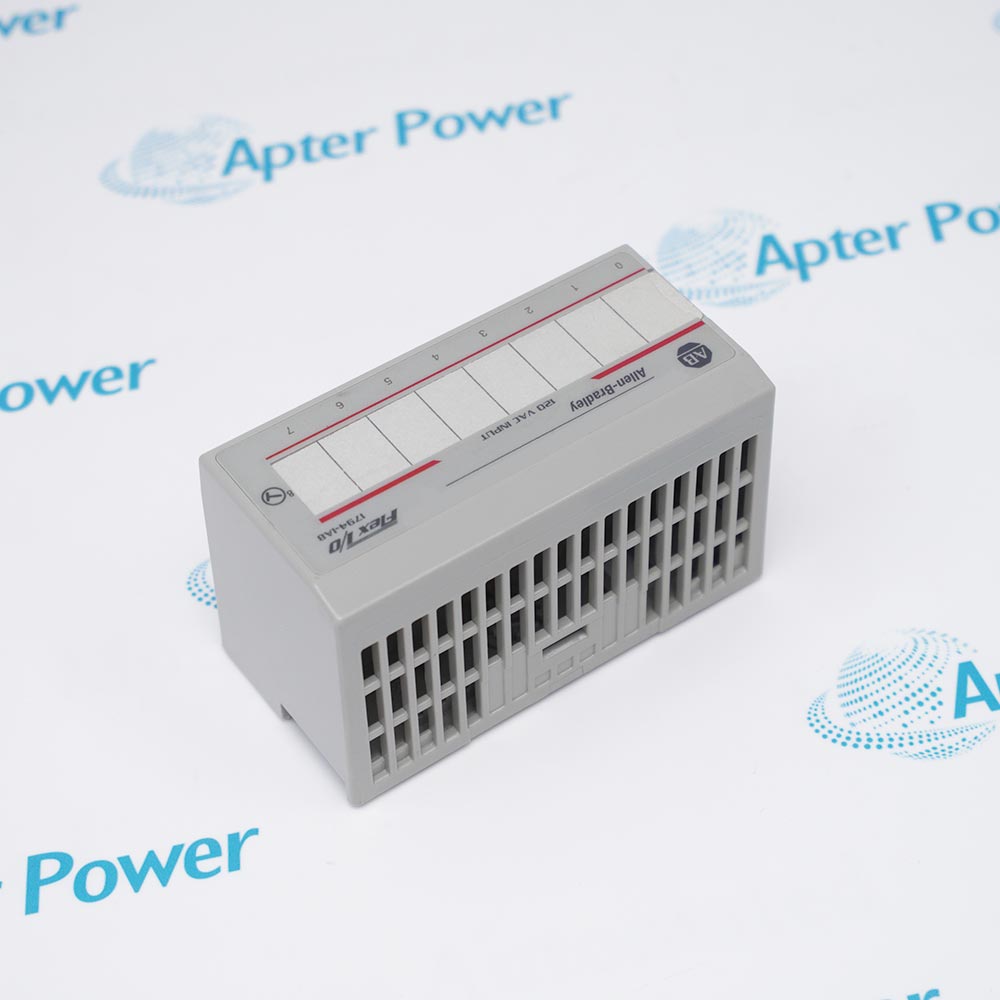

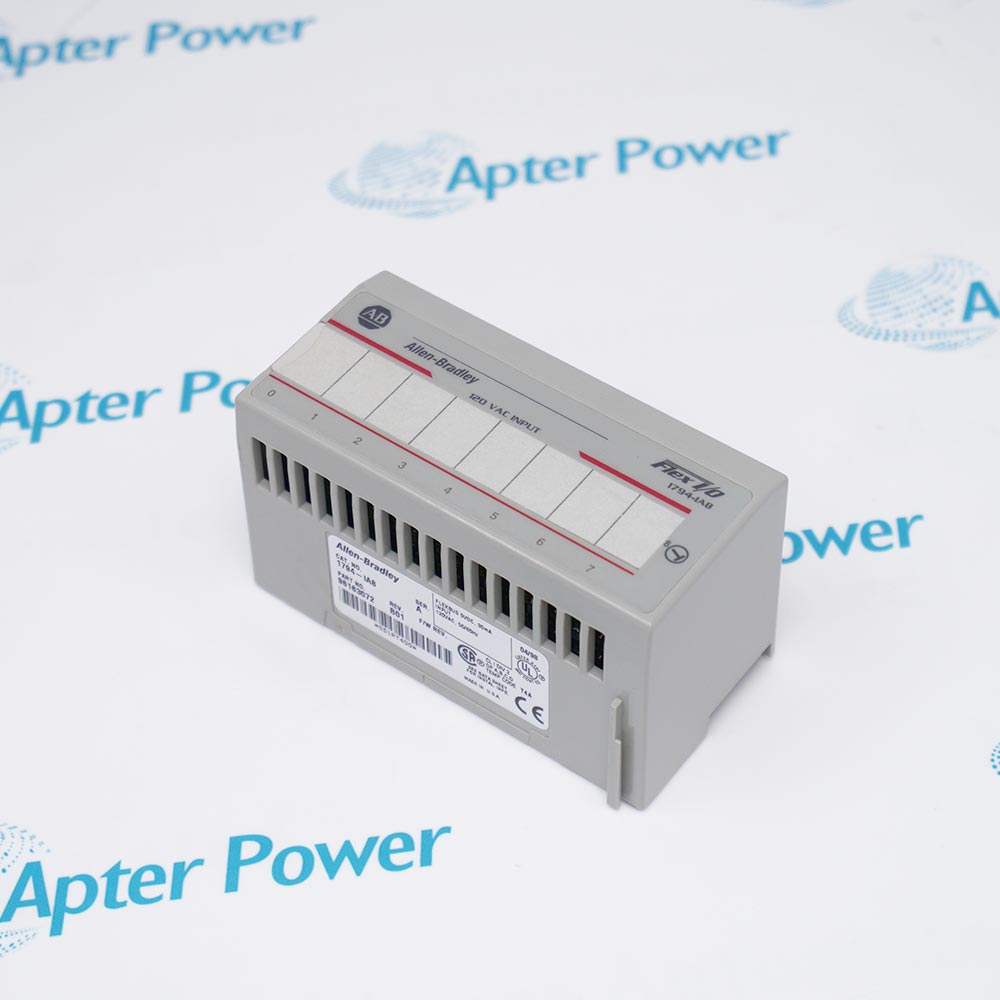

Allen-Bradley 1794-IA8 is an eight-point 120 V AC FLEX I/O input module for receiving nonisolated field signals through a compatible terminal base.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1794-IA8
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1794-IA8

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1794-IA8
  • Product Family:
    Flex I/O
  • Product Type:
    FLEX I/O Eight-Point 120 V AC Digital Input Module
  • Stock:
    1
  • Input Points:
    8, one nonisolated group
  • Input Type:
    120 V AC sinking input
  • On-State Voltage Range:
    65…132 V AC
  • Nominal Input Current:
    12 mA at 120 V AC
  • Maximum Off-State Voltage:
    43 V AC
  • Nominal Input Impedance:
    10.6 kΩ
  • Input Filter:
    Selectable
  • Compatible Terminal Bases:
    1794-TB2, 1794-TB3, 1794-TB3S, or 1794-TBN
  • FLEXBUS Current:
    30 mA at 5 V DC
  • Operating Temperature:
    -20…55 °C
  • Dimensions:
    9.4 × 4.6 × 5.3 cm
  • Weight:
    0.1 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Circuit Filter Selection Base and Wiring Application
  • Eight 120 V AC field inputs for FLEX I/O distributed stations
  • One nonisolated sinking-input group with eight channel indicators
  • Selectable input filtering for response-time and noise-rejection requirements

1794-IA8 brings a group of eight AC field inputs into a distributed FLEX I/O station without consuming a chassis slot.

Its selectable filtering helps the control system balance response time against rejection of short AC input transitions.

Plan the terminal-base choice, keyswitch, 120 V AC field circuit, input grouping, and enclosure environment as one installation.

Availability, condition, price, and shipping time for 1794-IA8 are confirmed during quotation.

Allen-Bradley 1794-IA8 FLEX I/O Eight-Point 120 V AC Digital Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Eight 120 V AC inputs operate as one nonisolated field group.
  • Each channel reports its on or off state through the FLEX I/O adapter.
  • The common field circuit must suit the installed AC signal sources.
  • Selectable filtering controls how long an AC transition must persist before recognition.
  • Use the original project value when replacing a configured module.
  • Investigate field noise and wiring before increasing filter time to mask unstable signals.
  • Mount the module on a documented 1794 terminal base with keyswitch position 8.
  • Remove hazardous power before connecting or separating field conductors.
  • Preserve terminal numbering, common wiring, grounding, and station slot order.
  • Acquisition of compatible 120 V AC switch and contact states in distributed FLEX I/O stations.
  • Monitoring of eight grouped AC field signals through a FLEX I/O network adapter.
  • Machine or process input collection where selectable AC input filtering is required.
Description
Allen-Bradley 1794-IA8 provides eight nonisolated 120 V AC input points in one FLEX I/O field group.

The module accepts 65…132 V AC on-state signals, reports input status to the adapter across FLEXBUS, and provides selectable input filtering for supported FLEX I/O configurations.

Use a compatible terminal base and confirm field voltage, keyswitch position, filter selection, grounding, channel wiring, and adapter configuration before installation or replacement.
Revisions

Revision Part #

Also known as

1794-IA8 Ser A
1794-IA8/A, Series A, Rev A
Alternative Names
1794-IA8 1794IA8 1794 IA8 Allen-Bradley 1794-IA8 Allen Bradley 1794-IA8 AB 1794-IA8 Rockwell Automation 1794-IA8
Technical notes
1794-IA8 requires a compatible FLEX I/O terminal base and 120 V AC field wiring; verify keyswitch position, filtering, grounding, channel grouping, and saved adapter configuration before replacement.
