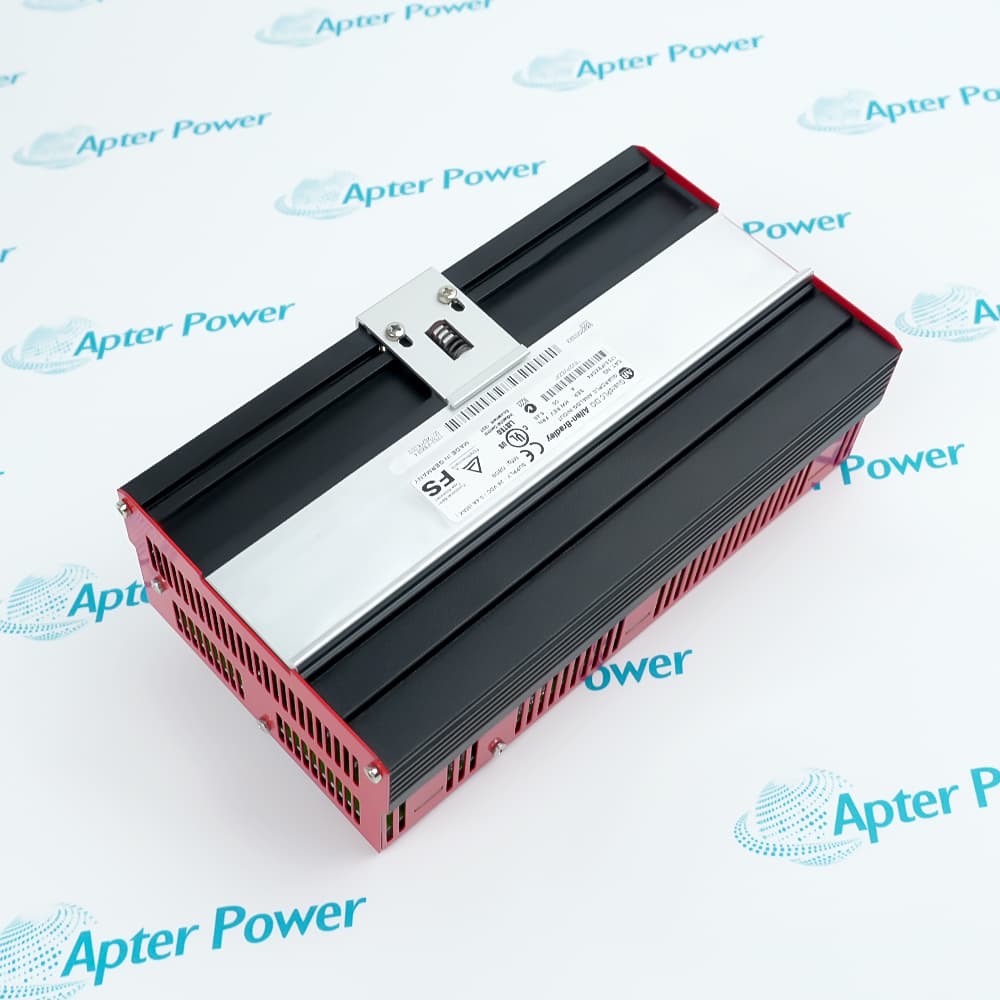

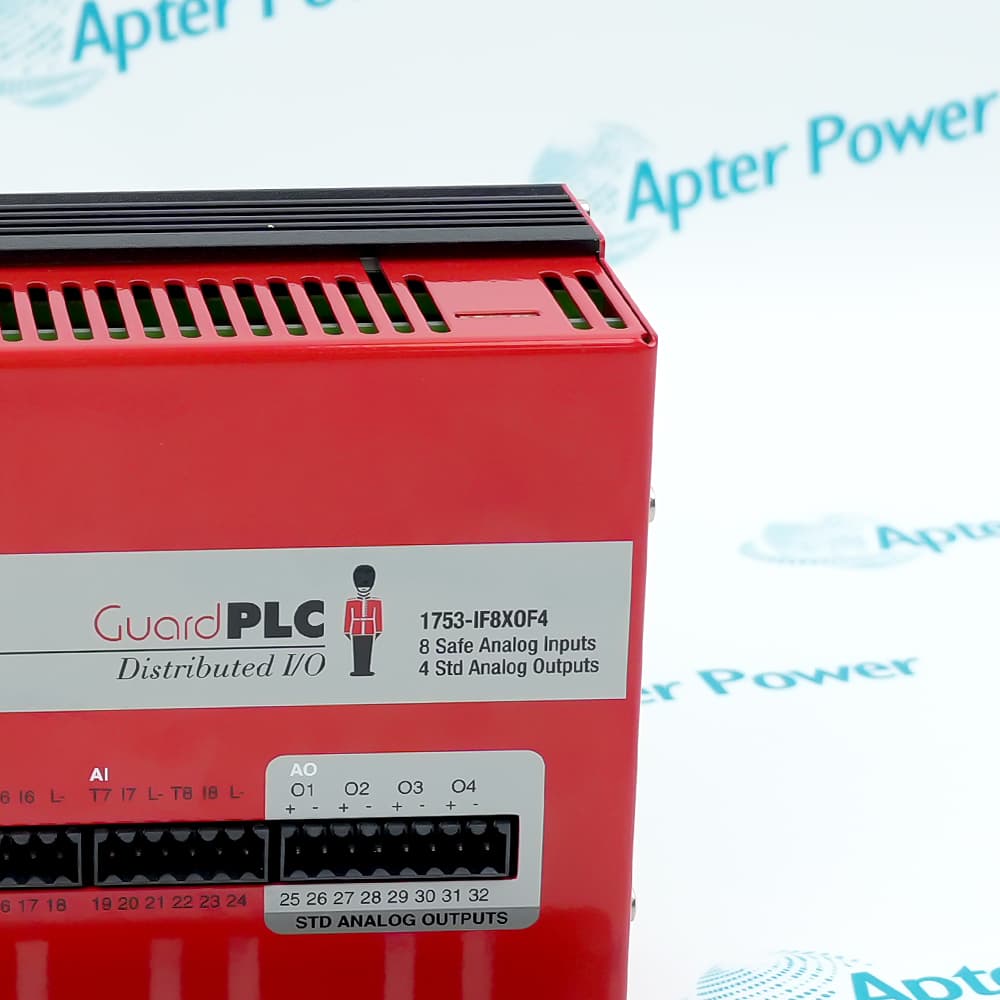

Allen-Bradley 1753-IF8XOF4
Allen-Bradley 1753-IF8XOF4
Allen-Bradley 1753-IF8XOF4
Allen-Bradley 1753-IF8XOF4
Allen-Bradley 1753-IF8XOF4
Allen-Bradley 1753-IF8XOF4
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power specializes in hard-to-find and discontinued Allen-Bradley automation components, ensuring your legacy safety systems maintain maximum uptime without requiring costly full-system retrofits.

1753-IF8XOF4

/ 4.9
1001 reviews | Need a Specific Revision?
The AB 1753-IF8XOF4 distributed safety I/O module is designed for integration with GuardPLC controllers, providing a versatile solution for safety-critical applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1753-IF8XOF4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1753-IF8XOF4

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1753-IF8XOF4
  • Product Family:
    GuardPLC
  • Product Type:
    Analog I/O Module
  • Stock:
    1
  • Response Time:
    ≥ 20 ms
  • Battery Backup:
    none
  • Current Consumption:
    max. 0.8 A (with max. load), idle current 0.4 A @24V
  • Isolation Voltage:
    No isolation between circuits
  • Terminal Block Torque:
    0.51 Nm (4.5 in-lb)
  • Number of Inputs:
    8 (not electrically isolated)
  • Shunt Resistor, External:
    500 Ω (for current input)
  • Impedance, Analog Input:
    >2 MΩ
  • Input Resolution:
    12 bits
  • Effective Resolution:
    9 bits @ 10V
  • Weight:
    0.9 kg
  • Estimated shipping dimensions:
    20.5x8.2x11.2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Safety & Compliance Applications Performance & Efficiency

Features:

  • Interface Between GuardPLC Ethernet and Safety/Standard Analog I/O Signals
  • Combines Capability of Safety Analog Input Processing with Standard Analog Output Control
  • Operates in Conjunction with GuardPLC Controllers and Safety I/O Networks
The 1753-IF8XOF4 operates as the distributed safety I/O module in a GuardPLC system, providing reliable analog signal processing for safety-critical and standard control applications. It continuously manages 8 safety analog inputs and 4 standard analog outputs, communicating via GuardPLC Ethernet to support real-time monitoring and control of industrial processes. Seamless integration with the safety network is standard with the 1753-IF8XOF4, ensuring certified safety performance while maintaining flexibility for standard analog output operations. The 1753-IF8XOF4 has been specifically designed to address the demanding requirements of distributed safety architectures in modern manufacturing environments.

The 1753-IF8XOF4 provides essential I/O functions for distributed safety applications, and is a critical component of the safety control path, directly affecting the proper, normal operation of the overall GuardPLC system. One or multiple 1753-IF8XOF4 modules can be deployed throughout the safety network depending on the application requirements and I/O point density needed. The 1753-IF8XOF4 occupies a compact form factor in the distributed I/O architecture and connects seamlessly to the GuardPLC controller via dedicated safety-rated Ethernet communication.

For expanded safety I/O applications, the GuardPLC System allows multiple 1753-IF8XOF4 modules to be distributed across the safety network. In addition to standard single module operation, the distributed configuration also performs automatic safety diagnostics. The GuardPLC safety network executes continuous monitoring using the internal safety protocols specified in the GuardPLC system architecture. Using this method, the distributed safety system continually monitors the health of all connected 1753-IF8XOF4 modules. If the system detects that any 1753-IF8XOF4 module is no longer providing valid safety input data (outside configured safety tolerance levels), it will automatically initiate the appropriate safety response and place an event in the System Event List.

The 1753-IF8XOF4 Allen Bradley Analog I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 1753-IF8XOF4 Analog I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
AB 1753-IF8XOF4 Analog I/O Module Specs

General

  • Manufacturer Allen Bradley
  • Model 1753-IF8XOF4
  • Condition New Original ready stock
  • Product Family 1753-IB20X0B8,1753-OW8,1753-IB16X0B8
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Safety Certification: Designed for use in systems requiring high safety integrity levels, often meeting SIL 3 or Category 4/PL e standards when integrated into appropriate safety architectures.
  • Fail-Safe Design: Operates on the closed-circuit principle; in the event of a fault, all inputs and outputs revert to a "safe state" (typically off/voltage-free).
  • Regulatory Adherence: Complies with international standards such as IEC 61508 and EN ISO 13849-1. It also carries the Australian Declaration of Conformity for the GuardPLC family.
  • Physical Protection: Requires proper grounding via a dedicated screw and DIN rail connection to ensure electrical safety and signal integrity.
  • High-Pressure Monitoring: Used with pressure transmitters in low-demand safety functions.
  • Hazardous Machinery Control: Protecting personnel near dangerous equipment like safety light curtains or robotic cells.
  • Distributed I/O: Integrated into larger GuardPLC Ethernet networks via dual RJ-45 10/100BaseT connectors for star or line configurations
  • Integrated Switching: Features an internal Ethernet switch with auto-detect capabilities, allowing for flexible cabling (cross-over or straight-through) without extra hardware.
  • High-Speed Communication: Supports 100 Mbps data rates for rapid signal processing and safety-related communications.
  • Power Efficiency: Optimized for industrial environments with a standard 24V DC operating voltage range.
  • Diagnostic Indicators: Includes status indicators for power and module health to streamline troubleshooting and reduce downtime.
Description
The AB 1753-IF8XOF4 is a distributed safety I/O module specifically designed for integration with GuardPLC controllers. This AB 1753-IF8XOF4 module features 8 safety analog inputs and 4 standard analog outputs, providing a versatile solution for safety-critical applications. The AB 1753-IF8XOF4 communicates with the GuardPLC controller via GuardPLC Ethernet, ensuring reliable and secure data transmission across the safety network.

This AB 1753-IF8XOF4 is engineered to handle complex safety analog signal processing in industrial automation environments. The AB 1753-IF8XOF4 module addresses the critical need for distributed safety I/O in manufacturing processes where precise analog monitoring and control are essential. By utilizing the AB 1753-IF8XOF4, system designers can achieve SIL-rated safety performance while maintaining standard analog output functionality for non-safety critical operations.

The AB 1753-IF8XOF4 is specifically designed to solve the challenge of integrating safety analog inputs with standard analog outputs within a single, compact module. This AB 1753-IF8XOF4 eliminates the need for separate safety and standard I/O modules, reducing cabinet space requirements and simplifying system architecture. The AB 1753-IF8XOF4 is ideal for applications such as safety pressure monitoring, temperature control systems, and flow measurement in hazardous environments where both safety shutdown capabilities and continuous process control are required.
Revisions

Revision Part #

Also known as

1753-IF8XOF4 Ser A
1753-IF8XOF4/A, Series A, Rev A
Alternative Names
1753-1F8XOF4 1753-IF8X0F4 1753-IF8XOFA 1753-IFBXOF4 17531F8XOF4 1753IF8X0F4
Technical notes
The Allen-Bradley 1753-IF8XOF4 analog combination I/O module, equipped with 8 safety-related analog inputs and 4 standard analog outputs, is an ideal interface for monitoring and controlling critical analog field devices in harsh industrial environments. It operates on a nominal 24V DC power supply, features a fast 20ms response time, and achieves advanced safety levels of SIL 3 (IEC 61508) and Performance Class e/Category 4 (ISO 13849-1).
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the AB 1753-IF8XOF4 module?
The AB 1753-IF8XOF4 is a distributed safety I/O module designed for use with GuardPLC controllers, combining safety analog inputs and standard analog outputs in a single unit.
What are the I/O functions of the 1753-IF8XOF4?
It provides 8 safety analog inputs and 4 standard analog outputs, offering flexibility for both safety-critical and non-safety applications.
How can the system design be improved using the 1753-IF8XOF4?
By combining safety and standard I/O, it reduces cabinet space, lowers hardware complexity, and streamlines installation and maintenance.
Is the 1753-IF8XOF4 suitable for hazardous environments?
Yes, it is ideal for use in hazardous industrial environments where both safety shutdown functions and continuous process control are required.
