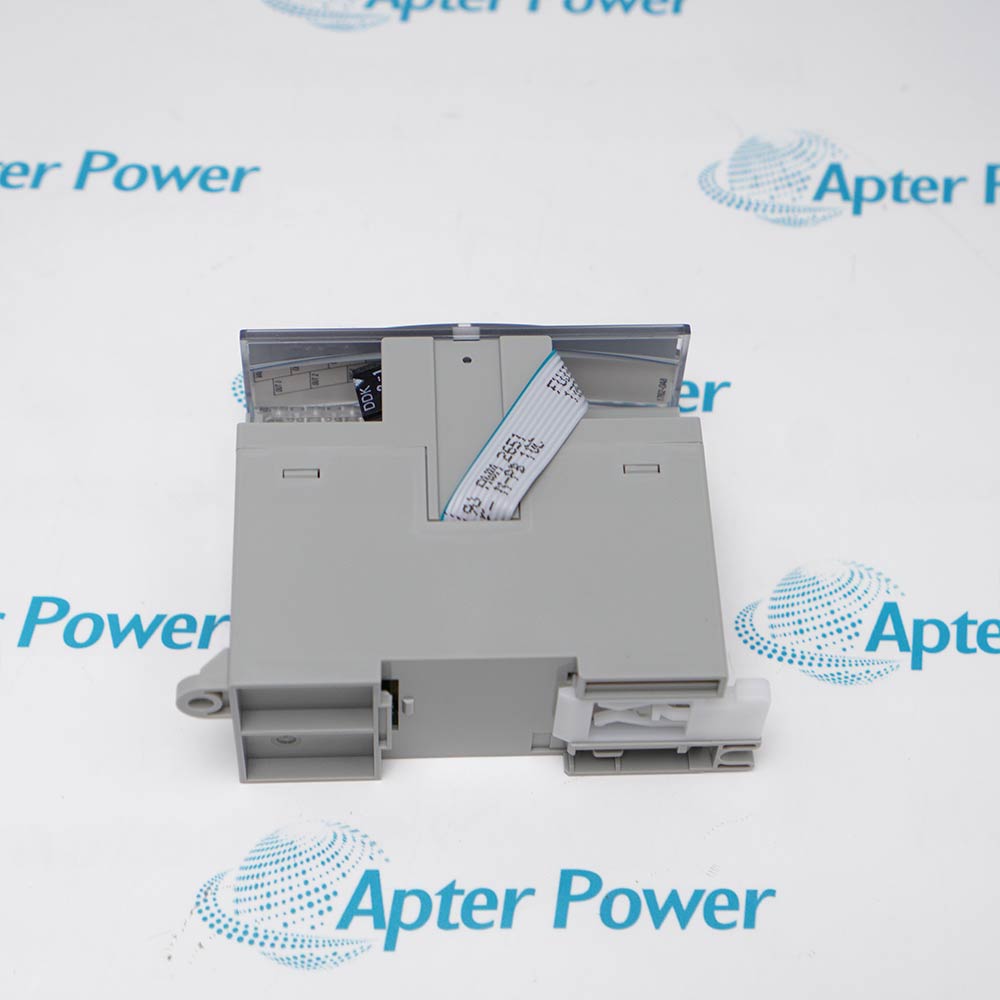

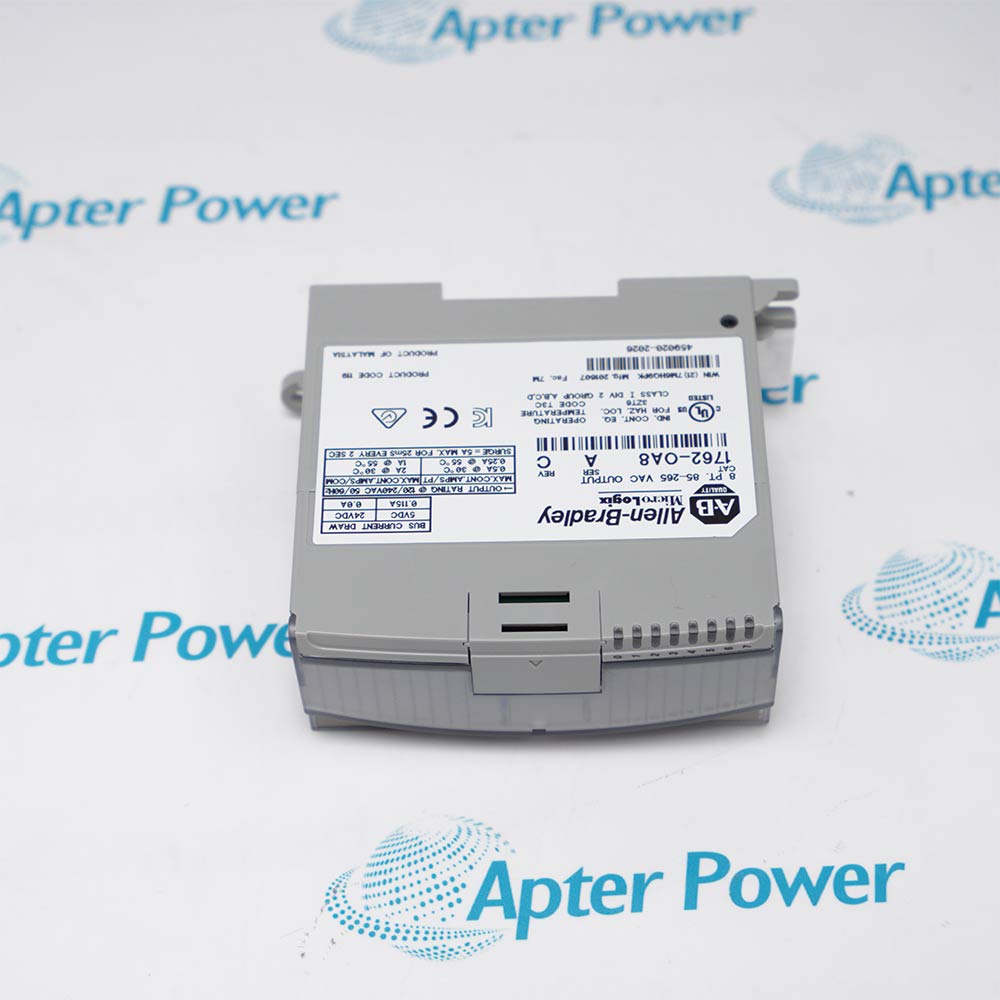

Allen-Bradley 1762-OA8 is a MicroLogix 8-point digital output expansion module that provides eight AC output channels for industrial control applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1762-OA8
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1762-OA8

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1762-OA8
  • Product Family:
    MicroLogix
  • Product Type:
    MicroLogix 8 Point Digital Output Module
  • Stock:
    1
  • I/O Isolation:
    Isolated
  • I/O Status Indication:
    LED
  • Module Interfaces:
    Digital
  • Number Of Channels:
    8 Point
  • Output:
    8 Point , 120/240V AC Triac
  • Temperature Rating:
    0…55 °C (32…131 °F)
  • Number of digital outputs:
    8
  • Type of output voltage:
    AC
  • Type of digital output:
    Relay
  • Type of electric connection:
    Screw connection
  • Heat dissipation, max:
    2.9 W
  • Continuous current per common, max:
    2.0A @ 30°C (86 °F)
  • Continuous current per module, max:
    4A @ 30°C (86 °F)
  • Continuous current per point, max:
    0.5A @ 30°C (86 °F)
  • Bus current draw, max:
    115mA @ 5V DC (0.575 W)
  • Signal delay, resistive load:
    On delay: 0.5 cycle Off delay: 0.5 cycle
  • Power supply distance rating:
    6 (The module may not be more than 6 modules away from the power supply.)
  • Isolated groups:
    Group 1: Outputs 0..3, Group 2: Outputs 4...7
  • Surge current, max:
    5.0 A (Repeatability is once every 2 s for a duration of 25 ms.)
  • Shock:
    Operating: 30G panel mounted, 3 pulses per axis Relay ops: 7G
  • Vibration:
    Operating: 10…500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hr per axis Relay ops: 1.5G
  • On-state voltage drop, max:
    0.5A @ 1.5V
  • Off-state leakage current, max:
    2.5mA @ 265V
  • Voltage category:
    100...240V AC
  • On-state current, min:
    10 mA
  • Operating voltage:
    85...265V AC @ 47...63Hz
  • Operating temperature:
    -20 to 65 °C
  • Altitude:
    2000 m
  • Storage temperature, min:
    -40 °C
  • Operating humidity:
    5...95% noncondensing
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    17x11x5.3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Environment Monitoring

Features:

  • Provides eight 120/240V AC output channels with isolated grouping for versatile industrial load switching.
  • Supports up to 4 A continuous current per module, 5.0 A surge current capability, and fast 0.5-cycle response times.
  • Operates from -20°C to 65°C, withstands vibration and shock conditions, and supports installation up to 2000 m altitude.
Allen-Bradley 1762-OA8 is a MicroLogix expansion I/O module developed to increase digital output capacity within industrial automation systems. The module provides eight AC output points and integrates easily with compatible controllers, enabling efficient control of field devices such as contactors, relays, indicators, and actuators. Isolated I/O architecture helps maintain reliable signal separation, while onboard LED indicators simplify diagnostics and maintenance activities.

Designed for manufacturing and machine control environments, 1762-OA8 combines compact installation with dependable electrical performance. The module supports 85 to 265V AC operating voltage and distributes outputs across two isolated groups to improve application flexibility. Low bus current requirements and modest heat dissipation help reduce overall system loading while maintaining consistent output operation.

Allen-Bradley 1762-OA8 is suitable for industrial environments that require reliable expansion of controller output capabilities. DIN rail mounting options simplify panel installation, while resistance to vibration, shock, humidity, and temperature variation supports long-term operation. Whether used in production equipment, conveyor systems, packaging machinery, or process control applications, 1762-OA8 provides dependable output switching performance and seamless integration within MicroLogix-based automation systems.

The 1762-OA8 Allen-Bradley MicroLogix 8 Point Digital Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1762-OA8 MicroLogix 8 Point Digital Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1762-OA8 MicroLogix 8 Point Digital Output Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1762-OA8
  • Condition New Original ready stock
  • Product Family 1762-OB8,1762-OB16,1762-OB32T
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Small to Medium-Sized Automation Control: As a compact expansion module for MicroLogix 1100, 1200, or 1400 systems, it cost-effectively expands the number of output points in the control system.
  • Direct AC Solenoid Valve Drive: Utilizing its 8-channel Triac high-frequency output characteristics, it directly drives 120V/240V AC pneumatic or hydraulic solenoid valves on factory production lines.
  • Industrial Lighting and Alarm Indication: Connects to field AC warning lights, buzzers, and workshop lighting contactors to provide real-time status indication and safety audible and visual alarms.
  • Motor starter circuit control: Its output node is connected in series with the AC contactor control coil of a high-power three-phase motor to safely execute remote start-stop scheduling of the main motor.
  • Wide Temperature Tolerance: The module supports long-term stable operation under full load in standard industrial environments ranging from 0 to 55 degrees Celsius.
  • Storage Cold and Heat Resistance: Spare parts can be safely stored in a wide temperature range of -40 to 85 degrees Celsius when not powered on, unaffected by severe cold or extreme heat.
  • Humidity Condensation Protection: Internal high-quality components maintain excellent insulation performance in environments with relative humidity from 5% to 95% and no condensation.
  • Shock and Physical Protection: The hardware casing structure meets stringent IEC industrial shock and vibration resistance standards, effectively resisting continuous micro-resonance from high-power mechanical equipment.
  • Channel Status Visibility: The front panel features 8 independent green LED indicators to visually reflect the on/off logic status of each output channel in real time.
  • Backplane Communication Verification: Real-time heartbeat monitoring via the MicroLogix control bus automatically triggers system safety control logic in the event of a communication interruption.
  • Leakage Current Real-Time Control: The design strictly limits the maximum leakage current in the off-state to prevent malfunctions caused by external sensitive loads.
  • Diagnostic Isolation Mechanism: The onboard opto-isolated monitoring circuit can withstand instantaneous high voltages up to 1500V AC, closely monitoring and blocking external power surges from impacting the PLC host.
Description
Allen-Bradley 1762-OA8 is a MicroLogix digital output expansion module designed to increase the output capabilities of compatible control systems. The module provides eight digital output channels and supports 120/240V AC output operation, making it suitable for switching and controlling field devices in industrial automation environments. With isolated I/O architecture and dedicated LED status indicators, operators can quickly monitor output conditions and system activity.

The module utilizes screw-type electrical connections to simplify installation and field wiring. Outputs are arranged into two isolated groups, with channels 0 through 3 assigned to Group 1 and channels 4 through 7 assigned to Group 2. This grouping structure enhances electrical separation between circuits and supports flexible application design. A maximum continuous current rating of 0.5 A per point, 2.0 A per common, and 4 A per module provides the capacity required for a wide variety of control tasks.

Electrical performance characteristics contribute to dependable operation in demanding environments. 1762-OA8 operates from an AC voltage range of 85 to 265V AC at 47 to 63 Hz and is classified within the 100 to 240V AC voltage category. The module features a maximum on-state voltage drop of 1.5 V at 0.5 A and an off-state leakage current of 2.5 mA at 265 V. Signal response is fast, with both on-delay and off-delay specified at 0.5 cycle for resistive loads.

Power consumption remains efficient, with a maximum bus current draw of 115 mA at 5V DC, equivalent to 0.575 W, while maximum heat dissipation is limited to 2.9 W. Surge current capability reaches 5.0 A with repeatability once every two seconds for a duration of 25 ms. These specifications allow Allen-Bradley 1762-OA8 to maintain stable operation during normal switching conditions and transient events.

Environmental durability makes 1762-OA8 suitable for industrial facilities. The module supports operating temperatures from -20°C to 65°C, while storage temperatures can reach as low as -40°C. It is rated for altitudes up to 2000 meters and operates within humidity levels ranging from 5% to 95% non-condensing. The module can be mounted on 35 × 7.5 mm or 35 × 15 mm DIN rails, and DIN rail end anchors are recommended for applications exposed to vibration or shock. As part of the MicroLogix expansion I/O family, Allen-Bradley 1762-OA8 provides a practical solution for manufacturing equipment, machinery control systems, and industrial process automation.
Revisions

Revision Part #

Also known as

1762-OA8 Ser A
1762-OA8/A, Series A, Rev A
Alternative Names
1762-0A8 I762-OA8 17620A8 I7620AB 1762-OB8 1762-OB16 1762-OB32T 1762-OF4
Technical notes
The Allen-Bradley 1762-OA8 is a high-density, 8-point digital output module delivering reliable 120V/240V AC Triac switching capability to seamlessly expand the control reach of compact MicroLogix PLC systems.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does 1762-OA8 use isolated output groups?
Two isolated groups help improve circuit separation and provide greater flexibility when connecting different field devices and loads.
How many output channels are available on 1762-OA8?
The module includes eight digital outputs arranged as an 8-point output configuration.
Can 1762-OA8 operate with 120V AC and 240V AC loads?
Support is provided for 120/240V AC Triac outputs, with an operating voltage range of 85 to 265V AC at 47 to 63 Hz.
How does Allen-Bradley 1762-OA8 indicate output status?
Built-in LED indicators provide visual status feedback, allowing operators to monitor channel activity quickly.
