1766-L32BXB

/ 4.9
1001 reviews | Need a Specific Revision?
Allen-Bradley 1766-L32BXB is a 24 VDC MicroLogix 1400 controller with 20 embedded DC inputs, six relay outputs, six DC outputs and Ethernet plus serial communications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1766-L32BXB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1766-L32BXB

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1766-L32BXB
  • Product Family:
    MicroLogix
  • Product Type:
    MicroLogix 1400 32-Point DC Controller
  • Stock:
    1
  • Input power:
    24 VDC Class 2 SELV
  • Embedded inputs:
    12 fast 24 VDC inputs; 8 standard 24 VDC inputs
  • Embedded outputs:
    6 relay outputs; 3 fast DC outputs; 3 standard DC outputs
  • User memory:
    20 KB
  • Communication ports:
    Isolated RS-232/RS-485; EtherNet/IP; non-isolated RS-232
  • Supported communications:
    DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP and Modbus TCP/IP
  • Fast-input operating frequency:
    0 to 100 kHz on inputs 0 to 11
  • Standard-input operating frequency:
    0 to 1 kHz, scan-time dependent, on inputs 12 to 19
  • High-speed DC outputs:
    Outputs 2, 3 and 4; PTO/PWM capable within documented current limits
  • Maximum controlled load:
    1080 VA
  • Maximum power consumption:
    50 W; 7.5 W with no 1762 expansion I/O
  • Operating temperature:
    -20 to +65°C
  • Storage temperature:
    -40 to +85°C
  • Relative humidity:
    5 to 95%, non-condensing
  • Vibration:
    5 g at 10 to 500 Hz
  • Dimensions:
    18.0 × 9.0 × 8.7 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals I/O Matching Network Recovery Expansion Check Applications
  • Use 1766-L32BXB only for the documented 24 VDC non-analog MicroLogix 1400 configuration
  • Match relay and FET output groups, high-speed channels and expansion-I/O loading to the approved design
  • Preserve the project, data, network identity, serial protocols and motion-counter settings before removal

1766-L32BXB is an Allen-Bradley MicroLogix 1400 32-point DC controller for the MicroLogix 1400 platform.

Allen-Bradley 1766-L32BXB is a 24 VDC MicroLogix 1400 controller with 20 embedded DC inputs, six relay outputs, six DC outputs and Ethernet plus serial communications. 1766-L32BXB is the non-analog DC-power catalog; 1766-L32BXBA is a different model with embedded analog I/O, and expansion modules, memory module and communication cables are separate products.

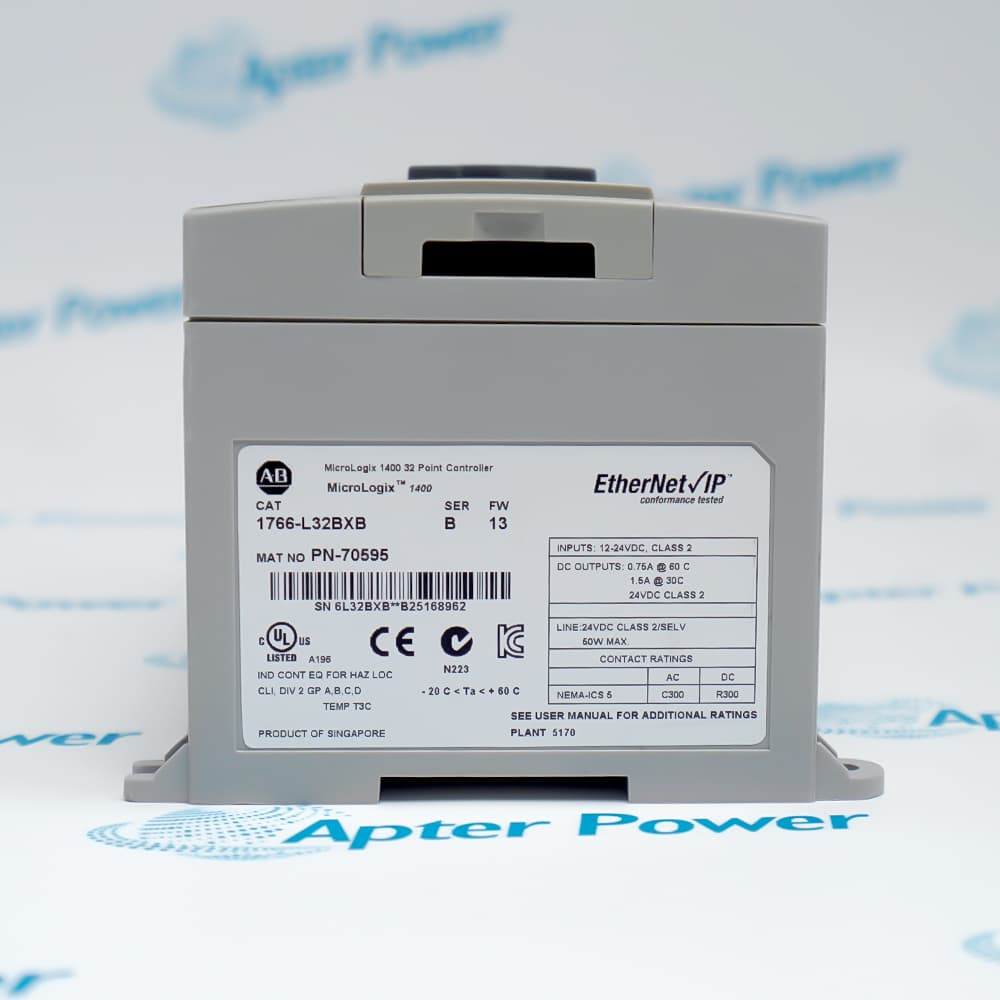

Before installation or replacement, verify the complete nameplate, compatible companion hardware, wiring or network design, saved configuration and commissioning plan.

Availability, condition, price, and shipping time for 1766-L32BXB are confirmed during quotation.

Allen-Bradley 1766-L32BXB MicroLogix 1400 32-Point DC Controller Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Wire the 12 fast and 8 standard DC inputs to their documented commons
  • Separate the six relay outputs from the six DC FET outputs
  • Use outputs 2, 3 and 4 for PTO/PWM only within their high-speed limits
  • Restore EtherNet/IP addressing, messaging paths and switch settings
  • Restore the isolated RS-232/RS-485 channel protocol and node parameters
  • Restore the non-isolated RS-232 channel only for its documented interface
  • Keep the local expansion assembly within seven supported 1762 modules
  • Calculate Series C 5 V and 24 V expansion-bus current
  • Verify physical order, bus connectors and downloaded I/O configuration
  • Standalone machine control requiring mixed relay and DC transistor outputs
  • High-speed counting plus PTO/PWM positioning in compact automated equipment
  • EtherNet/IP and serial-connected control of small production or material-handling systems
Description
1766-L32BXB is an Allen-Bradley MicroLogix 1400 32-point DC controller for the MicroLogix 1400 platform.

Allen-Bradley 1766-L32BXB is a 24 VDC MicroLogix 1400 controller with 20 embedded DC inputs, six relay outputs, six DC outputs and Ethernet plus serial communications. 1766-L32BXB is the non-analog DC-power catalog; 1766-L32BXBA is a different model with embedded analog I/O, and expansion modules, memory module and communication cables are separate products.

Before installation or replacement, confirm the complete 1766-L32BXB identity, compatible hardware, wiring, saved configuration, software release and system requirements.
Revisions

Revision Part #

Also known as

1766-L32BXB Ser A
1766-L32BXB/A, Series A, Rev A
1766-L32BXB Ser B
1766-L32BXB/B, Series B, Rev B
1766-L32BXB Ser C
1766-L32BXB/C, Series C, Rev C
Alternative Names
1766-L32BXB 1766 L32BXB 1766L32BXB Allen-Bradley 1766-L32BXB Rockwell Automation 1766-L32BXB MicroLogix 1400 1766-L32BXB 1766-L32BXB/A 1766-L32BXB Series A 1766-L32BXB/B 1766-L32BXB Series B 1766-L32BXB/C 1766-L32BXB Series C
Technical notes
1766-L32BXB is the 24 VDC, non-analog MicroLogix 1400 with mixed relay and DC outputs; 1766-L32BXBA is a different catalog. Match the installed Series A, B, or C hardware, compatible firmware, power, output grouping, and expansion load before replacement.
