1785-BCM

/ 4.9
1001 reviews | Need a Specific Revision?

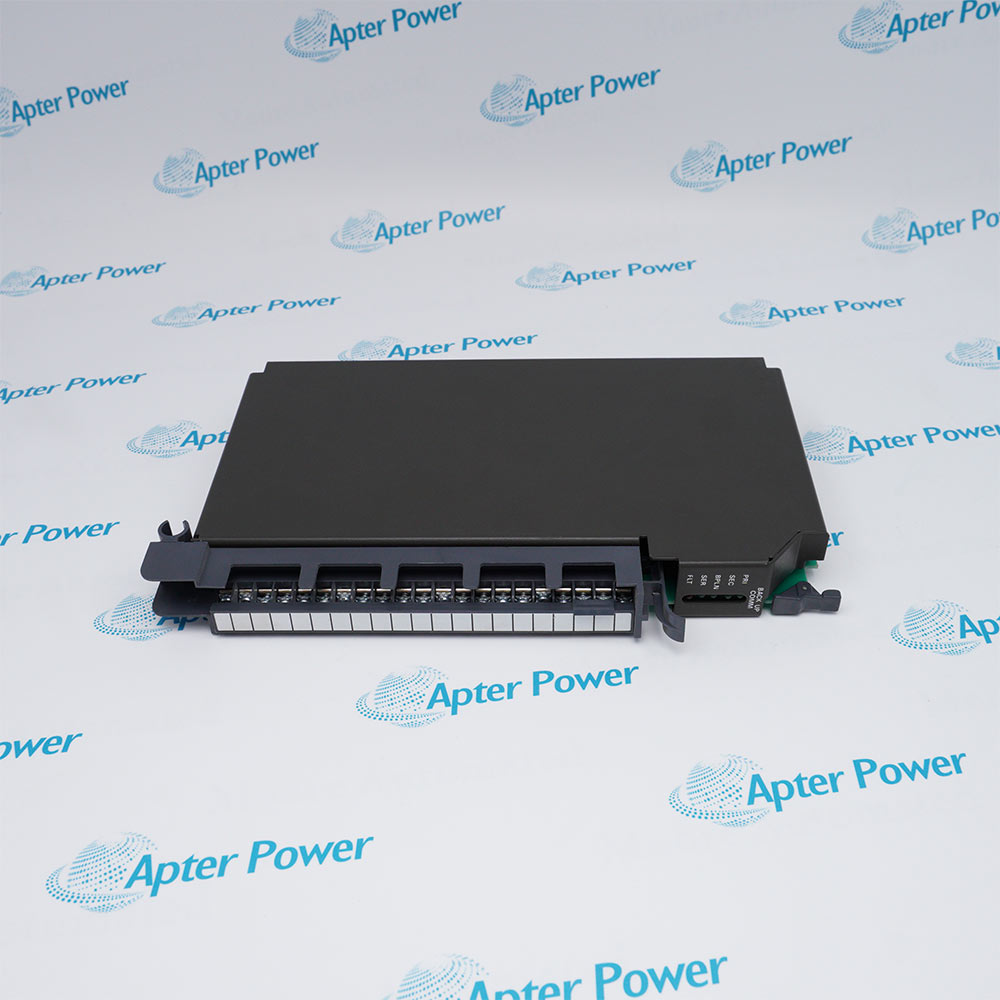

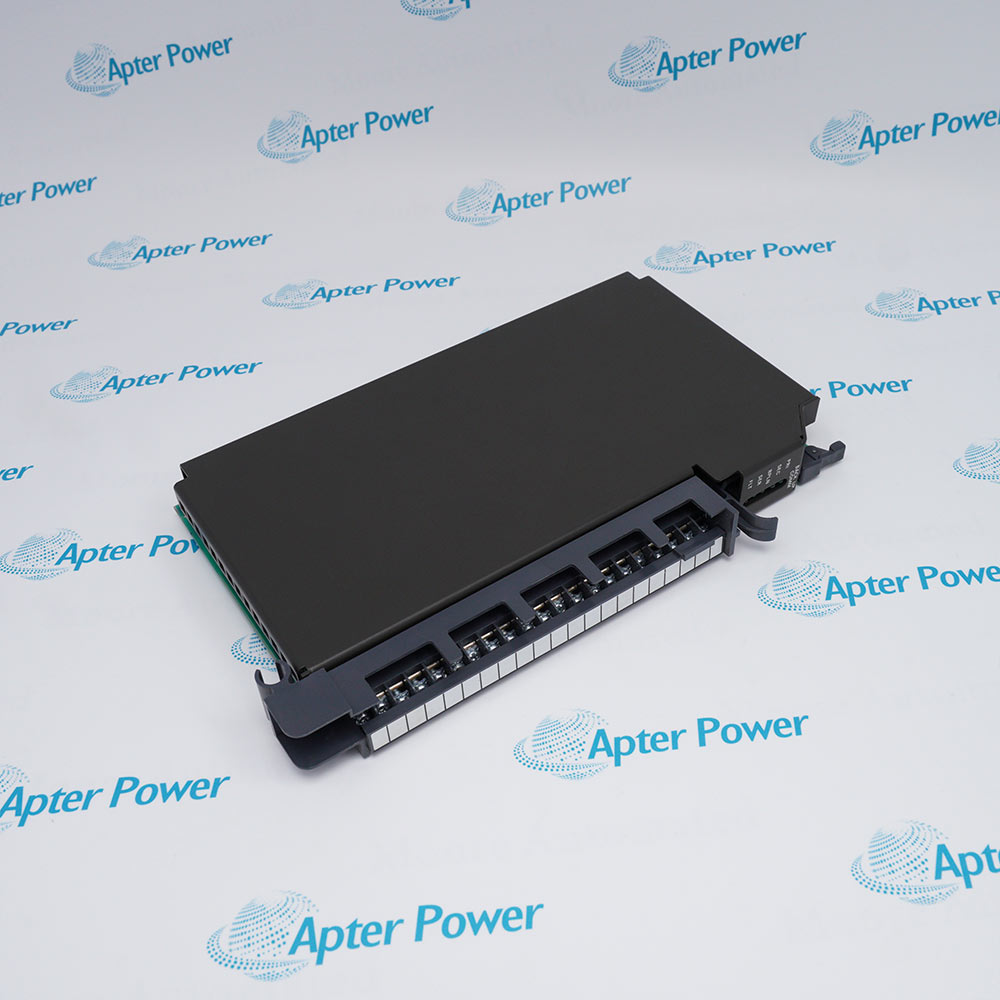

Allen-Bradley 1785-BCM is a PLC-5 backup communication module that coordinates primary and secondary processors over a dedicated high-speed serial link.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1785-BCM
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1785-BCM

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1785-BCM
  • Product Family:
    PLC-5
  • Product Type:
    PLC-5 Backup Communication Module
  • Stock:
    1
  • Compatible Processors:
    PLC-5/15 Series B, PLC-5/20, PLC-5/25, PLC-5/30, PLC-5/40, and PLC-5/60
  • Module Location:
    Local 1771 I/O chassis
  • Backplane Current:
    1.0 A at 5 V DC
  • Keying Locations:
    Between 8 and 10; between 34 and 36
  • Wiring Arm:
    1771-WG
  • Customer Relay:
    0.25 A at 24 V DC resistive
  • HSSL Communication Rate:
    1.2 Mbaud
  • Operating Temperature:
    0 to 60°C
  • Storage Temperature:
    -40 to 85°C
  • Relative Humidity:
    5% to 95%, non-condensing
  • Dimensions:
    31.5 × 21 × 7.5 cm
  • Weight:
    0.82 kg
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Backup Pair HSSL Link Commissioning Application
  • Record both modules’ switch settings and cable positions before disconnecting the backup pair.
  • Restore matching PLC-5 application files before placing the primary and secondary processors back in service.
  • Test normal transfer and forced switchover behavior after reconnecting the HSSL and relay wiring.

1785-BCM links the control responsibilities of two supported PLC-5 processors rather than operating as a standalone controller.

Its chassis interface, HSSL path, and external relay form the hardware layer used by the documented primary and secondary arrangement.

A service replacement should be evaluated as part of the entire backup pair, including processor catalogs, project files, wiring, and transfer behavior.

Availability, condition, price, and shipping time for 1785-BCM are confirmed during quotation.

Allen-Bradley 1785-BCM PLC-5 Backup Communication Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The official compatibility list covers selected PLC-5/15 through PLC-5/60 processors.
  • The module belongs in the local 1771 I/O chassis of the backup arrangement.
  • Primary and secondary projects must represent the same documented machine strategy.
  • The high-speed serial link communicates at the documented 1.2 Mbaud rate.
  • Cable continuity and connector seating are essential to backup-partner communication.
  • The customer relay can provide an external indication for the backup system.
  • Confirm keying positions and the 1771-WG wiring arm before insertion.
  • Restore the saved backup configuration before controlled switchover testing.
  • Verify processor ownership, I/O response, and relay indication before production.
  • Primary and secondary PLC-5 systems that require automatic transfer of control after a primary-processor fault
  • PLC-5 backup architectures using the 1.2 Mbaud HSSL link between paired 1785-BCM modules
  • Backup installations that use the customer relay for external status or switchover indication
Description
Allen-Bradley 1785-BCM coordinates a documented PLC-5 backup pair and provides the high-speed serial link used between the primary and secondary systems.

The Series B module installs in a local 1771 I/O chassis, communicates at 1.2 Mbaud over the HSSL connection, and provides a customer relay for external status indication.

Replacement planning must preserve processor compatibility, chassis placement, keying, wiring-arm assignment, backup configuration, and the physical HSSL path before the standby system is returned to service.
Revisions

Revision Part #

Also known as

1785-BCM Ser B
1785-BCM/B, Series B, Rev B
Alternative Names
1785-BCM Allen-Bradley 1785-BCM Allen Bradley 1785-BCM PLC-5 1785-BCM Bulletin 1785-BCM
Technical notes
1785-BCM replacement requires a compatible PLC-5 processor pair, Series B hardware, local-chassis placement, 1771-WG arm, preserved backup configuration, and a verified HSSL path; mismatches can prevent switchover.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does Allen-Bradley 1785-BCM support transfer to a standby PLC-5 after a primary-system fault?
In a correctly engineered backup arrangement, the module coordinates communication between compatible primary and secondary processors; the actual transfer sequence must be configured and proven during controlled commissioning.
When is an Allen-Bradley 1785-BEM needed with Allen-Bradley 1785-BCM?
Use the 1785-BEM only when the documented backup design extends communication to additional chassis; verify the installed backup architecture rather than assuming every 1785-BCM system requires it.
What records should be saved before replacing Allen-Bradley 1785-BCM?
Retain the primary and secondary PLC-5 programs, backup-system configuration, chassis layout, module-switch settings, wiring identification, and commissioning results.
Why might an Allen-Bradley 1785-BCM pair fail to establish the high-speed link?
Check the HSSL cable path, connector seating, compatible processor pair, chassis power, module keying, and the configuration expected by both PLC-5 processors.
How should switchover be tested after installing Allen-Bradley 1785-BCM?
Follow the official backup-system procedure, prove primary-to-secondary transfer under controlled conditions, and verify I/O control and external relay indication before restoring production.
Can Allen-Bradley 1785-BCM reuse any 1771 field-wiring arm?
No. The official specification identifies the 1771-WG wiring arm, so the installed arm and terminal assignment must be checked before replacement.
Is Allen-Bradley 1785-BCM interchangeable with a generic PLC-5 communication module?
No. Its backup-transfer function, processor compatibility, HSSL connection, chassis location, and Series B hardware distinguish it from ordinary PLC-5 network interfaces.
