1734-ACNR

/ 4.9
1001 reviews | Need a Specific Revision?

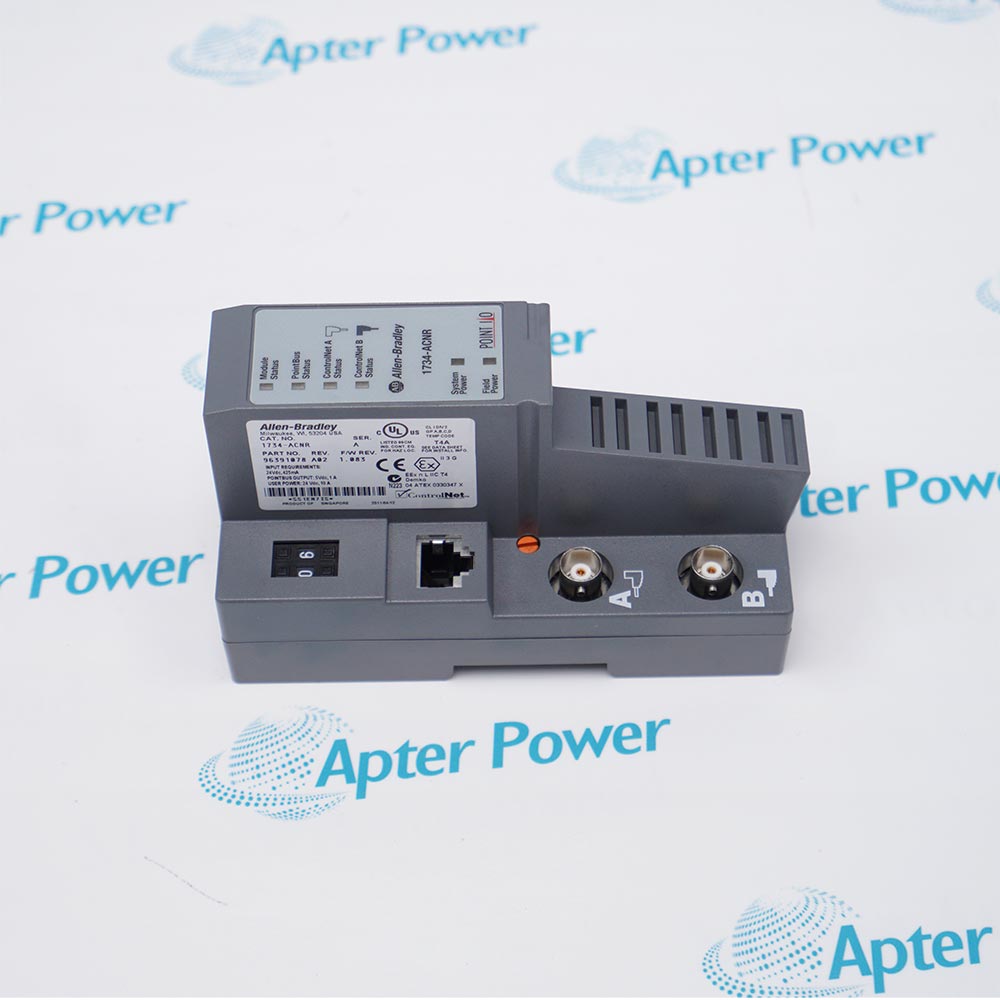

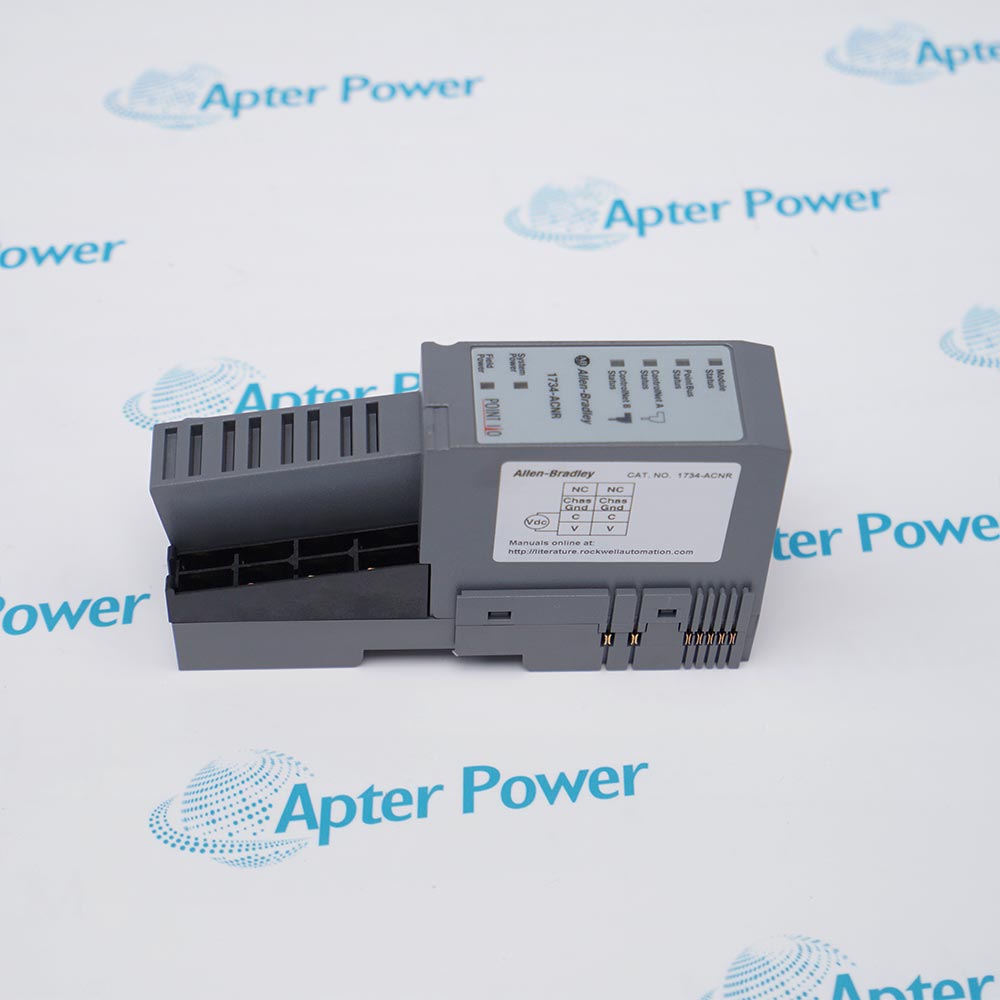

Allen-Bradley 1734-ACNR connects POINT I/O to redundant ControlNet media and manages scheduled or unscheduled data transfer across the POINTBus.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1734-ACNR
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1734-ACNR

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1734-ACNR
  • Product Family:
    Point I/O 1734
  • Product Type:
    POINT I/O ControlNet Adapter
  • Stock:
    1
  • Network:
    ControlNet with redundant media
  • Local Bus:
    POINTBus
  • Adapter Input:
    24V DC, 425 mA
  • POINTBus Output:
    5V DC, 1 A
  • User Power:
    24V DC, 10 A
  • Operating Temperature:
    -20–55°C
  • Dimensions:
    5.61 × 13.34 × 7.98 cm
  • Direct I/O Connections:
    Up to 25
  • Rack I/O Connections:
    Up to 5
  • POINT I/O Module Capacity:
    Up to 63 modules per ControlNet node
  • Scheduled Transmit Memory:
    586 bytes
  • Input Byte Capacity:
    248 bytes
  • Output Byte Capacity:
    248 bytes
  • Operating Voltage Range:
    10–28.8 V DC
  • Field Power Bus Voltage:
    24 V DC
  • Field Power Bus Current:
    10 A maximum
  • Power Consumption:
    8.1 W maximum at 28.8 V DC
  • Power Dissipation:
    2.8 W maximum at 28.8 V DC
  • Isolation Voltage:
    50 V continuous
  • Isolation Test:
    750 V AC for 60 seconds
  • Terminal Base Screw Torque:
    0.6 N·m
  • Power Wire Size:
    0.25–2.5 mm² / 22–14 AWG
  • Weight:
    0.255 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Network & Installation Diagnostics & Migration Application
  • Connects a POINT I/O assembly to a ControlNet network
  • Supports redundant ControlNet media connections
  • Manages scheduled and unscheduled data between ControlNet and POINTBus

1734-ACNR is the communications adapter at the head of a compatible Allen-Bradley POINT I/O assembly.

Reliable replacement depends on the adapter series, node address, network schedule, media layout, POINT I/O module order, firmware, and controller ownership.

A controlled commissioning test should verify both ControlNet channels, POINTBus power, every I/O connection, diagnostics, and recovery after a power cycle.

Availability: Rockwell Automation shows End of Life with a published discontinuation date of March 31, 2027; availability is confirmed during quotation.

Allen-Bradley 1734-ACNR Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Connects POINT I/O to ControlNet through redundant network-media connectors
  • Supplies up to 1 A of 5 V DC POINTBus power to the local I/O assembly
  • Supports up to five rack connections and twenty direct connections within the documented adapter limits
  • Record and restore the rotary-switch node address
  • Verify ControlNet taps, trunk cables, terminators and redundant-media routing
  • Install supported POINT I/O modules in the documented order and power budget
  • Use adapter and network status indicators with controller diagnostics
  • Validate scheduled connections and unscheduled messaging after replacement
  • Treat migration to 1734-AENTR as an engineered network conversion, not a direct media swap
  • Remote POINT I/O stations connected to a ControlNet controller
  • ControlNet installations requiring redundant network media at the I/O adapter
  • POINT I/O assemblies combining rack-optimized digital data with direct analog or specialty-module connections
Description
1734-ACNR is an Allen-Bradley POINT I/O ControlNet adapter. It exchanges data between a ControlNet network and POINT I/O modules on the local POINTBus and provides redundant ControlNet media connections.

The adapter includes rotary network-address switches, status indicators, and a network access port. The official manual distinguishes controller compatibility by adapter series and requires Series C POINT I/O modules or later for the documented configuration.

Before replacement, record the adapter series, node address, ControlNet schedule, network topology, media redundancy, POINT I/O module order, configuration ownership, firmware, power arrangement, and the exact replacement engineering plan.
Revisions

Revision Part #

Also known as

1734-ACNR Series A
1734-ACNR/A, Series A, Rev A
Alternative Names
1734-ACNR 1734 ACNR 1734ACNR AB 1734-ACNR Allen-Bradley 1734-ACNR Rockwell Automation 1734-ACNR
Technical notes
1734-ACNR replacement requires the adapter series, node address, ControlNet schedule, media topology, POINT I/O order, firmware, power, and ownership records.
