1746-HS

/ 4.9
1001 reviews | Need a Specific Revision?

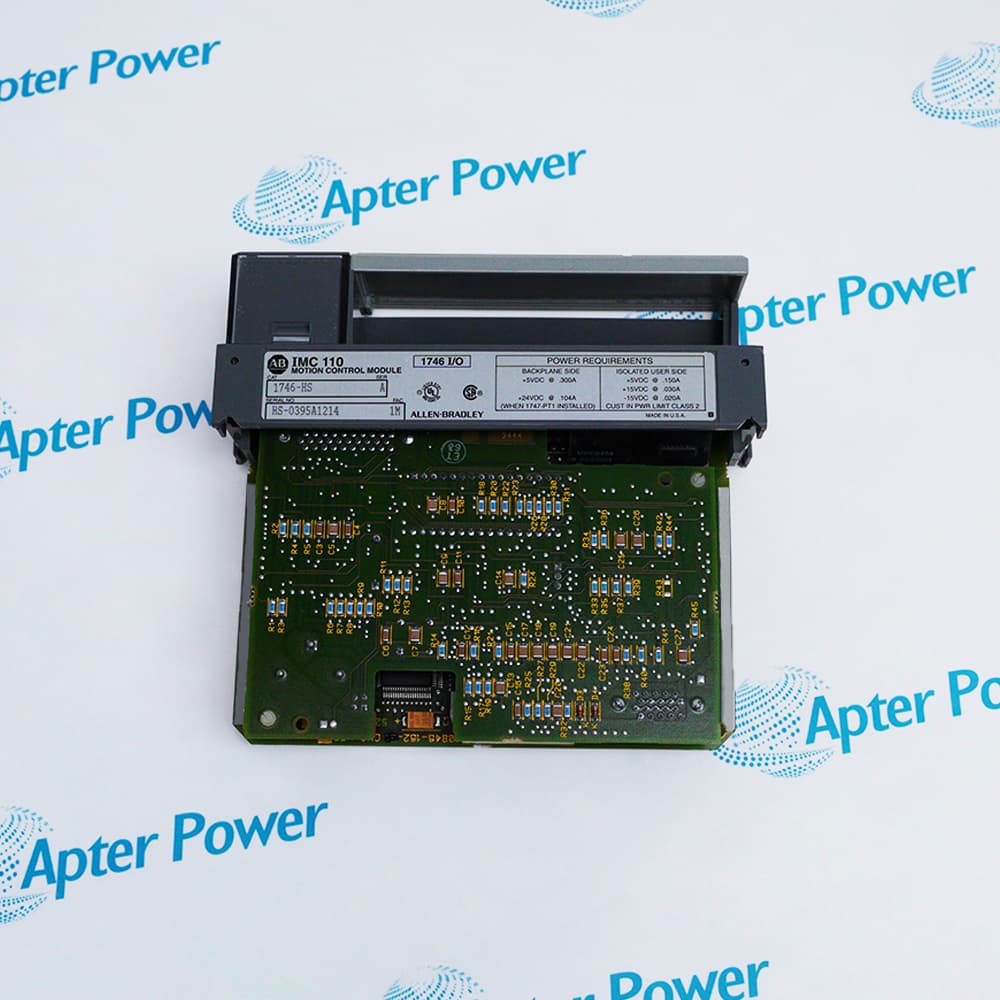

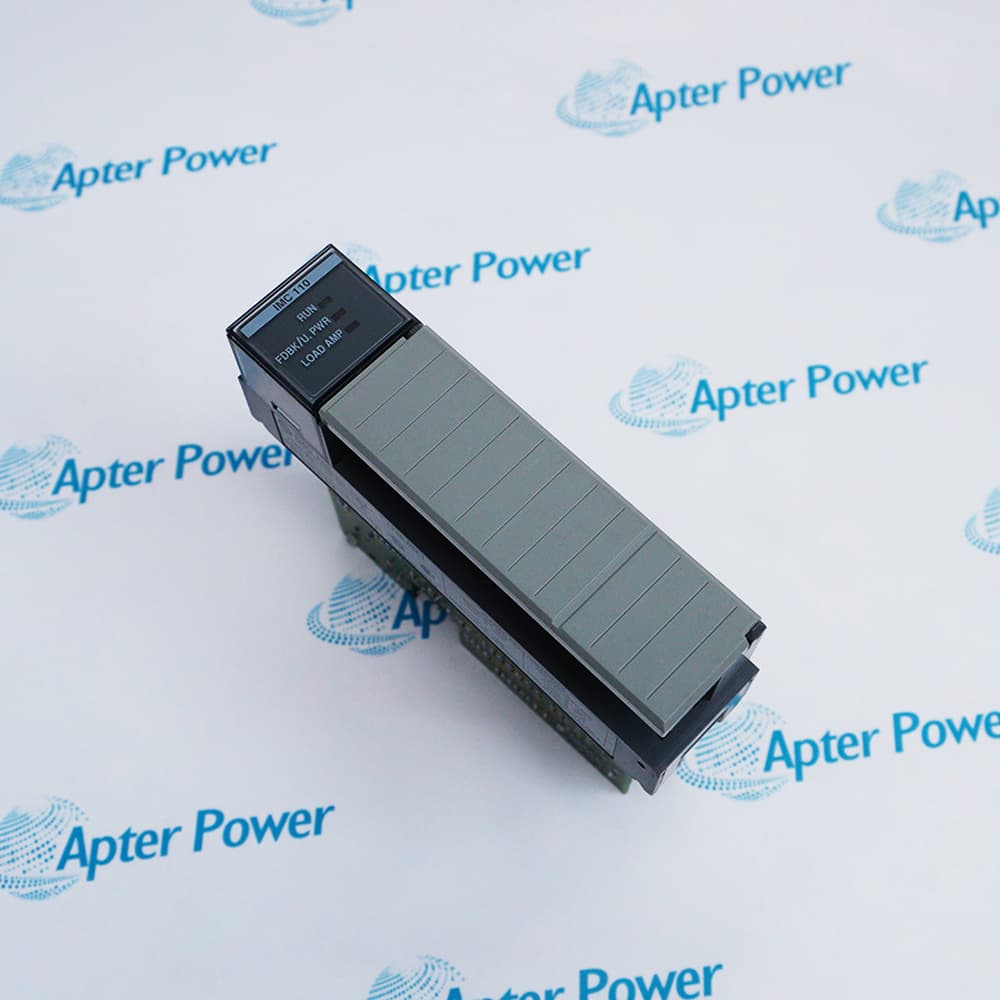

Allen-Bradley 1746-HS is an SLC 500 IMC 110 single-axis closed-loop servo controller for compatible industrial positioning applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1746-HS
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1746-HS

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1746-HS
  • Product Family:
    SLC 500
  • Product Type:
    IMC 110 Single-Axis Servo Controller
  • Stock:
    1
  • Axes:
    1
  • Control Type:
    Closed-loop servo
  • Fast Inputs:
    3, 24V DC
  • Fast Outputs:
    1, 24V DC
  • Maximum Feedback Frequency:
    300 kHz at 0° quadrature
  • SLC I/O Poll Interval:
    4.8 ms
  • Controlled Axis:
    1
  • Fast Digital Inputs:
    3
  • Fast Digital Output:
    1
  • Fast Input Recognition Time:
    Within 3.2 ms
  • SLC Digital Inputs:
    5
  • SLC Digital Outputs:
    5
  • SLC Input Image Transfer:
    64 bits per I/O scan
  • Termination Panel:
    1746-HT
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Motion Integration Commissioning & Safety Application
  • Single-axis closed-loop servo control for compatible SLC 500 systems
  • Quadrature feedback with dedicated fast input and output functions
  • Motion operation coordinated through the SLC application and IMC programming tools

1746-HS provides one axis of closed-loop positioning control in a compatible SLC 500 architecture.

The axis depends on the complete processor, chassis, drive, motor, feedback, termination, field-power, motion-program and safety configuration.

Replacement should begin with backups and identification records, followed by guarded tests of feedback, direction, homing, limits, tuning, stops, faults, and recovery.

Availability: Official migration literature does not list a direct replacement; current lifecycle status and supply are confirmed during quotation.

Allen-Bradley 1746-HS SLC 500 IMC 110 Motion Controller Resources and Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • One closed-loop servo axis
  • Three 24V DC fast inputs and one 24V DC fast output
  • Maximum documented feedback frequency: 300kHz at 0° quadrature
  • Match the SLC processor, local chassis, drive, motor and feedback device
  • Document termination hardware, field power, shields and every fast-I/O assignment
  • Restore approved motion and SLC programs before enabling the axis
  • Verify feedback direction and command polarity at reduced risk
  • Prove homing, software limits, hardware limits and emergency-stop action
  • Retest tuning, following error, faults and power-cycle recovery before production
  • Single-axis closed-loop positioning machines controlled from an SLC 500 system
  • Encoder-based indexing and registration axes using the module’s fast inputs and outputs
  • Programmable motion sequences requiring homing, position profiles and following-error monitoring
Description
1746-HS is an Allen-Bradley IMC 110 single-axis closed-loop servo controller for the SLC 500 platform. The official system overview identifies one axis, three fast inputs, one fast output, quadrature feedback, and a 4.8ms module update time.

A compatible application depends on the SLC processor and local chassis, feedback device, drive and motor, 24V DC field supply, fast-I/O assignments, termination hardware, motion program, travel limits, and machine safety circuit.

Before replacement, archive the motion and SLC programs, document axis scaling and tuning, capture feedback and I/O wiring, record firmware and module identification, and verify safe mechanical conditions before any powered test.
Revisions

Revision Part #

Also known as

1746-HS Ser A
1746-HS/A, Series A, Rev A
Alternative Names
1746-HS 1746 HS 1746HS AB 1746-HS Allen-Bradley 1746-HS Rockwell Automation 1746-HS
Technical notes
1746-HS service requires complete motion backups, compatible local SLC hardware, verified feedback and fast-I/O wiring, safe limits, tuning, stops, and guarded commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1746-HS be replaced with 1746-HSRV without engineering changes?
Do not assume a drop-in replacement. Compare manuals, processor support, data tables, wiring, termination hardware, programming tools, motion behavior, and the complete safety design.
What must be backed up before replacing Allen-Bradley 1746-HS?
Archive the SLC and motion programs, axis scaling, tuning, limits, homing, motion profiles, fault actions, feedback configuration, fast I/O, and module identification.
Why might the axis move in the wrong direction after replacing Allen-Bradley 1746-HS?
Check motor phasing, command polarity, encoder direction, feedback scaling, drive polarity, wiring, program sign conventions, and the documented positive machine direction.
What should be checked when Allen-Bradley 1746-HS cannot establish position feedback?
Inspect encoder power, signal pairs, shield, connector and cable condition, input selection, quadrature phasing, grounding, frequency limits, and diagnostic status.
Can existing motion parameters for Allen-Bradley 1746-HS be trusted without a mechanical test?
No. Use the backup as a controlled baseline, then verify travel, limits, homing, tuning, following error, stops, and load behavior at reduced risk.
What hardware records are needed to source Allen-Bradley 1746-HS?
Provide the complete module label, processor and chassis catalogs, drive and motor, encoder, termination panel, interconnect cable, firmware, and clear wiring photographs.
What final test is required before returning Allen-Bradley 1746-HS to production?
Prove direction, homing, limits, commanded moves, repeatability, following error, fast I/O, emergency stop, drive faults, power recovery, and the guarded machine cycle.
