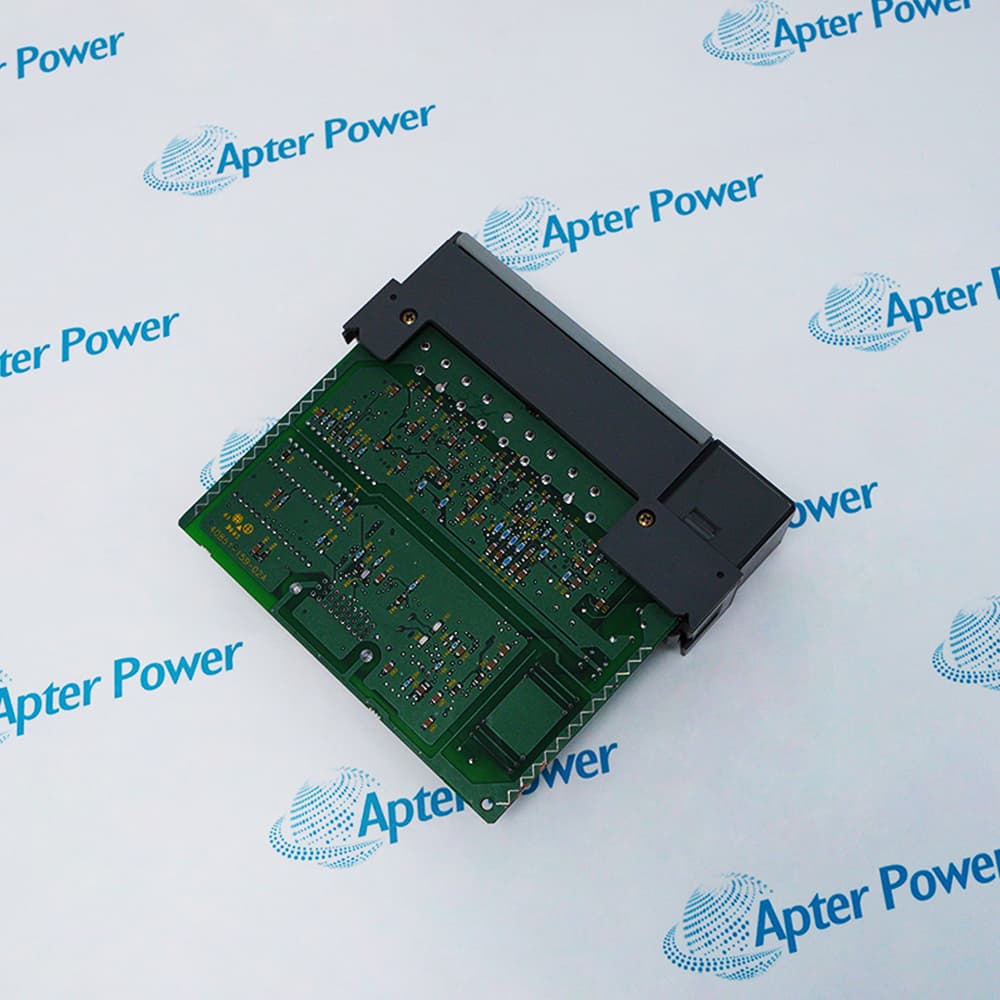

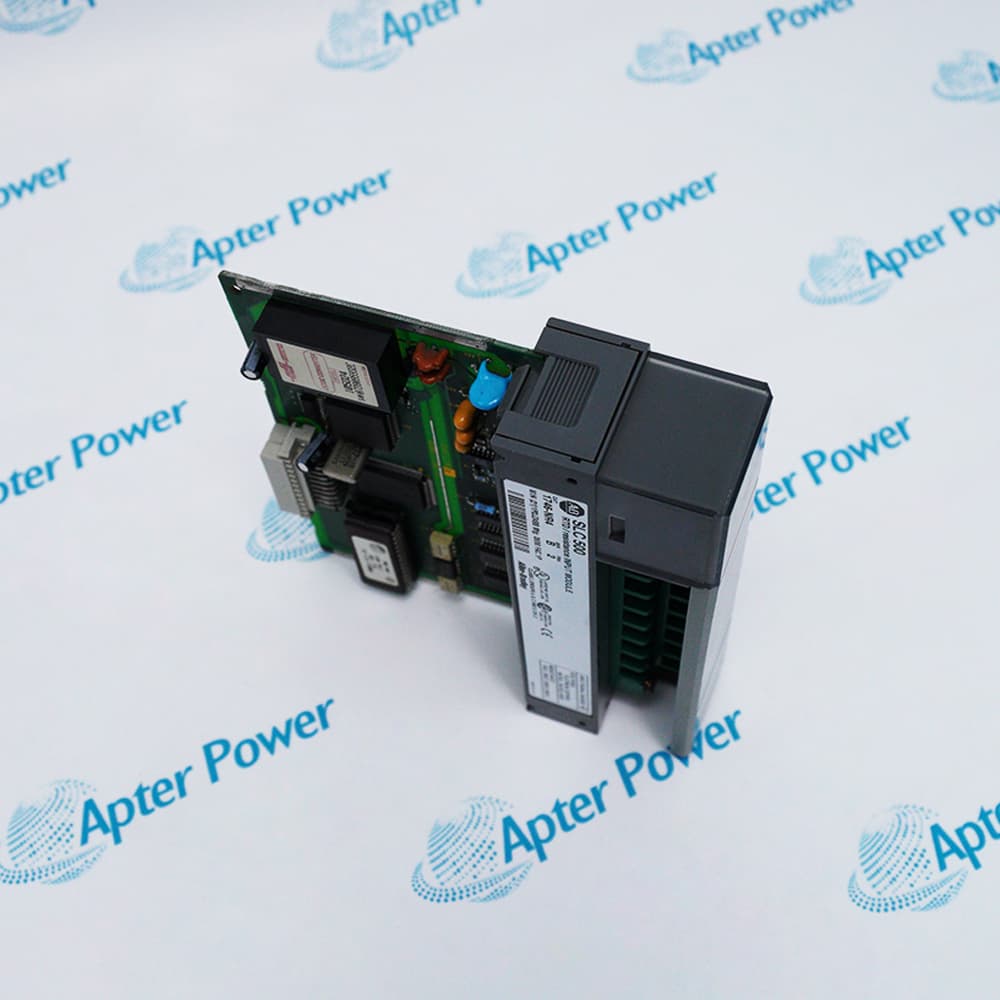

1746-NR4

/ 4.9
1001 reviews | Need a Specific Revision?
Allen-Bradley 1746-NR4 measures four RTD or resistance inputs in an SLC 500 chassis with selectable filtering and automatic channel calibration.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1746-NR4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1746-NR4

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1746-NR4
  • Product Family:
    SLC 500
  • Product Type:
    Four-Channel RTD/Resistance Input Module
  • Stock:
    1
  • Number of Channels:
    4
  • Supported Inputs:
    RTD and direct resistance
  • Digital Filter:
    10, 50, 60, or 250 Hz
  • Per-Channel Update Time:
    305, 65, 55, or 17 ms, according to filter selection
  • Backplane Current:
    50 mA at 5 V DC; 50 mA at 24 V DC
  • Backplane Power:
    1.5 W maximum
  • External Power:
    Not required
  • Isolation:
    500 V DC for 1 minute between inputs and chassis/backplane; no channel-to-channel isolation
  • Common-Mode Voltage:
    ±1 V maximum
  • Overload Protection:
    ±5 V DC or ±5 mA
  • Weight:
    0.3 kg
  • Tariff Code:
    9032900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Sensor Setup Filtering Integration Application
  • Four RTD or resistance input channels with backplane isolation
  • Selectable digital filtering for noise rejection and update-time control
  • Automatic channel calibration with supported engineering-unit and raw-data formats

1746-NR4 is an Allen-Bradley RTD/resistance input module for SLC 500 chassis.

The module converts low-level resistance measurements for the processor while supporting configurable sensor types, wiring methods, filtering, and data presentation.

Before installation or replacement, verify the RTD element, lead-wire arrangement, channel setup, terminal schedule, chassis power budget, and program scaling.

Availability, condition, price, and shipping time for 1746-NR4 are confirmed during quotation.

Allen-Bradley 1746-NR4 RTD/Resistance Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Select the documented RTD material, temperature coefficient, or resistance range for each enabled channel
  • Match two-, three-, or four-wire termination to the installed sensor and lead arrangement
  • Use channel status words to distinguish open-circuit, overrange, and configuration conditions
  • Choose 10 Hz for strongest rejection when a slower response is acceptable
  • Use 50 or 60 Hz filtering to reject the applicable mains-frequency interference
  • Use 250 Hz filtering only when faster updating is more important than low-frequency rejection
  • Install in an SLC 500 I/O slot other than processor slot 0
  • Reserve 50 mA at 5 V DC and 50 mA at 24 V DC in the chassis power calculation
  • Maintain separation between low-level sensor wiring and noise-producing conductors
  • Multichannel platinum, nickel, copper, or nickel-iron RTD temperature measurement
  • Direct resistance measurement for compatible process and machine sensors
  • SLC 500 process monitoring where configurable filtering and sensor-fault diagnostics are required
Description
1746-NR4 is a four-channel RTD/resistance input module for the SLC 500 control platform.

Four backplane-isolated channels accept supported RTDs and direct resistance inputs, with selectable 10, 50, 60, or 250 Hz digital filtering, automatic calibration, and multiple engineering-unit or raw-data formats.

Before installation or replacement, confirm sensor type, two-, three-, or four-wire termination, channel filter, data format, chassis slot, wiring arm, and the available 5 V and 24 V backplane current.
Revisions

Revision Part #

Also known as

1746-NR4 Ser A
1746-NR4/A, Series A, Rev A
1746-NR4 Ser B
1746-NR4/B, Series B, Rev B
Alternative Names
1746-NR4 1746NR4 AB 1746-NR4 Allen-Bradley 1746-NR4 Rockwell Automation 1746-NR4
Technical notes
1746-NR4 uses four backplane-isolated channels but no channel-to-channel isolation; verify sensor wiring, input type, filter, and data format before replacement.
