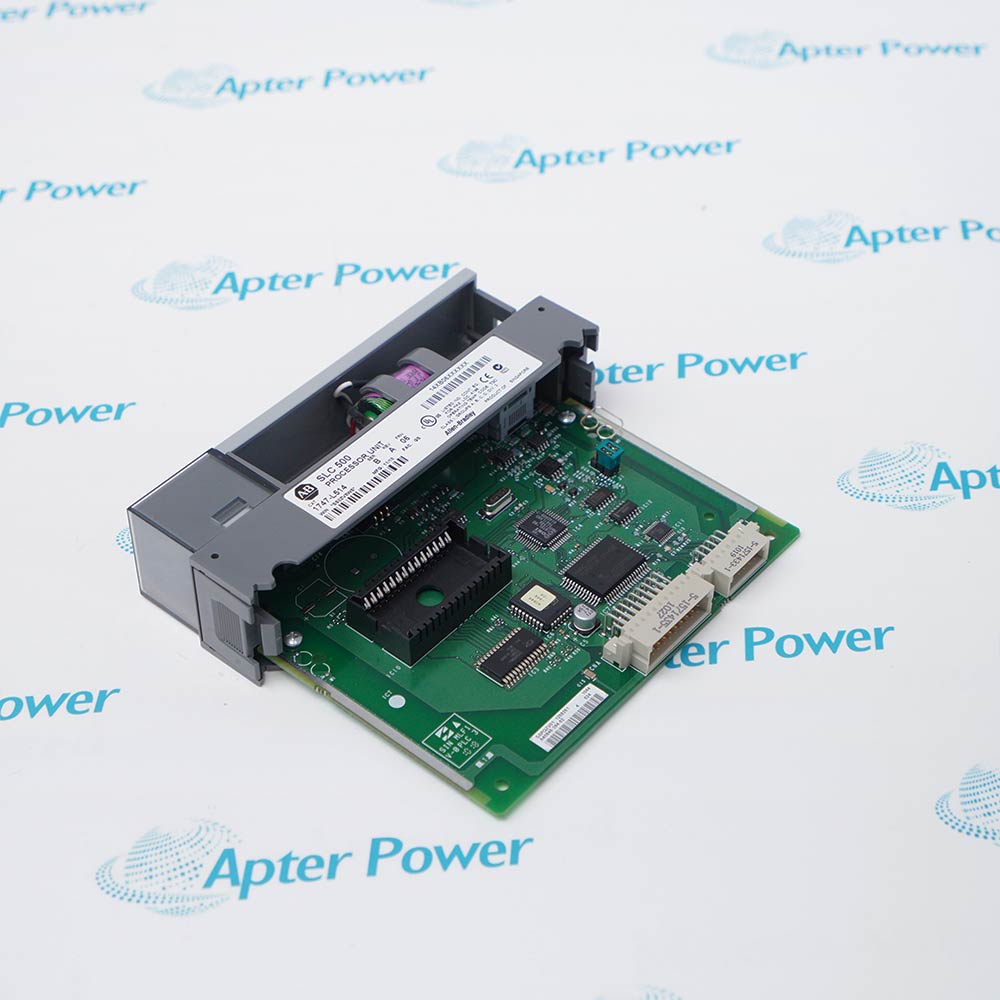

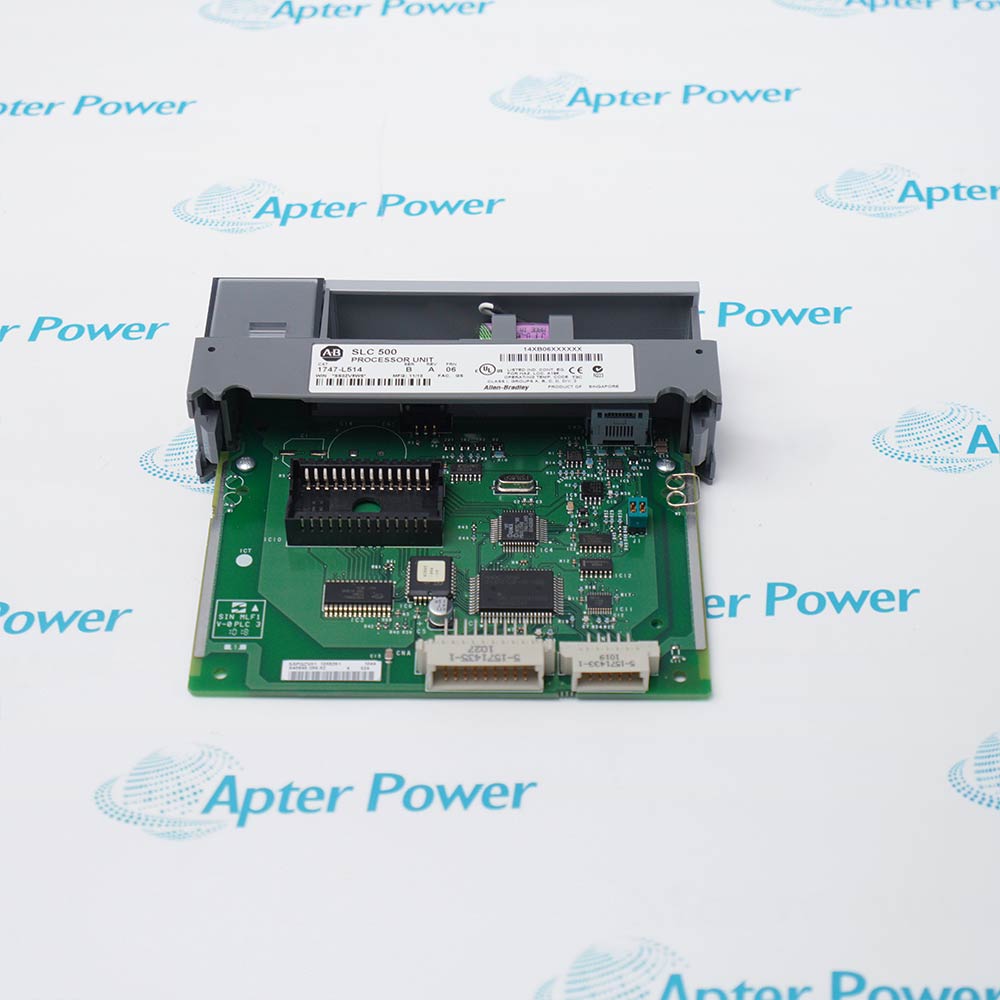

Allen-Bradley 1747-L514 is a 4K SLC 5/01 controller with an integrated DH-485 communication port.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1747-L514
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1747-L514

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1747-L514
  • Product Family:
    SLC 500
  • Product Type:
    SLC 5/01 Controller
  • Stock:
    1
  • User Memory:
    4K instructions
  • I/O Capacity:
    960 maximum local I/O
  • Communication:
    DH-485
  • Program Scan:
    8 ms/K typical
  • I/O Scan:
    2.6 ms typical
  • Local Chassis:
    3 maximum
  • Local Module Slots:
    30 maximum
  • Backplane Current:
    350 mA at 5V DC; 105 mA at 24V DC
  • Programming Instruction Set:
    52 instructions
  • Default Channel 0 Settings:
    DH-485, 19.2 kbps, node address 1
  • Supported Memory Modules:
    1747-M1, 1747-M2
  • Unsupported Memory Module:
    1747-M13
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Program Planning DH-485 Communication System Integration Application
  • Provides 4K user-program memory for local SLC 500 control.
  • Supports up to 960 local I/O points in a modular SLC 500 system.
  • Uses an integrated DH-485 port for programming and network communication.

1747-L514 is an Allen-Bradley SLC 5/01 processor with 4K user-program memory for 1746 modular SLC 500 systems.

It scans the ladder program, updates local chassis I/O through the SLC backplane, and provides typical program and I/O scan times of 8 ms/K and 2.6 ms respectively.

Before replacement, confirm the SLC 5/01 DH-485 communication role, slot-0 position, chassis power loading, installed 1746 I/O modules and saved program.

Availability, condition, price, and shipping time for 1747-L514 are confirmed during quotation.

Allen-Bradley 1747-L514 SLC 5/01 Controller Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use 1747-L514 only where the approved ladder program and data tables fit its 4K user-program capacity.
  • Check scan-time margin with the actual instruction mix and installed I/O, rather than comparing it with higher-capacity SLC processors.
  • Review future program, data-handling and communication needs before retaining 1747-L514 in an expanded machine design.
  • Configure 1747-L514 Channel 0 as a DH-485 station; it responds to network requests and does not initiate DH-485 messages.
  • Set a unique node address and match the established DH-485 baud rate before reconnecting the processor to the network.
  • Use a compatible programming interface and confirm the existing Channel 0 settings before downloading or monitoring the application.
  • Install 1747-L514 in processor slot 0 of a compatible 1746 SLC 500 chassis.
  • Calculate chassis power demand from the processor and every installed 1746 I/O module before energizing the system.
  • When using expansion chassis, verify the expansion arrangement, end termination and saved I/O configuration before restoring the program.
  • Standalone conveyor sequencing and interlock control.
  • Small packaging machines with local discrete and analog SLC 500 I/O.
  • Utility skids and small machine cells requiring DH-485 supervisory communication.
Description
1747-L514 is an Allen-Bradley SLC 5/01 processor for modular 1746 SLC 500 control systems.

It provides 4K user-program memory for local machine control and uses its built-in DH-485 port for programming and network communication.

The SLC 5/01 responds to DH-485 commands but does not initiate messages. Confirm the existing chassis, installed I/O, power supply, DH-485 configuration, stored program and memory-backup requirements before replacement.
Revisions

Revision Part #

Also known as

1747-L514 Ser A
1747-L514/A, Series A, Rev A
1747-L514 Ser B
1747-L514/B, Series B, Rev B
Alternative Names
1747-L514 1747 L514 1747L514 Allen-Bradley 1747-L514 Allen Bradley 1747-L514 Rockwell Automation 1747-L514
Technical notes
1747-L514 is a 4K Allen-Bradley SLC 5/01 processor with DH-485 communication. Verify the slot-0 chassis, stored program and network settings before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 1747-L514 replace a 1747-L511 processor without changing the project?
Only after checking the saved program, installed I/O map, base-unit series, expansion layout and memory backup method. Both are SLC 5/01 processors, but the replacement must be tested with the actual application rather than selected by appearance alone.
Which memory module should be used to back up a 1747-L514 program?
Rockwell lists 1747-M1 and 1747-M2 as compatible memory modules for 1747-L514. Confirm the required program capacity and follow the documented jumper and power-down procedure before inserting or removing a module.
Can a USB laptop connect directly to the DH-485 network of a 1747-L514?
Use a supported DH-485 interface such as a 1747-UIC. A generic USB-to-RS-232 converter does not create a DH-485 connection and can lead to failed communications or incorrect troubleshooting.
Why does a replacement 1747-L514 communicate intermittently on an existing DH-485 network?
Check for a duplicated node address, incorrect baud rate, reversed network conductors, poor shield termination, an unsuitable interface converter, or an incorrectly restored Channel 0 configuration before replacing hardware again.
How can program loss be avoided when servicing a 1747-L514?
Upload and archive the verified application first, confirm the processor battery condition, and use a supported memory module where the project requires removable program backup. Do not rely on an unverified RAM image after prolonged storage or a depleted battery.
Can a 1747-L514 system be expanded simply by adding another local chassis?
No. Review the complete local-chassis layout, slot addressing, expansion hardware, end termination, power loading and the saved RSLogix 500 configuration. A physical chassis addition can change the addressing assumptions in the application.
Can the native communication port of 1747-L514 be converted to Ethernet by changing the cable?
No. Its native processor communication is DH-485. Ethernet integration requires an engineered interface or a migration design; changing only the cable does not add Ethernet capability.
