        1747-L30C

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

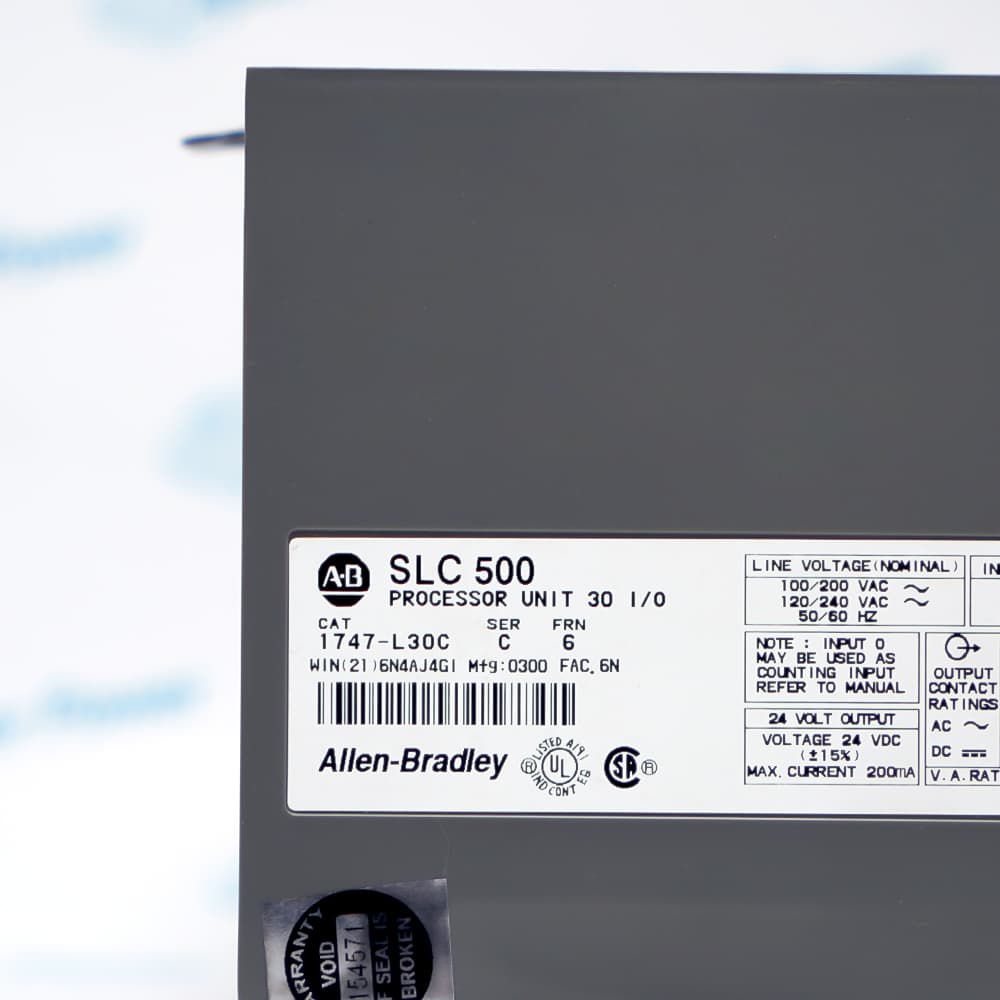

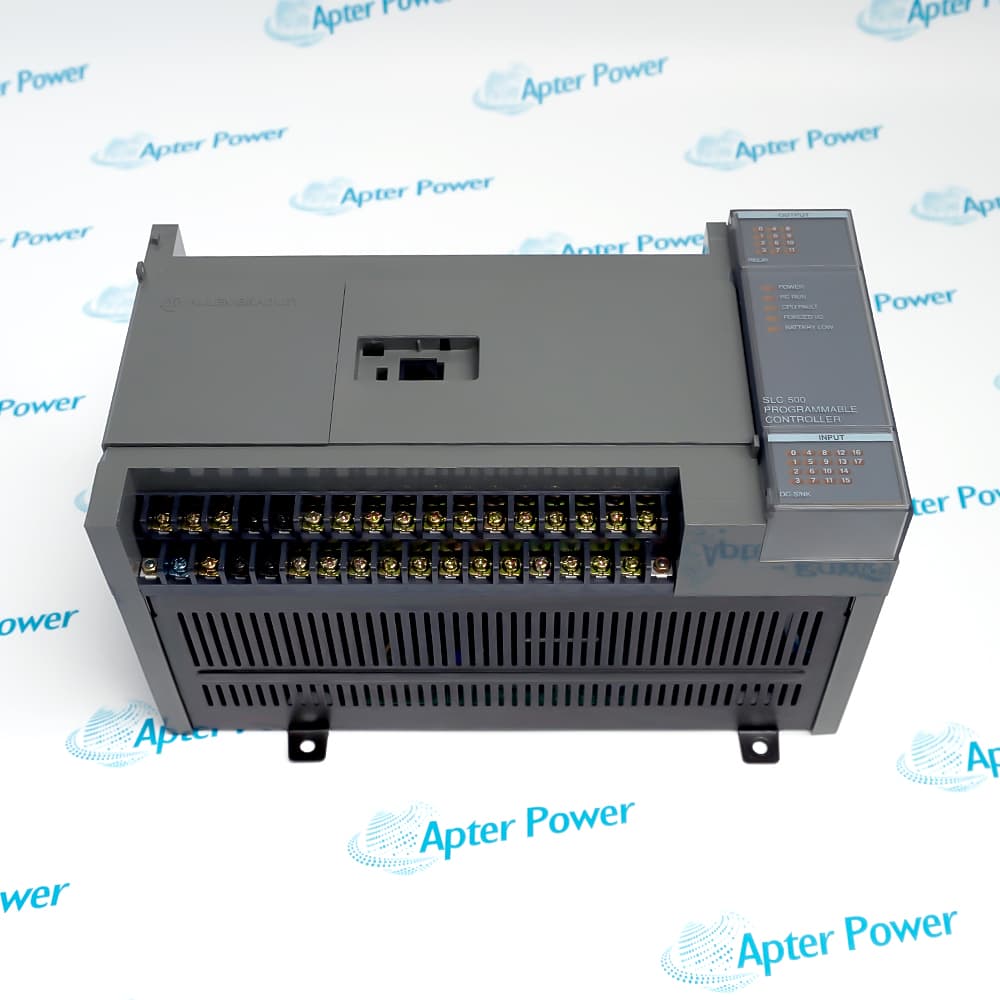

        Allen-Bradley 1747-L30C is an SLC 500 fixed hardware controller with 18 24 VDC sinking inputs, an input 0 high-speed counter, 12 AC/DC relay outputs and 1K instruction program capacity.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 1747-L30C
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 1747-L30C

        • Manufacturer:
          Allen-Bradley
        • Part Number:
          1747-L30C
        • Product Family:
          SLC 500
        • Product Type:
          SLC 500 Fixed Hardware Controller
        • Stock:
          1
        • Controller style:
          Fixed hardware controller
        • Program capacity:
          1K instructions
        • Line power:
          85–265 VAC, 47–63 Hz
        • Input configuration:
          18 × 24 VDC sinking inputs
        • High-speed input:
          Input 0 high-speed counter
        • Input on-state voltage:
          10–30 VDC
        • Input off-state voltage:
          4 VDC maximum for input 0; 5 VDC maximum for all other inputs
        • Nominal input current:
          20 mA at 24 VDC for input 0; 8 mA at 24 VDC for all other inputs
        • Output configuration:
          12 AC/DC relay outputs
        • Relay output range:
          5–265 VAC; 5–125 VDC
        • Relay continuous current:
          2.5 A maximum per output; 8 A maximum per output group
        • User power:
          24 VDC, 200 mA; 20.4–27.6 VDC
        • I/O isolation test:
          1500 VAC for 1 minute
        • Typical scan time:
          8 ms per 1K instructions
        • Operating temperature:
          0 to +60°C
        • Storage temperature:
          −40 to +85°C
        • Relative humidity:
          5 to 95%, non-condensing
        • Heat dissipation:
          18.7 W minimum; 24.0 W maximum
        • Dimensions:
          26.0 × 17.5 × 14.5 cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Input & Counter Matching Relay Output Groups Expansion & DH-485 Application
        • Use 24 VDC sourcing field devices with the controller's 18 sinking inputs
        • Reserve input 0 for its documented high-speed counter behavior when that function is enabled
        • Wire the 12 relay outputs through their four isolated voltage groups

        1747-L30C is an Allen-Bradley SLC 500 fixed hardware controller for compact discrete-control systems.

        It combines 18 sinking 24 VDC inputs, an input 0 high-speed counter function, 12 AC/DC relay outputs and a 1K-instruction program capacity.

        Before installation or replacement, verify AC line power, field-device polarity, relay-group commons, DH-485 program data and optional expansion compatibility.

        Availability, condition, price, and shipping time for 1747-L30C are confirmed during quotation.

        Allen-Bradley 1747-L30C SLC 500 Fixed Hardware Controller Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Connect sourcing devices to the 10–30 VDC sinking input circuits
        • Use the 4 VDC maximum off-state limit for input 0 and the 5 VDC limit for the other inputs
        • Keep input 0 wiring suitable for the high-speed counter signal rather than a routine status point
        • Maintain the four isolated output-group supplies and commons shown in the official diagram
        • Keep each relay load within 5–265 VAC or 5–125 VDC and the published current limits
        • Apply load suppression where required to protect relay contacts from inductive transients
        • Use no more than the two documented expansion positions and validate module compatibility
        • Calculate expansion backplane loading from the fixed controller's available power
        • Preserve the DH-485 node settings, ladder program, data values and force status before exchange
        • Compact standalone machine sequencing with mixed 24 VDC inputs and relay-switched loads
        • Pulse or event counting through the dedicated input 0 high-speed counter function
        • Small SLC 500 control cells exchanging programming and status data over DH-485
        Description
        1747-L30C is an Allen-Bradley SLC 500 fixed hardware controller for compact discrete-control systems.

        The controller combines 18 sinking 24 VDC inputs, a dedicated high-speed counter function on input 0 and 12 relay outputs whose isolated groups can switch different application voltages within the published ratings.

        Before replacement, confirm the fixed-controller catalog number, AC line power, sinking input polarity, relay-group commons, DH-485 program backup and any two-slot expansion hardware.
        Alternative Names
        1747-L30C 1747 L30C 1747L30C Allen-Bradley 1747-L30C Allen Bradley 1747-L30C Rockwell Automation 1747-L30C AB 1747-L30C SLC 500 1747-L30C
        Technical notes
        1747-L30C is the relay-output member of the 30-point SLC 500 fixed-controller family, with 18 sinking inputs and input 0 assigned to the high-speed counter function. Verify relay-group supplies, DH-485 program recovery and optional expansion compatibility before replacement.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Can 1747-L30C be wired to 24 VDC sourcing field sensors?
        Yes. Its field inputs are sinking inputs, so the connected devices must source current into the input terminals. Confirm the DC common arrangement and polarity shown in the 1747-L30C wiring diagram before energizing the circuit.
        Can the four relay-output groups on 1747-L30C switch different voltages?
        Yes. The official wiring diagram states that the output groups are isolated, allowing different group voltages within the published relay ratings. Keep each group common, conductor segregation, protective device and load suppression appropriate to its circuit.
        Why should input 0 on 1747-L30C not be treated like the other 17 inputs?
        Input 0 also serves the high-speed counter function and has a different guaranteed off-state boundary from the other inputs. Match its source waveform, common and input configuration to the counter application instead of copying an ordinary discrete-input circuit.
        Can any two SLC 500 modules be installed beside 1747-L30C in the optional two-slot expansion chassis?
        No. The chassis provides only two positions and uses the fixed controller's backplane power; module compatibility and current loading must be checked. Rockwell documentation also excludes specific specialty modules from fixed-controller expansion, so the exact two catalog numbers must be validated.
        Is 1747-L30D a direct replacement for 1747-L30C because both have 18 sinking inputs?
        No. 1747-L30C uses relay outputs, while 1747-L30D uses triac outputs. Load voltage, leakage, minimum current, switching speed, surge behavior and output-group wiring all change, so the replacement requires a circuit review.
        Why can a 1747-L30C relay indicator turn on while the connected load remains off?
        The ladder result does not supply field power. Check the relevant isolated output group's external supply and common, protective device, terminal wiring, load continuity and relay contact condition, then verify that the load stays within the AC/DC contact rating.
        What must be recovered before replacing a 1747-L30C whose DH-485 program is no longer documented?
        Obtain an upload of the running program when possible, including data-table values, I/O forces, communications settings and memory-module status. Also photograph the four relay-group commons and input commons; a program alone cannot reconstruct those field-voltage boundaries.
