    Apter Power supplies verified Allen-Bradley PanelView Plus components to restore operator interface functionality, ensure clear system visualization, and prevent costly plant downtime.

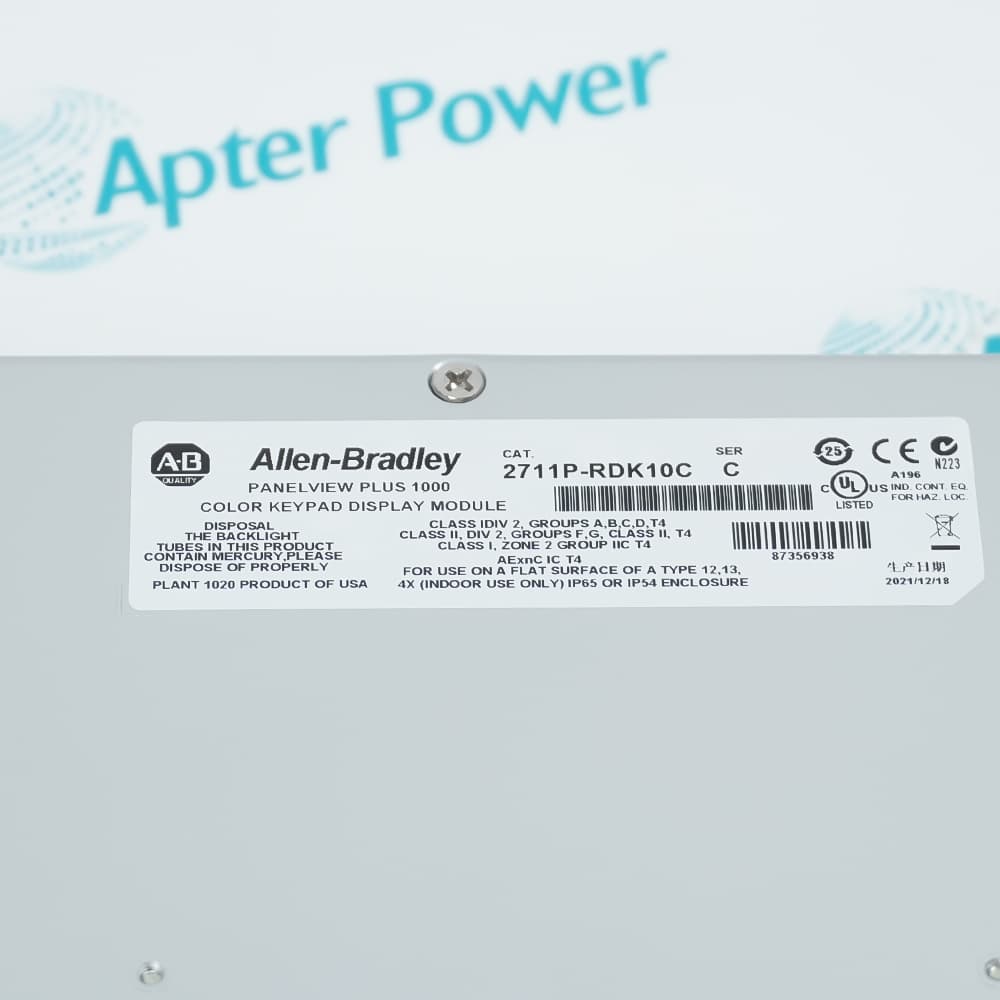

2711P-RDK10C

/ 4.9
1001 reviews | Need a Specific Revision?

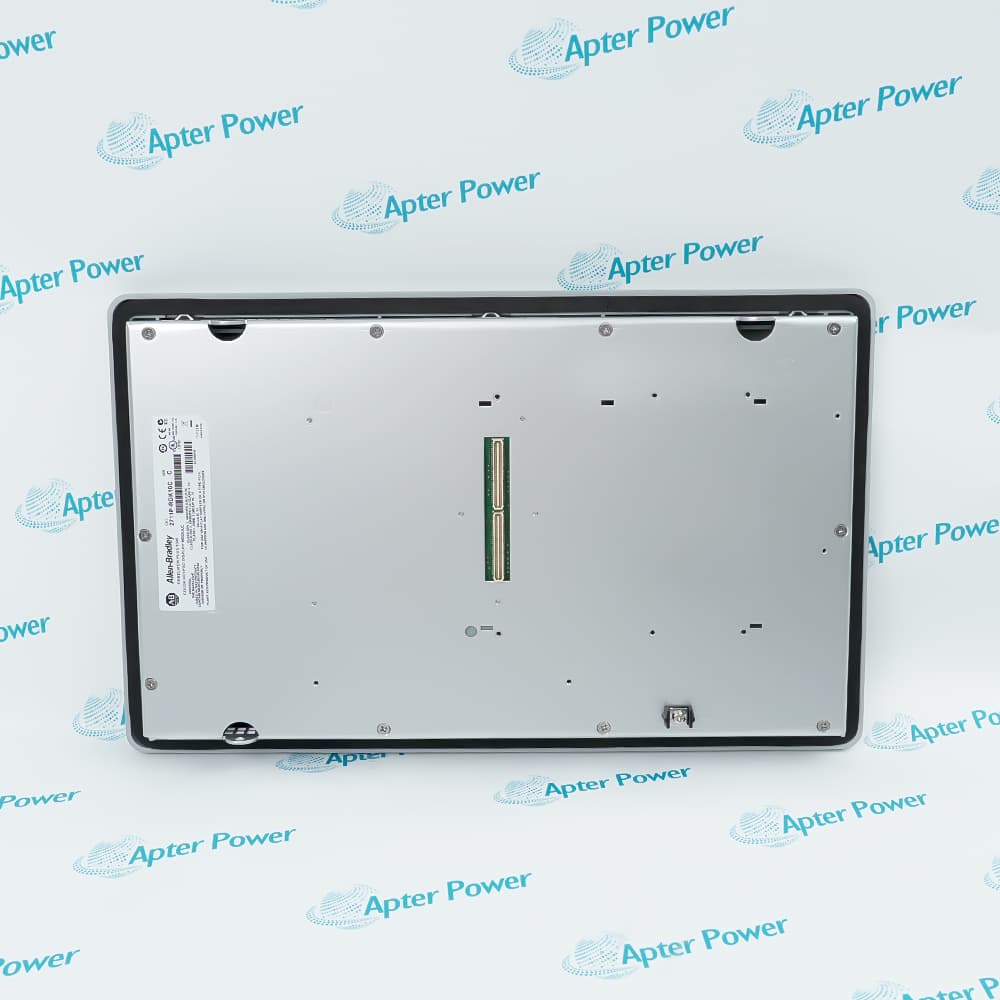

The 2711P-RDK10C is a 10.4-inch color keypad display module for PanelView Plus 6 terminals, 300 cd/m² brightness, and IP65 front protection.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 2711P-RDK10C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 2711P-RDK10C

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    2711P-RDK10C
  • Product Family:
    Allen Bradley Panelviews
  • Product Type:
    PanelView Plus Display Module
  • Stock:
    1
  • Model Size:
    1000 (10.4 inch)
  • Operator Input:
    Keypad
  • Display Type:
    10.4-inch TFT Color
  • Display Resolution:
    640 × 480 pixels
  • Display Brightness:
    300 cd/m²
  • Display Backlight:
    CCFL (Cold-cathode Fluorescent Lamp)
  • Backlight Life:
    50,000 hours
  • Front Panel IP Rating:
    IP65
  • Operating Temperature:
    0°C to 55°C
  • Storage Temperature:
    -25°C to 70°C
  • Relative Humidity:
    5% to 95% non-condensing
  • Shock Rating:
    15g for 11ms (IEC 60068-2-27)
  • Vibration Acceleration:
    2 m/s² (IEC 60068-2-6)
  • Vibration Displacement:
    0.012 mm peak-peak
  • Vibration Frequency:
    Up to 500 Hz
  • Weight:
    2.02 kg
  • Estimated shipping dimensions:
    29x19.2x7.2cm
  • Tariff Code:
    8537109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Diagnostics & Protection Installation & Upgrades

Features:

  • Features a 640×480 pixel TFT color screen with 300 cd/m² brightness and 50,000 hour CCFL backlight, providing clear operator interface with physical keypad buttons for reliable input in industrial environments.
  • IP65-rated front panel resists water and dust ingress, making it suitable for washdown and dirty environments. Meets 15g shock and 2 m/s² vibration standards per IEC 60068-2-27 and IEC 60068-2-6.
  • Designed as a modular component that pairs with separate logic modules, allowing flexible configuration and easy field replacement of display or logic sections without replacing the entire terminal.
The 2711P-RDK10C provides a generous 10.4-inch TFT color display with 640×480 pixel resolution, offering operators clear visibility of machine status, alarms, and production data. The 300 cd/m² brightness ensures readability even in well-lit factory environments. Unlike touch-only panels, the 2711P-RDK10C features physical keypad buttons that provide tactile feedback, which is preferred in applications where operators wear gloves or where precision input is required.

The 2711P-RDK10C is built to withstand harsh industrial conditions commonly found in manufacturing and process environments. The IP65-rated front panel provides complete protection against dust ingress and low-pressure water jets from any direction, allowing the terminal to be safely installed in washdown areas, food processing plants, and dusty workshops. The module meets rigorous IEC 60068-2-27 shock standards with a rating of 15g for 11ms, ensuring reliable operation even when mounted on vibrating machinery or near stamping presses.

The 2711P-RDK10C is designed as a modular component within the PanelView Plus 6 architecture, offering significant flexibility for system design and maintenance. Unlike integrated terminals where a single failure requires complete unit replacement, the 2711P-RDK10C separates the display function from the logic module. If the display fails, only the display module needs replacement; if the processor fails, only the logic module requires replacement. This modularity reduces spare parts inventory and downtime. The display module pairs with various logic modules offering different memory sizes, communication options (Ethernet, RS-232), and operating systems (Windows CE 6.0).

The 2711P-RDK10C AB PanelView Plus Display Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

AB 2711P-RDK10C PanelView Plus Display Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
AB 2711P-RDK10C PanelView Plus Display Module Specs

General

  • Manufacturer AB
  • Model 2711P-RDK10C
  • Condition New Original ready stock
  • Product Family 2711P-T12C6D2,2711-K10C15L1,2711P-B6C20D 2711P-RN10C
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Factory Automation & Manufacturing: Operator workstations in automotive assembly, CNC machining, metal stamping, and automated packaging lines.
  • Process & Infrastructure Monitoring: Parameter monitoring, alarms, and recipe management in water treatment plants, chemical processing, and food & beverage facilities.
  • Heavy Industries: Smelters, steel mills, mining equipment, and cement plants where airborne dust, oil mist, and debris would foul up standard touch panels.
  • OEM Machinery: Integrated by machinery manufacturers as a standardized, heavy-duty HMI panel running FactoryTalk View Machine Edition (ME) runtime software.
  • Enclosure Rating: When properly flush-mounted into a control cabinet panel, the front bezel achieves NEMA Type 12, 13, 4X (Indoor Use Only), IP54, and IP65 ratings.
  • Screen & Backlight Protection: Equipped with a long-life backlight (typically 50,000 hours). It supports software-configurable Screen Saver settings to prevent LCD "burn-in" or image retention during prolonged idle states.
  • Hardware Watchdog: An internal watchdog timer automatically resets the HMI terminal if the underlying Windows CE OS or application execution hangs.
  • Backup & Disaster Recovery: Supports application cloning and parameter backup via SD card or USB flash drives for rapid hardware replacement.
  • Disconnect Power: Ensure all main power sources to the HMI are completely turned off to prevent ESD or electrical shock.
  • Attach Logic Module: Align the logic module's guide rails with the sockets on the back of the 2711P-RDK10C display module.
  • Secure Screws: Press firmly to engage the multi-pin connector and tighten the integrated mounting screws to secure the two halves.
  • Panel Cutout Insertion: Verify that the rubber sealing gasket is properly seated in the bezel channel [2711p-um001_-en-p.pdf]. Insert the assembled terminal forward into the pre-cut enclosure panel.
Description
The 2711P-RDK10C is a keypad-based display module designed for the PanelView Plus 6 graphic terminal family. It features a 10.4-inch TFT color display with 640x480 pixel resolution and 300 cd/m² brightness, providing clear visibility for operator interfaces. The 2711P-RDK10C uses CCFL backlight technology rated for 50,000 hours of operational life.

The 2711P-RDK10C offers robust environmental protection with an IP65-rated front panel, making it suitable for washdown environments and dusty industrial locations.The 2711P-RDK10C is designed for panel mounting and provides reliable operation in demanding factory floor conditions.

For harsh industrial environments, the 2711P-RDK10C is built to withstand significant mechanical stress. It meets IEC 60068-2-27 shock rating of 15g for 11ms and IEC 60068-2-6 vibration rating of 2 m/s² acceleration.

The 2711P-RDK10C is configured using FactoryTalk View Studio Machine Edition software and is compatible with the modular PanelView Plus 6 architecture. This display module requires a separate logic module (such as 2711P-RP8DK or similar) to function as a complete terminal.
Revisions

Revision Part #

Also known as

2711P-RDK10C Ser A
2711P-RDK10C/A, Series A, Rev A
2711P-RDK10C Ser B
2711P-RDK10C/B, Series B, Rev B
2711P-RDK10C Ser A
2711P-RDK10C/A, Series A, Rev A
2711P-RDK10C Ser B
2711P-RDK10C/B, Series B, Rev B
2711P-RDK10C Ser C
2711P-RDK10C/C, Series C, Rev C
2711P-RDK10CX
2711P-RDK10C/X, Series X, Rev X
Alternative Names
2711P-RDK1OC 2711P-RDKI0C 2711PRDK10C 2711PRDK1OC 2711PRDKI0C 271IP-RDK10C 271IPRDK10C 27I1P-RDK10C 27I1PRDK10C 27IIP-RDKI0C 27IIP-RDKIOC 27IIPRDKI0C 27IIPRDKIOC
Technical notes
The 2711P-RDK10C is a 10.4-inch keypad display module for PanelView Plus 6 systems. Requires separate logic module for operation. Features 640x480 TFT color display, 300 cd/m² brightness, 50,000 hour CCFL backlight. IP65 front panel, 15g shock, 2 m/s² vibration. Operating temperature 0-55°C.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is 2711P-RDK10C a complete operator terminal by itself?
No, the 2711P-RDK10C is only the display module. It requires a separate logic module (such as 2711P-RP8DK or 2711P-RP9DK) to provide processing power, memory, and communication ports. Together they form a complete PanelView Plus 6 terminal.
What software is required to program applications for 2711P-RDK10C?
FactoryTalk View Studio Machine Edition (version 6.0 or later) is required to create and download runtime applications to the complete PanelView Plus 6 terminal that includes this display module.
What is the backlight life of 2711P-RDK10C?
The CCFL backlight is rated for 50,000 hours of operational life. At 24/7 continuous operation, this equates to approximately 5.7 years. Replacement of the display module or backlight may be required after this period.
