MMLB01

/ 4.9
1001 reviews | Need a Specific Revision?
MMLB01 supports all contact circuits with a current rating of 20 A continuous or 400 A for 1 second, and a maximum operating voltage of 300 V AC or DC.
Get a quick price for MMLB01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MMLB01

  • Manufacturer:
    Alstom
  • Part Number:
    MMLB01
  • Product Family:
    Alstom
  • Current Carrying Capacity (All Contact Circuits):
    20 A continuous
  • Short-Time Current Withstand:
    400 A / 1 second
  • Maximum Operating Voltage:
    300 V AC or DC (continuous)
  • Degree of Protection:
    IP20 (MMLB 01)
  • Weight:
    0.24 kg
  • Estimated shipping dimensions:
    4.3x6x17.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Certifications & Standards Compatibility & Interoperability

Features:

  • Interface Between the Test Plug and MMLG 01 Test Block
  • Combines Capability of Current Handling with Safe Testing Support
  • Operates in Conjunction with the MMLG Series and Protection Systems

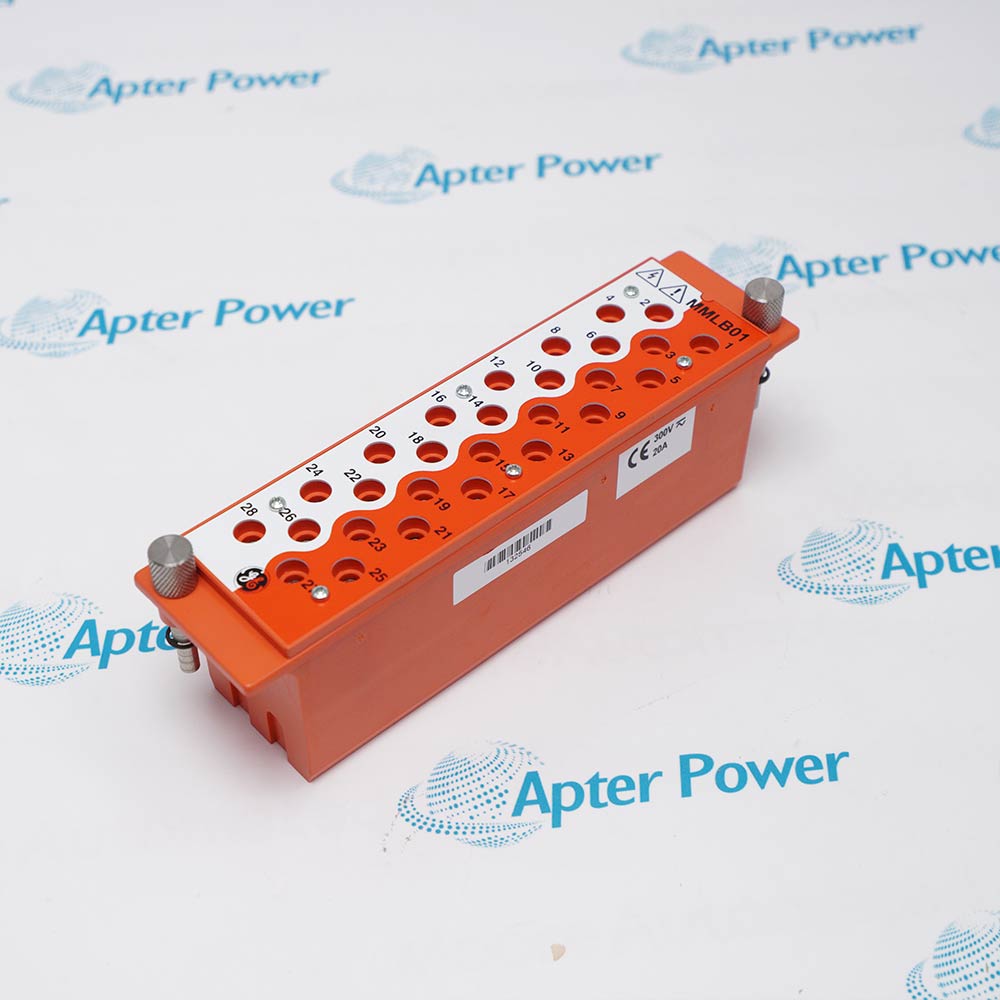

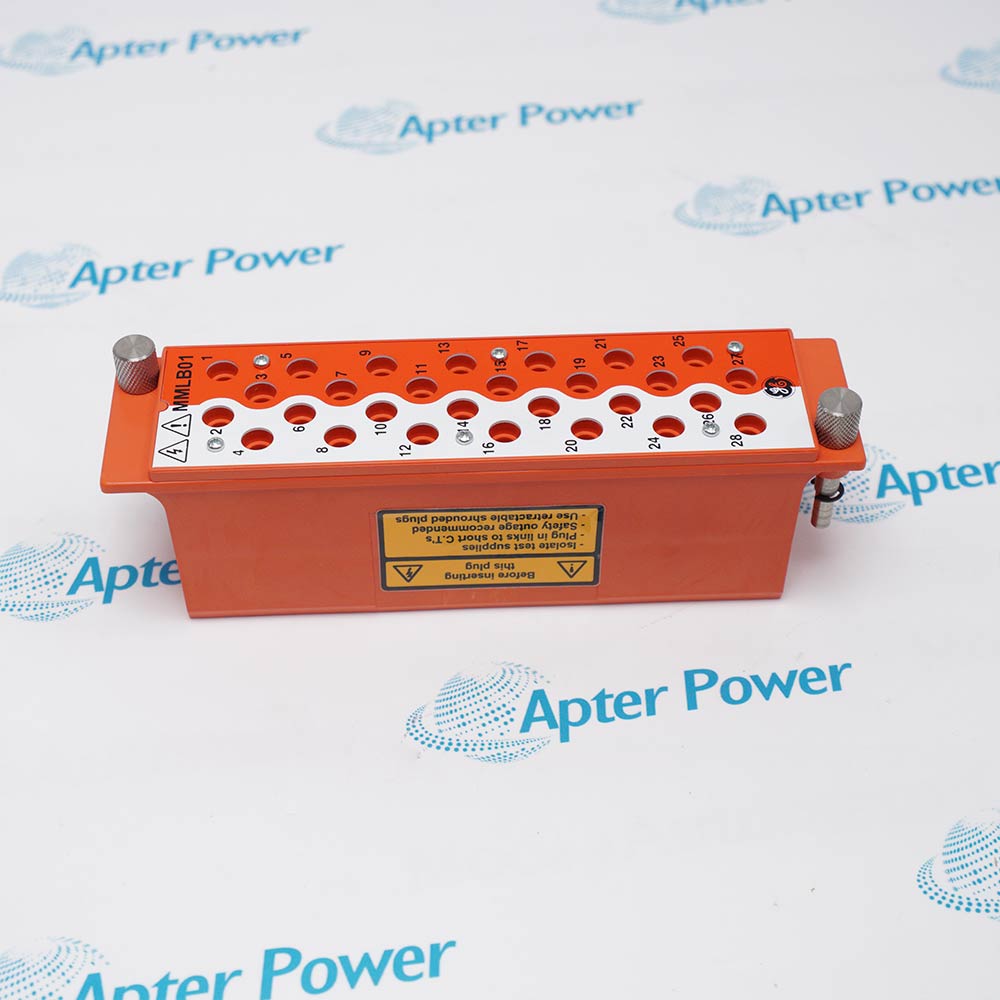

The Alstom MMLB01 operates as the multi-finger test plug in power system protection applications, providing reliable current handling capability for testing and verification purposes. It continuously supports up to 20 A continuous current or 400 A for 1 second across all contact circuits and operates at a maximum voltage of 300 V AC or DC under continuous conditions. The Alstom MMLB01 distributes test signals through its multi-finger configuration to support safe and controlled secondary injection testing of all protection schemes and monitors. Seamless integration with the MMLG 01 test block is standard with the Alstom MMLB01, allowing testing without disturbing existing protective wiring. The Alstom MMLB01 has been designed with IP20 protection rating to ensure basic protection against accidental contact in indoor environments.

The Alstom MMLB01 provides essential testing functions for protection systems, and is a critical component of the testing path, directly affecting the safe and effective operation of protection system testing and maintenance. One Alstom MMLB01 test plug is required per MMLG 01 test block for standard testing applications. The Alstom MMLB01 features a compact multi-finger design for easy insertion and removal from the test block.

For safe operation applications, the Alstom MMLB01 requires specific precautions to be observed during use. In addition to standard testing operation, the safety configuration also performs critical insulation verification. The Alstom MMLB01 safety system continually monitors the integrity of flying leads and short-circuit paths. If the system detects that terminals 13 and 14 are being used for CT connections (which may introduce potential safety risks), it will automatically prevent unsafe operation and require verification that all leads maintain adequate insulation and continuity before testing proceeds.

The MMLB01 Alstom multi-finger test plug may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Alstom MMLB01 multi-finger test plug Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Alstom MMLB01 multi-finger test plug Specs

General

  • Manufacturer Alstom
  • Model MMLB01
  • Condition New Original ready stock
  • Product Family MMLB02,MMLB03,MMLB04
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Secondary Injection Testing: Allows for the injection of test currents and voltages into the relay while isolating it from the primary system.
  • System Monitoring: Enables real-time monitoring of current and voltage signals via its 28 integrated 4mm sockets.
  • Circuit Isolation: Automatically open-circuits the contacts in the associated test block upon insertion, preventing inadvertent tripping during maintenance.
  • Busbar Protection: Often utilized in complex busbar protection schemes to manage multiple circuit testing simultaneously.
  • EMC Compliance: Meets European Directive 2004/108/EC (demonstrated by EN50263:2000) for electromagnetic compatibility.
  • Ingress Protection: Certain variants or assemblies may carry an IP67 rating, making them suitable for harsh industrial or outdoor environments.
  • Safety Standards: Built according to the Safety Statements Publication R5948, which specifies installation and usage safety protocols.
  • Operational Durability: Designed for high reliability, capable of handling up to 100 million cycles in demanding production environments.
  • Test Blocks: Specifically designed to work with the MMLG 01 and MMLG 02 test blocks. The MMLB01 fits into the MMLG test block to break internal contact pairs.
  • Midos Range: Fully compatible with Alstom's Midos modular relays and systems.
  • Standardized Interfaces: Features 28 test sockets that accept standard 4mm stackable plugs with retractable shrouds, ensuring compatibility with most universal test equipment.
  • System Integration: Its standardized design allows it to be used across various electrical systems, eliminating the need for multiple proprietary test plugs.
Description
MMLB01 is a multi-finger test plug designed for use in power system protection and testing applications. It is primarily intended to operate in conjunction with the MMLG 01 test block, allowing testing and verification of protection systems without the need to disturb existing protective wiring. Through this configuration, MMLB01 supports efficient monitoring of protection schemes and enables secondary injection testing in a safe and controlled manner.

In terms of electrical performance, MMLB01 provides reliable current handling capability across all contact circuits, supporting up to 20 A continuous current or 400 A for 1 second. The maximum operating voltage of MMLB01 is rated at 300 V AC or DC under continuous conditions, making it suitable for typical protection and test circuit requirements. The device is designed with an IP20 degree of protection, ensuring basic protection against accidental contact in indoor environments.

For safe operation, specific precautions must be observed when using MMLB01. Terminals 13 and 14 must not be used for CT connections, as this may introduce potential safety risks. Before use, it is essential to verify that all flying leads are properly insulated and that the plug and associated short-circuit paths maintain adequate insulation and continuity. Adhering to these guidelines ensures that MMLB01 can be used safely and effectively during protection system testing and maintenance.
Alternative Names
MMLB 01 MMLG 01 MMLG01 MMLG 02 MMLG 03 MMLG 04
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the MMLB 01?
MMLB 01 is a Multi-finger Test Plug, designed for testing and connection tasks in power protection and testing systems.
Which devices is the MMLB 01 typically used with?
MMLB 01 is typically used in conjunction with the MMLG 01 test block, enabling testing and verification of protection systems without disturbing existing wiring.
What are the main applications of the MMLB 01?
MMLB 01 is mainly used for: 1.Monitoring power system protection schemes 2.Secondary injection testing 3.Improving safety and convenience during testing operations.
What safety precautions should be observed when using the MMLB 01?
When using MMLB 01, the following precautions should be observed: 1.Terminals 13 and 14 must not be used for CT connections, as this may pose safety risks 2.Check that all flying leads are properly insulated before use 3.Ensure the insulation and continuity of the plug and associated short-circuit paths to guarantee safe testing.
In which application scenarios is the MMLB 01 suitable?
MMLB 01 is suitable for power systems and protection relay applications that require protection testing, system monitoring, and secondary injection testing.
