AIO216

/ 4.9
1001 reviews | Need a Specific Revision?

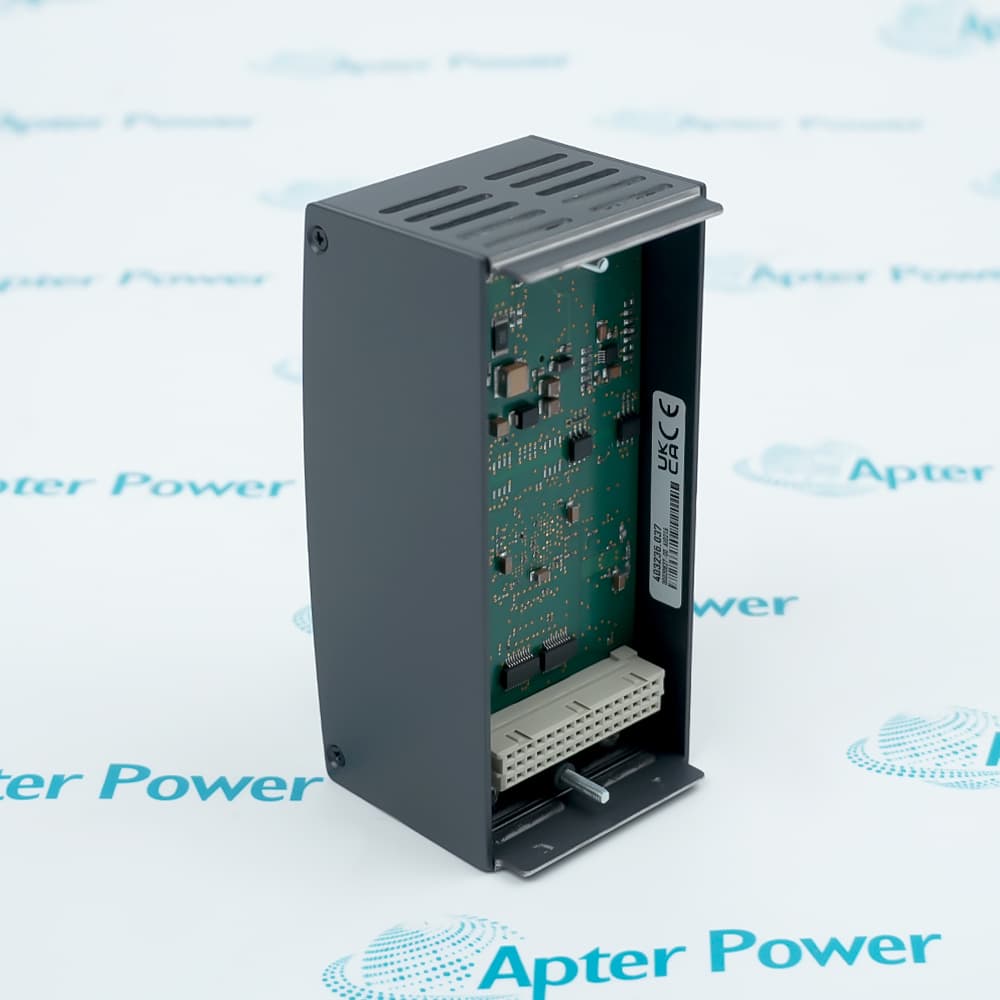

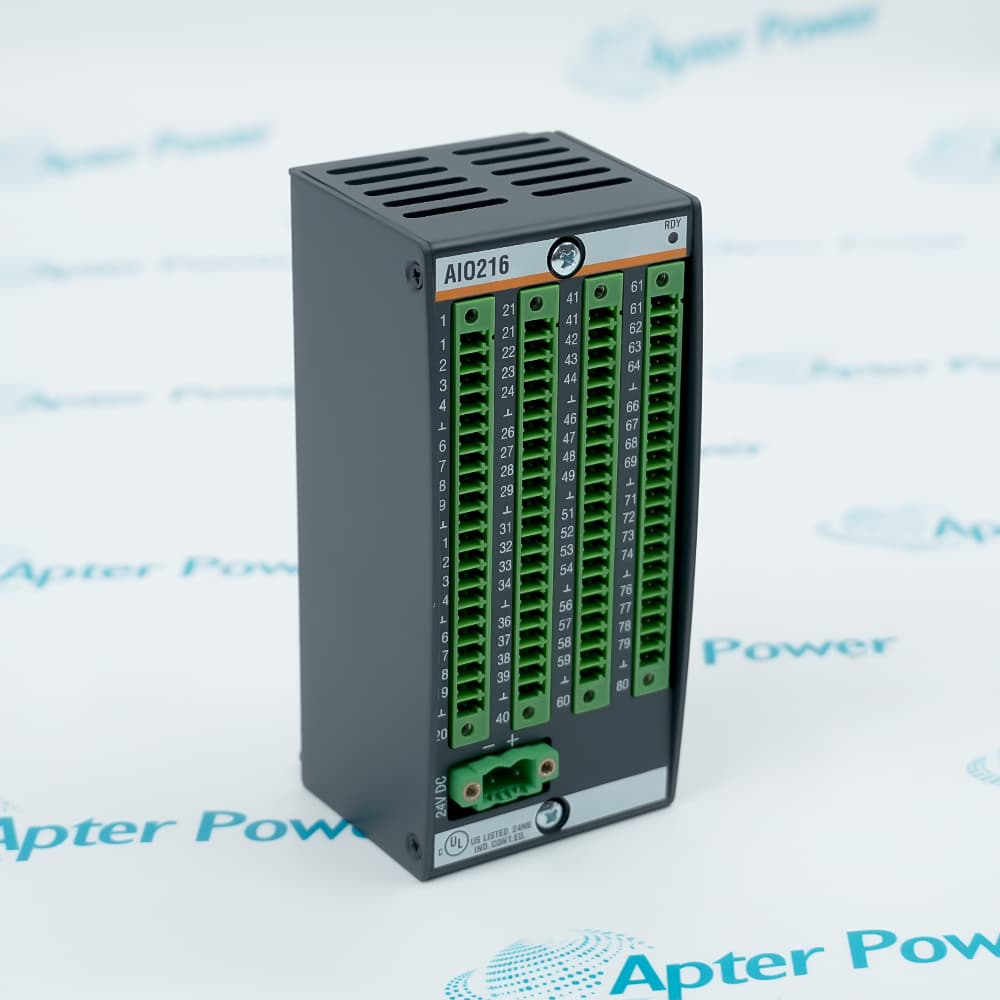

The Bachmann AIO216 is a 16-channel M200 universal analog I/O module with individually configurable voltage, current, RTD, thermocouple, and analog output functions.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for AIO216
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AIO216

  • Manufacturer:
    Bachmann
  • Part Number:
    AIO216
  • Product Family:
    Bachmann
  • Product Type:
    16-Channel Universal Analog Input/Output Module
  • Stock:
    1
  • Channels:
    16, individually configurable
  • Voltage input ranges:
    ±10 V, ±1 V, ±100 mV, ±10 mV
  • Current input ranges:
    ±20 mA; 0–20 mA; 4–20 mA
  • RTD inputs:
    Pt100 and Pt1000, 2-, 3-, or 4-wire
  • Thermocouple types:
    J, K, T, N, E, R, S, B
  • Voltage output:
    ±10 V, maximum 10 mA
  • Current output:
    0–20 mA or 4–20 mA, maximum 600 Ω load
  • Input resolution:
    16 bit
  • Output resolution:
    14 bit
  • Input refresh:
    100 µs
  • Configurable cutoff frequency:
    4 kHz to 0.5 Hz
  • Electrical isolation:
    500 V from the system
  • Internal supply:
    Via BS2xx backplane; 80 mA internal current
  • External supply:
    18–34 V DC; typically 200 mA at 24 V without external load
  • Operating temperature:
    −30–60 °C
  • Dimensions:
    5.5 × 11.9 × 6.1 cm
  • Weight:
    0.2 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Austria
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Channel Configuration Signal Output Loading Application
  • Configures each of sixteen channels for supported analog input, temperature input, or analog output functions
  • Combines 16-bit input conversion with 14-bit output conversion and adjustable filtering
  • Supports an external 18 to 34 volt DC supply and provides 500 volt isolation from the control system

AIO216 is the sixteen-channel universal analog module in the Bachmann M200 control-system portfolio.

A channel can be assigned to supported voltage, current, resistance-temperature, thermocouple, voltage-output, or current-output operation, allowing mixed measurement and control duties in one module.

Reliable commissioning depends on matching every channel to its sensor or load, wiring method, reference potential, filter, scaling, diagnostics, and external supply requirements.

Availability, condition, price, and shipping time for AIO216 are confirmed during quotation.

Bachmann AIO216 16-Channel Universal Analog Input/Output Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Configure every channel for the intended signal type before connecting the field device
  • Use the documented two-, three-, or four-wire connection method for Pt100 and Pt1000 measurements
  • Match thermocouple type, polarity, compensation method, and cable material to the configured channel
  • Select the cutoff frequency to balance response time against noise rejection for the actual process
  • Route low-level voltage and thermocouple wiring away from switching conductors and interference sources
  • Check shields, reference potentials, grounding, scaling, and sensor power when readings are unstable
  • Keep voltage-output current within the documented 10 milliampere maximum
  • Keep current-output loop resistance within the documented 600 ohm maximum
  • Verify external supply capacity for the configured outputs and connected field loads
  • Mixed voltage and current measurement for industrial and plant-automation process signals
  • Pt100, Pt1000, and thermocouple temperature acquisition with channel-specific sensor wiring
  • Analog voltage or current command outputs for compatible actuators, drives, and control devices
Description
AIO216 is a Bachmann M200 sixteen-channel universal analog input/output module with per-channel signal configuration.

Its channels support voltage and current inputs, Pt100/Pt1000 and thermocouple measurement, or voltage and current outputs, with 16-bit input and 14-bit output conversion.

Before installation or replacement, confirm order number 00020627-00, channel modes, sensor wiring, output loads, external 18–34 V DC supply, terminal accessories, filter settings, scaling, calibration, and the saved application configuration.
Alternative Names
AIO216 AIO 216 Bachmann AIO216 Bachmann electronic AIO216 Bachmann 00020627-00 M200 AIO216
Technical notes
AIO216 channels are individually configurable, so preserve the channel-mode and scaling record. Verify order number 00020627-00, wiring, filter, external supply, output load, grounding, and calibration before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can different signal types be mixed on one Bachmann AIO216?
Yes. The sixteen channels are individually configurable, but each channel must be wired and parameterized for its selected voltage, current, RTD, thermocouple, or output mode.
What should be checked before moving a configuration to a replacement Bachmann AIO216?
Export or record every channel mode, range, scaling, filter, alarm behavior, wiring method, and calibration-dependent setting, then verify the replacement order number.
Why can a Bachmann AIO216 current output fail to reach the commanded value?
Check the external supply, loop polarity, wiring, configured mode, connected resistance, and whether the total loop load exceeds the documented 600 ohm maximum.
How can noise on a Bachmann AIO216 thermocouple or millivolt input be reduced?
Use the correct thermocouple cable and polarity, appropriate shielding and grounding, separation from power wiring, sound terminals, and a suitable configurable cutoff frequency.
Are Bachmann AIO216 channels isolated from one another?
The official data states 500 V electrical isolation from the system; it does not establish channel-to-channel isolation, so do not assume individual galvanic isolation between channels.
What accessories should be confirmed when ordering Bachmann AIO216?
Confirm the terminal or connector accessories, base/backplane hardware, field wiring parts, and whether they are included in the quoted stock item rather than assuming they ship with the module.
What should be inspected when a Bachmann AIO216 channel reads incorrectly after replacement?
Check channel type, range, sensor wiring, reference and shield, scaling, filter, external supply, output load where applicable, terminal condition, and the restored application configuration.
