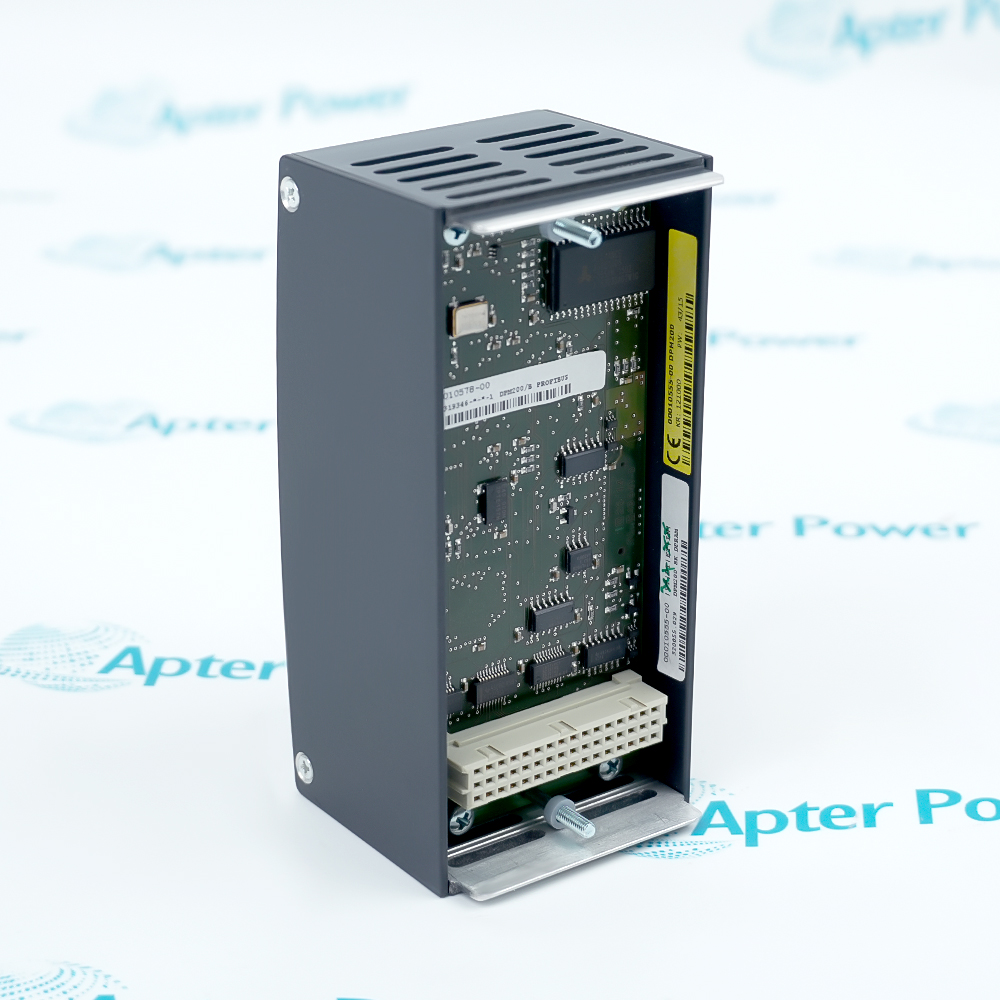

The Bachmann DPM200 is an M200-system PROFIBUS DP V0 fieldbus module that operates as a DP master, DP slave or combined master/slave in multi-master control networks.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for DPM200
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DPM200

  • Manufacturer:
    Bachmann
  • Part Number:
    DPM200
  • Product Family:
    Bachmann
  • Product Type:
    PROFIBUS DP Master and Slave Module
  • Stock:
    1
  • Fieldbus Standard:
    PROFIBUS DP V0
  • Operating Modes:
    DP master, DP slave or combined master/slave
  • Process Image:
    8 kB × 16 DPM
  • Data Consistency:
    Configurable consistency lock
  • Maximum Modules per M200 Controller:
    3
  • Maximum Slaves:
    32 without repeater; 125 with repeater
  • Data per Slave:
    732 bytes
  • Transfer Rate:
    9.6 kbit/s to 12 Mbit/s
  • Current Consumption:
    400 mA at 5 V DC
  • Connections:

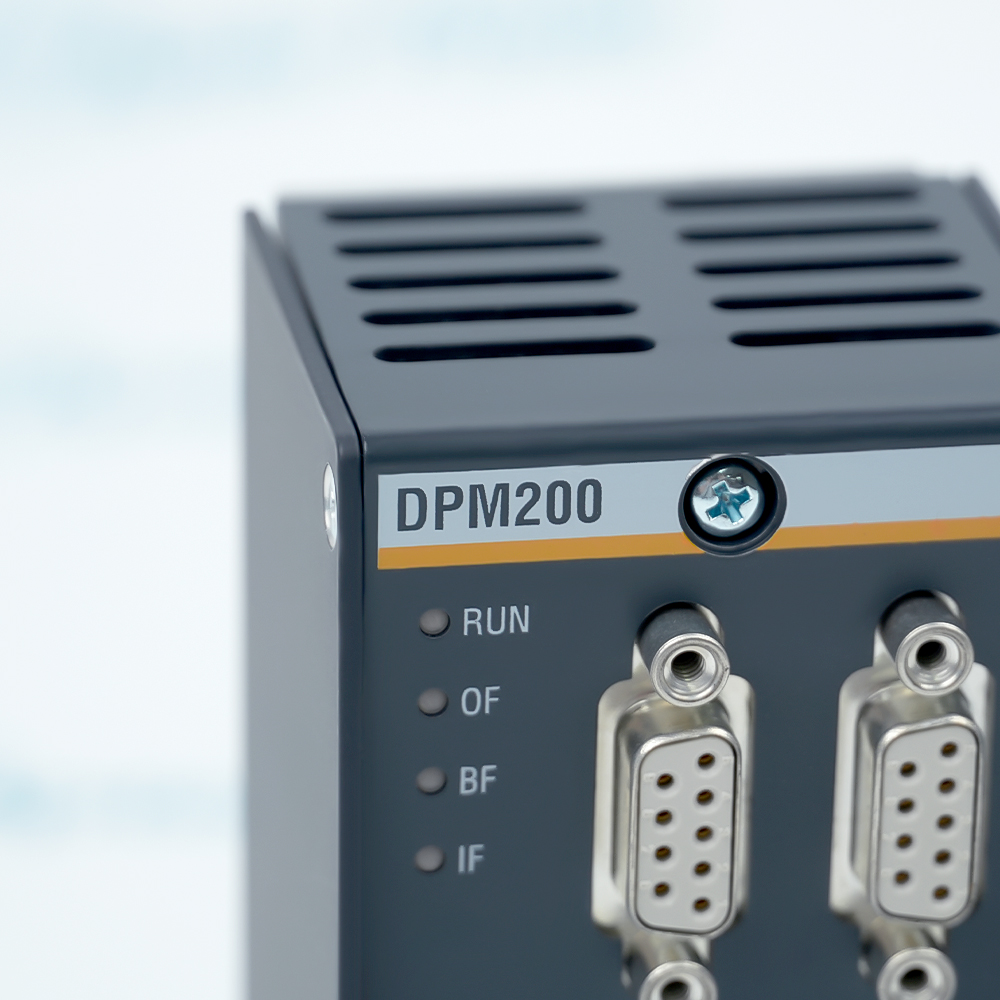

    Two 9-pin D-sub sockets
  • Electrical Interface:
    RS-485 according to EN 50170
  • Galvanic Isolation:
    500 V between fieldbus and controller
  • Firmware Update:
    Supported through SolutionCenter
  • Approvals:
    CE, UKCA and cULus
  • Marine Approvals:
    ABS, BV, DNV, KR, LR, NK and RINA
  • Operating Temperature:
    −30 to +60 °C
  • Storage Temperature:
    −40 to +85 °C
  • Relative Humidity:
    5–95%
  • Pollution Degree:
    2
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Operating Modes Data Exchange Network Service Application
  • PROFIBUS DP V0 master, slave or combined master/slave operation
  • Configurable process-data consistency within the controller image
  • Two internally bridged bus connectors for cable loop-through

DPM200 is a Bachmann PROFIBUS DP communication module designed for M200 controller systems.

It exchanges cyclic process data as a DP master, DP slave or combined master/slave and supports multi-segment network architectures with appropriate repeaters.

Before installation or replacement, verify the controller project, operating mode, station addresses, GSD data, process-image mapping, cable polarity, termination and repeater placement.

Availability, condition, price, and shipping time for DPM200 are confirmed during quotation.

Bachmann DPM200 PROFIBUS DP Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Operates as a PROFIBUS DP V0 master for distributed peripherals
  • Operates as a PROFIBUS DP slave under another master
  • Supports combined master/slave behavior in multi-master networks
  • Maps process data into a shared 8 kB controller image
  • Provides configurable consistency locking for coherent data blocks
  • Supports cyclic transfer rates up to 12 Mbit/s
  • Uses two internally bridged connectors for cable loop-through
  • Requires verified addressing, termination and repeater placement
  • Allows firmware maintenance through Bachmann SolutionCenter
  • Mechanical-engineering systems using PROFIBUS distributed peripherals
  • Plant-engineering control systems requiring PROFIBUS DP integration
  • Multi-master networks where the controller exchanges data as master and slave
Description
DPM200 is a Bachmann M200 fieldbus module for PROFIBUS DP V0 communication in master, slave or combined master/slave operating modes.

The module exchanges process data through an 8 kB process image, supports multi-master networks, and provides two internally bridged PROFIBUS connectors with galvanic isolation from the controller.

Before installation, confirm the M200 controller configuration, station addresses, baud rate, bus termination, repeater plan, process-image allocation, GSD files, cable routing and permitted module count.
Alternative Names
DPM200 Bachmann DPM200 DPM200 00010555-00 Bachmann DPM200 00010555-00
Technical notes
DPM200 commissioning requires a validated M200 project, correct PROFIBUS addresses and termination, compatible GSD files, process-image mapping, repeater planning, cable inspection and verified cyclic data exchange.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Bachmann DPM200 replace a PROFIBUS interface without changing the controller project?
Do not assume so. Preserve the M200 project and verify the DPM200 operating mode, station address, process-image mapping, consistency settings, GSD data and bus timing before exchange.
Are both PROFIBUS connectors on Bachmann DPM200 separate networks?
No. They are internally bridged for cable loop-through, so termination must remain at the actual segment ends and the second connector does not create an independent channel.
When does a Bachmann DPM200 installation need PROFIBUS repeaters?
Repeater use depends on the required station count, cable length, baud rate and segment topology; the documented 125-slave maximum is not achievable as one unsegmented 32-device electrical segment.
What should be backed up before replacing Bachmann DPM200?
Preserve the controller project, PROFIBUS configuration, GSD files, station addresses, process-image mapping and diagnostic records.
What must be checked before adding another Bachmann DPM200 to an M200 controller?
Confirm that the controller will remain within the documented limit of three DPM200 modules, then assign the additional module its own PROFIBUS configuration and process-image resources before downloading the project.
What must be checked when commissioning Bachmann DPM200?
Verify baud rate, addresses, termination, cable polarity, repeater placement, master/slave configuration and cyclic process-data exchange.
Can Bachmann DPM200 firmware be updated?
Yes. The data sheet states that firmware updates are possible through Bachmann SolutionCenter.
