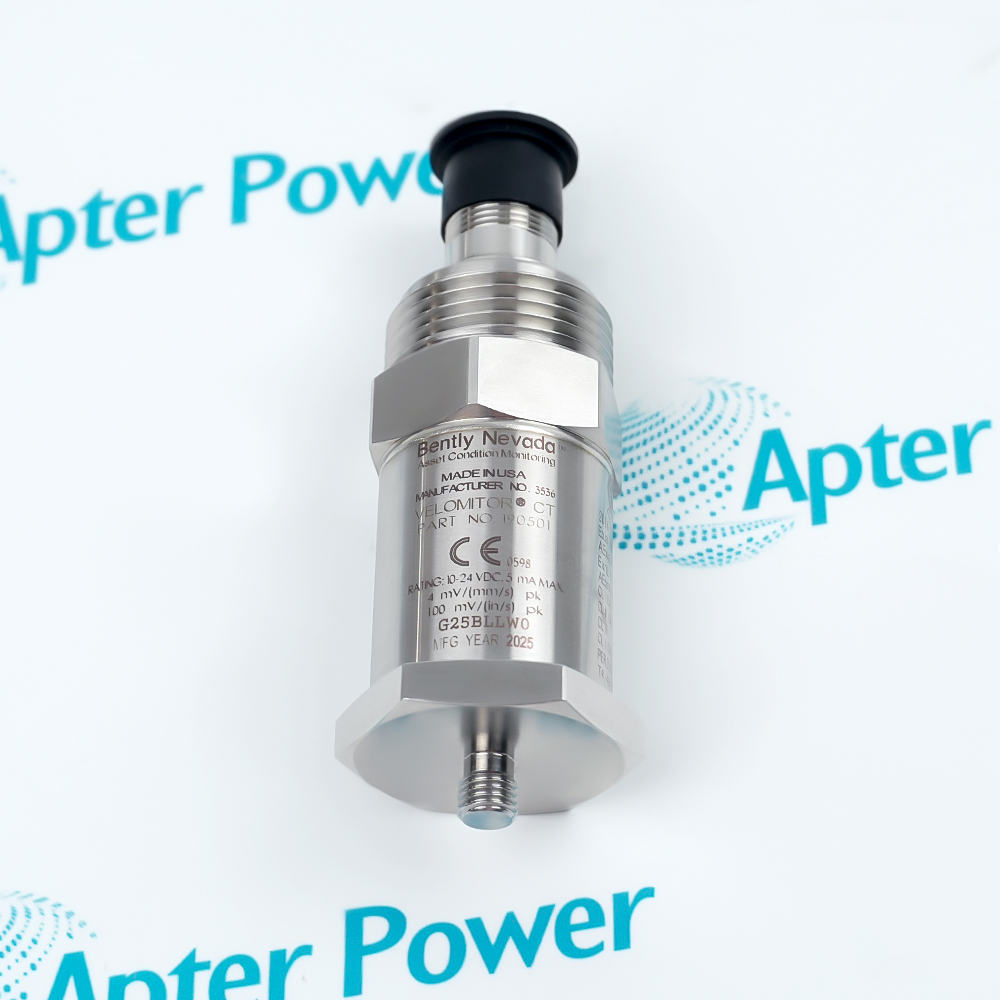

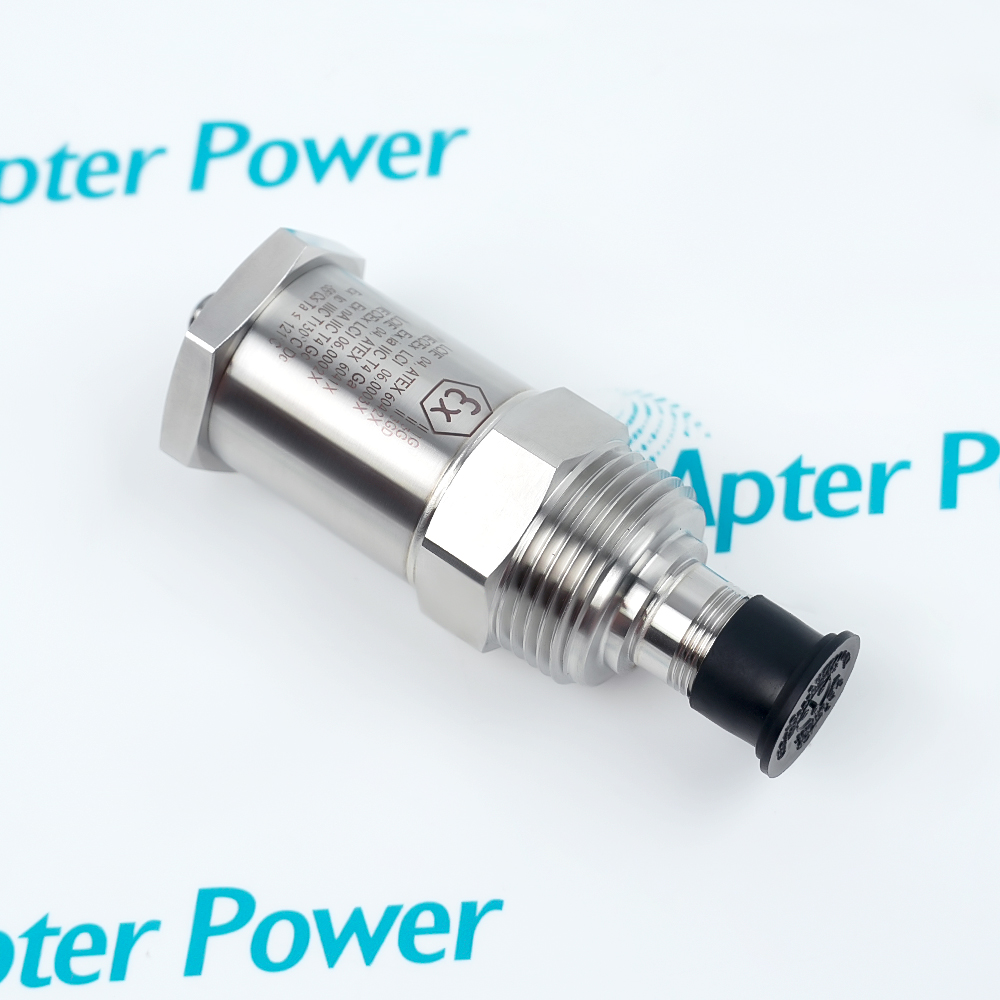

Bently Nevada 190501-12-00-01 is a Velomitor CT low-frequency velocity transducer configured for cooling-tower and air-cooled-exchanger machinery.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 190501-12-00-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 190501-12-00-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    190501-12-00-01
  • Product Family:
    190501 Velomitor CT Transducer
  • Product Type:
    Velomitor CT Low-Frequency Velocity Transducer
  • Stock:
    1
  • Measured quantity:
    Vibration velocity
  • Sensitivity:
    3.94 mV/mm/s
  • Frequency response:
    1.5 Hz to 1 kHz
  • Maximum cable length:
    305 m
  • Typical machinery:
    Cooling towers and air-cooled exchangers
  • Mounting code:
    12 mounting execution
  • Connector and approval codes:
    00 connector / 01 approval group
  • Weight:
    0.35 kg
  • Estimated shipping dimensions:
    10.2x4x3.4cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Sensor Output Mounting & Cable Diagnostics Product Applications

Features:

  • Low-frequency response: covers the documented range for slow rotating and structural vibration.
  • Velocity output: provides the published signal for compatible monitoring channels.
  • Application focus: supports cooling-tower and air-cooled-exchanger machinery measurements.
Signal decision: compare monitor input type, scaling and cable condition with the installed loop.

Mounting decision: review the mechanical path, orientation and mounting surface for reliable response.

Configuration decision: retain the full order code when matching connector and approval execution.

Apter Power supports Bently Nevada 190501-12-00-01 Velomitor CT Low-Frequency Velocity Transducer sourcing with quotations, official documentation and configuration review.
Bently Nevada 190501-12-00-01 Velomitor CT Manuals,Datasheets,Link
Important Notice: Preserve the complete 190501-12-00-01 configuration when reviewing mounting, connector and approval requirements.
  • Measured variable: transducer output represents vibration velocity
  • Sensitivity: the configured sensor provides 3.94 mV/mm/s
  • Frequency span: published response extends from 1.5 Hz to 1 kHz
  • Monitor interface: the receiving channel should be intended for the Velomitor CT signal
  • Mounting execution: order code 12 identifies the documented mechanical arrangement
  • Connector execution: code 00 belongs with the specified MIL-style connection
  • Cable reach: family documentation supports runs up to 305 m in a compatible installation
  • Mechanical path: a clean, rigid surface preserves faithful vibration transfer
  • Low signal: inspect mounting rigidity and monitor scaling before sensor replacement
  • Unstable signal: review connector seating, cable routing and nearby electrical noise
  • Baseline comparison: relate the reading to machine speed and previous condition data
  • Loop acceptance: verify the transducer, cable and monitor channel as one measurement path
  • Cooling-tower fans: tracks low-frequency structural and rotating vibration
  • Air-cooled exchangers: supports vibration trending on fan and drive assemblies
  • Slow machinery: extends monitoring coverage below typical high-frequency sensor use
  • Retrofit service: preserves a documented Velomitor CT measurement point during maintenance
Description
Bently Nevada 190501-12-00-01 is a Velomitor CT piezoelectric velocity transducer developed for low-frequency machinery such as cooling towers and air-cooled heat exchangers. Its integrated output provides vibration velocity to compatible monitoring instrumentation over the documented 1.5 Hz to 1 kHz frequency range.

The configuration code in 190501-12-00-01 identifies the ordered mounting, connector and approval execution. The transducer provides 3.94 mV/mm/s sensitivity and supports long field-cable runs, while final acceptance still depends on mounting rigidity, cable routing and the connected monitor input.

For retrofit or spare procurement, Apter Power can support 190501-12-00-01 quotation, official-document review and configuration matching. A reliable request includes the full order code, machine measurement point, installed connector and receiving monitor channel.
Alternative Names
Bently Nevada 190501-12-00-01 190501120001 190501 12 00 01 190501-12-00-01 Velomitor CT BN 190501-12-00-01 Velomitor CT 190501-12-00-01 190501-12-OO-O1 Bently 190501120001
Technical notes
The 190501-12-00-01 signal depends on a rigid mounting path and a monitor input intended for the Velomitor CT output. When a reading is unstable or unexpectedly low, review the mounting surface, cable condition, connector seating and channel configuration together before attributing the symptom to the transducer.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What machinery is Bently Nevada 190501-12-00-01 designed to monitor?
The Velomitor CT family is intended for low-frequency vibration on equipment such as cooling towers and air-cooled heat exchangers. The measurement point and monitor channel should reflect that application.
How should Bently Nevada 190501-12-00-01 be matched to an existing installation?
Compare the complete order code, mounting arrangement, connector, approval requirement and receiving monitor input. Apter Power can review these details with the official documentation.
Why can mounting condition affect a Bently Nevada 190501-12-00-01 reading?
A velocity transducer relies on a rigid mechanical path from the machine to the sensor. Loose hardware, contamination or an uneven surface can reduce or distort the measured vibration.
What should be checked when Bently Nevada 190501-12-00-01 shows an unstable signal?
Review mounting tightness, connector seating, cable routing and the monitor-channel configuration. Considering the full signal path is more reliable than replacing the transducer from one symptom.
Can Bently Nevada 190501-12-00-01 support a long cable run?
The published family data supports field wiring up to 305 m when the compatible cable and monitoring arrangement are used. Installation conditions and electrical noise still deserve project review.
How should Bently Nevada 190501-12-00-01 be verified after replacement?
Confirm the installed orientation and connector, then compare the channel response with the machine state and available baseline. This provides a practical acceptance result for the full measurement loop.
What information should an RFQ for Bently Nevada 190501-12-00-01 include?
Provide the full order code, machine type, mounting and connector photographs, monitor channel and documentation needs. These details support quotation and configuration matching.
