    Apter Power supplies 200350-12-00-CN as a current 200350 accelerometer configuration.

200350-12-00-CN

/ 4.9
1001 reviews | Need a Specific Revision?
200350-12-00-CN provides wide-band case-vibration measurement for machinery monitoring.
In Stock
Ships by Sunday, November 1
Fast Shipping Available
Get a quick price for 200350-12-00-CN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 200350-12-00-CN

  • Manufacturer:
    Bently Nevada
  • Part Number:
    200350-12-00-CN
  • Product Family:
    200350 and 200355 Accelerometers
  • Product Type:
    200350 Accelerometer
  • Stock:
    1
  • Sensitivity:
    100 mV/g +/-20 percent
  • Frequency response:
    0.5 Hz to 10 kHz
  • Measurement range:
    +/-50 g
  • Temperature range:
    -54 to +121 deg C
  • Environmental rating:
    IP68
  • Sensor mounting:
    1/4-28 female
  • Mounting option:
    12, M8 x 1.25 adhesive stud
  • Connector:
    2-pin MIL-C-5015
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    8.8x3.5x7cm
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Ordering Code Signal Details System Matching Installation Check

Product overview:

  • 100 mV/g case-mounted accelerometer with +/-20 percent sensitivity tolerance
  • 0.5 to 10 kHz response and +/-50 g measurement range
  • M8 x 1.25 adhesive stud with CN country approval

200350-12-00-CN provides wide-band case-vibration measurement for machinery monitoring.

Use the 2-pin MIL-C-5015 connector, compatible constant-current input and prepared adhesive mounting pad.

Verified resources for 200350-12-00-CN:

Ordering code:

  • 200350 identifies the accelerometer family
  • 12 selects the M8 x 1.25 adhesive stud
  • 00 selects the standard sensitivity tolerance
  • CN identifies the country approval configuration

Signal Details:

  • Wide 0.5 Hz to 10 kHz response
  • 100 mV/g nominal sensitivity
  • +/-50 g dynamic range
  • 2-pin MIL-C-5015 electrical connector

System matching:

  • Use a compatible constant-current accelerometer input
  • Select a shielded cable with the correct 2-pin connector
  • Do not apply negative excitation
  • Verify channel scaling at 100 mV/g

Installation check:

  • Prepare and degrease the adhesive mounting surface
  • Cure the stud according to the adhesive instructions
  • Secure the connector and cable strain relief
  • Check sensor bias and broadband vibration response
Description

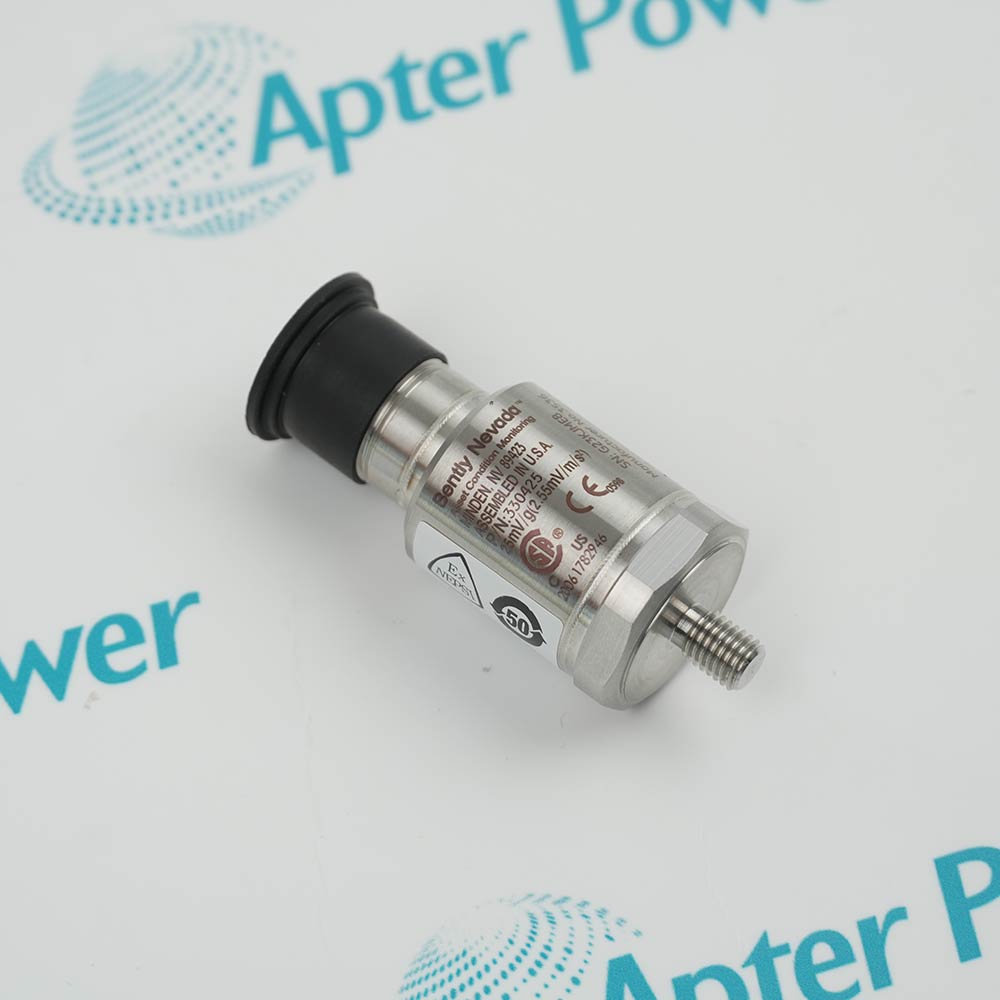

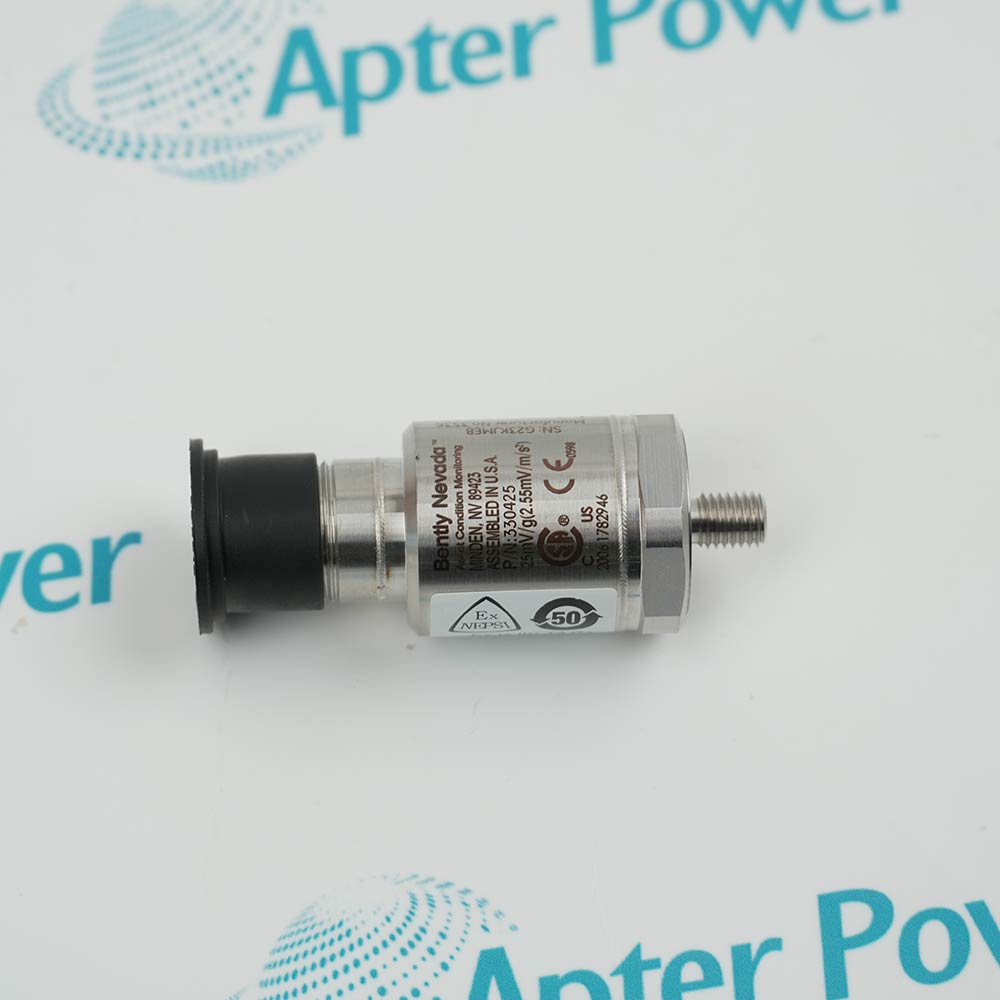

200350-12-00-CN is a wide-band Bently Nevada case-mounted accelerometer with 100 mV/g sensitivity, a 0.5 Hz to 10 kHz response and a +/-50 g range. 200350-12-00-CN provides wide-band case-vibration measurement for machinery monitoring.

Option 12 supplies an M8 x 1.25 adhesive stud, option 00 uses the standard tolerance and CN selects the country approval; verify cable pinout and constant-current input before installation. Use the 2-pin MIL-C-5015 connector, compatible constant-current input and prepared adhesive mounting pad.

Alternative Names
200350-12-00-CN 200350 12 00 CN 2003501200CN Bently Nevada 200350-12-00-CN Baker Hughes 200350-12-00-CN Bently Nevada 200350 12 00 CN Bently Nevada 200350 accelerometers 200350-12-00-CN 200350-12-00-CN 200350 accelerometer
Technical notes
200350-12-00-CN uses the documented 2-pin MIL-C-5015 connection and does not use negative excitation. Prepare the adhesive stud location for rigid vibration transmission.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What sensitivity does 200350-12-00-CN provide?
It provides 100 mV/g nominal sensitivity with the standard +/-20 percent tolerance.
What frequency range is specified?
The documented response extends from 0.5 Hz to 10 kHz.
Which mounting option is included?
Option 12 is an M8 x 1.25 adhesive stud used with the sensor's 1/4-28 female mount.
Which connector is used?
The accelerometer uses a 2-pin MIL-C-5015 connector.
Where is this sensor applied?
It measures machine-case vibration for condition monitoring over a broad frequency range.
Can negative excitation be used?
No. Follow the documented excitation polarity and compatible constant-current input requirements.
Where is the technical document?
The Manuals tab provides the compact Apter-hosted 200350 datasheet.
What is needed for quotation?
Provide the complete code, mating cable, input type, mounting, quantity and destination.
