Features:
- Probe arrangement: The 16 option specifies a 3300 XL 8 mm probe configuration.
- Penetration: The 102 option denotes 10.2 in of probe penetration.
- Mounting: The 02 option selects a 3/4-14 NPT thread.

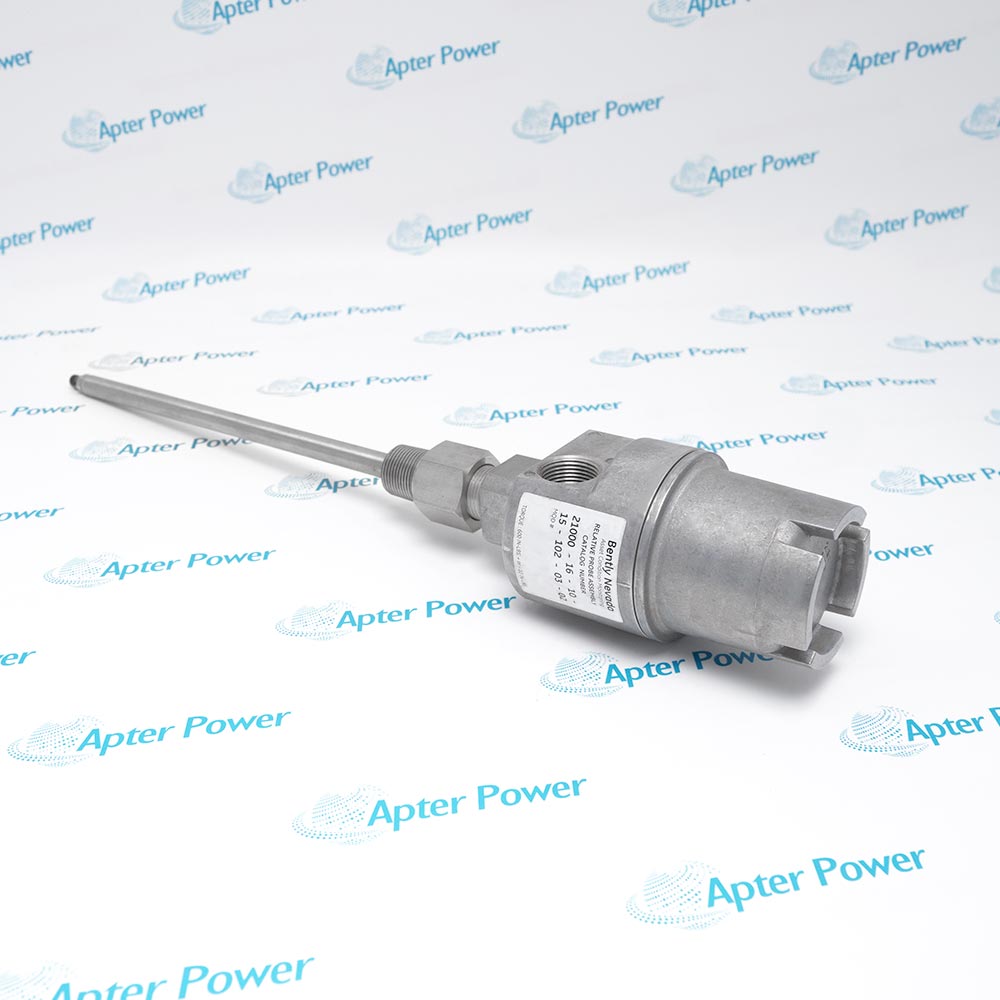

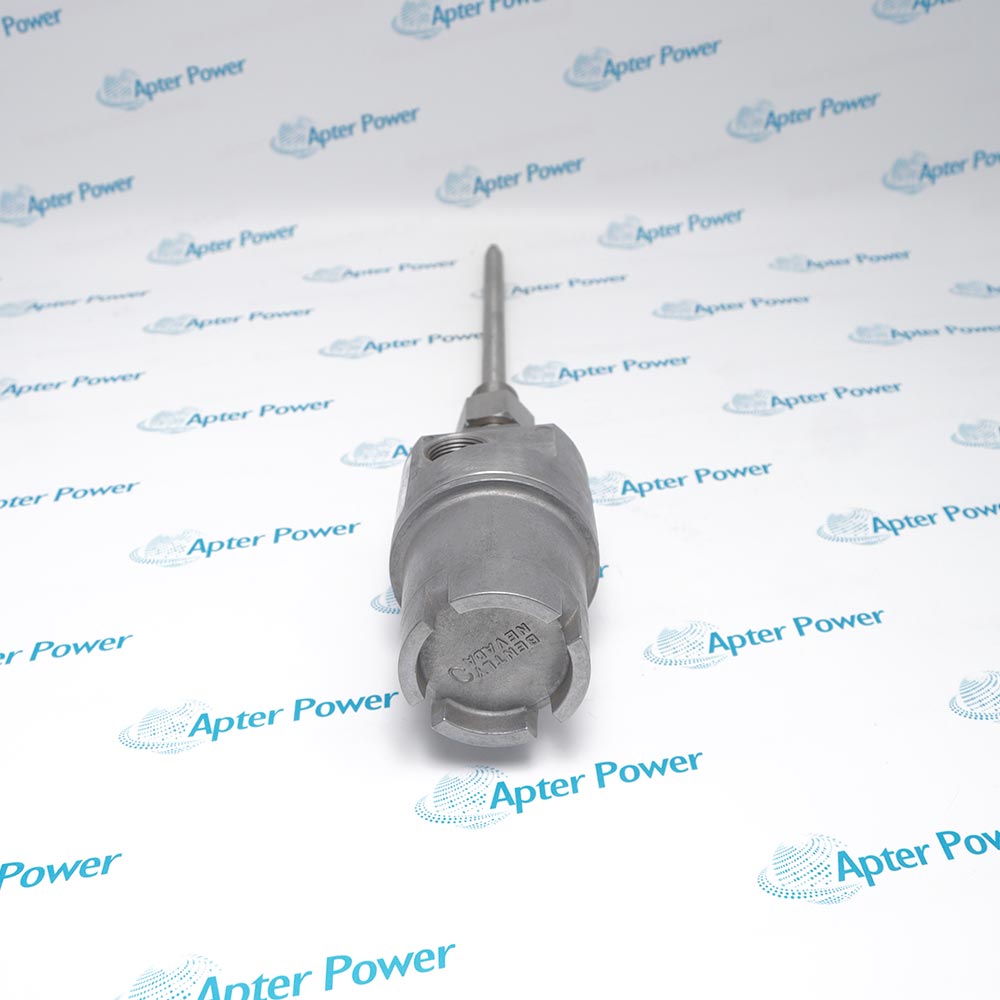

Bently Nevada 21000-16-10-15-102-03-02 is a 21000 housing assembly for a 3300 XL 8 mm proximity probe.
The complete configuration includes a 1.0 m probe-cable option and the documented fittings package.
The selected penetration and minimum standoff define the installed mounting geometry.
Apter Power can quote the Bently Nevada 21000-16-10-15-102-03-02 Probe Housing Assembly and provide the housing data sheet for its 10.2 in penetration option.
Bently Nevada 21000-16-10-15-102-03-02 21000 Probe Housing Manuals,Datasheets,Link
Important Notice: Accessories, manuals and cables are included only when specified in the stock-item description. Prices are shown in USD.
- Probe selection: Code 16 specifies a 3300 XL 8 mm probe with connector.
- Probe lead: Code 10 selects a 1.0 m lead.
- Penetration option: Code 102 sets the D dimension to 10.2 in.
- Lead-to-sleeve rule: The selected probe lead must remain longer than the installed sleeve.
- E03 fittings: Includes one 3/4-14 NPT plug and one 3/4-14 to 1/2-14 NPT reducer.
- Cable seal grip: Supplied grommets cover 1/8–3/16, 1/4–5/16 and 5/16–3/8 in cable sizes.
- F02 mounting thread: The housing uses 3/4-14 NPT, required with the nonzero C15 standoff option.
- Approval boundary: E03 fittings on a non-CA 21000 code do not establish CSA explosion-proof approval.
- C standoff: Code 15 specifies a minimum 1.5 in (38 mm) standoff.
- D penetration: Code 102 specifies 10.2 in of probe penetration.
- Combined geometry: Minimum C plus nominal D is 11.7 in; the manufacturer calls for support near the probe when C+D exceeds 12 in.
- Adjustment consequence: The +0.5 in end of D adjustment can bring C+D to 12.2 in at minimum C; support is needed if the final geometry exceeds 12 in.
- External probe mounting: The 21000 housing positions a 3300 XL 8 mm probe at a machinery measurement point.
- Threaded machinery ports: The specified 3/4-14 NPT thread defines the mounting interface.
- Configured depth: The 10.2 in penetration option serves the corresponding installed probe position.
