21000-34-05-00-056-04-02

/ 4.9
1001 reviews | Need a Specific Revision?

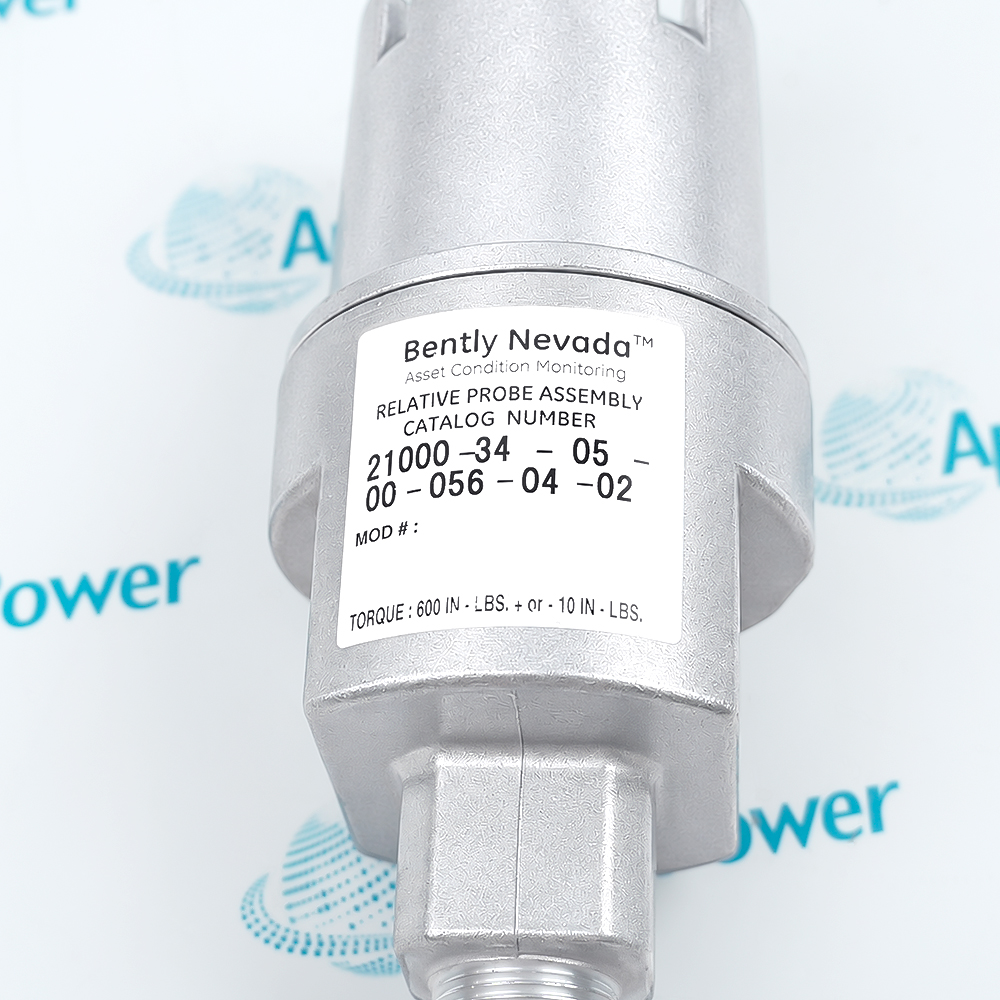

Bently Nevada 21000-34-05-00-056-04-02 is an aluminum XL 8 mm probe housing with connector protector and 5.6-inch insertion length.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 21000-34-05-00-056-04-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 21000-34-05-00-056-04-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    21000-34-05-00-056-04-02
  • Product Family:
    21000, 24701, and 164818 Proximity Probe Housing A
  • Product Type:
    Aluminum Probe Housing with Connector Protector
  • Stock:
    1
  • Housing material:
    Aluminum body with 304 stainless-steel sleeve
  • Probe option code:
    34
  • Installed probe:
    3300 XL 8 mm with connector protector and selectable hazardous-area approvals
  • Probe cable length:
    0.5 m
  • Standoff adapter:
    None
  • Maximum probe penetration:
    5.6 in
  • Conduit hardware:
    One 3/4-14 NPT plug only
  • Mounting thread:
    3/4-14 NPT
  • Probe connector protection:
    Included by probe option 34
  • Probe tip temperature range:
    -51 to 177 °C
  • Pressure capability:
    Refer to the housing pressure-versus-temperature curve
  • Sleeve material:
    304 stainless steel
  • Weight:
    2.425 lbs (1.1 kg)
  • Estimated shipping dimensions:
    34.5x8x8cm
  • Tariff Code:
    9031900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Connector Guard Sleeve Reach Port Hardware Mount Limits

Features:

  • Carries a connector-protected 0.5 m 3300 XL 8 mm probe through a stainless-steel sleeve.
  • Provides as much as 5.6 inches of probe penetration without a separate standoff adapter.
  • Uses a 3/4-14 NPT machine thread and supplies one matching conduit-port plug.
Bently Nevada 21000-34-05-00-056-04-02 combines probe positioning and connector protection in one serviceable housing.

The longer sleeve reach distinguishes this configuration from shorter 21000 assemblies using the same machine thread.

Its code 04 conduit hardware leaves the external cable-entry fitting to the installation design.

The Bently Nevada 21000-34-05-00-056-04-02 Connector-Protected Probe Housing appears in current OEM configuration tables.
Bently Nevada 21000-34-05-00-056-04-02 Probe Housing Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Protected Probe Joint and Service Access

  • Guarded connection: Probe option 34 places a mechanical protector around the detachable probe connection.
  • Cable transition: The probe lead enters the housing through the protected joint before continuing toward the conduit port.
  • Service access: The protector can be reached without using the flexible cable to change probe penetration.
  • Probe selection: The same probe option retains the documented hazardous-area approval selection position in the order code.

Positioning the Probe Without a Standoff

  • Maximum travel: Code 056 permits as much as 5.6 inches of probe penetration.
  • Rigid reference: The stainless-steel sleeve, rather than the cable, establishes the probe-tip location.
  • Direct span: Code 00 omits a standoff adapter, so the sleeve reaches directly toward the machine interface.
  • Locking sequence: Probe gap is set through sleeve position before the housing is secured at the required insertion depth.

One Supplied Plug, External Entry Hardware

  • Included closure: Configuration 04 supplies one 3/4-14 NPT plug for the documented housing port.
  • Separate fitting: The cable-entry fitting used by the installation is not included in this configuration.
  • Cable route: The lead leaves the protected probe joint and enters the external conduit path through the selected hardware.
  • No side load: The external fitting and conduit must not transfer twist or side force into the connector protector.

Thread, Temperature, and Pressure Checks

  • Thread interface: The housing engages the machine through its 3/4-14 NPT mounting thread.
  • Tip temperature: Probe-tip exposure must stay within the XL 8 mm temperature specification.
  • Pressure curve: Housing pressure capability must be read against temperature rather than treated as one fixed value.
  • Access clearance: Installation space must preserve access to the connector protector and sleeve adjustment after mounting.
Description
Built for external probe adjustment, Bently Nevada 21000-34-05-00-056-04-02 encloses the cable junction and guides a 3300 XL 8 mm sensor toward the machine case. Probe option 34 adds a connector protector around the joint while retaining selectable hazardous-area approval ordering.

A 0.5 m probe and 5.6-inch maximum penetration are built into Bently Nevada 21000-34-05-00-056-04-02. Because the order code specifies no standoff adapter, the sleeve and 3/4-14 NPT mounting interface establish the complete reach between the housing body and the probe tip.

Conduit configuration 04 on Bently Nevada 21000-34-05-00-056-04-02 supplies one 3/4-14 NPT plug without the explosion-proof fitting used by other order codes. The installation must therefore provide the correct cable-entry arrangement separately while preserving access to the protected connector and probe adjustment.
Alternative Names
210003405000560402 21000 34 05 00 056 04 02 21000-34-05-00-056-0402 Bently Nevada 21000-34-05-00-056-04-02 Bently 21000-34-05-00-056-04-02 21000-34-05-00-056-04-02 Probe Housing 21000 34 0500 056 04 02 21000-34-05-00-OS6-04-02
Technical notes
Bently Nevada 21000-34-05-00-056-04-02 protects the XL 8 mm connector while its sleeve sets a 5.6-inch maximum probe reach.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does probe option 34 add to Bently Nevada 21000-34-05-00-056-04-02?
Probe option 34 gives Bently Nevada 21000-34-05-00-056-04-02 a 3300 XL 8 mm probe with a connector protector and selectable approvals.
How far can Bently Nevada 21000-34-05-00-056-04-02 position the probe?
The sleeve in Bently Nevada 21000-34-05-00-056-04-02 permits a maximum documented probe penetration of 5.6 inches.
Is a standoff adapter part of Bently Nevada 21000-34-05-00-056-04-02?
No. Bently Nevada 21000-34-05-00-056-04-02 uses code 00, so probe reach is established without a separate standoff adapter.
Which conduit components ship with Bently Nevada 21000-34-05-00-056-04-02?
Bently Nevada 21000-34-05-00-056-04-02 includes one 3/4-14 NPT plug but does not include the explosion-proof fitting used by code 01.
What mounting interface belongs to Bently Nevada 21000-34-05-00-056-04-02?
Bently Nevada 21000-34-05-00-056-04-02 secures to the machine through a 3/4-14 NPT mounting thread.
Why must the connector protector remain unloaded on Bently Nevada 21000-34-05-00-056-04-02?
Side load or cable twist at Bently Nevada 21000-34-05-00-056-04-02 can disturb the protected probe connection even when the housing body remains fixed.
How is the connector protected in Bently Nevada 21000-34-05-00-056-04-02?
Probe option 34 in Bently Nevada 21000-34-05-00-056-04-02 includes the documented connector protector for the installed 3300 XL 8 mm probe.
What penetration is provided by Bently Nevada 21000-34-05-00-056-04-02?
Bently Nevada 21000-34-05-00-056-04-02 provides a maximum probe penetration of 5.6 inches with no standoff adapter.
