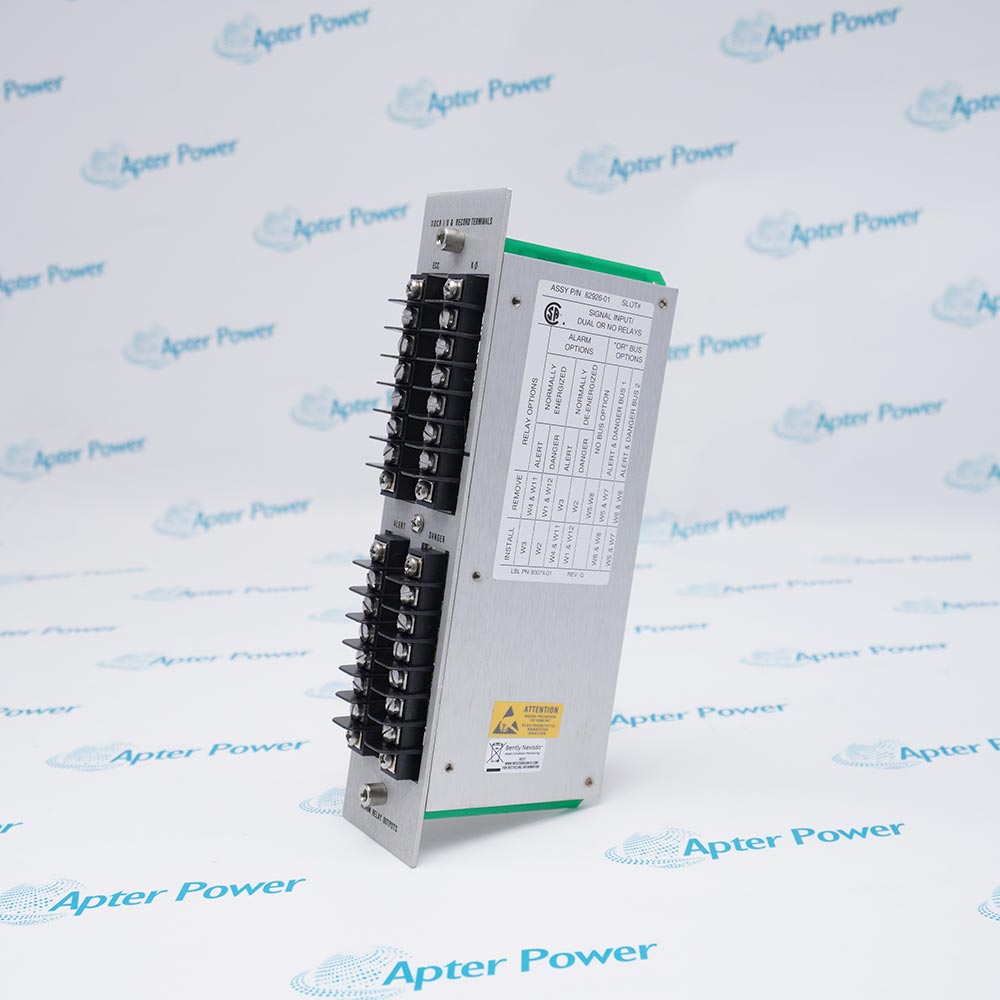

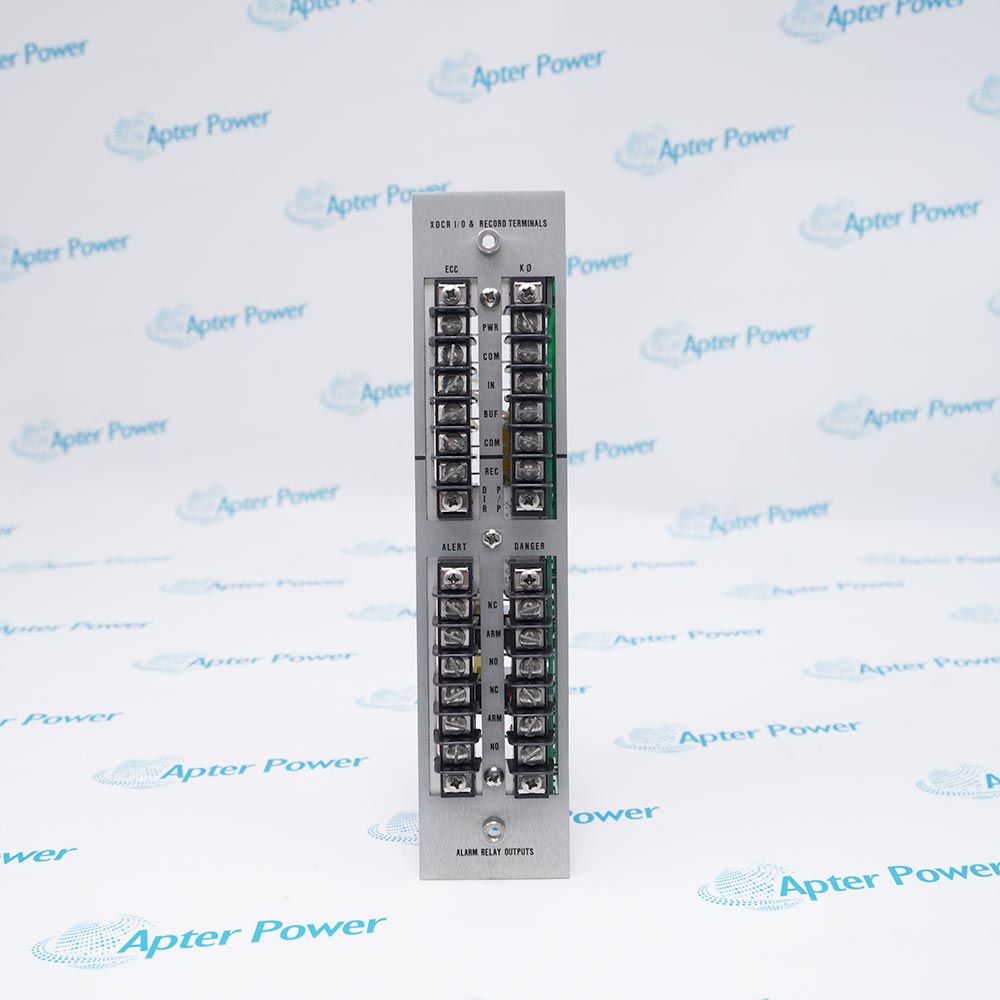

The Bently Nevada 82926-01 Dual Epoxy Relays provide reliable dual-channel relay outputs for the 3300 Series monitoring system, supporting signal interfacing, alarm triggering, and seamless integration with modules like the 3300/40 Eccentricity Monitor.
Get a quick price for 82926-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 82926-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    82926-01
  • Product Family:
    3300 System
  • Channels:
    2 channels
  • Sealing Type:
    Epoxy-sealed, Single Pole Double Throw (SPDT)
  • Contact Rated Voltage:
    250 Vac / 125 Vdc (Max)
  • Contact Rated Current:
    5A @ 120/240 Vac; 5A @ 28 Vdc (Resistive Load)
  • Mounting Location:
    3300 Series Rack, Rear Slot
  • Standards:
    CSA, NRTL/C, CE Certified
  • Weight:
    0.35 kg
  • Estimated shipping dimensions:
    5.1x10.2x22.9cm
  • Tariff Code:
    3902100090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Performance Environmental Ratings Application

Features:

  • Provides Dual-Channel SPDT Relay Outputs For Reliable Alarm And Signal Management.
  • Epoxy-Sealed Construction Ensures Long-Term Protection Against Dust And Moisture.
  • Designed For 3300 Series Rack Integration With Broad Operating Temperature And Humidity Tolerance.
The 82926-01 Dual Epoxy Relays serve as an essential interface for transmitting signals from sensors to the 3300 Series monitoring system. Its dual-channel design allows multiple relay outputs to manage alarms and control signals efficiently.

The module is built with epoxy-sealed SPDT relays, providing durability and safeguarding internal components from industrial environmental stresses. Each relay supports up to 250 VAC or 125 VDC at 5A, ensuring stable operation for a variety of control and monitoring circuits.

Suitable for installation in the rear slots of 3300 Series racks, the 82926-01 operates reliably between 0°C and +65°C (+32°F to +150°F) and can withstand storage temperatures from -40°C to +85°C (-40°F to +185°F). With a relative humidity tolerance up to 95% noncondensing, it remains dependable in demanding plant conditions.

The 82926-01 Bently Nevada Dual Epoxy Relays may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 82926-01 Dual Epoxy Relays Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 82926-01 Dual Epoxy Relays Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 82926-01
  • Condition New Original ready stock
  • Product Family 81546-01,81545-01,81544-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Dual-channel processing: Supports two independent channels for signal input and processing, specifically designed for axial displacement (thrust position) monitoring.
  • Relay response: Equipped with dual epoxy relays, independently configurable for "Alert" and "Danger" triggering, with a response time typically less than 100 milliseconds.
  • High-precision recording output: Provides 4-20 mA proportional current output with an accuracy of ±0.5% of full scale at 25°C, facilitating real-time acquisition by DCS or PLC systems.
  • Signal buffering: Features a buffered output function, allowing external analyzers to extract raw probe data without affecting system protection.
  • Operating temperature: Standard operating range is 0°C to +65°C (+32°F to +149°F). Storage Temperature: Can be stored in extreme environments ranging from -40°C to +85°C (-40°F to +185°F).
  • Humidity Tolerance: Supports stable operation in environments with 95% non-condensing humidity.
  • Interference Immunity Design: Compliant with CE certification and electromagnetic compatibility (EMC) standards, capable of suppressing common radio frequency interference in industrial settings.
  • Axial Displacement Monitoring: Primarily used to monitor the wear of thrust bearings and axial movement of rotors in rotating machinery (such as turbines and compressors), preventing rotor-stator collisions.
  • Mechanical Safety Protection: When axial displacement exceeds a safety threshold, automatic shutdown (Trip) or alarm system linkage is achieved via relay contacts.
  • Critical Equipment Status Monitoring: In the petroleum, chemical, and power industries, it serves as a back-end interface for the 3300 monitoring system, connecting the preamplifier (Proximitor) to the core host.
  • System data integration: Utilizing its recorder output interface, the machine's operating trends can be integrated into the factory's condition monitoring software (such as System 1) or control center.
Description
The 82926-01 Dual Epoxy Relays are designed for use within the Bently Nevada 3300 Series monitoring system, offering a robust interface for transmitting sensor signals and activating alarms. The module features two SPDT relays, each epoxy-sealed for long-term durability and protection against dust and moisture in industrial environments.

Rated for 250 VAC or 125 VDC maximum voltage and 5A current at both AC and DC loads, the relays handle standard control and alarm circuits with dependable performance. They are specifically mounted in the rear slots of 3300 Series racks, ensuring organized integration and consistent connection with other system modules.

The relays are certified to CSA, NRTL/C, and CE standards, and operate reliably in temperatures ranging from 0°C to +65°C (+32°F to +150°F). They can be stored safely between -40°C and +85°C (-40°F to +185°F) and tolerate up to 95% relative humidity, noncondensing, making them suitable for diverse plant conditions.

By providing secure dual-channel relay outputs, the 82926-01 simplifies alarm management and signal routing in the 3300 Series system. When used with modules such as the 3300/40 Eccentricity Monitor, it enables accurate monitoring of machine vibration and position while supporting precise alarm and control functions.
Alternative Names
82927-01 84140-01 84141-01 84145-01 84147-01
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary purpose of the 82926-01 Dual Epoxy Relays?
The relays provide two independent SPDT outputs for signal routing and alarm triggering within the 3300 Series monitoring system.
How does the epoxy-sealed construction benefit industrial applications?
The epoxy seal protects internal relay components from dust, moisture, and environmental contaminants.
Why is the specified operating temperature range important?
Operating from 0°C to +65°C ensures reliable relay function under typical industrial conditions.
What electrical loads can the 82926-01 handle?
Each relay can manage up to 5A at 120/240 VAC or 28 VDC resistive loads.
