84152-01

/ 4.9
1001 reviews | Need a Specific Revision?

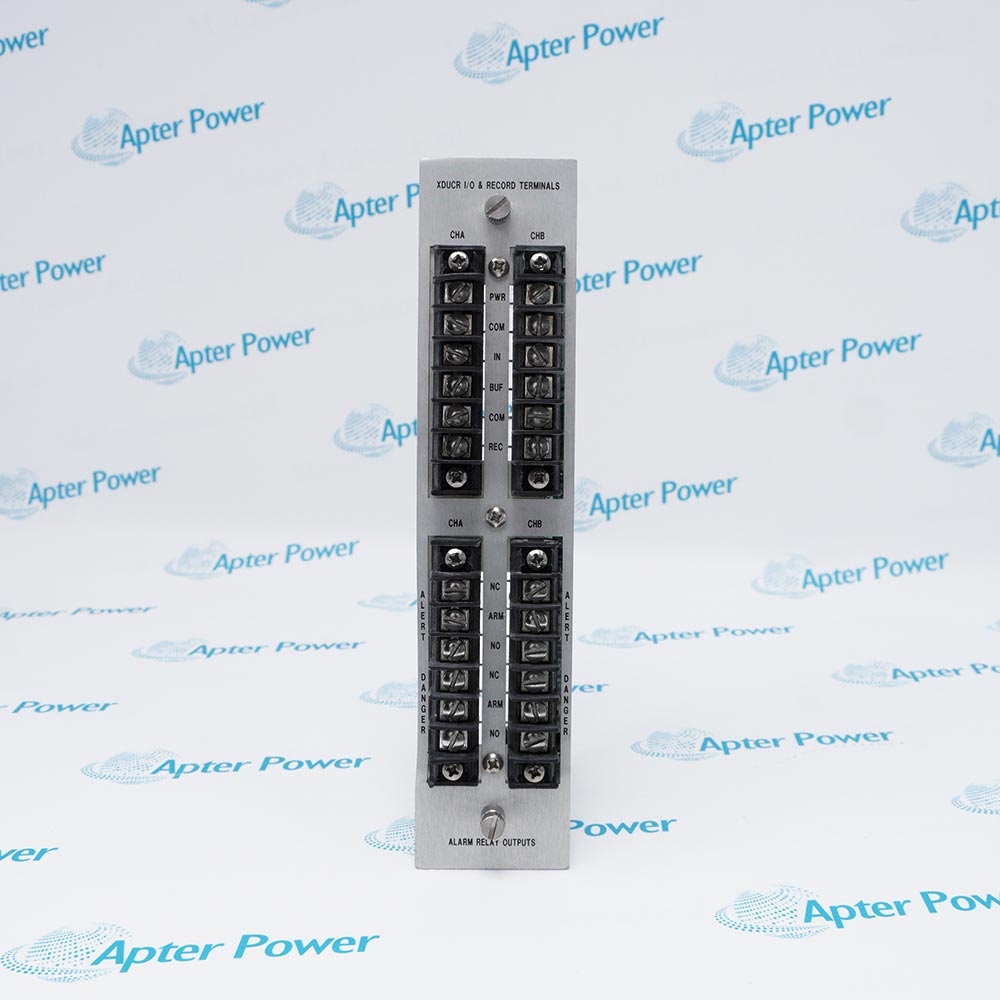

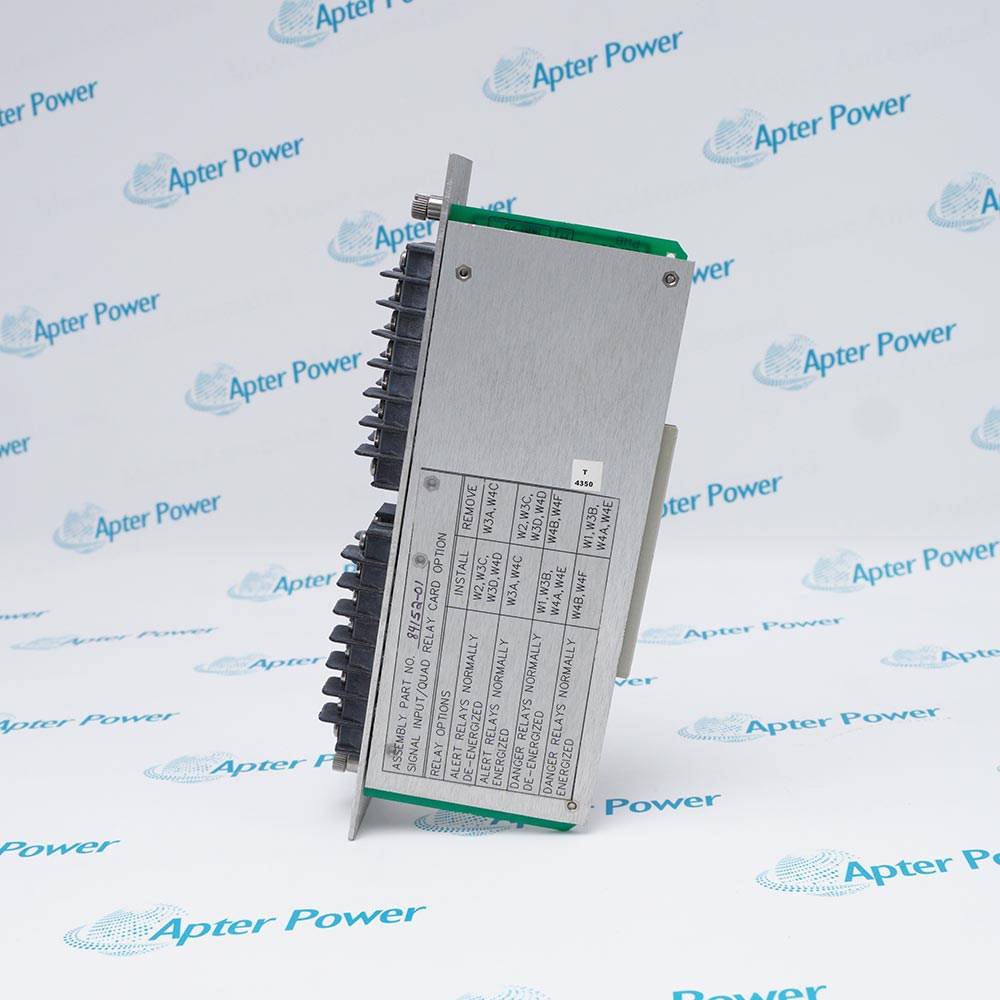

The Bently Nevada 84152-01 Quad Relays provide four independent relay outputs for reliable signal control and monitoring in industrial environments. Designed for robust performance, they support both AC and DC operations with wide environmental tolerance.
Get a quick price for 84152-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 84152-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    84152-01
  • Product Family:
    3300 System
  • Number of relays:
    4 independent relay outputs
  • Contact rating (AC):
    0.5 A @ 120 VAC, 50/60 Hz
  • Contact rating (DC):
    0.5 A @ 28 VDC
  • Operating Temperature:
    0°C to +65°C (+32°F to +150°F).
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F).
  • Relative Humidity:
    To 95%, non-condensing.
  • Weight:
    0.34 kg
  • Estimated shipping dimensions:
    5x9.8x22.8cm
  • Tariff Code:
    3902100090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Standards Interoperability Application Scenarios

Features:

  • Four Independent Relay Outputs Enable Flexible Signal Control.
  • Supports AC And DC Operations With Reliable Contact Ratings.
  • Operates Safely Across Wide Temperature And Humidity Ranges.
The Bently Nevada 84152-01 Quad Relays Provide Robust Switching Capabilities For Industrial Monitoring Systems. Each Relay Can Handle Standard AC And DC Signals, Ensuring Consistent Performance Across Multiple Circuits.

Designed For Challenging Environments, The Module Functions Effectively From 0°C To +65°C While Withstanding Up To 95% Non-Condensing Humidity. Its Durable Construction Supports Long-Term Reliability And Stable Operation In Continuous Use Scenarios.

Installation And Maintenance Are Streamlined Through Its Organized Layout, Allowing Technicians To Quickly Connect And Manage Multiple Circuits. This Ease Of Use Enhances Operational Efficiency And Reduces The Risk Of Signal Disruption During System Setup Or Servicing.

The 84152-01 Bently Nevada Quad Relays may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 84152-01 Quad Relays Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 84152-01 Quad Relays Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 84152-01
  • Condition New Original ready stock
  • Product Family 88286-01J,88614-01,82367-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • CSA/NRTL/C: Complies with North American electrical safety and fire protection standards.
  • CE Mark: Meets EU Electromagnetic Compatibility (EMC) and Low Voltage Directive requirements.
  • ANSI/ISA-S71.04: Meets G3 corrosiveness standards (due to its Conformal Coated coating).
  • ISO 9001: This component is manufactured in a factory that meets international quality management system standards.
  • IEC 61010-1: Meets general safety standards for electrical equipment used in laboratories and control systems.
  • Rack Interconnection: Rear I/O terminals designed specifically for the Bently Nevada 3300 rack, communicating with front-end monitoring modules via a backplane bus.
  • Monitor Compatibility: Fully compatible with dual-channel monitoring modules such as the 3300/15 (Dual Proximitor), 3300/16 (XY/Gap), and 3300/20.
  • Sensor Interoperability: Compatible with 3300 series 5mm/8mm Proximitor proximity sensor systems.
  • Signal Conversion: Converts the sensor's raw buffered voltage signal to a 4-20 mA or 1-5 VDC analog signal, enabling data interoperability with third-party DCS/PLC systems.
  • Relay Control: Contacts can be directly connected to external unit emergency stop (ESD) systems or alarm indication circuits.
  • Industrial Pump Monitoring: Real-time monitoring of shaft vibration and displacement of water or oil pumps, triggering protection via relays in case of abnormalities.
  • Centrifugal Compressor Protection: Provides redundant contact signals for "Alert" and "Danger" states via four relay outputs.
  • Factory Digital Transformation: Integrates vibration data from older 3300 systems into modern control networks using its Recorder output terminals.
  • Deployment in harsh environments: Equipped with an anti-corrosion coating, it is suitable for refineries or chemical plants containing corrosive gases such as H2S (hydrogen sulfide).
  • Emergency maintenance spare parts: As a critical I/O component in 3300 systems installed globally, it is used for rapid replacement in the event of equipment failure to minimize downtime losses.
Description
The Bently Nevada 84152-01 Quad Relays are engineered to deliver dependable relay switching for industrial monitoring and control systems. Featuring four independent relay outputs, this module allows simultaneous management of multiple signals or alarms, ensuring efficient system operation.

Each relay contact is rated at 0.5 A for both 120 VAC (50/60 Hz) and 28 VDC, making the 84152-01 suitable for low-power signal switching across diverse applications. This dual-voltage compatibility provides flexibility for integration with various control circuits.The module is designed to operate in ambient temperatures ranging from 0°C to +65°C, with storage capability between -40°C and +85°C. Its tolerance to relative humidity up to 95% (non-condensing) ensures stable performance even in challenging industrial environments.

Compared with similar modules in the Bently Nevada series, such as the 84151 relay module, the 84152-01 offers enhanced operational flexibility through multiple independent outputs and precise contact ratings, allowing for more versatile alarm and control configurations.
Alternative Names
84152-02 84152-03 84141-01 84145-01 82368-01
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the 84152-01 Quad Relays?
It provides four independent relay outputs to manage multiple signals and alarms in monitoring systems.
Why is having independent outputs important?
Independent relays allow separate circuits to operate without interference, enhancing system reliability and control flexibility.
What are the contact ratings for the relays?
Each relay is rated at 0.5 A for 120 VAC (50/60 Hz) and 0.5 A for 28 VDC.
What environmental conditions can the 84152-01 operate under?
It operates from 0°C to +65°C and can be stored between -40°C and +85°C, with up to 95% non-condensing humidity.
