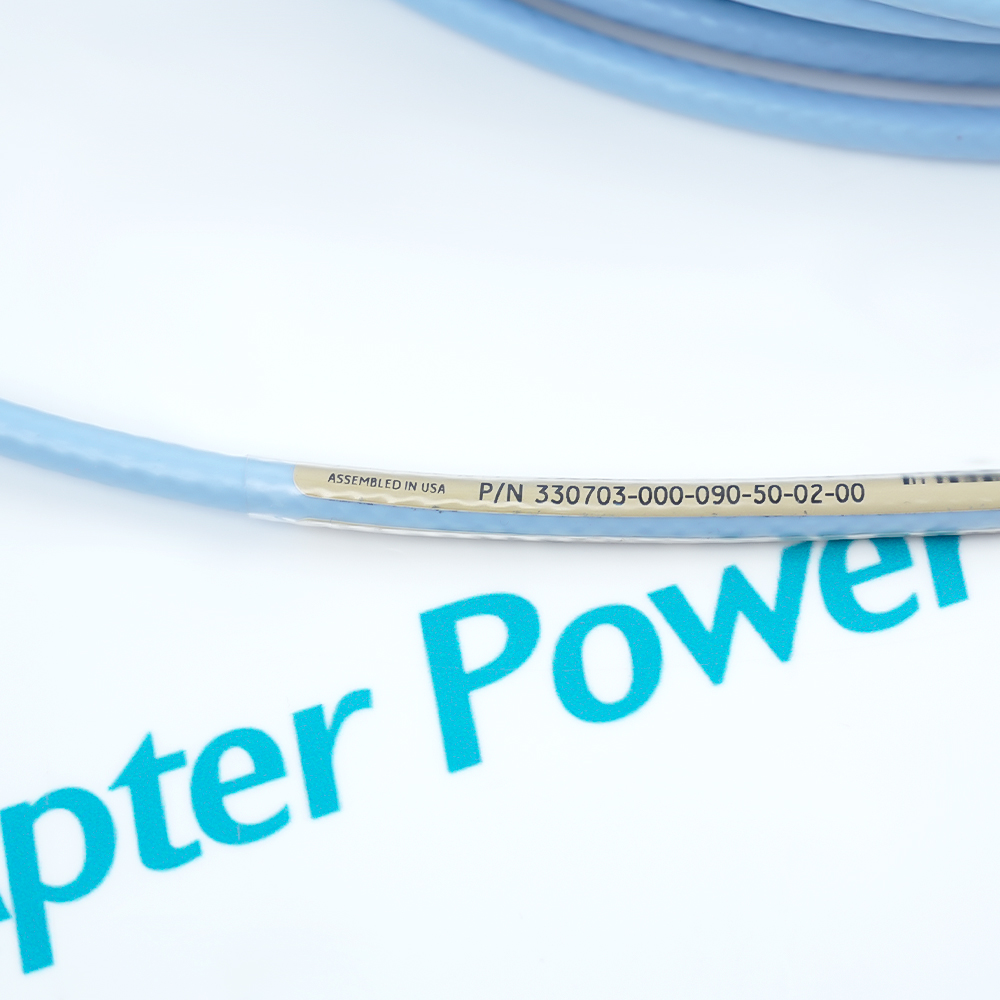

Technical specifications for 330703-000-090-50-02-00
Manufacturer:
Bently Nevada
Part Number:
330703-000-090-50-02-00
Product Family:
3300 XL 11mm Proximity Transducer System
Product Type:
3300 XL 11 mm Proximity Probe
Stock:
1
Probe dc resistance (5 m):
7.2 ± 0.8 Ω
Cable attachment pull strength:
330 N (CableLoc)
Case thread:
M14 x 1.5
Armor:
Without armor
Unthreaded length:
0 mm
Case length:
90 mm
Total probe length:
5.0 m
Connector / approval:
02 ClickLoc standard cable; 00 approval not required
Tariff Code:
Please confirm the destination before shipping
Country of origin:
USA
Place of shipment:
Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
More Information
OverviewManualsCase Fit5 m Signal ChainConnector OptionProduct Applications
Features:
Metric case: M14 × 1.5 thread with a 90 mm overall case.
Probe lead: Option 50 supplies a 5.0 m standard cable and ClickLoc connector.
Unarmored design: The 330703 base code specifies the 11 mm probe without armor.
This component provides the probe end of a matched 3300 XL 11 mm transducer system.
Its zero unthreaded length and case size matter where the machine housing limits installation space.
The selected lead length must agree with the Proximitor’s calibrated system length.
Apter Power can provide a quotation and technical documentation for the Bently Nevada 330703-000-090-50-02-00 3300 XL 11 mm Proximity Probe.
Bently Nevada 330703-000-090-50-02-00 11 mm Probe Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
M14 × 1.5 thread: Metric mounting thread specified for the unarmored 330703 probe.
000 option: Zero unthreaded length.
090 option: 90 mm overall case length; the case length governs mounting depth.
50 option: 5.0 m probe lead length.
System length: Manufacturer documentation specifies five-metre probes for five-metre Proximitor Sensors.
Complete loop: The probe, lead and Proximitor are selected as one calibrated 11 mm system.
02 option: Miniature coaxial ClickLoc connector with standard cable.
Protector distinction: Connector protector is a separate connector option, not part of 02.
00 approval option: Agency approval not required for this ordered probe variant.
Rotating machinery: Non-contact measurement points using a configured 11 mm system.
Shaft vibration: Probe input for radial vibration monitoring.
Shaft position: Probe input for position monitoring where the installation permits the case geometry.
Description
At a 3300 XL 11 mm machinery measurement point, 330703-000-090-50-02-00 is the non-armored M14 × 1.5 proximity probe fitted into the machine. It senses the target through a matched probe-and-Proximitor system rather than providing a monitor output by itself.
The 330703-000-090-50-02-00 configuration has a 90 mm overall case, no unthreaded portion and a 5.0 m probe lead with a standard ClickLoc connector. Its final 00 option does not request agency approvals.
For a service replacement, 330703-000-090-50-02-00 must be matched to the installed thread, mounting clearance and five-metre 11 mm Proximitor system. Apter Power can help review the existing part label and supporting documentation before quoting.
The 50 option gives this probe a 5.0 m lead; Bently Nevada specifies five-metre 11 mm probes for five-metre Proximitor Sensors only. Confirm the installed sensor length before use.
We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
Trust Guaranteed
Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
Expertise
Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.
FAQS
The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which threaded opening is needed for 330703-000-090-50-02-00?
This 330703 probe uses an M14 × 1.5 threaded case. Compare the installed probe and mounting opening before ordering.
What lead length comes with 330703-000-090-50-02-00?
The 50 option specifies a 5.0 m probe length. The complete transducer system must use the matching five-metre Proximitor configuration.
Does 330703-000-090-50-02-00 include protective armor?
No. The 330703 base code denotes the M14 × 1.5 probe without armor; the armored version has a different base code.
Which connector is specified by 330703-000-090-50-02-00?
Option 02 identifies the standard miniature coaxial ClickLoc connector without the connector-protector option.
Can 330703-000-090-50-02-00 be used with a 9 m Proximitor?
Bently Nevada specifies five-metre probes for five-metre Proximitor Sensors only. A 9 m system must use a matching probe and cable selection.
What is the mounting-case configuration of 330703-000-090-50-02-00?
The 000 option gives 0 mm unthreaded length and 090 gives a 90 mm overall case. Compare the installed case and available clearance.
Does 330703-000-090-50-02-00 carry an agency-approval option?
Its final 00 option is listed as approval not required. If the installation requires a specific approval, select and document the appropriate approved variant.
What should I send Apter Power to quote 330703-000-090-50-02-00?
Please share the complete probe number, installed Proximitor number, quantity and delivery destination so the requested spare can be matched.
