330704-00-60-10-02-CN

/ 4.9
1001 reviews | Need a Specific Revision?

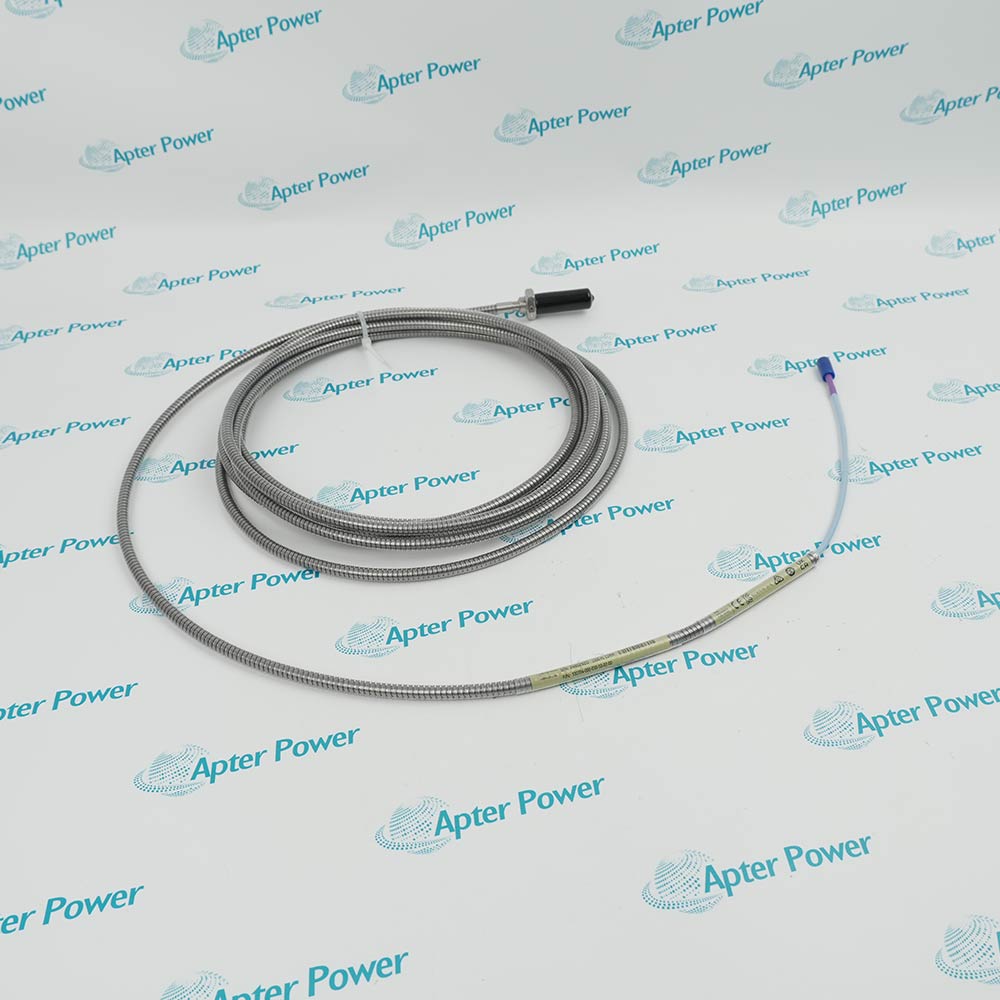

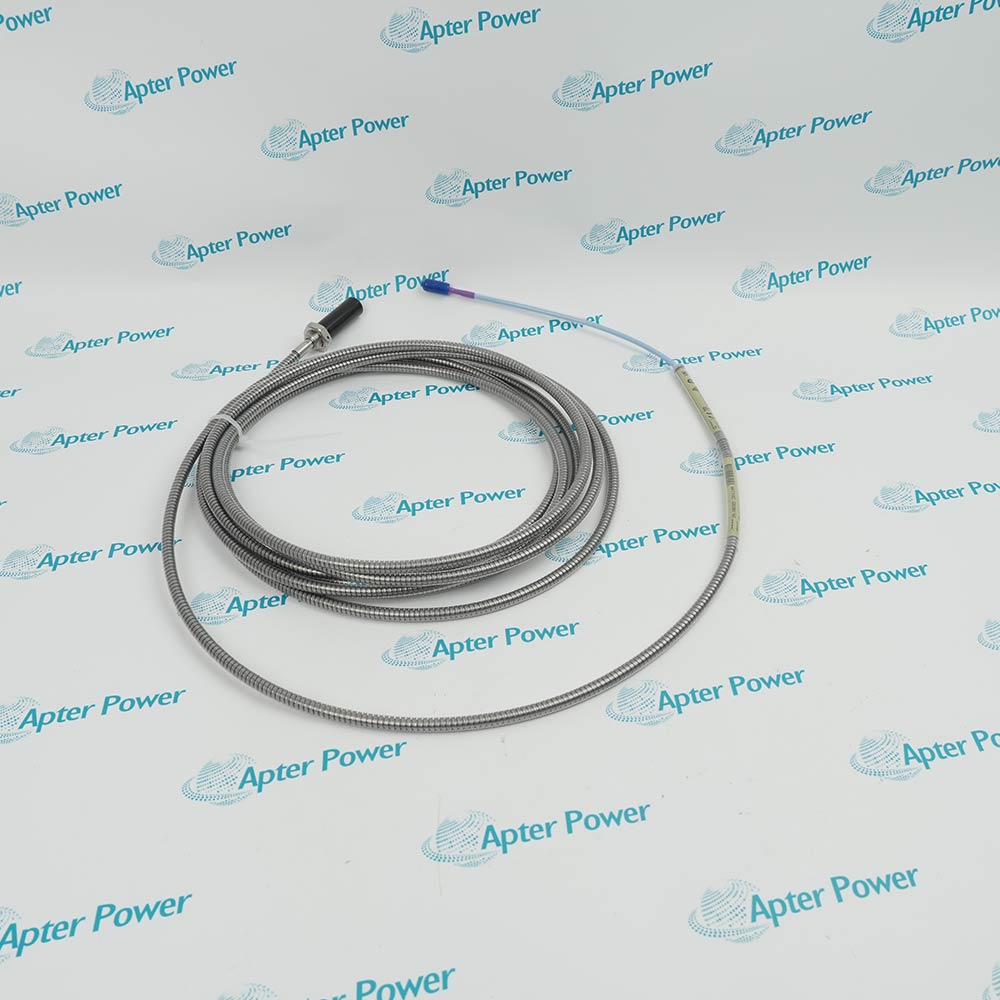

The 330704-00-60-10-02-CN is a 3300 XL 11 mm proximity probe featuring an M14 x 1.5 metric thread with armor protection, configured with country-specific approvals for China.
Get a quick price for 330704-00-60-10-02-CN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330704-00-60-10-02-CN

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330704-00-60-10-02-CN
  • Product Family:
    3300 XL 11mm Proximity Transducer System
  • Product Type:
    3300 XL 11 mm Proximity Probe, Metric
  • Thread Type:
    M14 x 1.5 (with armor)
  • Total Length:
    1.0 meter (3.3 feet)
  • Unthreaded Length:
    0 mm
  • Overall Case Length:
    60 mm
  • Connector Type:
    Miniature coaxial ClickLoc™
  • Connector Material:
    Gold-plated brass
  • Cable Type:
    Standard cable
  • Agency Approvals:
    Country-specific approvals (China)
  • Standard Feature:
    Locknut with pre-drilled safety wire holes
  • Key Benefit:
    Model 330704-00-60-10-02-CN addresses connection loosening and cable detachment issues with gold-plated ClickLoc locking connectors and CableLoc 330 N pull strength.
  • Weight:
    0.55 kg
  • Estimated shipping dimensions:
    31x28x4cm
  • Tariff Code:
    8479899990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Connections Safety

Features:

  • The 330704-00-60-10-02-CN features an M14 x 1.5 metric thread configuration with armor protection for enhanced durability.
  • This model includes a 60 mm overall case length for versatile installation flexibility.
  • The 330704-00-60-10-02-CN offers country-specific approvals for the Chinese market.
The 330704-00-60-10-02-CN incorporates patented TipLoc molding technology that provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design that provides 330 N (75 lb) pull strength. This model comes standard with a locknut featuring pre-drilled safety wire holes for secure installation in critical applications where vibration could compromise standard fasteners.

The 330704-00-60-10-02-CN can be ordered with an optional FluidLoc cable option, which prevents oil and other liquids from leaking out of the machine through the cable's interior, addressing critical safety concerns in lubricated machinery. Connector protectors are also available for the 330704-00-60-10-02-CN to provide additional protection in humid or moist environments commonly found in Chinese industrial facilities.

With country-specific approvals for China, the 330704-00-60-10-02-CN simplifies deployment in Chinese industrial applications requiring local certification. This armored metric probe delivers reliable vibration and position monitoring while the patented TipLoc and CableLoc designs ensure long-term durability against mechanical stress. The 330704-00-60-10-02-CN represents a complete solution for applications requiring M14 x 1.5 mounting threads with a versatile 60 mm case length.

The 330704-00-60-10-02-CN Bently Nevada 3300 XL 11 mm Proximity Probes may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330704-00-60-10-02-CN 3300 XL 11 mm Proximity Probes Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330704-00-60-10-02-CN 3300 XL 11 mm Proximity Probes Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330704-00-60-10-02-CN
  • Condition New Original ready stock
  • Product Family 330704-00-60-10-01-CN,330704-00-60-10-02-RU,330704-00-60-10-02-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power and Energy: Differential expansion monitoring of large steam turbines, measuring the relative displacement between the rotor and casing caused by the difference in thermal expansion rates.
  • Key Pump Sets and Compressors: Monitoring axial displacement (thrust position) in high-power equipment to prevent rotor collisions caused by thrust bearing wear.
  • Heavy Industrial Equipment: Radial vibration monitoring in sliding bearing machinery with large bearing clearances or extremely severe vibrations (such as large blowers and coal mills).
  • Physical Connection: Utilizes a ClickLoc connector (code 02), a non-loosening coaxial connector ensuring electrical connection stability under machine vibration.
  • System Length Matching: This probe is configured for a 6.0-meter system (code 60) and must be connected to a 3300 XL 11mm preamplifier of the same total length (6.0 meters). Failure to do so will result in severe deviation of the scale coefficient (100 mV/mil).
  • Signal Transmission: The preamplifier converts the gap variation into an analog voltage signal of -18V to -2V DC, which can then be connected to the 3500 monitoring system or the 990 transmitter.
  • China Explosion-Proof Certification (NEPSI/CQST): Complies with Chinese national explosion-proof standards, allowing installation in hazardous areas with explosive gases, such as petrochemical and coal mines (must be used with safety barriers).
  • API 670 Compliance: Its design and performance specifications fully comply with the American Petroleum Institute API 670 standard, ensuring high reliability and interchangeability in mission-critical applications.
  • Environmental Protection Standards: The probe head is encapsulated in polyphenylene sulfide (PPS) material, providing IP68-level resistance to oil, water, and chemical corrosion.
Description
The 330704-00-60-10-02-CN features an M14 x 1.5 metric thread configuration with armor protection, providing enhanced durability for demanding industrial installations requiring Chinese regulatory compliance.

The 330704-00-60-10-02-CN incorporates patented TipLoc molding technology that provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design that provides 330 N (75 lb) pull strength.

This model comes standard with a locknut featuring pre-drilled safety wire holes for secure installation in critical applications. The 330704-00-60-10-02-CN can be ordered with an optional FluidLoc cable option, which prevents oil and other liquids from leaking out of the machine through the cable's interior.

With country-specific approvals for China, the 330704-00-60-10-02-CN simplifies deployment in Chinese industrial applications requiring local certification. This armored metric probe delivers reliable vibration and position monitoring while the patented TipLoc and CableLoc designs ensure long-term durability against mechanical stress.
Alternative Names
330704-00-60-10-01-CN 330704-00-60-10-11-CN 330704-00-60-10-12-CN 330704-00-60-10-02-00
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What regulatory advantage does the 330704-00-60-10-02-CN offer for Chinese installations?
This model features country-specific approvals for China, ensuring compliance with local industrial regulations and simplifying acceptance in Chinese facilities without requiring additional certification.
How does the 60 mm case length benefit installations in Chinese industrial applications?
The 60 mm case length offers a versatile balance between compact design and adequate reach, accommodating standard casing thicknesses common in Chinese heavy industries.
What mechanical protection features are integrated into the 330704-00-60-10-02-CN?
The armored M14 x 1.5 construction protects against physical damage, while patented TipLoc molding ensures probe tip integrity and CableLoc provides 330 N pull strength to prevent cable detachment.
Can the 330704-00-60-10-02-CN be used in applications requiring fluid containment?
Yes, the 330704-00-60-10-02-CN can be ordered with optional FluidLoc cable technology to prevent oil and liquid leakage through the cable interior, addressing fluid migration concerns.
