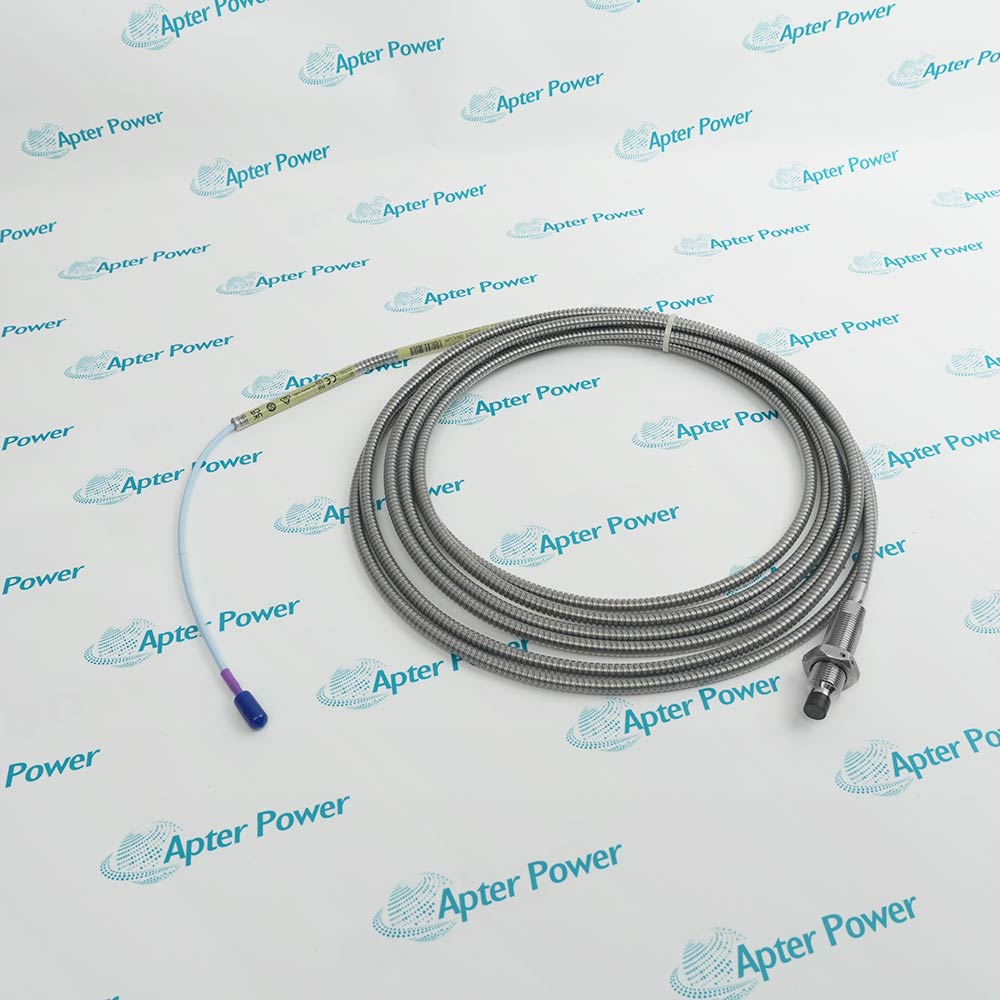

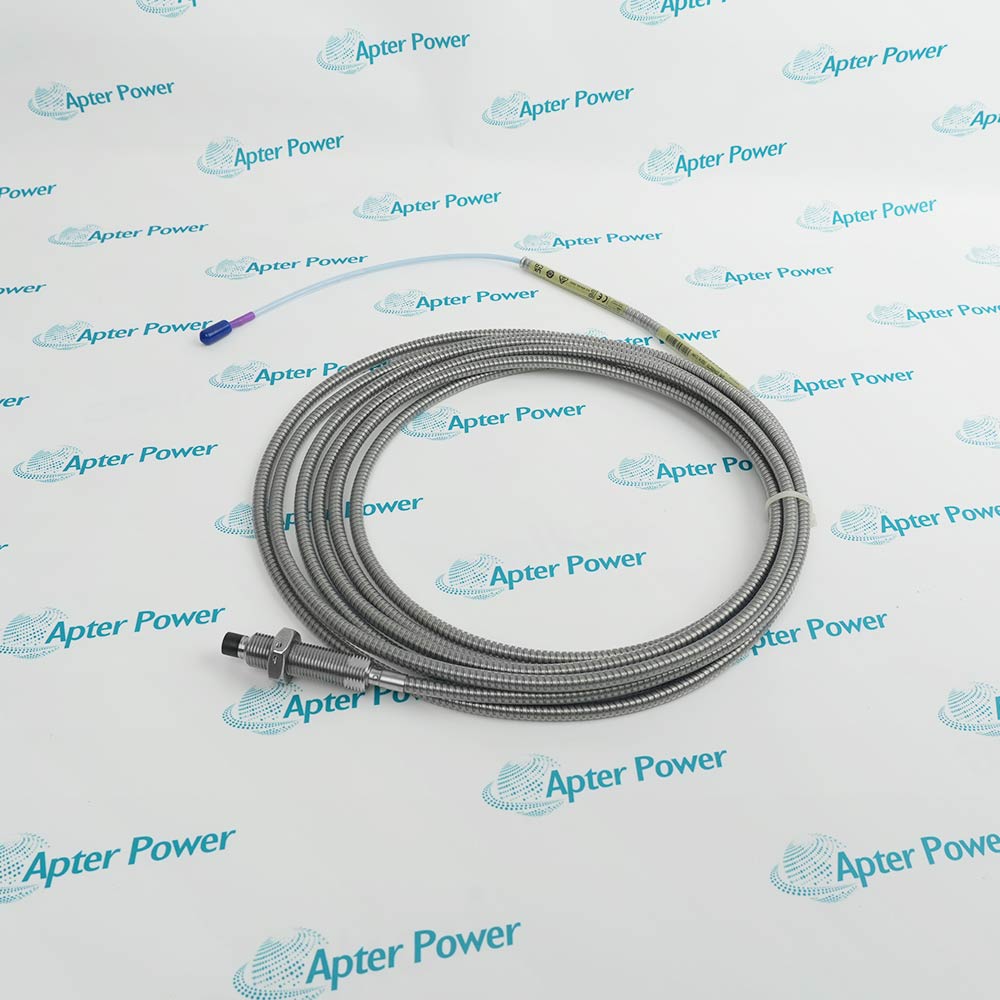

        Bently Nevada 330710-000-060-50-02-00
        Bently Nevada 330710-000-060-50-02-00
        Bently Nevada 330710-000-060-50-02-00
        Bently Nevada 330710-000-060-50-02-00
        Bently Nevada 330710-000-060-50-02-00
        Bently Nevada 330710-000-060-50-02-00
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        330710-000-060-50-02-00

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        330710-000-060-50-02-00 meets the critical requirement of accurate monitoring of rotor axial motion in turbomachinery.
        Get a quick price for 330710-000-060-50-02-00
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 330710-000-060-50-02-00

        • Manufacturer:
          Bently Nevada
        • Part Number:
          330710-000-060-50-02-00
        • Product Family:
          3300 XL 11mm Proximity Transducer System
        • Probe Case Thread:
          M16x1.5 thread
        • Maximum Length of Thread Engagement:
          24 mm
        • Unthreaded Length:
          0 mm
        • Overall Case Length:
          60 mm
        • Total Length:
          5.0 meters (16.4 feet)
        • Operating and Storage Temperature:
          -52°C to +177°C (-62°F to +351°F)
        • Cable-Type:
          standard cable
        • Connector -Type:
          Miniature coaxial ClickLoc connector
        • Weight:
          0.65 kg
        • Estimated shipping dimensions:
          30x30x3cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Use Cases Performance & Efficiency Environmental Ratings

        Features:

        • Interface Between the Machine Surface and 3500 Rack Backplane
        • Combines Capability of Proximity Sensing with Armor Protection
        • Operates in Conjunction with the 3300 XL Extension Cable and Proximitor Sensor
        The 330710-000-060-50-02-00 operates as the 3300 XL 11 mm Proximity Probe in a 3500 rack monitoring system, providing reliable non-contacting vibration and displacement measurements on fluid film bearing machines. It continuously generates a 3.94 V/mm (100 mV/mil) output signal from its 11 mm probe tip and transmits this signal through the 5.0-meter standard cable with miniature coaxial ClickLoc connector to support precise monitoring of axial position, differential expansion, and rod drop applications. Seamless signal transmission is standard with the 330710-000-060-50-02-00, however using it in conjunction with the 3300 XL 11 mm extension cable and 3300 XL 11 mm Proximitor Sensor will allow complete transducer system integration for comprehensive machine protection. The 330710-000-060-50-02-00 has made improvements in several areas over previous 7200-series 11 mm and 14 mm probe designs in addition to incorporating patented TipLoc molding and CableLoc technology within the 3300 XL platform.

        The 330710-000-060-50-02-00 provides essential proximity sensing functions common to the entire transducer system, and is a critical component of the measurement path, directly affecting the proper, normal operation of the overall monitor system. One 330710-000-060-50-02-00 probe is required per measurement point depending on the desired monitoring location. The 330710-000-060-50-02-00 features an M16 x 1.5 thread with armor, 0 mm unthreaded length, 60 mm overall case length, and is always installed with its miniature coaxial ClickLoc connector interfacing with the extension cable.

        For Dual Redundant Measurement applications, the 3500 System requires a second 330710-000-060-50-02-00 probe installed at a complementary measurement point. In addition to standard single probe operation, the redundant configuration also performs automatic measurement verification. The 3500 dual probe configuration executes validation using the internal circuitry specified in the monitor options. Using this method, the redundant measurement system continually monitors the health of both probes. If the system detects that the primary 330710-000-060-50-02-00 probe is no longer providing stable output (outside configured signal/tolerance levels), it will automatically transfer the measurement validation to the secondary probe and place an event in the System Event List.

        The 330710-000-060-50-02-00 Bently Nevada 3300 XL 11 mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 330710-000-060-50-02-00 3300 XL 11 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 330710-000-060-50-02-00 3300 XL 11 mm Proximity Probe Specs

        General

        • Manufacturer Bently Nevada
        • Model 330710-000-060-50-02-00
        • Condition New Original ready stock
        • Product Family 330710-000-060-50-02-05,330710-000-060-50-02-CN,330710-000-060-10-02-00
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Axial (Thrust) Position Measurements: Monitoring the longitudinal movement of shafts in large turbine generators.
        • Ramp Differential Expansion: Measuring the growth rate difference between a turbine rotor and its stator.
        • Reciprocating Compressors: Tracking rod position or "rod drop" to monitor wear.
        • Speed & Phase Reference: Providing tachometer, zero speed, and Keyphasor signals for rotating machinery.
        • Fluid-Film Bearing Machines: General vibration and position monitoring for industrial motors and compressors.
        • Linear Range: 4 mm (160 mils).
        • Sensitivity (Scale Factor): 3.94 V/mm (100 mV/mil).
        • Frequency Response: 0 to 8 kHz.
        • Response Time: Approximately 2.5 milliseconds.
        • Linearity: ±1.5% of full scale.
        • Robust Construction: Features a patented TipLoc™ molding for a stronger bond between the probe tip and body, and CableLoc™ design providing up to 330 N (75 lbf) of pull strength.
        • Interchangeability: Fully compatible with 3500 monitors (software 2.82+), though it requires matching 3300 XL 11 mm Proximitor sensors and cables (color-coded purple).
        • Operating Temperature: -52°C to +177°C (-62°F to +351°F).
        • Pressure Seal: Rated to maintain integrity above -34°C (-30°F); exposure below this may cause seal failure.
        • Ingress Protection: IP67 rated.
        • Humidity: 100% condensing (non-submersible) when connectors are properly protected.
        • Shock & Vibration: Withstands 100 g peak shock (11 ms) and 20 g peak vibration (10 Hz to 2 kHz).
        • Hazardous Area Approvals: Certified for intrinsically safe Zone 0, 1, and 2 (ATEX/IECEx) and North American Division 1 and 2 environments.
        • Chemical Resistance: The probe tip is made of Polyphenylene sulfide (PPS) and the case is AISI 304 Stainless Steel, providing resistance to turbine oils and common industrial fluids.
        View as PDF
        Description
        The 3300 XL 11 mm Proximity Probe 330710-000-060-50-02-00 is specifically designed for non-contacting vibration and displacement measurements on fluid film bearing machines, providing a 3.94 V/mm (100 mV/mil) output signal. This particular probe model 330710-000-060-50-02-00 features an M16 x 1.5 thread configuration with armor protection, making it suitable for demanding industrial environments where mechanical protection is essential. The probe 330710-000-060-50-02-00 has an unthreaded length of 0 mm, an overall case length of 60 mm, and a total cable length of 5.0 meters (16.4 feet), equipped with a miniature coaxial ClickLoc connector and standard cable type.

        This probe model 330710-000-060-50-02-00 is specifically designed to handle axial (thrust) position measurements, addressing the critical need for precise monitoring of rotor axial movement in turbomachinery. The probe 330710-000-060-50-02-00 solves the challenge of measuring ramp differential expansion on steam turbines, where thermal growth differentials between rotor and casing must be accurately tracked to prevent catastrophic failures. Additionally, the 330710-000-060-50-02-00 is engineered for rod position and rod drop measurements on reciprocating compressors, ensuring reliable monitoring of piston rod behavior to detect potential failures before they occur. The probe 330710-000-060-50-02-00 also serves tachometer and zero speed measurement applications, as well as phase reference (Keyphasor) signal generation, providing essential timing references for vibration analysis and machine diagnostics.

        The 330710-000-060-50-02-00 features the patented TipLoc molding method that creates a robust bond between the probe tip and probe body, while the CableLoc design ensures secure cable attachment with 330 N (75 lb) pull strength. The gold-plated brass ClickLoc connectors on the 330710-000-060-50-02-00 lock firmly into place to prevent loose connections, and the standard locknut includes pre-drilled safety wire holes for additional security. This probe model 330710-000-060-50-02-00 is part of the complete 3300 XL 11 mm Proximity Transducer System, which includes the 3300 XL 11 mm extension cable and 3300 XL 11 mm Proximitor Sensor, offering a longer linear range compared to standard 8 mm systems due to its large 11 mm tip diameter.
        Alternative Names
        330710-000-060-50-02-05 330710-000-060-50-02-CN 330710-000-060-10-02-05 330710-000-060-50-12-05 330710-000-060-50-01-05
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is the 3300 XL 11 mm Proximity Probe 330710-000-060-50-02-00 designed for?
        The 330710-000-060-50-02-00 is designed for non-contact vibration and displacement measurements on fluid film bearing machines, delivering an output signal of 3.94 V/mm (100 mV/mil) for accurate condition monitoring.
        What types of measurements can the 330710-000-060-50-02-00 perform?
        The probe is engineered for axial (thrust) position measurements, making it ideal for monitoring rotor axial movement in turbomachinery. It is also used for rod position and rod drop measurements in reciprocating compressors, as well as tachometer, zero speed, and phase reference (Keyphasor) signal applications.
        How does the 330710-000-060-50-02-00 support steam turbine monitoring?
        It is specifically designed to measure ramp differential expansion in steam turbines, enabling precise tracking of thermal growth differences between the rotor and casing to help prevent mechanical damage or failure.
