330780-50-05

/ 4.9
1001 reviews | Need a Specific Revision?

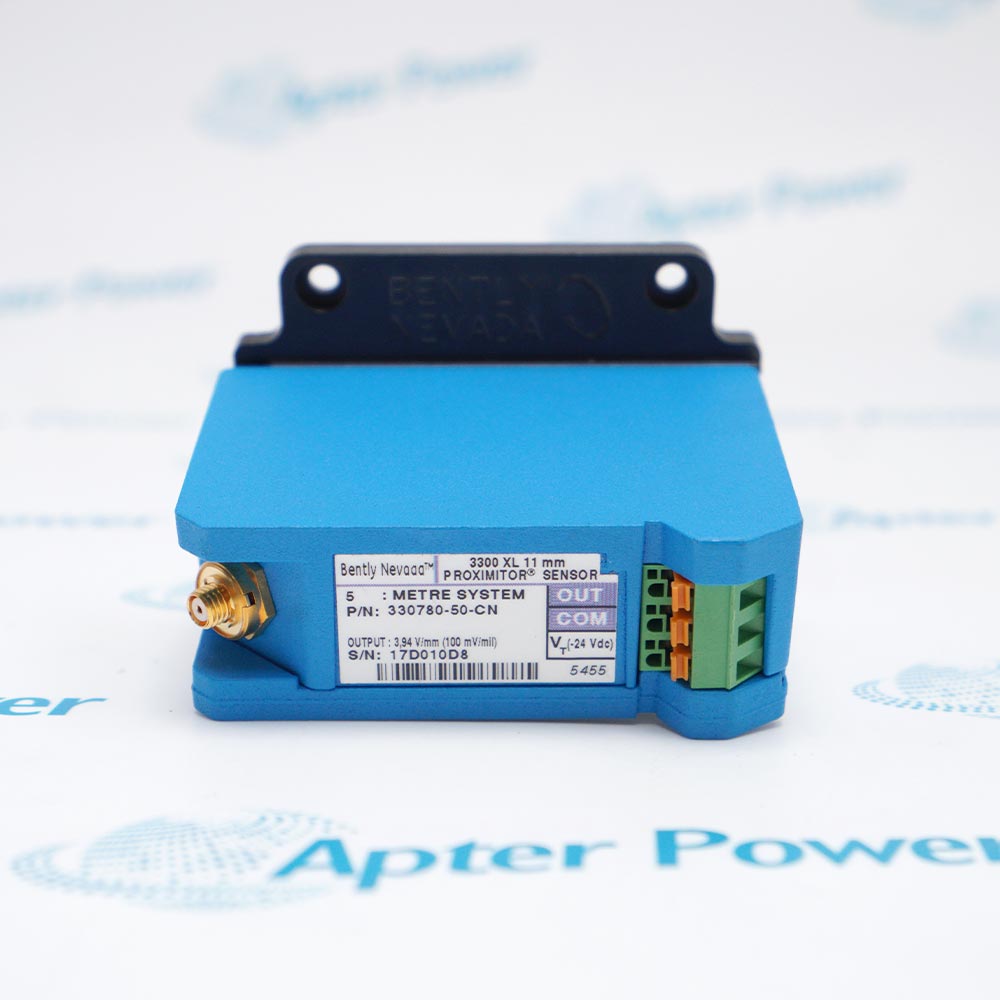

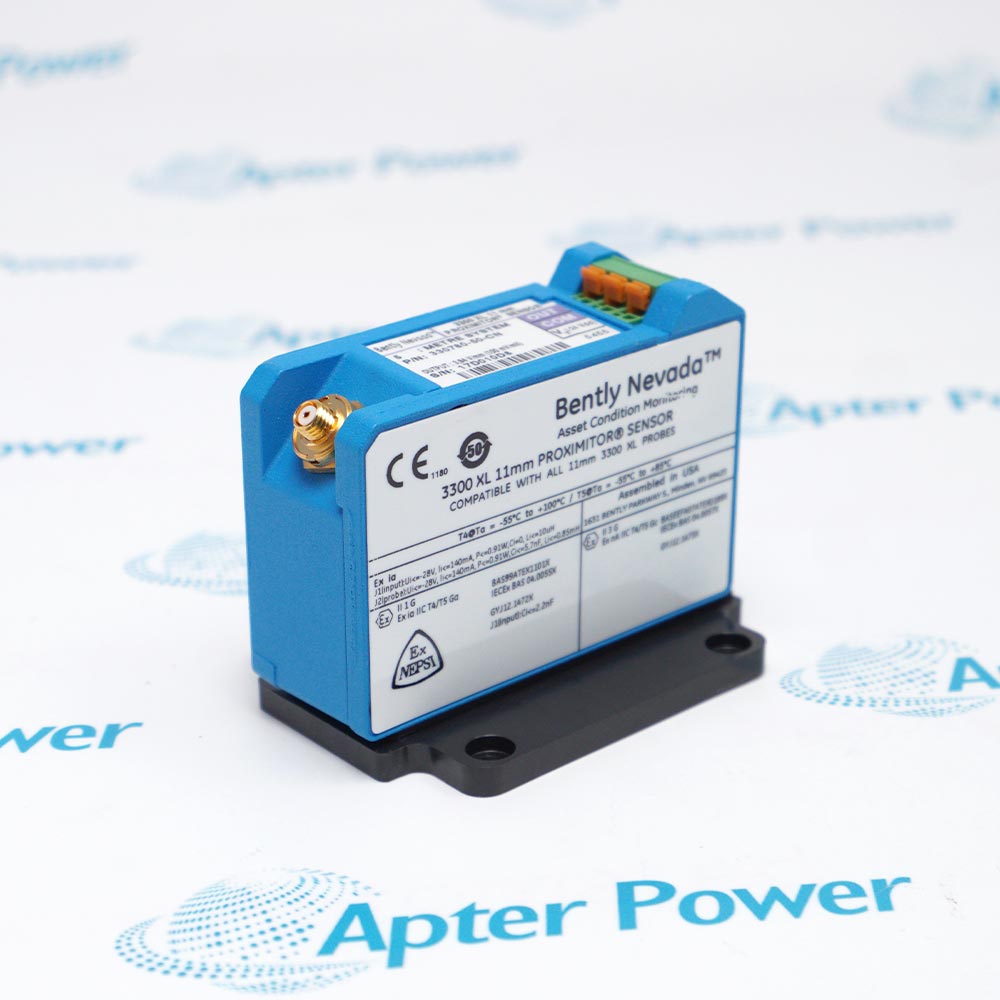

The 330780-50-05 is a 3300 XL 11 mm Proximitor Sensor featuring a 5.0 meter (16.4 feet) system length with panel mount configuration.
Get a quick price for 330780-50-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330780-50-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330780-50-05
  • Product Family:
    3300 XL 11mm Proximity Transducer System
  • Product Type:
    3300 XL 11 mm Proximitor Sensor
  • System Length:
    5.0 meters (16.4 feet)
  • Mounting:
    Panel mount
  • Agency Approvals:
    Multiple approvals
  • Output Sensitivity:
    3.94 V/mm (100 mV/mil)
  • Linear Range:
    4.0 mm (160 mils), from 0.5 to 4.5 mm
  • Frequency Range:
    0 to 8 kHz
  • Power Supply:
    -17.5 Vdc to -26 Vdc, max 12 mA
  • Terminal Type:
    SpringLoc (tool-free, screwless)
  • Key Benefit:
    Model 330780-50-05 features SpringLoc terminals for faster wiring, improved RFI immunity eliminating shielded conduit, and a 5.0 meter system length.
  • Weight:
    0.24 kg
  • Estimated shipping dimensions:
    7.8x6x6.2cm
  • Tariff Code:
    8531901000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Monitoring and Control

Features:

  • The 330780-50-05 features SpringLoc terminal strips that eliminate screw-type clamping mechanisms for faster, tool-free wiring.
  • This model includes improved RFI/EMI immunity that achieves European CE mark approvals without shielded conduit or metallic housings.
  • The 330780-50-05 is designed with a thin form factor supporting both high-density DIN rail and traditional panel mount configurations.
The 330780-50-05 provides essential signal conditioning functions common to the 3300 XL system, and is a critical component directly affecting the accuracy of machinery monitoring applications. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. The 330780-50-05 features SpringLoc terminal strips that require no special installation tools and facilitate faster, highly robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen over time from vibration.

The 330780-50-05 offers improved RFI/EMI immunity that allows the sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals, eliminating the need for special shielded conduit or metallic housings. The 330780-50-05 delivers consistent, reliable performance while reducing installation costs and complexity, making it ideal for modern control cabinets.

The 330780-50-05 solves the critical pain point of upgrading legacy 7200-series systems to modern 3300 XL technology with complete component replacement. Its advanced RFI/EMI immunity eliminates the need for shielded conduit, while SpringLoc terminals simplify field wiring. The 330780-50-05 ensures reliable vibration and position monitoring for critical machinery applications such as radial vibration, axial thrust, and Keyphasor measurements on steam turbines, compressors, and generators.

The 330780-50-05 Bently Nevada 3300 XL 11 mm Proximitor Sensor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330780-50-05 3300 XL 11 mm Proximitor Sensor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330780-50-05 3300 XL 11 mm Proximitor Sensor Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330780-50-05
  • Condition New Original ready stock
  • Product Family 330780-90-05,330780-91-05,330780-92-05,330780-50-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Industry: Thrust position and differential expansion monitoring of rotors in large steam turbine generator sets.
  • Petrochemical and Natural Gas Industries: Shaft trajectory and vibration analysis of high-power centrifugal compressors and large reciprocating compressors.
  • Hydropower: Monitoring large-scale displacements caused by hydraulic impact during the operation of hydroelectric turbine units.
  • Humidity Protection: Internal circuitry is fully potted, compliant with IEC 68-2-3 humidity and heat testing, and can withstand 100% condensation.
  • Electromagnetic Compatibility (EMC): Excellent radio frequency interference (RFI) immunity, maintaining stable signal even in strong electromagnetic fields (such as near large generator sets).
  • Hazardous Area (-05 Certification): Permitted for installation in explosive hazardous environments in Zone 0/1/2 or Division 1/2 (must be used with safety fencing or explosion-proof enclosure).
  • Signal Conversion: Converts the gap changes detected by the probe into an analog voltage signal proportional to the distance (standard sensitivity is 3.94 V/mm or 100 mV/mil).
  • Real-time Monitoring: The signal is typically output to the Bently Nevada 3500 monitoring system. If displacement or vibration exceeds preset values, the monitor will trigger an alarm or interlock shutdown logic.
  • Self-Diagnostic Protection (Not OK): The preamplifier automatically detects whether the probe circuit is open-circuited or short-circuited. If a fault is detected, its output voltage will enter the "Not OK" zone, and the monitor will immediately disable the alarm for that channel to prevent false tripping.
Description
The 330780-50-05 operates as a 3300 XL 11 mm Proximitor Sensor within the 3300 XL 11 mm Proximity Transducer System, providing essential signal conditioning for non-contacting vibration and displacement measurements. It features a 5.0 meter (16.4 feet) system length with panel mount configuration, carrying multiple agency approvals for global deployment.

The 330780-50-05 provides essential signal conditioning functions common to the 3300 XL system, and is a critical component directly affecting the accuracy of machinery monitoring applications. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration.

The 330780-50-05 offers improved RFI/EMI immunity that allows the sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals, eliminating the need for special shielded conduit or metallic housings.

The 330780-50-05 solves the critical pain point of upgrading legacy 7200-series systems to modern 3300 XL technology with complete component replacement. Its advanced RFI/EMI immunity eliminates the need for shielded conduit, while SpringLoc terminals simplify field wiring.
Alternative Names
330780-90-05 330780-91-05 330780-92-05 330780-50-00
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is required when upgrading from a 7200-series system to the 330780-50-05?
Every component must be replaced with 3300 XL 11 mm components, and the monitoring system must be updated. For 3500 systems, an updated configuration software version listing the 3300 XL 11 mm system as compatible is required.
How does the SpringLoc terminal on the 330780-50-05 improve installation?
SpringLoc terminal strips require no special installation tools and eliminate screw-type clamping mechanisms that can loosen, enabling faster, more robust field wiring connections.
What RFI/EMI advantages does the 330780-50-05 offer?
Improved RFI/EMI immunity allows the 330780-50-05 to achieve European CE mark approvals without shielded conduit or metallic housings, reducing installation costs and complexity.
What mounting options are available for the 330780-50-05?
The thin design of the 330780-50-05 allows mounting in either high-density DIN-rail installations or traditional panel mount configurations, providing flexibility for various control cabinet layouts.
