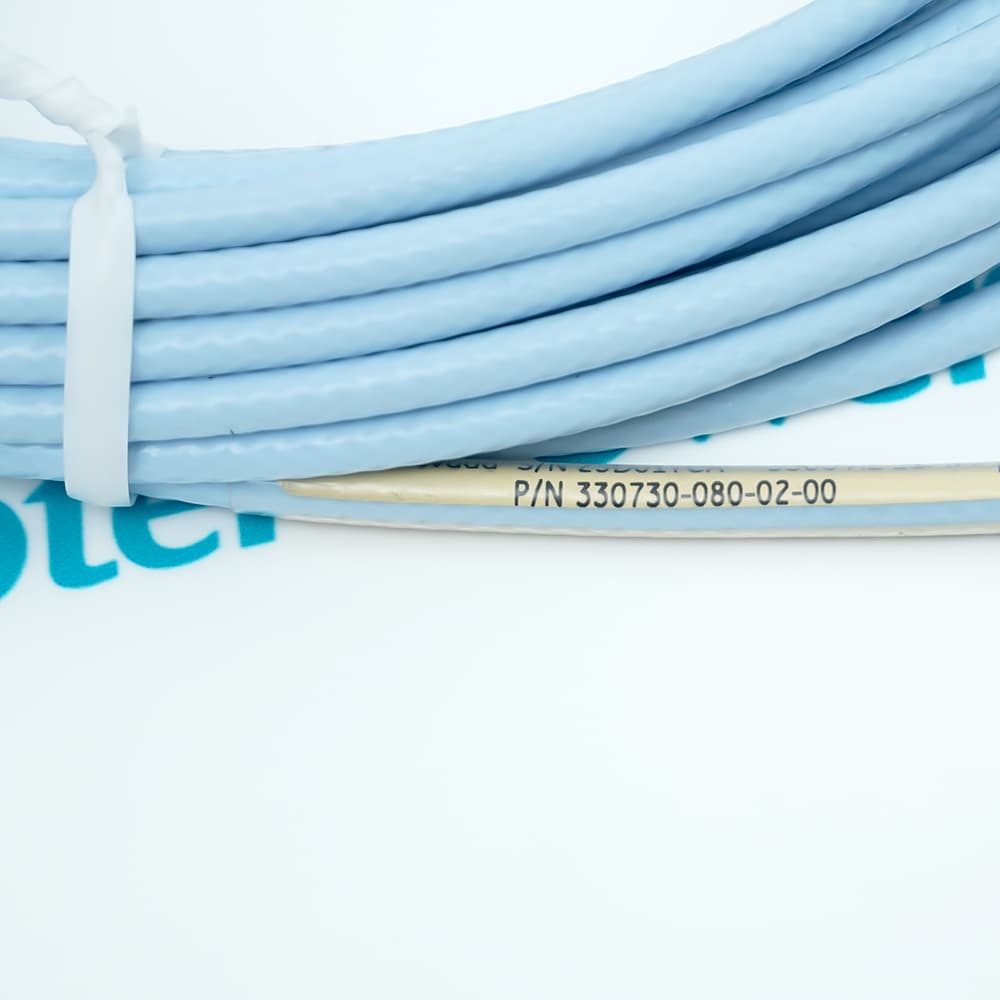

330730-080-02-00

Features:

• Extension Cable for 8mm Eddy Current Probe Systems
• Integrates 8.0 Meter Cable Length with 3/8-24 UNF Threaded Connector
• Compatible with 3300 XL Series Probes and 3300 XL Proximitor Sensors

The 330730-080-02-00 serves as a critical extension cable component within the Bently Nevada 3300 XL sensor system, establishing reliable electrical connectivity between the eddy current probe and the Proximitor sensor. It maintains signal integrity across an 8.0 meter (26.2 feet) cable run, transmitting the high-frequency RF signal from the probe tip to the signal conditioning unit without degradation. The 330730-080-02-00 incorporates precision-manufactured coaxial cable construction with standard armor protection, ensuring consistent performance in demanding industrial environments characterized by temperature extremes, oil exposure, and electromagnetic interference. The cable's electrical characteristics are meticulously matched to the 3300 XL system specifications to preserve measurement accuracy for vibration and displacement monitoring applications.

The 330730-080-02-00 provides essential signal path continuity fundamental to the entire measurement chain, and constitutes a vital element of the monitoring pathway, directly influencing the precision and reliability of overall machinery protection systems. One 330730-080-02-00 extension cable is required per probe installation where the mounting location exceeds the probe's standard cable length. The 330730-080-02-00 occupies no rack slot as it is a passive interconnect component, typically routed through conduit or cable trays between the probe mounting location and the Proximitor sensor installation position.

For installations requiring probe-to-Proximitor separation distances beyond the probe's integral cable length, the 330730-080-02-00 provides the necessary signal extension while maintaining system-specified performance characteristics. In addition to standard single-cable installations, multiple 330730-080-02-00 cables may be cascaded with appropriate junction components when application requirements dictate extended reach, though total cable length constraints must be observed per system specifications. The 330730-080-02-00 utilizes the standardized 3/8-24 UNF threaded connector interface specified across the 3300 XL product line, ensuring mechanical and electrical compatibility with all 8mm probe variants and Proximitor sensor units. Using this standardized connection methodology, the extension cable system preserves the factory-calibrated measurement loop characteristics essential for accurate position and vibration monitoring. If the installation requires cable lengths exceeding standard offerings, the 330730-080-02-00 configuration represents the 8.0 meter standard option within the 330130/330730 cable family, with alternative lengths available to accommodate diverse machinery mounting configurations.
