        330704-000-050-10-02-05
        330704-000-050-10-02-05
        330704-000-050-10-02-05
        330704-000-050-10-02-05
        330704-000-050-10-02-05
        330704-000-050-10-02-05
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supports exact-code quotations, documentation and 11 mm system matching.

        330704-000-050-10-02-05

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

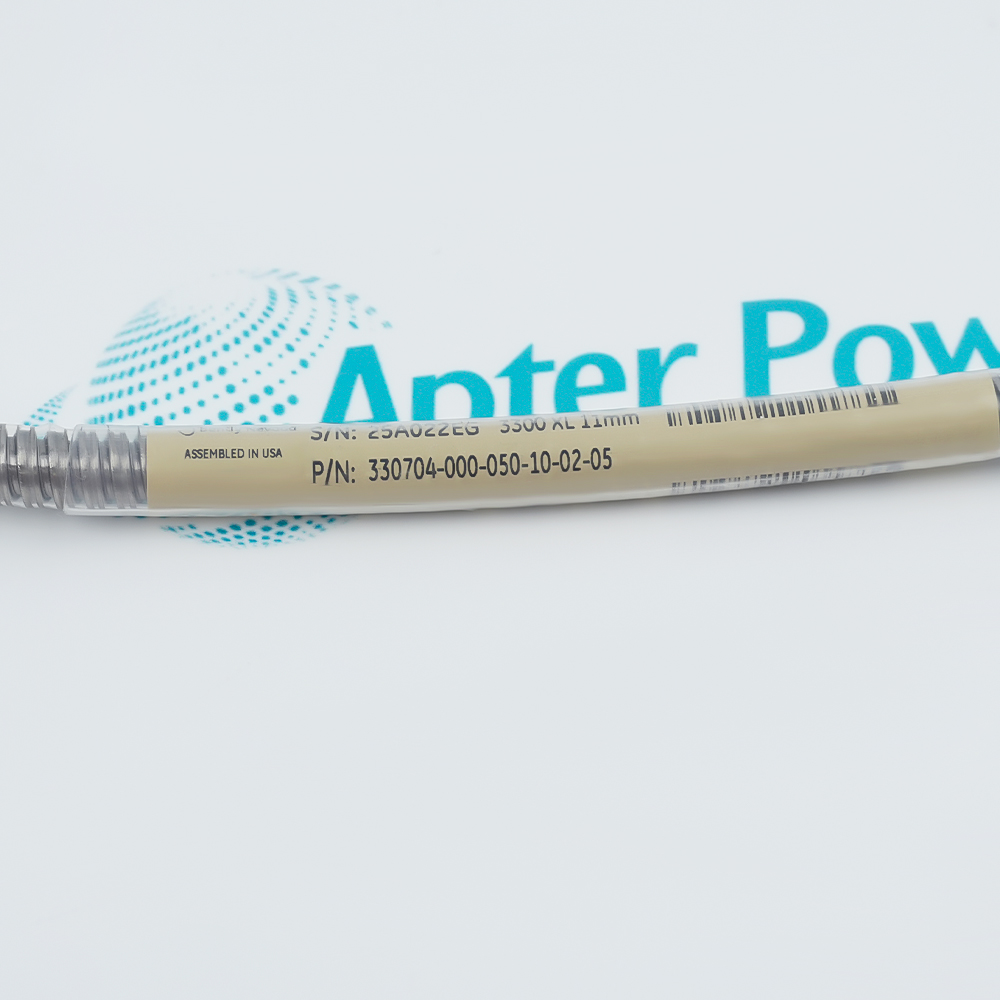

        Bently Nevada 330704-000-050-10-02-05 is an M14×1.5 armored 3300 XL 11 mm proximity probe with a 1.0 m cable and ClickLoc connector.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 330704-000-050-10-02-05
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 330704-000-050-10-02-05

        • Manufacturer:
          Bently Nevada
        • Part Number:
          330704-000-050-10-02-05
        • Product Family:
          3300 XL 11mm Proximity Transducer System
        • Product Type:
          3300 XL 11 mm proximity probe
        • Stock:
          1
        • System family:
          3300 XL 11 mm
        • Component:
          Armored proximity probe
        • Mounting thread:
          M14 × 1.5
        • Unthreaded length:
          0 mm
        • Case length:
          50 mm
        • Total probe cable length:
          1.0 m
        • Cable construction:
          Armored probe cable
        • Connector:
          Miniature ClickLoc
        • Connector protector:
          Not included
        • Approval option:
          Multiple Approvals
        • Weight:
          0.15 kg
        • Estimated shipping dimensions:
          2.3 x 2.1 x 112 cm
        • Tariff Code:
          Please confirm the destination before shipping
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Probe Geometry Cable & Connector 11 mm System Product Applications

        Features:

        • Armored 11 mm probe: The sensor combines an M14×1.5 body with an armored integral lead.
        • Defined mechanical geometry: Zero unthreaded length and a 50 mm case identify the mounting configuration.
        • ClickLoc connection: A 1.0 m standard cable terminates in a miniature ClickLoc connector.
        Measurement role: The probe forms the machine-facing element of a 3300 XL 11 mm eddy-current transducer system.

        Installation role: Thread, case length and connector arrangement should align with the bracket and cable route.

        System role: The companion extension cable and Proximitor sensor complete the electrical length and measurement response.

        Apter Power supports Bently Nevada 330704-000-050-10-02-05 3300 XL 11 mm proximity probe sourcing with quotations, technical documentation and configuration review.
        Bently Nevada 330704-000-050-10-02-05 3300 XL 11 mm proximity probe Manuals,Datasheets,LinkImportant Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Threaded body: The mounting thread is M14×1.5.
        • Nose configuration: Code 000 provides no unthreaded section ahead of the body.
        • Case length: Code 050 identifies a 50 mm case.
        • Bracket decision: All three geometry elements should agree with the installed probe holder.
        • Integral length: The probe includes a 1.0 m lead.
        • Cable protection: Armor provides mechanical coverage along the probe cable.
        • Connector type: The termination is a miniature ClickLoc connector.
        • Protector boundary: The 02 option does not include a separate connector protector.
        • Three-part chain: The probe works with an extension cable and 11 mm Proximitor sensor.
        • Large-range family: The 11 mm system is intended for a wider linear measurement range than the 8 mm family.
        • Electrical matching: Cable length and sensor version form part of the measurement calibration.
        • Approval context: The 05 suffix selects the Multiple Approvals ordering option.
        • Large shaft displacement: The 11 mm system supports machinery channels that require greater measurement range.
        • Relative shaft vibration: The probe senses shaft motion relative to the mounting surface in a matched system.
        • Armored machine leads: Its armored integral cable suits routes needing added mechanical protection.
        • Configured service spares: The full order code preserves geometry, lead, connector and approval choices.
        Description
        Large-range eddy-current measurement is the role of the Bently Nevada 330704-000-050-10-02-05 within a 3300 XL 11 mm transducer system. The M14×1.5 armored probe has no unthreaded nose and uses a 50 mm case, giving installers a clearly defined mechanical configuration for the target bracket.

        A 1.0 m standard cable and miniature ClickLoc connector complete the probe configuration of 330704-000-050-10-02-05. The lead is armored, but the 02 connector option does not include a connector protector; cable armor and connector protection therefore remain separate installation decisions.

        Used with the matching extension cable and 11 mm Proximitor sensor, 330704-000-050-10-02-05 forms a system intended for large-range shaft displacement or vibration measurement. The 05 suffix selects the Multiple Approvals option, which should be interpreted with the complete certification and site conditions.
        Alternative Names
        330704000050100205 330704 000 050 10 02 05 330704-000-050-10-02-O5 330704-OOO-050-10-02-05 330704-000-O50-10-02-05 330704-000-050-1O-02-05 330704 11mm probe 3300 XL 11 mm 330704
        Technical notes
        The 02 connector option on 330704-000-050-10-02-05 provides a miniature ClickLoc connection without a connector protector. The armored probe cable protects the lead itself, but the detachable joint still needs suitable placement or external protection where impact, contamination or service traffic could reach it.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Is 330704-000-050-10-02-05 suitable for an M14×1.5 probe bracket?
        Yes. This 330704 configuration uses an M14×1.5 threaded body with a 50 mm case and no unthreaded nose. Those dimensions should agree with the bracket depth and target clearance before the probe is installed.
        What extension-cable connection mates with 330704-000-050-10-02-05?
        The probe terminates in a miniature ClickLoc connector, so the selected 3300 XL 11 mm extension cable needs the corresponding mating connection. A conventional connector should not be assumed to fit.
        Does the armored lead on 330704-000-050-10-02-05 use FluidLoc cable?
        No. The order code identifies a 1.0 m standard probe cable with armor. Armor provides mechanical protection, while FluidLoc is a different construction intended to resist fluid migration through the cable.
        Can 330704-000-050-10-02-05 be used by itself as a complete displacement transducer?
        It is one part of the 3300 XL 11 mm chain. A matched extension cable and 11 mm Proximitor sensor are required to complete the electrical system and establish the intended scale and linear range.
        Does the Multiple Approvals suffix on 330704-000-050-10-02-05 permit installation in any country?
        The suffix selects the manufacturer’s Multiple Approvals option, but jurisdiction, area classification and installation details still control acceptance. The exact certificate set should be reviewed for the destination project rather than treated as universal authorization.
        What must an RFQ retain for 330704-000-050-10-02-05?
        Keep all six configuration blocks: probe geometry, 1.0 m lead, miniature ClickLoc connector and approval option. The complete code prevents substitution with another 330704 probe whose case length, cable or connector protection differs.
