    Apter Power supports measurement-chain matching, approval review and quotation preparation for this 25 mm Proximitor Sensor.

330850-51-00

/ 4.9
1001 reviews | Need a Specific Revision?

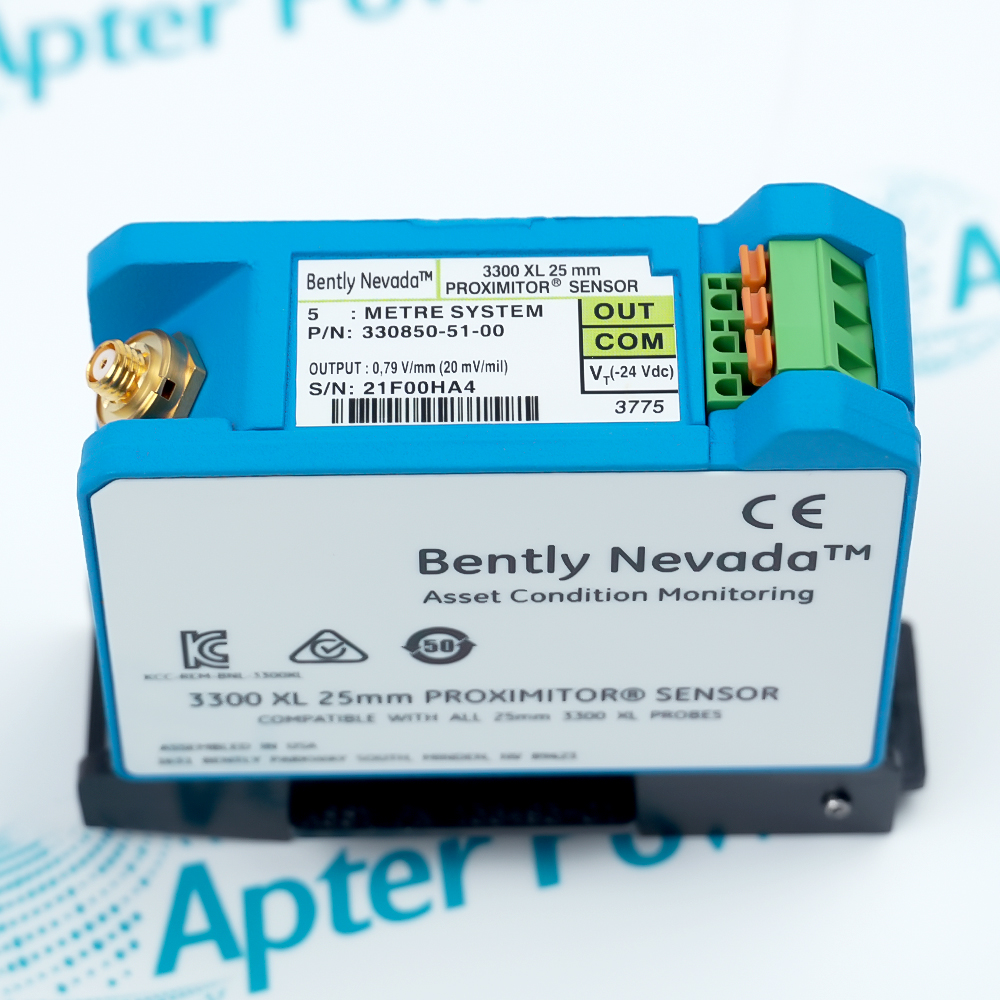

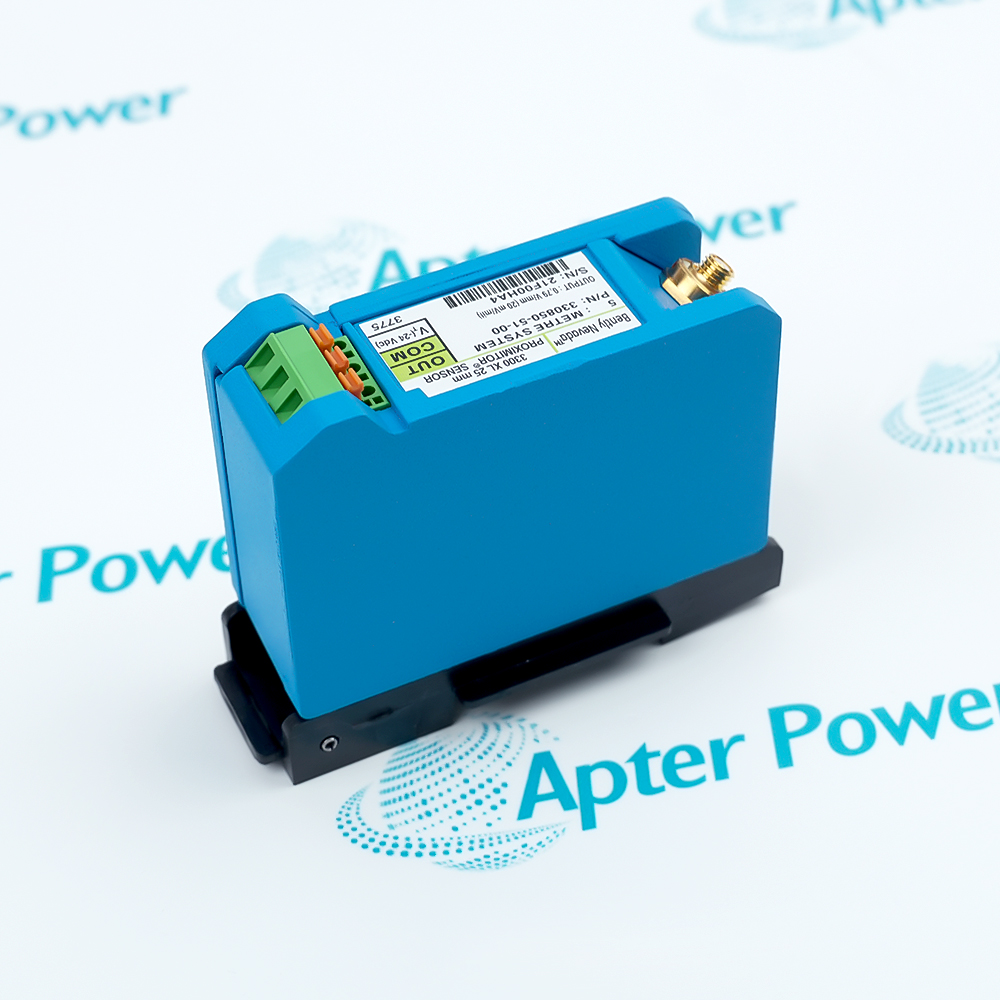

Bently Nevada 330850-51-00 is a DIN-mount 3300 XL 25 mm Proximitor Sensor configured for a 5.0 m system length with no agency approvals.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 330850-51-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330850-51-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330850-51-00
  • Product Family:
    3300 XL 25mm Proximity Transducer System
  • Product Type:
    3300 XL 25 mm Proximitor Sensor
  • Stock:
    1
  • System Length:
    5.0 m
  • Mounting:
    DIN rail
  • Agency Approval:
    No approvals
  • Supply Voltage:
    -24 V DC
  • Operating Temperature:
    0 °C to +45 °C
  • Matched System:
    25 mm probe, extension cable and Proximitor Sensor
  • Weight:
    0.255 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Order Code & Mounting Measurement Chain Installation & Commissioning Product Applications

Features:

  • 25 mm signal conditioning: Accepts the matched probe and extension cable for non-contact measurement
  • 5.0 m DIN configuration: Uses order-code 51 for total system length and mounting arrangement
  • No-approval option: Uses code 00 and therefore requires site approval needs to be reviewed separately
The Proximitor Sensor converts the matched transducer signal into an output suitable for the connected monitoring channel.

Correct performance depends on the 5.0 m electrical chain, target material, physical alignment and field-wiring practice.

Commissioning verifies gap, signal stability and channel behavior rather than accepting a mechanical fit alone.

Apter Power supports Bently Nevada 330850-51-00 3300 XL 25 mm Proximitor Sensor sourcing with order-code and measurement-chain review.
Bently Nevada 330850-51-00 3300 XL 25 mm Proximitor Sensor Manuals,Datasheets,Link Important Notice: Match the 5.0 m probe and extension-cable chain and review site approval requirements before installation.
  • Family code: 330850 identifies the 3300 XL 25 mm Proximitor Sensor family.
  • Option 51: Specifies a 5.0 m total system length and DIN-rail mounting.
  • Option 00: Specifies that no agency approval option is included.
  • Receiving control: The complete 330850-51-00 code should appear on the label and purchase record.
  • Probe compatibility: Use a compatible 3300 XL 25 mm probe for the selected application.
  • Electrical length: Probe and extension-cable lengths must equal the 5.0 m sensor configuration.
  • Target material: Calibration and accuracy depend on the target material defined for the system.
  • Monitor interface: Field wiring carries the conditioned signal to the connected monitoring channel.
  • DIN mounting: Secure the sensor in the protected panel with serviceable cable access.
  • Cable practice: Keep connectors clean and route transducer wiring away from interference sources.
  • Probe setup: Establish the approved geometry and gap for the machine application.
  • Functional proof: Verify gap voltage, signal stability and monitor-channel response before release.
  • Differential expansion: Supports extended-range position measurement on suitable rotating machinery.
  • Axial position: Conditions non-contact displacement signals in a matched 25 mm installation.
  • Large-machine monitoring: Serves turbines and other machines requiring the 25 mm transducer platform.
  • Measurement-chain replacement: Restores a documented 5.0 m DIN-mounted sensor configuration.
Description
330850-51-00 is a Bently Nevada 3300 XL 25 mm Proximitor Sensor configured for a 5.0 m transducer system and DIN-rail mounting. It conditions the probe signal used for non-contact measurement on large rotating machinery.

The 51 code gives 330850-51-00 its 5.0 m system-length and DIN-mount configuration, while 00 specifies no agency approval option. The sensor must be paired with compatible 25 mm probe and extension-cable components whose combined electrical length matches the system.

Installation of 330850-51-00 requires correct target material, cable routing, field wiring and probe gap. Commissioning should verify the measurement chain across the required range and confirm the connected monitor receives a stable signal before machinery protection decisions depend on it.
Alternative Names
330850-51-00 330850 51 00 Bently Nevada 330850-51-00
Technical notes
330850-51-00 belongs to a calibrated measurement chain, so replacing only the Proximitor Sensor does not validate mixed probe or extension-cable components. Confirm the 5.0 m total electrical length, compatible 25 mm hardware and target material, then verify gap voltage and channel response across the approved installation range before release.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 330850-51-00 be used with any 3300 XL 25 mm probe?
No. The probe, extension cable, total electrical length and target material must belong to the compatible 25 mm measurement chain.
How can the 5.0 m electrical length for 330850-51-00 be confirmed?
Add the probe lead and extension-cable lengths and compare the result with the sensor configuration before the components are connected.
Does approval option 00 on 330850-51-00 cover every hazardous location?
No agency approval option is included in this order code. A project that requires certification should use a configuration whose documented approval matches the installation.
Why can the output become unstable after 330850-51-00 is installed?
Connector contamination, cable routing, target material, probe alignment, supply or monitor termination can disturb the measurement chain. Check the gap voltage and channel response to locate the cause.
Which commissioning measurement is most useful for 330850-51-00?
Confirm the probe gap voltage, then move the approved target through the required range and verify a stable response at the connected monitor channel.
When should existing transducer parts not be mixed with 330850-51-00?
Do not combine them when the probe family, 5.0 m total electrical length, target calibration or approval configuration cannot be shown to match.
