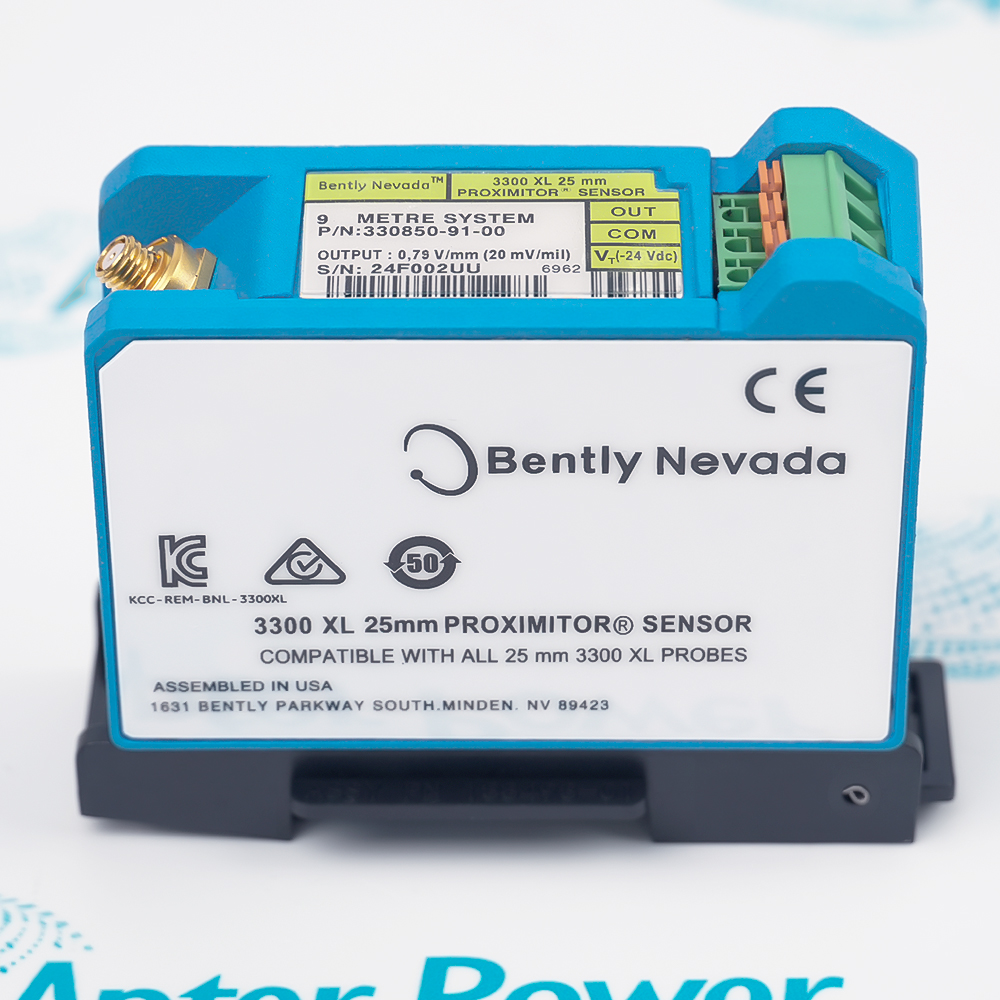

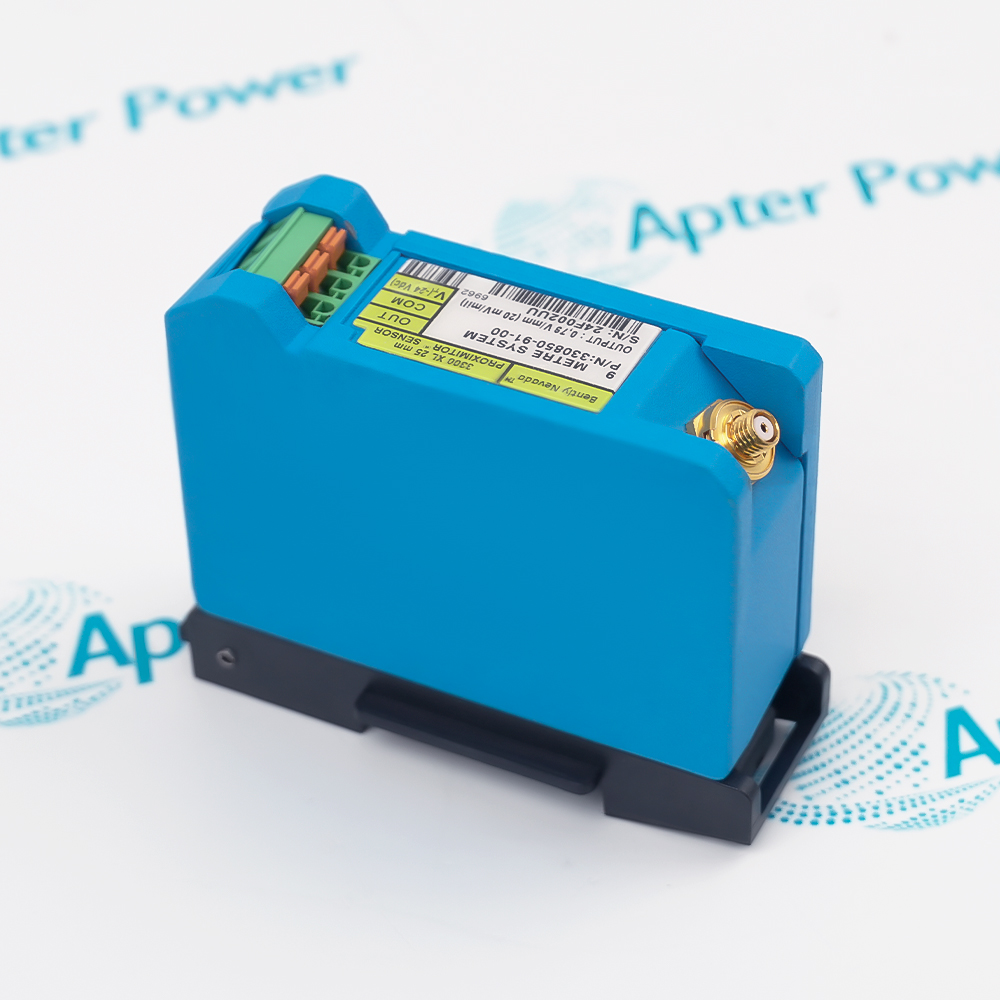

Bently Nevada 330850-91-00 is a DIN-mounted 3300 XL 25 mm Proximitor sensor for a 9.0 m proximity-transducer system with no agency approval option.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 330850-91-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330850-91-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330850-91-00
  • Product Family:
    3300 XL 25mm Proximity Transducer System
  • Product Type:
    3300 XL 25 mm Proximitor Sensor
  • Stock:
    1
  • System Length and Mounting:
    9.0 m system; DIN mount
  • Agency Approval:
    None selected (code 00)
  • Linear Range:
    12.7 mm (500 mil)
  • Minimum Target Diameter:
    61 mm (2.4 in)
  • Nominal Probe Gap:
    7.0 mm (275 mil)
  • Calibration Target:
    AISI 4140 steel
  • Housing Material:
    A380 aluminum
  • Weight:
    0.22 kg
  • Estimated shipping dimensions:
    8.6x3.5x7cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Ordering Code Measurement Boundary System Matching Product Applications

Features:

  • 25 mm system: Provides a wide 12.7 mm linear range for large proximity measurements.
  • DIN-mounted configuration: Ordering code 91 specifies a 9.0 m system length and DIN mounting.
  • Interference control: The Proximitor design improves immunity to radio-frequency and electromagnetic interference.
330850-91-00 is the signal-conditioning element for a matching Bently Nevada 3300 XL 25 mm proximity transducer system.

Its order code fixes the total system length, mounting method, and approval selection.

Accuracy depends on the complete probe, extension cable, Proximitor, target material, target size, gap, and monitor scaling.

Apter Power supports 330850-91-00 enquiries with configuration review, sourcing assistance, technical documentation, and system-matching guidance.
Bently Nevada 330850-91-00 3300 XL 25 mm Proximitor Sensor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • 330850 family: Proximitor Sensor for the 3300 XL 25 mm proximity transducer system.
  • 9 option: 9.0 m total system-length selection.
  • 1 option: DIN-mount packaging.
  • 00 option: No agency approval selection.
  • Linear range: 12.7 mm (500 mil) for the complete 25 mm transducer system.
  • Scale factor: The nominal average output scale is 0.787 V/mm (20 mV/mil).
  • Target geometry: Published performance uses a flat target at least 61 mm (2.4 in) in diameter.
  • Gap reference: The nominal probe gap is 7.0 mm (275 mil) within the specified target arrangement.
  • Component set: Match the sensor with the specified 3300 XL 25 mm probe and extension cable.
  • Length control: Preserve the 9.0 m total transducer-system length represented by the ordering code.
  • Calibration target: Published accuracy and interchangeability use Bently Nevada AISI 4140 steel.
  • Installed record: Keep probe, extension cable, Proximitor, target, gap, mounting, and monitor-channel details together.
  • Differential expansion: Measures large axial movement on turbine-generator machinery where the 25 mm system is specified.
  • Condition monitoring: Converts probe displacement into a proportional voltage for a compatible monitor or control input.
  • Commissioning support: Provides a defined 12.7 mm range for setting and checking the installed probe gap.
  • Legacy maintenance: The complete 330850-91-00 identity separates DIN, panel, system-length, and approval variants.
Description
330850-91-00 is the DIN-mounted Proximitor sensor configuration for the Bently Nevada 3300 XL 25 mm proximity transducer system. Ordering code 91 specifies a 9.0 m system length with DIN mounting, while code 00 selects no agency approvals.

Designed for large-range proximity measurement, 330850-91-00 conditions the probe signal for applications such as differential expansion. The 25 mm system provides a 12.7 mm (500 mil) linear range and improved resistance to radio-frequency and electromagnetic interference.

For the published accuracy and interchangeability, 330850-91-00 should be applied with the matching 25 mm probe and extension-cable configuration against the specified AISI 4140 steel target. Confirm a target diameter of at least 61 mm, the 7.0 mm nominal gap reference, total system length, mounting style, and approval needs before replacement.
Alternative Names
3308509100 330850 91 00 Bently Nevada 330850-91-00 330850-91-00 Proximitor Sensor
Technical notes
The 91 option combines a 9.0 m total system length with DIN mounting, and the 00 option carries no agency approval. Measurement accuracy depends on the complete 25 mm probe, extension cable, Proximitor, target material, target diameter, and gap matching the published system configuration before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must match before procuring 330850-91-00 for an existing machine?
Confirm the 25 mm probe family, extension cable, 9.0 m system length, DIN mounting, target material, and monitor scaling.
Why may 330850-91-00 show reduced usable range after installation?
Incorrect supply voltage, target geometry, probe gap, field wiring, or mismatched transducer components can reduce expected performance.
How should target material be handled when commissioning 330850-91-00?
Use the documented AISI 4140 calibration basis or obtain an engineering review for another conductive target material.
What checks help isolate a wiring fault around 330850-91-00?
Verify supply voltage, shielded field wiring, terminal condition, probe and extension-cable continuity, gap voltage, and monitor input.
When is 330850-91-00 appropriate for differential-expansion measurement?
Use it only where the machine design calls for the complete 3300 XL 25 mm system and its 12.7 mm linear range.
What records should be retained after servicing 330850-91-00?
Keep the full code, probe and cable identities, target data, gap, mounting position, output checks, and connected monitor channel.
