Product overview:
- Standard probe without armor with 3/8-24 UNF case thread
- 0.0 in unthreaded length and 1.6 in overall case length
- 0.5 m total probe length with ClickLoc connector with protector and FluidLoc cable

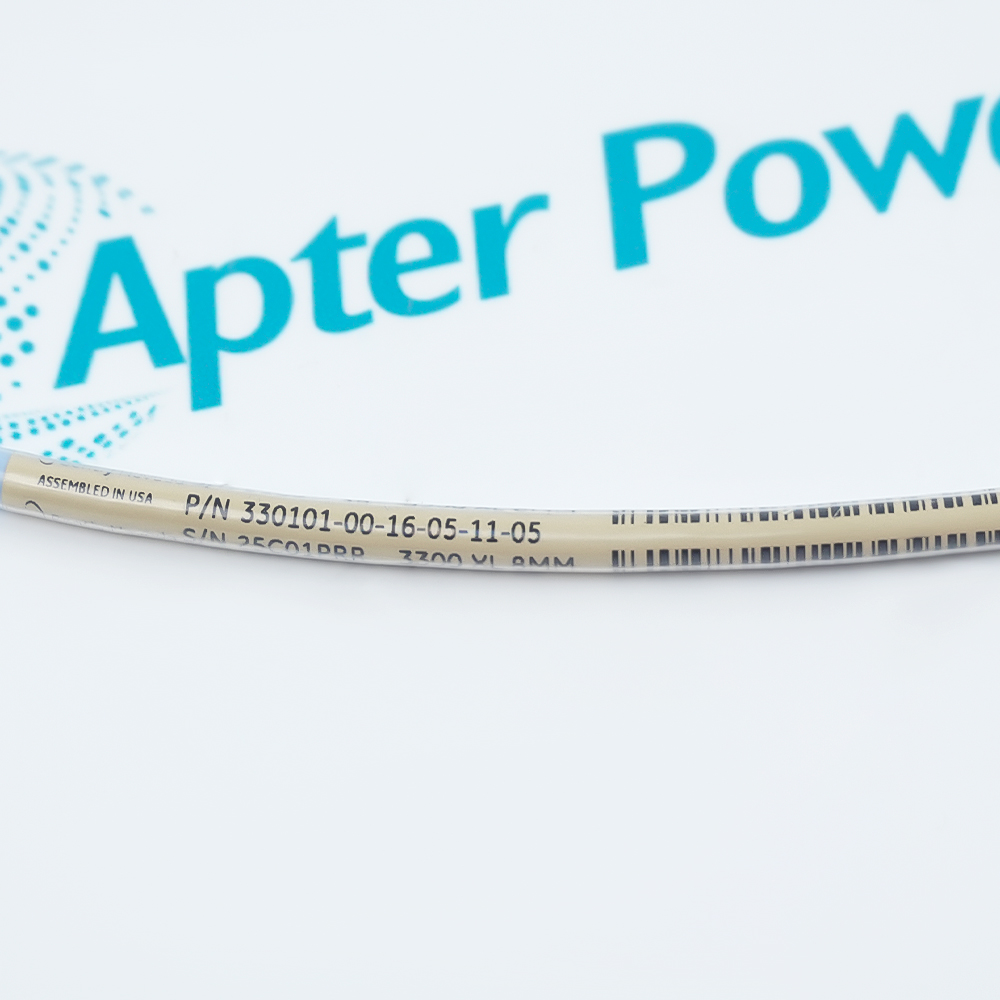

330101-00-16-05-11-05 is a standard probe without armor for non-contacting shaft vibration and position measurement. Its 3/8-24 UNF case, 0.0 in unthreaded length and 1.6 in overall case length define the mechanical fit.
The probe has a 0.5 m total length and uses ClickLoc connector with protector and FluidLoc cable. The supplied approval field is 05, CSA/ATEX/IECEx multiple approvals, so the ordered assembly and site documentation must be checked together.
Match the probe with a compatible extension cable that completes a 5 m or 9 m 3300 XL system. Confirm target material, mounting clearance, probe gap, cable routing and channel response before commissioning.
Verified resources for Bently Nevada 330101-00-16-05-11-05:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Supports non-contact shaft vibration and position measurement in rotating machinery.
- Used with a matched extension cable and Proximitor sensor in a 3300 XL 8 mm system.
- Fits condition-monitoring installations where the probe must be mounted at the machine casing.
- The unarmored lead suits protected routing where an external conduit or cable guard is provided.
- FluidLoc cable option 11 helps restrict fluid migration through the cable assembly.
- Select mounting hardware and routing that protect the probe tip from mechanical contact.
- Approval option 05 identifies the ordered probe configuration for applicable certified installations.
- Hazardous-area use depends on the approval carried by the complete probe, cable, and sensor system.
- Maintain shield continuity and approved grounding practices during field replacement.
- The matched 3300 XL 8 mm system provides a nominal 200 mV/mil sensitivity.
- System performance depends on the correct probe, extension cable, and Proximitor sensor combination.
- Final probe gap must be set from the monitor voltage rather than mechanical distance alone.
