    Apter Power maintains a robust supply of current Bently Nevada hardware, providing reliable, brand-new components to uphold the highest safety standards for your machinery protection systems.

330101-00-12-10-02-CN

/ 4.9
1001 reviews | Need a Specific Revision?

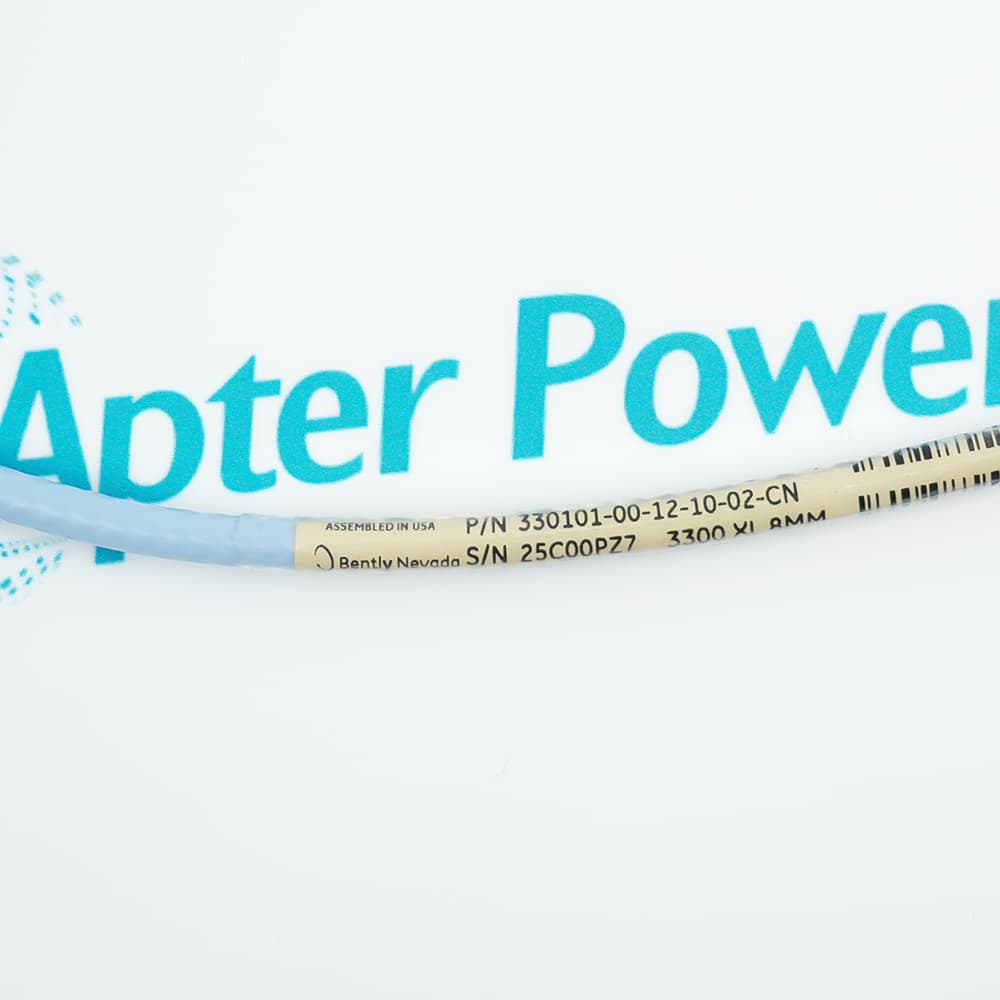

Bently Nevada 330101-00-12-10-02-CN is a 3300 XL 8 mm proximity probe for measuring shaft vibration, position, speed, and Keyphasor signals.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330101-00-12-10-02-CN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330101-00-12-10-02-CN

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330101-00-12-10-02-CN
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    3300 XL 8 mm Proximity Probe
  • Stock:
    8
  • Unthreaded Length Option:
    0.0 in.
  • Overall Case Length Option:
    1.2 in.
  • Total Length Option:
    1.0 meter (3.3 feet)
  • Connector-Type:
    Miniature coaxial ClickLoc connector
  • Cable-Type:
    standard cable
  • Agency Approval Option:
    CSA, ATEX, IECEx Approvals
  • Operating Temperature:
    +18˚C to +27˚C (+64˚F to +80˚F)
  • Maximum Altitude:
    2000 meters
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    1.5x1.3x121cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics Application Scenarios Protection

Features:

  • Produces highly accurate non-contact position, vibration, speed, and Keyphasor reference measurements using advanced eddy current sensing technology.
  • Patented TipLoc and CableLoc technologies improve mechanical durability and provide a cable pull strength of 330 N (75 lbf) for dependable long-term operation.
  • Supports interchangeable system components with backward compatibility for selected non-XL 3300 Series transducer systems, reducing maintenance complexity.
Bently Nevada 330101-00-12-10-02-CN plays an important role in industrial condition monitoring by supplying precise shaft motion information for rotating machinery. Reliable vibration and position data help maintenance personnel evaluate machine health and support predictive maintenance strategies. The probe is especially suitable for equipment operating with fluid-film bearings where continuous monitoring is essential.

The transducer system converts the distance between the probe tip and a conductive target into a proportional voltage output, making both static and dynamic measurements possible. Along with vibration monitoring, the probe can provide Keyphasor reference signals and speed measurements for rotating equipment diagnostics. The interchangeable design also simplifies replacement procedures without requiring component recalibration.

Bently Nevada 330101-00-12-10-02-CN combines certified safety approvals, a miniature coaxial ClickLoc connector, and a 1.0 meter standard cable to support dependable installation across industrial environments. The patented probe construction enhances mechanical integrity while maintaining compatibility with selected legacy 3300 Series components. These capabilities make the probe a practical solution for maintenance, modernization, and machine protection applications.

The 330101-00-12-10-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-12-10-02-CN 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330101-00-12-10-02-CN 3300 XL 8 mm Proximity Probe Specs

General

  • Manufacturer Bently Nevada
  • Model 330101-00-12-10-02-CN
  • Condition New Original ready stock
  • Product Family 330101-00-12-10-02-00,330101-00-12-10-02-05,330101-00-12-10-01-CN
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Static Shaft Displacement: Provides an 80 mil linear measurement range for precise tracking of rotor displacement changes.
  • Dynamic Shaft Vibration: Captures high-frequency dynamic changes in real time to generate accurate shaft centerline trajectory and spectrum analysis charts.
  • Differential Thermal Expansion: Continuously monitors the relative thermal expansion between the housing and rotor to prevent internal mechanical rubbing.
  • Sensor Self-Test: Works with a preamplifier to monitor circuit voltage for automatic diagnosis of sensor open-circuit or short-circuit faults.
  • Steam Turbine Monitoring: Long-term fixed installation inside the high and low pressure bearing housings of large steam turbines to monitor the main shaft's operating status.
  • Centrifugal Compressors: Densely deployed at key radial and axial points of high-speed compressors in the petrochemical industry for vibration measurement.
  • Industrial Explosion-Proof Areas: Equipped with the -CN national explosion-proof certification mark, suitable for hazardous locations containing flammable and explosive gases.
  • Space-Constrained Installation: Utilizes a 3/8-24 inch threaded housing structure for easy and precise screwing into compact bearing housing threaded holes.
  • Zero Speed ​​Monitoring: Precisely captures non-contact ultra-low speed pulse signals to coordinate with the system for turning gear protection interlocking.
  • Interlock Trip Trigger: Immediately outputs a danger trip signal when micron-level abnormal vibration of the bearing exceeds the safety limit.
  • Electromagnetic Interference Resistance: Employs a physically adaptive shielding layer design to isolate electrical noise interference from the complex and strong magnetic fields of power plants.
  • Extreme Physical Protection: The front end is encapsulated with PPS ceramic composite material to resist oil immersion and high-pressure steam erosion.
Description
Bently Nevada 330101-00-12-10-02-CN belongs to the 3300 XL 8 mm Proximity Transducer System, which includes one 3300 XL 8 mm probe, one extension cable, and one Proximitor Sensor. The system generates an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, allowing reliable measurement of both static position and dynamic vibration. It is widely applied for fluid-film bearing machinery, Keyphasor reference, and speed monitoring.

Built to deliver advanced eddy current proximity measurement performance, Bently Nevada 330101-00-12-10-02-CN supports precise machine condition monitoring while maintaining full compliance with API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability when used in the standard 5-meter system. Complete interchangeability between probes, extension cables, and Proximitor Sensors eliminates the need for individual component matching or bench calibration, simplifying installation and maintenance.

The probe incorporates several patented mechanical improvements that enhance durability in demanding industrial environments. The TipLoc molding method creates a stronger bond between the probe tip and the probe body, while the CableLoc cable design provides a pull strength of 330 N (75 lbf) for a more secure cable attachment. An optional FluidLoc cable version is also available to prevent oil and other liquids from leaking through the interior of the cable.

Bently Nevada 330101-00-12-10-02-CN features a 1.0 meter standard cable, a miniature coaxial ClickLoc connector, an unthreaded length of 0.0 in, and an overall case length of 1.2 in. The probe carries CSA, ATEX, and IECEx approvals, supports operation at a maximum altitude of 2000 meters, and is specified for an operating temperature range of +18°C to +27°C (+64°F to +80°F). In addition, the 3300 XL probe remains backward compatible and interchangeable with selected non-XL 3300 Series 5 mm and 8 mm transducer system components, providing flexibility for existing installations.
Alternative Names
33O1O1-OO-12-1O-O2-CN 330I0I-00-I2-I0-02-CN 33010100121002CN 330101-00-12-10-02-00 330101-00-12-10-02-05 330101-00-12-10-02-BR 330101-00-12-10-02-RU 330101-00-12-10-12-CN
Technical notes
Featuring a 3/8-24 UN-2A threaded casing and an integrated 1.0-meter cable with fluid-resistant coaxial connectors, the Bently Nevada 330101-00-12-10-02-CN ensures reliable physical deployment. This specific version carries essential -CN domestic explosion-proof certification, making it safe for harsh petroleum and chemical environments.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What measurements can Bently Nevada 330101-00-12-10-02-CN perform?
Bently Nevada 330101-00-12-10-02-CN measures shaft vibration, position, speed, and Keyphasor reference by producing an output voltage proportional to the distance between the probe tip and a conductive surface.
How does Bently Nevada 330101-00-12-10-02-CN improve cable reliability?
A patented CableLoc design gives the probe cable a pull strength of 330 N (75 lbf), creating a stronger mechanical connection between the cable and the probe tip.
Can Bently Nevada 330101-00-12-10-02-CN work with earlier 3300 Series components?
Yes. Bently Nevada 330101-00-12-10-02-CN is backward compatible and interchangeable with selected non-XL 3300 Series 5 mm and 8 mm transducer system components.
Does Bently Nevada 330101-00-12-10-02-CN include international hazardous-area approvals?
Yes. The probe is available with CSA, ATEX, and IECEx approvals for installations requiring certified equipment.
