    Equip your condition monitoring framework with factory-tested Bently Nevada proximity hardware sourced directly through Apter Power's extensive automation catalog.

330101-00-25-05-01-05

/ 4.9
1001 reviews | Need a Specific Revision?

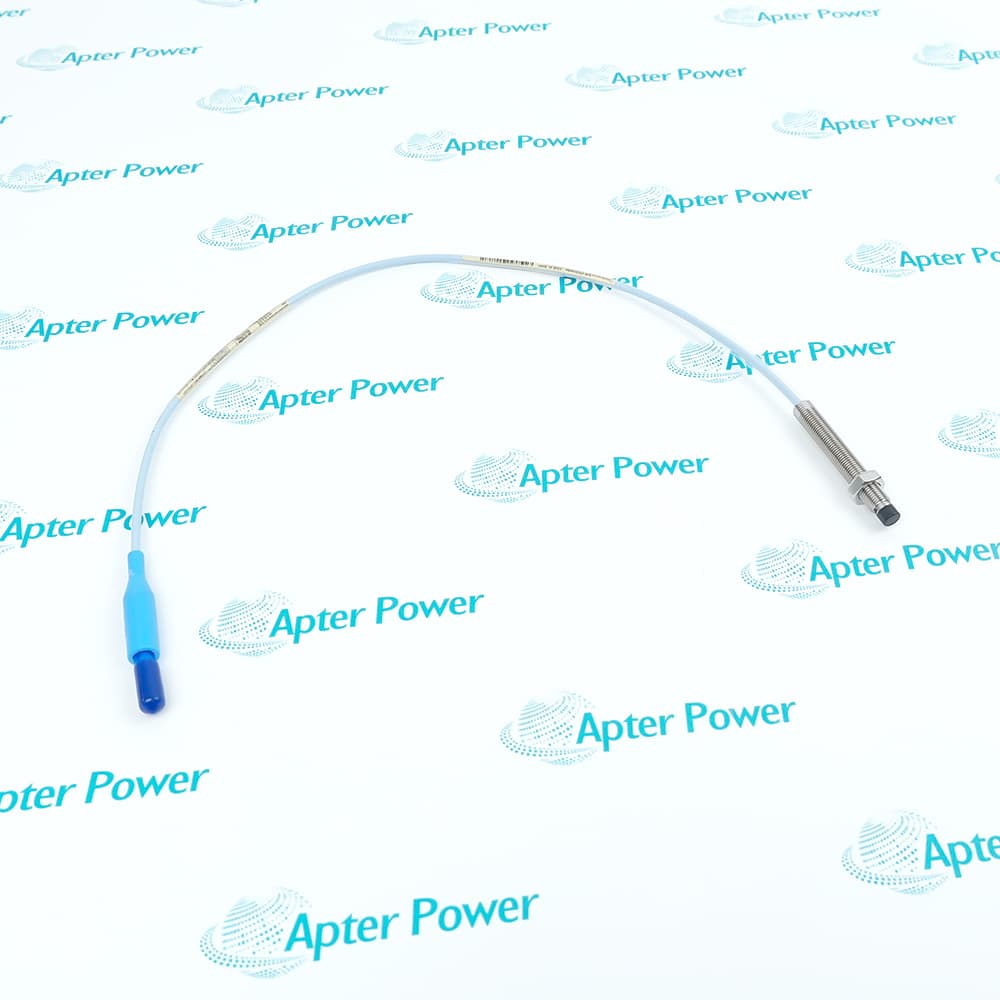

Bently Nevada 330101-00-25-05-01-05 is a 3300 XL 8 mm proximity probe that measures shaft position, vibration, speed, and Keyphasor reference signals on fluid-film bearing machines.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330101-00-25-05-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330101-00-25-05-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:

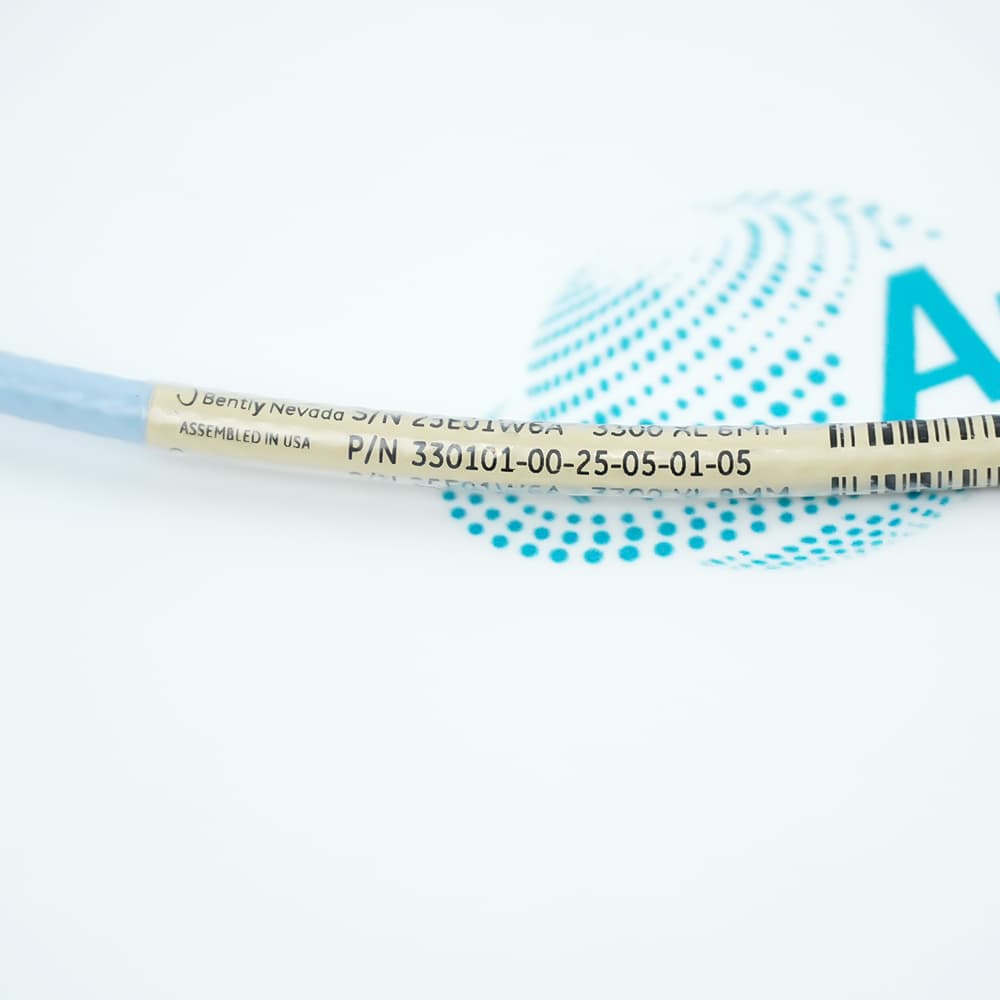

    330101-00-25-05-01-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    Proximity Probe
  • Stock:
    1
  • Probe TipMaterial:
    Polyphenylene sulfide (PPS)
  • Probe Case Material:
    AISI 303 or 304 stainless steel(SST)
  • Armor(optional onboth):
    Flexible AISI 302 or 304 SSTwith FEP outer jacket
  • Standard cable:
    75 Q triaxial, fluoroethylenepropylene (FEP) insulated
  • Extended Temperature Range cable:
    75Ω triaxial, perfluoroalkoxy(PFA) insulated
  • Minimum Cable BendRadius:
    25.4 mm (1.0 in)
  • Maximum Connector Torque:
    0.565 N•m (5 in•lbf)
  • Output Resistance:
    50 Ω
  • Unthreaded Length Option:
    0.0 in
  • Overall Case Length Option:
    2.5 in
  • Total Length Option:
    0.5 meter
  • Connector and Cable-Type Option:
    Miniature coaxial ClickLocconnector with connectorprotector, FluidLoc cable
  • Agency Approval Option:
    CSA, ATEX, IECEx Approvals
  • Weight:
    0.05 kg
  • Estimated shipping dimensions:
    1.5x1.3x65cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Product Applications Installation Monitoring

Features:

  • High-Accuracy Non-Contact Proximity Probe For Shaft Vibration And Displacement Monitoring.
  • Compact 8 mm Probe With Robust TipLoc And CableLoc Design For Enhanced Reliability.
  • Compatible With 3300 XL System For Seamless Integration And Long-Term Operation.
The 330101-00-25-05-01-05 Proximity Transducer Probe delivers precise, non-contact measurement of both static and dynamic shaft positions. Its high sensitivity ensures accurate vibration monitoring for critical rotating machinery in industrial applications.

Built with a compact 8 mm diameter and a rugged housing, this probe incorporates TipLoc and CableLoc technology to secure the probe tip and cable. This design improves mechanical stability and reduces maintenance requirements in demanding operating conditions.

Fully compatible with the Bently Nevada 3300 XL monitoring system, the probe supports continuous operation across a wide temperature range. It is ideal for turbines, compressors, generators, and other high-value equipment, enabling predictive maintenance and minimizing unplanned downtime.

The 330101-00-25-05-01-05 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-25-05-01-05 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330101-00-25-05-01-05 3300 XL 8 mm Proximity Probe

General

  • Manufacturer GE / Bently Nevada
  • Model 330101-00-25-05-01-05
  • Condition New Original ready stock
  • Product Family 330101-00-25-05-01-00,330101-00-25-05-01-CN,330101-00-25-05-01-BR
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Vibration Monitoring: Measuring the dynamic motion of a shaft within fluid-film bearings to detect imbalances or misalignments.
  • Axial (Thrust) Position: Monitoring the static distance between the probe tip and a shaft shoulder to prevent rotor-to-stator contact.
  • Keyphasor & Speed Measurement: Providing a "once-per-turn" reference signal for phase angle measurements and tachometer/speed sensing.
  • Gap Setting: The recommended initial gap is 1.27 mm (50 mils), which typically corresponds to a -10 Vdc output at the Proximitor sensor.
  • Target Material: Standard calibration is for AISI 4140 steel. Using different metals without custom calibration will result in inaccurate readings.
  • Cross-Talk Prevention: To prevent electromagnetic interference between adjacent probes, maintain a minimum tip separation of 40 mm (1.6 in) for axial measurements or 38 mm (1.5 in) for radial vibration.
  • Scale Factor: Standard output is 200 mV/mil (7.87 V).
  • Linear Range: 2.0 mm (80 mils).
  • Center Point: A -10 Vdc reading typically represents the middle of the linear range (a 1.27 mm or 50 mil gap).
Description
Bently Nevada 330101-00-25-05-01-05 forms the sensing element of a complete 3300 XL 8 mm Proximity Transducer System, which also includes a compatible extension cable and Proximitor Sensor. The system produces an output voltage directly proportional to the distance between the probe tip and a conductive target surface. Both static measurements, such as shaft position, and dynamic measurements, such as vibration, can be obtained. Primary applications include machinery vibration monitoring, axial or radial position measurement, speed measurement, and Keyphasor reference generation.

Built with a polyphenylene sulfide probe tip and an AISI 303 or 304 stainless-steel case, Bently Nevada 330101-00-25-05-01-05 combines electrical insulation with durable mechanical construction. Optional flexible armor uses AISI 302 or 304 stainless steel with an FEP outer jacket. The probe has a 0.0-inch unthreaded length, a 2.5-inch overall case length, and a total cable length of 0.5 meter. A minimum cable bend radius of 25.4 mm must be maintained during routing and installation.

Signal transmission for Bently Nevada 330101-00-25-05-01-05 uses a 75 Ω triaxial cable. Standard cable construction uses fluoroethylene propylene insulation, while extended-temperature versions use perfluoroalkoxy insulation. The selected configuration includes a miniature coaxial ClickLoc connector with a connector protector and FluidLoc cable. FluidLoc construction helps prevent oil and other liquids from escaping through the internal cable path, making the probe suitable for machinery installations exposed to process fluids.

Bently Nevada 330101-00-25-05-01-05 provides a 50 Ω output resistance and permits a maximum connector torque of 0.565 N·m. TipLoc molding strengthens the bond between the probe tip and body, while CableLoc construction improves the mechanical attachment of the probe cable. The 3300 XL platform supports interchangeability among compatible probes, extension cables, and Proximitor Sensors without individual component matching or bench calibration. CSA, ATEX, and IECEx approvals also support installation in regulated industrial environments.
Alternative Names
330101-00-25-05-01-00 330101-00-25-05-01-BR 330101-00-25-05-01-CN 330101-00-25-05-01-RU 330101-00-25-05-02-05 3301010025050105 330I0I-00-25-05-0I-05 33O1O1-OO-25-O5-O1-O5
Technical notes
The Bently Nevada 330101-00-25-05-01-05 serves as a core component of the 3300 XL 8 mm transducer system, configured with a 0.5m total length and standard M10x1 thread. It offers an exact-fit, reliable replacement to seamlessly connect with 3300 XL extension cables and Proximitor sensors for uninterrupted rotating asset protection.
