330102-00-40-10-11-05

/ 4.9
1001 reviews | Need a Specific Revision?

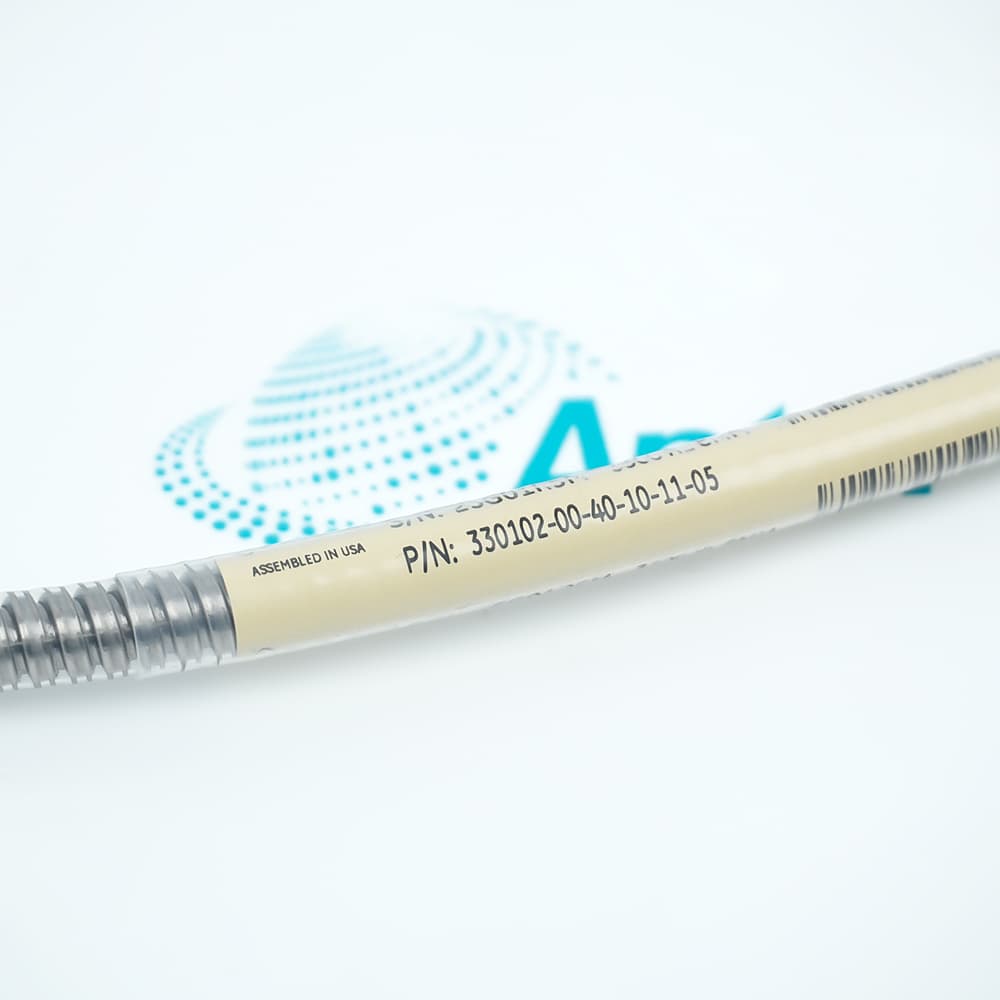

The 330102-00-40-10-11-05 is a proximity probe from the Bently Nevada 3300 series, designed for non-contact measurement of shaft displacement and vibration in rotating machinery.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330102-00-40-10-11-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330102-00-40-10-11-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330102-00-40-10-11-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    proximity probe
  • Stock:
    2
  • Unthreaded Length:
    0.0 in
  • Overall Case Length:
    4.0 in
  • Total Length Option:
    1.0 meter (3.3 feet)
  • Standard cable:
    75 Q triaxial, fluoroethylenepropylene (FEP) insulated
  • Minimum Cable BendRadius:
    25.4 mm (1.0 in)
  • Output Resistance:
    50 Ω
  • Connector and Cable-Type Option:
    Miniature coaxial ClickLocconnector with connectorprotector, FluidLoc cable
  • Agency Approval Option:
    CSA, ATEX, IECEx Approvals
  • Weight:
    0.05 kg
  • Estimated shipping dimensions:
    1.5x1.3x65cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Product Applications Diagnostics Installation

Features:

  • High-Precision Proximity Probe Provides Accurate Shaft Position And Vibration Monitoring.
  • Durable Stainless Steel Construction Ensures Reliable Performance In Demanding Industrial Environments.
  • Compatible With 3300 And 3500 Series Monitoring Systems For Real-Time Machinery Protection.
The 330102-00-40-10-11-05 is a robust proximity probe from Bently Nevada’s 3300 series, designed for accurate, non-contact monitoring of rotating machinery. Its industrial-grade construction and precision sensing tip allow reliable operation under challenging conditions such as vibration, moisture, and temperature variations.

330102-00-40-10-11-05 continuously measures shaft displacement and vibration, delivering real-time data to monitoring systems like the Bently Nevada 3500 series. It enables early detection of mechanical issues, including imbalance, misalignment, and bearing wear, supporting preventive maintenance strategies and minimizing unexpected downtime.

With an integrated high-quality cable and compact design, the 330102-00-40-10-11-05 is easy to install, maintain, and replace. Its proven reliability and compatibility with existing 3300 series infrastructure make it suitable for turbines, compressors, pumps, motors, and other critical rotating equipment in industrial plants.

The 330102-00-40-10-11-05 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from authorized distributors beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330102-00-40-10-11-05 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330102-00-40-10-11-05 3300 XL 8 mm Proximity Probe

General

  • Manufacturer Bently Nevada
  • Model 330102-00-40-10-11-05
  • Condition New Original ready stock
  • Product Family 330102-00-40-10-11-00,330102-00-40-10-11-BR,330102-00-40-10-11-CN
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Vibration Monitoring: Measures the radial runout of high-speed rotating shafts (such as motors, fans, and pumps) to identify imbalances or misalignments.
  • Axial Displacement Monitoring: Monitors the axial movement of the rotor to prevent collisions between the rotor and stator.
  • Speed/Keyphasor Measurement: Provides a pulse signal per revolution in conjunction with the keyway on the shaft for phase analysis and speed calculation.
  • Ideal operating value: Approximately -10 VDC (representing the probe being in the center of the linear measurement range, with a gap of approximately 1.27 mm).
  • Linear range: Between -2V and -18V. If the voltage is outside this range, the monitoring instrument will report "Not OK".
  • Voltage too low (approaching 0V): Probe is in contact with the shaft, or the cable is short-circuited.
  • Thread Specification: Confirm the mounting hole is 3/8-24 UNF. This model features a 4.0-inch (40) full thread design. Ensure the bracket is rigid during installation to prevent interference from bracket vibration.
  • Locking Nut: After installation, secure with the provided stainless steel locking nut. Recommended tightening torque is 13.6 N·m (120 in·lb).
  • Gap Setting: Slowly rotate the probe close to the shaft surface. Use a multimeter to measure the output voltage of the proximitor. Typically, set the initial gap voltage to -10.0 VDC (corresponding to approximately 1.27 mm of physical gap).
Description
The Bently Nevada 330102-00-40-10-11-05 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF threads, featuring armored cable construction for enhanced mechanical protection in harsh industrial environments.

The 330102-00-40-10-11-05 incorporates patented TiLoc molding for a robust bond between the probe tip and body, and CableLoc technology providing 330 N (75 lbf) pull strength. The FluidLoc cable option (11) prevents oil and other liquids from leaking out of the machine through the cable's interior.

The 330102-00-40-10-11-05 carries CSA, ATEX, and IECEx approvals (option 05) for hazardous area installations. It is factory calibrated to AISI 4140 steel by default, with other target material calibrations available upon request.

The 330102-00-40-10-11-05 is fully interchangeable with both XL and non-XL 3300 series 5 mm and 8 mm components, eliminating bench calibration. It complies with API 670 Standard and operates from -51°C to +177°C, making it suitable for demanding applications such as turbines and compressors.
Alternative Names
33O1O2-OO-4O-1O-11-O5 330I02-00-40-I0-II-05 330102 00 40 10 11 05 330102-00-40-10-11-00 330102-00-40-10-11-CN 330102-00-40-10-11-RU 330102-00-40-10-11-BR 330102-22-58-10-02-00
Technical notes
The Bently Nevada 330102-00-40-10-11-05 is a high-performance 3300 XL 8mm proximity probe engineered for non-contacting vibration and displacement measurements in demanding industrial rotating machinery. This specific configuration features a 3/8-24 UNF fully threaded 4.0-inch stainless steel case (0.0" unthreaded length) and is equipped with integral cable armor for superior mechanical protection in harsh environments.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What type of probe is the 330102-00-40-10-11-05?
It is a 3300 series proximity probe designed for precise shaft displacement and vibration monitoring in industrial rotating machinery.
What are the main physical characteristics of 330102-00-40-10-11-05?
The probe features a robust stainless steel housing, a precision sensing tip, and a high-quality integral cable for reliable signal transmission.
What environmental conditions can 330102-00-40-10-11-05 operate under?
It is engineered to perform reliably in harsh industrial environments with high vibration, temperature fluctuations, moisture, and dust exposure.
