330103-00-18-10-02-00

Features:

• Precision Sensing Interface Between Conductive Target Surfaces and 3300 XL Transducer System
• Integrates Eddy Current Detection Capability with Complete System Interchangeability
• Functions Seamlessly with 3300 XL Extension Cables and Proximitor Sensors

The 330103-00-18-10-02-00 3300 XL 8 mm Proximity Probe serves as the precision sensing element in the 3300 XL transducer system, delivering accurate displacement measurements for critical rotating machinery monitoring. It continuously converts the physical gap between the probe tip and the observed conductive surface into a proportional electrical output voltage, capturing both static position and dynamic vibration data to support comprehensive condition monitoring of fluid-film bearing machines. Complete component interchangeability is standard with the 330103-00-18-10-02-00, eliminating the need to match or bench calibrate individual system components when integrated with other 3300 XL 8 mm probes, extension cables, and Proximitor sensors. The 330103-00-18-10-02-00 delivers advanced performance improvements in linear range, accuracy, and temperature stability over previous proximity probe designs, in addition to full compliance with API 670 mechanical configuration standards.

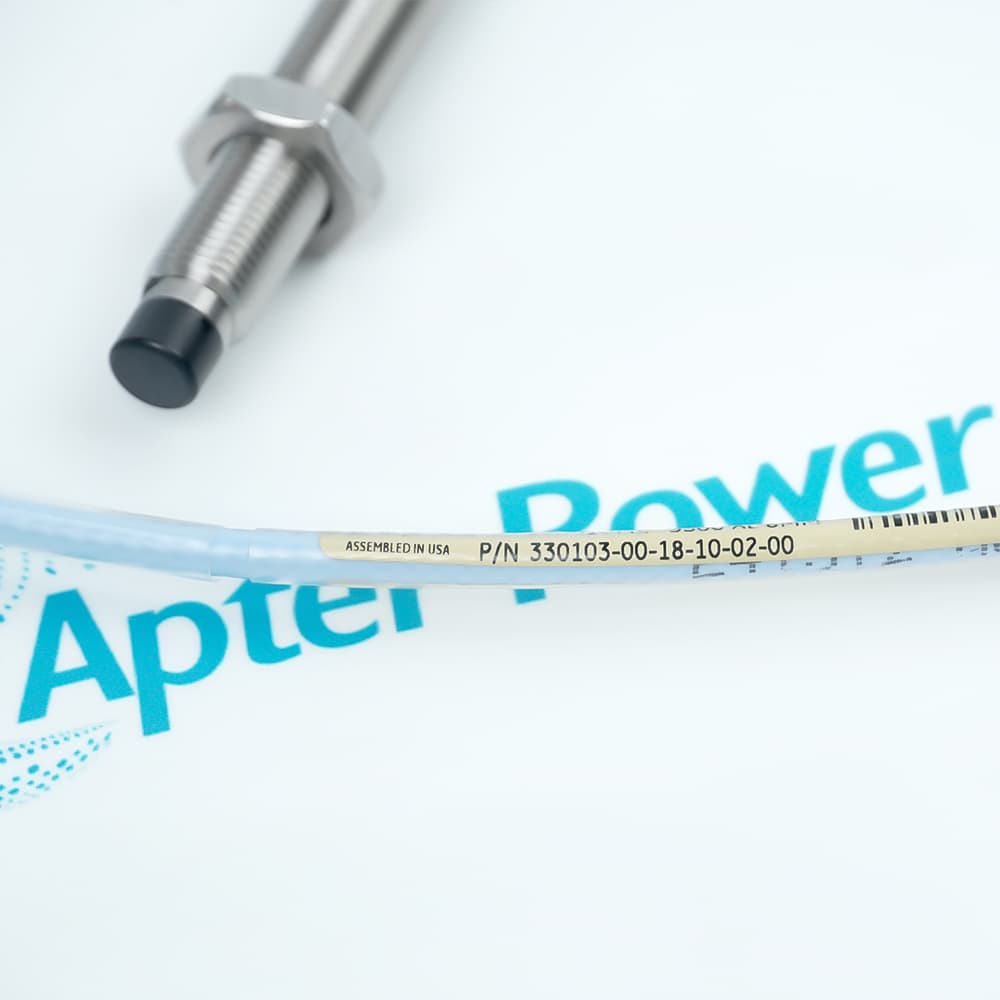

The 330103-00-18-10-02-00 provides essential sensing functions fundamental to the entire transducer system, and is a critical component of the vibration and position measurement path, directly affecting the proper, normal operation of overall machinery protection systems. One 330103-00-18-10-02-00 probe is required per measurement point, with the complete transducer system requiring the probe, extension cable, and Proximitor Sensor for full operational capability. The 330103-00-18-10-02-00 features an M10 x 1 thread mounting configuration with 0 mm unthreaded length, 180 mm overall case length, and 1.0 meter (3.3 feet) total cable length, equipped with a miniature coaxial ClickLoc connector and standard cable construction for reliable signal transmission.

For comprehensive vibration and position monitoring applications, the 3300 XL system requires the 330103-00-18-10-02-00 probe installed at each measurement location on the machine casing. In addition to standard single probe operation, the system architecture also supports multiple probe arrangements for complex monitoring configurations such as XY proximity measurement setups. The 3300 XL multi-probe configuration executes precise displacement detection using the advanced eddy current technology inherent in the transducer system design. Using this method, the 330103-00-18-10-02-00 continually monitors the distance to the rotating shaft or target surface with exceptional linearity throughout its operating range. If the system detects shaft displacement or vibration amplitudes exceeding configured alarm thresholds, it generates proportional output signals for integration with monitoring systems, machinery protection relays, and control system automation.
