    Apter Power sources reliable industrial transducer components to maintain continuous oil-film bearing telemetry.

330104-00-05-90-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

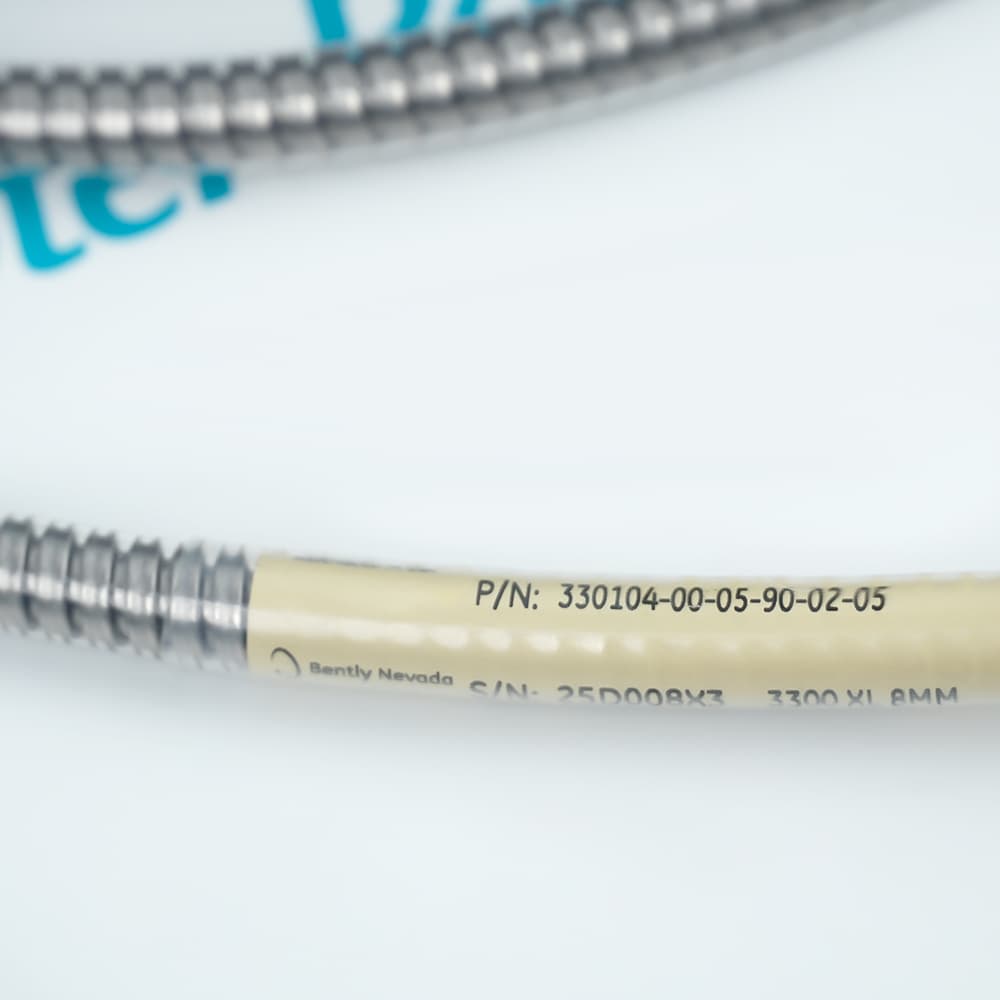

The Bently Nevada 330104-00-05-90-02-05 3300 XL 8 mm Proximity Transducer Probe is a high-precision eddy-current sensor designed for non-contact measurement of shaft displacement and vibration in critical rotating machinery.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330104-00-05-90-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330104-00-05-90-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330104-00-05-90-02-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    Probe
  • Stock:
    2
  • Unthreaded Length Option:
    0 mm
  • Overall Case Length Option:
    50 mm
  • Total Length Option:
    9.0 meters
  • Connector and Cable-Type Option:
    Miniature coaxial ClickLocconnector standard cable
  • Agency Approval Option:
    CSA, ATEX, IECEx Approvals
  • Output Signal:
    Voltage proportional to displacement
  • Operating Voltage:
    −17.5 Vdc to −26 Vdc
  • Current Consumption:
    Approx. 12 mA
  • Output Impedance:
    50 Ω nominal
  • Cable Capacitance:
    69.9 pF/m
  • Weight:
    0.05 kg
  • Estimated shipping dimensions:
    1.5x1.3x65cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Product Applications Configuration Installation

Features:

  • High-Precision 8 mm Proximity Probe For Reliable Shaft Vibration And Displacement Monitoring.
  • Robust 9 Meter Cable With ClickLoc Connector Ensures Stable Signal Transmission In Industrial Environments.
  • Engineered For Seamless Integration With 3300 XL System And Long-Term Machinery Protection.
The 330104-00-05-90-02-05 Proximity Transducer Probe delivers accurate, non-contact measurement of shaft position and vibration in critical rotating equipment. Its compact design and advanced sensing technology provide consistent output, even under continuous operation in demanding industrial settings.

Featuring a 9 meter cable and ClickLoc connector, the probe ensures secure mechanical and electrical connections while resisting vibration, thermal cycling, and mechanical wear. The rugged stainless steel construction enhances durability and long-term reliability for harsh operating conditions.

Fully compatible with the Bently Nevada 3300 XL monitoring system, 330104-00-05-90-02-05 supports predictive maintenance and condition monitoring programs for turbines, compressors, generators, and pumps. Its precise measurement capabilities contribute to reduced downtime, improved equipment life, and enhanced operational safety.

The 330104-00-05-90-02-05 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from authorized distributors beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-00-05-90-02-05 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330104-00-05-90-02-05 3300 XL 8 mm Proximity Probe

General

  • Manufacturer GE / Bently Nevada
  • Model 330104-00-05-90-02-05
  • Condition New Original ready stock
  • Product Family 330104-00-05-90-02-00,330104-00-05-90-02-BR,330104-00-05-90-02-CN
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Vibration Monitoring: Measuring the dynamic motion of a shaft within its fluid-film bearings to detect imbalance, misalignment, or bearing instability.
  • Axial (Thrust) Position: Monitoring the static distance between the probe tip and the shaft shoulder to prevent catastrophic rotor-to-stator contact.
  • Keyphasor & Speed Reference: Providing a "once-per-turn" pulse for phase angle measurements and tachometer signals.
  • Target Material: Calibrated for AISI 4140 steel.
  • Linear Range: 2.0 mm (80 mils), beginning at approximately 0.25 mm (10 mils) from the probe tip.
  • Scale Factor: 7.87 V (200 mV/mil) when connected to a matching 9.0-meter Proximitor sensor.
  • Gap Setting: The standard "middle" gap is 1.27 mm (50 mils), which typically results in a -10 Vdc output at the Proximitor sensor.
  • Target Material: Calibrated for AISI 4140 steel. Using other metals will cause significant scaling errors.
  • Side Clearance: Ensure a minimum hole diameter of 12.7 mm (0.5 in) around the probe tip to prevent "side-viewing" (interference from the mounting hole walls).
Description
As part of the trusted 3300 XL proximity transducer system, 330104-00-05-90-02-05 delivers stable and accurate output signals proportional to the distance between the probe tip and a conductive target surface, enabling reliable monitoring of both dynamic vibration and static position parameters in demanding industrial applications.

330104-00-05-90-02-05 features an 8 mm probe tip diameter, combined with a compact probe body and extended cable configuration to support flexible installation in complex machinery layouts. The probe is equipped with a Miniature ClickLoc™ coaxial connector, ensuring secure and repeatable connections while simplifying installation and maintenance.

Engineered for compatibility with the complete 3300 XL system—including extension cables and Proximitor® sensors—the 330104-00-05-90-02-05 probe provides consistent system performance without the need for individual component calibration.

330104-00-05-90-02-05 is designed to operate reliably across a wide temperature range and in harsh industrial environments, making it suitable for use in turbines, compressors, generators, and other high-value assets. By delivering precise and stable measurement data.
Alternative Names
33O1O4-OO-O5-9O-O2-O5 330I04-00-05-90-02-05 330104 00 05 90 02 05 330104-00-05-90-02-00 330104-00-05-90-02-CN 330104-00-05-90-02-RU 330104-00-05-90-02-BR 330104-00-06-05-02-00
Technical notes
The Bently Nevada 330104-00-05-90-02-05 is a 3300 XL 8 mm proximity probe within the 3300 XL 8 mm Probe family, featuring an unthreaded length option of 0 mm and an overall case length option of 50 mm. It has a total length option of 9.0 meters and is equipped with a miniature coaxial ClickLoc connector standard cable.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What Type is The 330104-00-05-90-02-05?
It is an 8 mm non-contact proximity transducer probe designed for precise measurement of shaft displacement and vibration.
What's 330104-00-05-90-02-05 Cable Length And Connector Type?
The probe includes a 9.0 meter cable with a Miniature ClickLoc coaxial connector for secure and reliable connections.
What is the measurement range of 330104-00-05-90-02-05?
It provides a linear range up to 2 mm (80 mils) depending on the system calibration.
